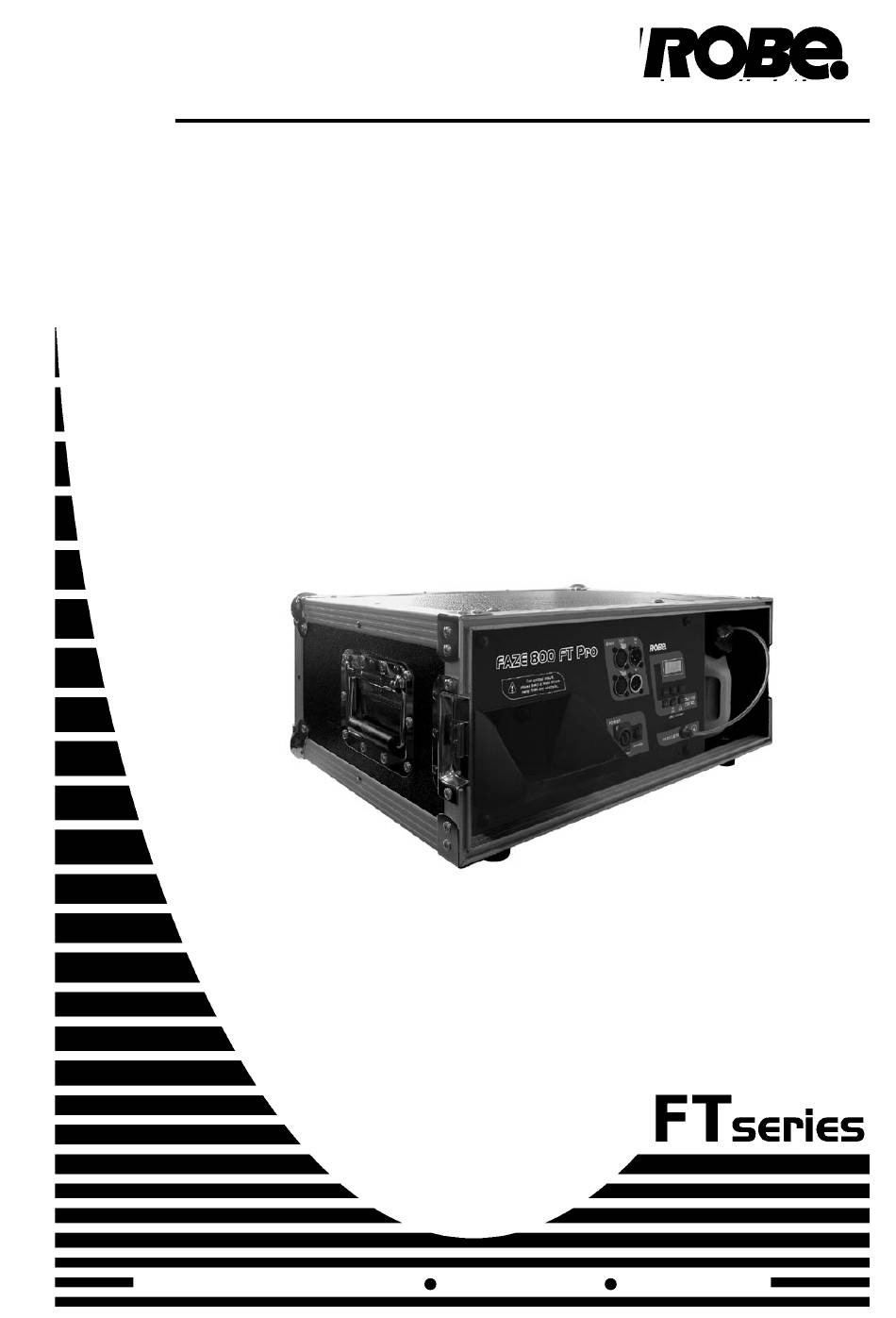

- Page 1 FAZE 800 FT PRO USER MANUAL Version: 1.0 ROBE Lighting s.r.o. Czech Republic www.robe.cz...
- Page 3 FAZE 800 FT PRO Table of contents 1. Introduction 2. Cautions 3. Opening the package and inspecting the machine 4. Assembling the machine 5. Operating the machine 6. DMX control 7. Very important notes 8. Technical specifications...
- Page 4 1. Introduction Thank you for choosing an ROBE FAZE 800 FT PRO. You now own a rugged and powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your ROBE FAZE 800 FT PRO machine for years to come.
- Page 5 1. Open the flight case in the front of the machine. 2. Remove the silver tank’s cap from the front panel of the machine and fill in the designated Robe fog fluid and put back the silver cap.Check again the liquid tube is properly connected and is not loosen due to trans- portation.
- Page 6 Followings are the detail instructions for operating the control panel: There are total 6 buttons at the FAZE 800 FT PRO control panel. They are: -FUNCTION button - UP button - DOWN button - TIMER button - VOLUME button - MANUAL button Users can set up the following functions according to personal preferences or needs.
- Page 7 Speed control from min. (20%) to max. (100%) Fog Fluid: Please use the Robe fog liquid – to ensure the satisfactory high sensibility and thin fog. 7. Very important notes 1. FAZE 800 FT PRO machine also features self cleaning liquid tube function automatically, when the machine is not under operation, please keep the machine pluging in for another while.
- Page 8 8. Technical specifications Power : 100/120V AC; 220/230/240V AC, 50-60 Hz Breaker: Heater: 900 W Tank capacity: 2.7 liter Liquid used: Standard Fog/Performance Fog/Premium Fog DMX connection: 3-pin/+5-pin XLR male/female Power connection: 1.8 m long power cord with PowerCon NACFCA Dimensions (mm): L 540 x W 545 x H 235 mm Weight (empty tank): 20 kg...
