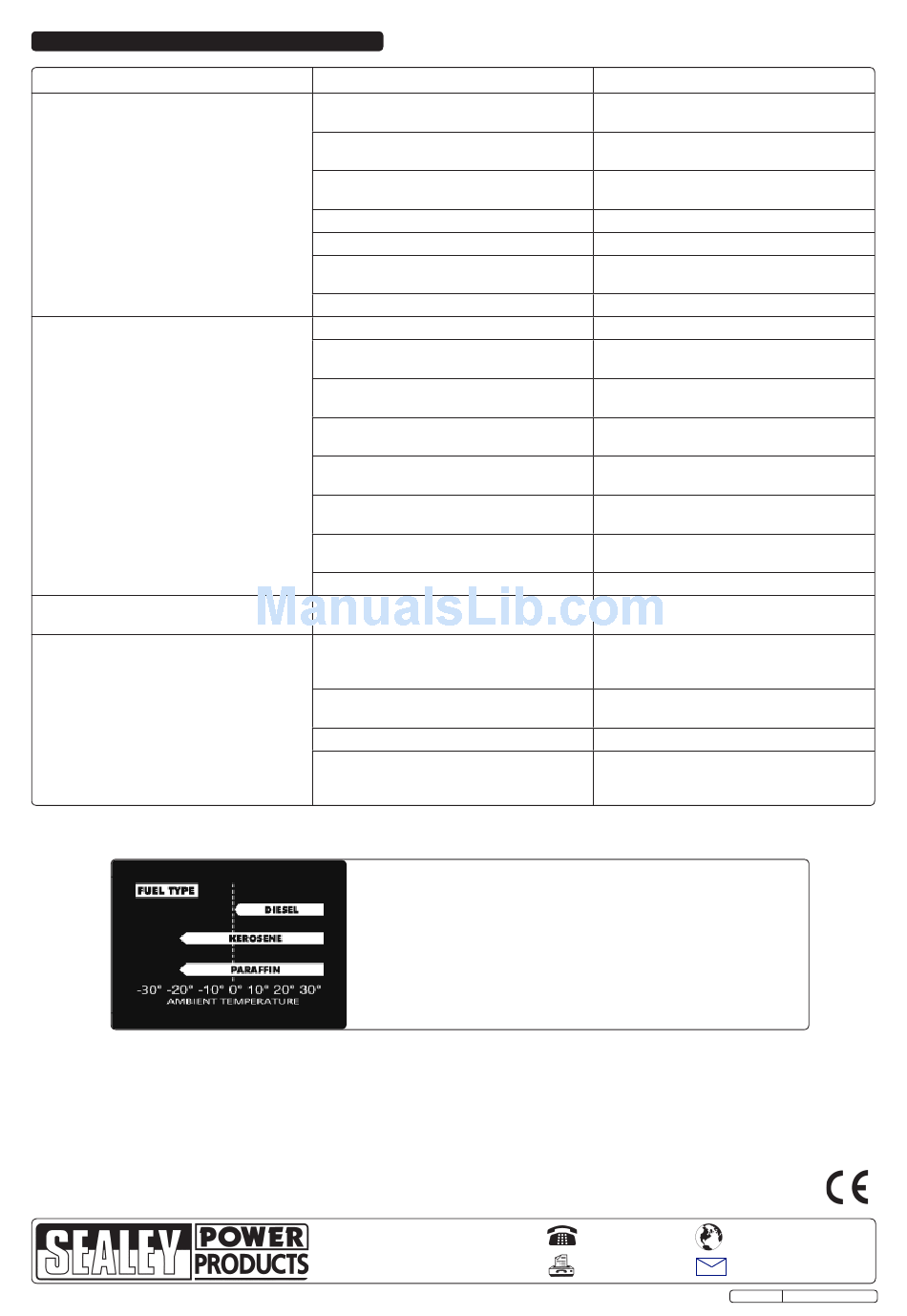

7. TrOUBLESHOOTiNG

Problem
Heater fires but shuts down after a short
period
Heater will not operate or motor runs for short
time
fan does not operate when heater is plugged
in and power switch is in the "on" position
Heater does not turn on and lamp is not lit
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
iMPOrTANT: no liability is accepted for incorrect use of this product.
WArrANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
iNFOrMATiON: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
Possible Cause
1. dirty fuel filter
2. nozzle dirty
3. Photocell dirty
4. Photocell not installed properly
5. Photocell defective
6. Improper electrical connection between
Printed circuit board and Photocell
7. Ambient temperature too low for fuel type
1. No paraffin/kerosene/diesel in fuel tank
2. corroded spark plug or incorrect gap
3. Dirty fuel filter
4. dirty nozzle
5. moisture in fuel tank
6. Improper electrical connection
7. transformer wire not connected to spark
plug
8. defective transformer
1. Broken electrical connection between
Printed circuit board and motor
1. temperature limit sensor has overheated
2. no electrical power
3. fuse blown
4. Improper electrical connection between
temperature limit sensor and Printed
circuit board
Although our heaters operate with diesel fuel, when the temperatures are
below 0°c diesel additives are required to maintain the diesel's viscosity.
typically diesel can cloud in freezing conditions and will start to gel. You
will need additives for your fuel in these conditions.
Kerosene/Paraffin does not start to gel until the ambient temperature is
around (-40°c).
Sole UK Distributor, Sealey Group,
Kempson Way, suffolk Business Park,
Bury st. edmunds, suffolk,
IP32 7Ar
Original Language Version
Solution
1. clean/replace fuel filter
(see maintenance)
2. clean/replace nozzle
(see maintenance)
3. clean/replace Photocell
(see maintenance)
4. Adjust Photocell position
5. replace Photocell
6. check wiring connections fig.8
7. change fuel type
1. Fill tank with fresh paraffin/kerosene/diesel
2. clean/replace spark plug
(see maintenance)
3. Clean/replace fuel filter
(see maintenance)
4. clean/replace nozzle
(see maintenance)
5. rinse out fuel tank with clean paraffin or
kerosene (see maintenance)
6. Inspect all electrical connections
(see Wiring diagram in maintenance)
7. re-attach transformer wire to spark plug
8. replace transformer
1. Inspect all electrical connections
(see Wiring diagram in maintenance)
1. Push power switch to "off" and allow
heater to cool for 5 minutes.
Push power switch back to "on"
2. check power cord to ensure proper
connection. test power supply
3. check/replace fuse
4. Inspect all electrical connections
(see Wiring diagram in maintenance)
