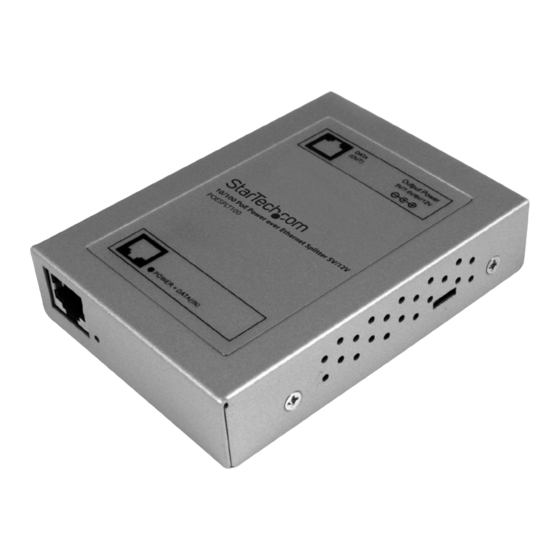

10/100 Power over Ethernet Kit
– 48V Injector and 5V/ 12V Splitter
POEKIT100
POESPLT100
POEINJ100
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/09/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com POEKIT100
Summary of Contents for StarTech.com POEKIT100

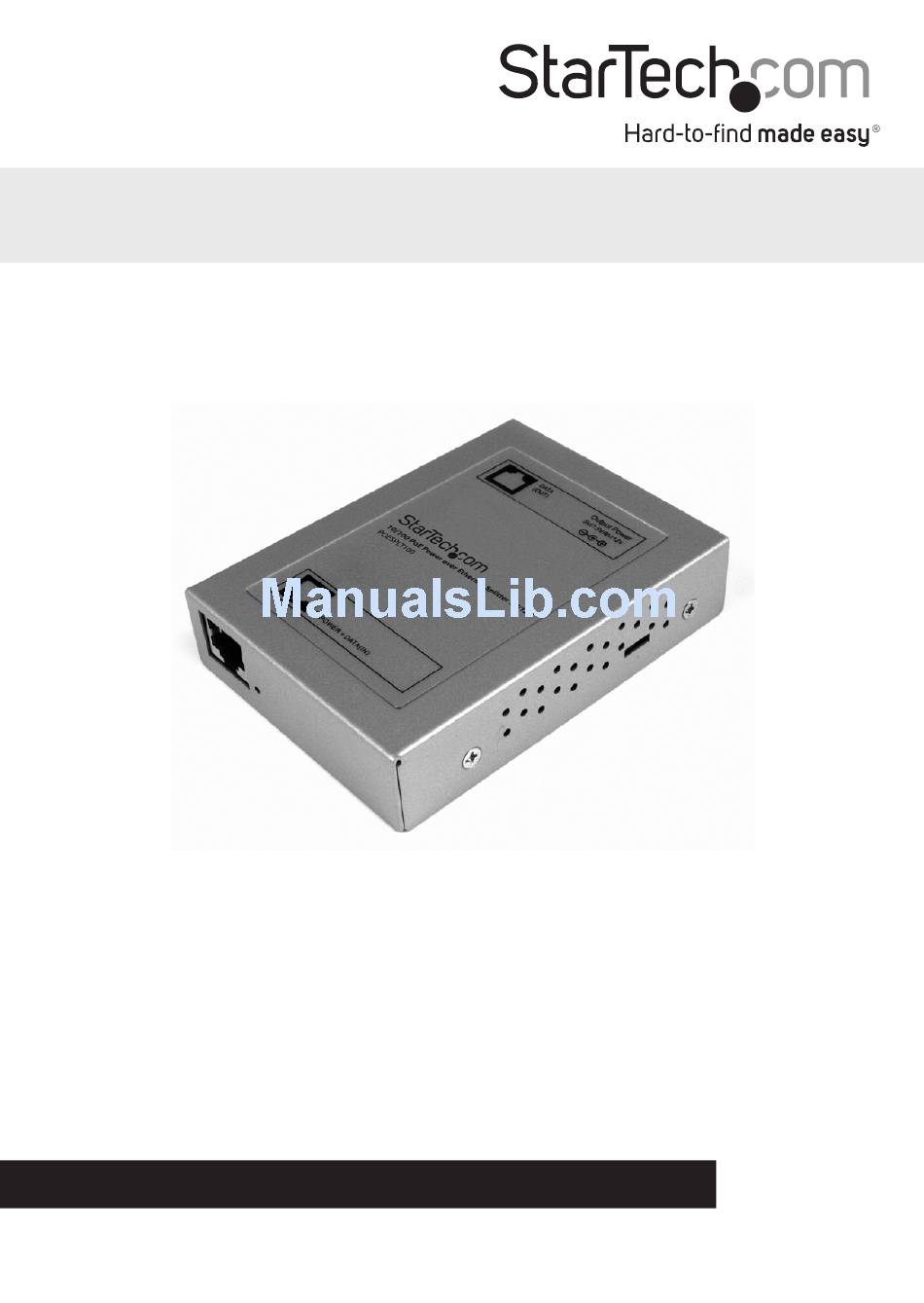

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/09/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Side View - POEINJ100 ..........................2 Side View - POESPLT100 .......................... 2 Installation ....................3 POEINJ100..............................3 POESPLT100 ..............................3 Specifications - POEINJ100 ..............4 Specifications - POESPLT100 ..............5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Taking advantage of PoE technology lets you expand your technology infrastructure without the hassle or expense of running new electrical wiring. Packaging Contents POEKIT100 POEINJ100 POESPLT100 1 x PoE Injector... -
Page 5: Side View - Poeinj100
Side View - POEINJ100 Side View - POESPLT100 Instruction Manual... -
Page 6: Installation
Installation PoE Injector (POEINJ100) The injector should be on the side that does not require Power over Ethernet (source). 1. Connect the RJ45 Ethernet cable from the network device (i.e. computer, router, switch, etc) that does not require power over Ethernet to the “Data (In)” RJ45 connector on the input side of the PoE Injector unit. -
Page 7: Specifications - Poeinj100
Specifications - POEINJ100 IEEE 802.3af IEEE 802.3at Compliant Standards IEEE 802.3 IEEE 802.3u 2 x RJ45 Ethernet female Connectors 1 x DC Power Type N LEDs 2 x RJ45 Link PoE Output 48V DC, 30W Link Speeds 10/100 Mbps Maximum Cable Length 100m / 330ft Power Adapter 48V DC, 880mA, Type N Plug... -
Page 8: Specifications - Poesplt100
Specifications - POESPLT100 IEEE 802.3af IEEE 802.3at Compliant Standards IEEE 802.3 IEEE 802.3u 2 x RJ45 Ethernet female Connectors 1 x DC Power Type N LEDs 1 x RJ45 Link PoE Input 48V DC, 30W 5V / 7.5V / 9V / 12V DC, Power Output up to 19.2W peak Link Speeds... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
