Instruction Manual

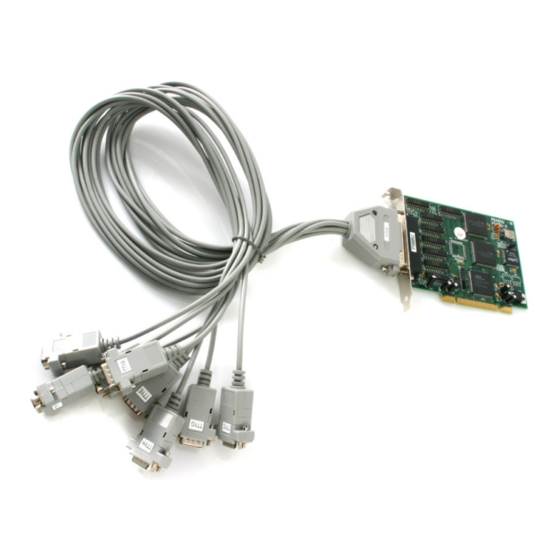

4/8 Port PCI RS232 Serial Adapter Card
16950 Cable Included
PCI4S9503V
PCI8S9503V
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/26/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PCI4S9503V
Summary of Contents for StarTech.com PCI4S9503V
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/26/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Windows XP/2000 ............................. 3 Windows NT ..............................3 DOS ................................4 LINUX ................................5 SCO OpenServer ............................7 Technical Specifications ................9 Technical Support ..................10 Warranty Information ................10 Instruction Manual... -
Page 4: Introduction
921 Kbps, and can be installed in either a 3.3V or 5V PCI/PCI-X slot. The PCI4S9503V 4 Port PCI RS232 Serial Adapter Card High Speed 16950 (cable included) lets you connect up to 4 RS-232 serial devices to the host computer at transfer rates up to 921 Kbps, and can be installed in either a 3.3V or 5V PCI/PCI-X slot. -
Page 5: Installation
Installation Note: In one system, you can install two of these serial cards. You must differentiate between the two cards by using the jumper (located near the end of the card). The card with the jumper ON will be card number 1. The card with the jumper OFF will be card number 2. -
Page 6: Windows Xp/2000
Windows Vista/XP/2000 Once you turn your computer on after installing the card, Windows will automatically detect the new hardware. Follow the onscreen prompts and direct Windows to the appropriate folder on the driver disk Notes: • To change the COM port number: Windows will automatically assign the card a COM port number. -
Page 7: Dos
When installing multiple cards in DOS, it is important to install the card designated card Number 1 (with the jumper ON) first. 1. Change your active directory to the target directory: ex: c:\RAYON 2. Insert the driver disk into the disk drive and copy the DOS files from the driver diskette: ex: xcopy /s/e/v a:\DOS\*.* 3. -
Page 8: Linux
LINUX 1. Login as super-user (SU) or root. 2. Change your directory to root and copy the driver diskette to the system: # cd / # tar xvf /dev/fd0 3. Change the directory to /etc/pciport and run the Install command: # cd /etc/pciport # ./Install 4. - Page 9 I/O Port Number Definitions Port Number Device Name tty8?a tty8?b tty8?c tty8?d tty8?e tty8?f tty8?g tty8?h For example, the device named /dev/tty82b is the device plugged into port B on card Number 2. Notes: • The above installation procedure installs a module type driver. If you can not install the driver successfully, you may need to use a kernel type driver.
-
Page 10: Sco Openserver
SCO OpenServer 1. Log in as a super-user (SU) or root. 2. Extract all the files on the diskette using the tar command: # cd / # tar xvf /dev/fd0135ds18 3. Change the directory to /etc/pciport and run the Build command: # cd /etc/pciport # ./build 4. - Page 11 I/O Port Number Definitions Port Number Device Name tty8?a tty8?b tty8?c tty8?d tty8?e tty8?f tty8?g tty8?h For example, the device named /dev/tty82b is the device plugged into port B on card Number 2. Notes: • The resources for the card are assigned by the PCI BIOS. If your environment has changed, you may need to run the Build command again to remove the old driver and reinstall it again.
-
Page 12: Technical Specifications
Technical Specifications Connectors DB 37-pin (female) Expansion Cable 37-pin (male) & 9-pin (male) Serial Interface RS-232 Bus Interface 32-bit universal PCI Windows Vista / 2000/NT/XP, Linux, and UNIX OS Compatibility (SCO Open Server) Data Transfer Rate Up to 921Kbps Power Consumption 5V @ 290mA, +12V @ 50mA &... -
