Alto-Shaam AR-7H ELECTRONIC CONTROL Installation, Operation And Maintenance Manual
  1. Manuals
  2. Brands
  3. Alto-Shaam Manuals
  4. Food Warmer
  5. AR-7H ELECTRONIC CONTROL
  6. Installation, operation and maintenance manual

Alto-Shaam AR-7H ELECTRONIC CONTROL Installation, Operation And Maintenance Manual

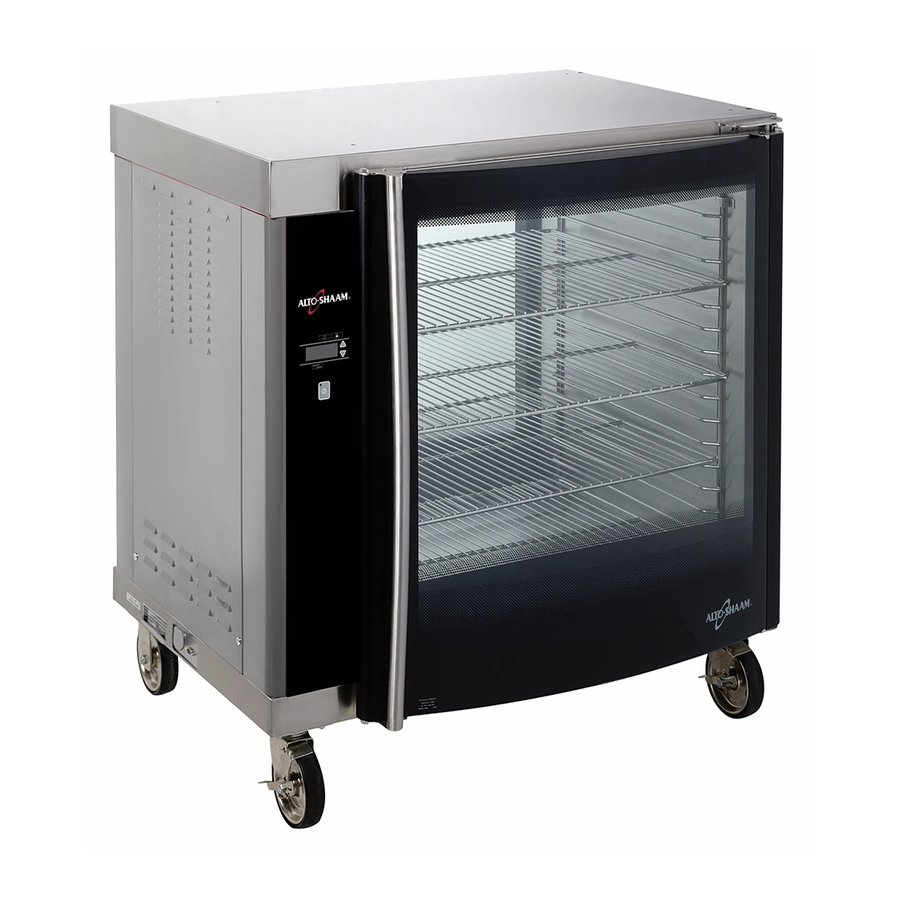

Hot holding rotisserie companion
Hide thumbs Also See for AR-7H ELECTRONIC CONTROL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Operation & Maintenance
SHOWN WITH PASS-THROUGH OPTION
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: 262.251.3800 • 800.558.8744
.
.
.
p r i n t e d i n u
s
a
Rot is se rie Compa n ion
Models:
AR-7H
AR-7H
• OPERATION
• MAINTENANCE
/
FAX: 262.251.7067 • 800.329.8744
USA
CANADA
www.alto-shaam.com
Hot Hold i ng
MANUAL CONTROL
ELECTRONIC CONTROL
• INSTALLATION
.
.
.
U
S
A
ONLY
M N - 2 8 9 5 3 ( R e v 0 ) • 0 9 / 1 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-7H ELECTRONIC CONTROL and is the answer not in the manual?

Questions and answers

Related Manuals for Alto-Shaam AR-7H ELECTRONIC CONTROL

Summary of Contents for Alto-Shaam AR-7H ELECTRONIC CONTROL

  • Page 1 Hot Hold i ng Rot is se rie Compa n ion Models: AR-7H MANUAL CONTROL AR-7H ELECTRONIC CONTROL SHOWN WITH PASS-THROUGH OPTION • INSTALLATION • OPERATION • MAINTENANCE W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA PHONE: 262.251.3800 •...
