Silicon Graphics O2 Upgrade Information page 8

Silicon Graphics ® O2 ™ and Silicon Graphics
8
® Octane ™ R12000 CPU Upgrade Information
10. Turn over the system module and use the Phillips screwdriver to remove the third
screw securing the CPU support in place (Figure 8).

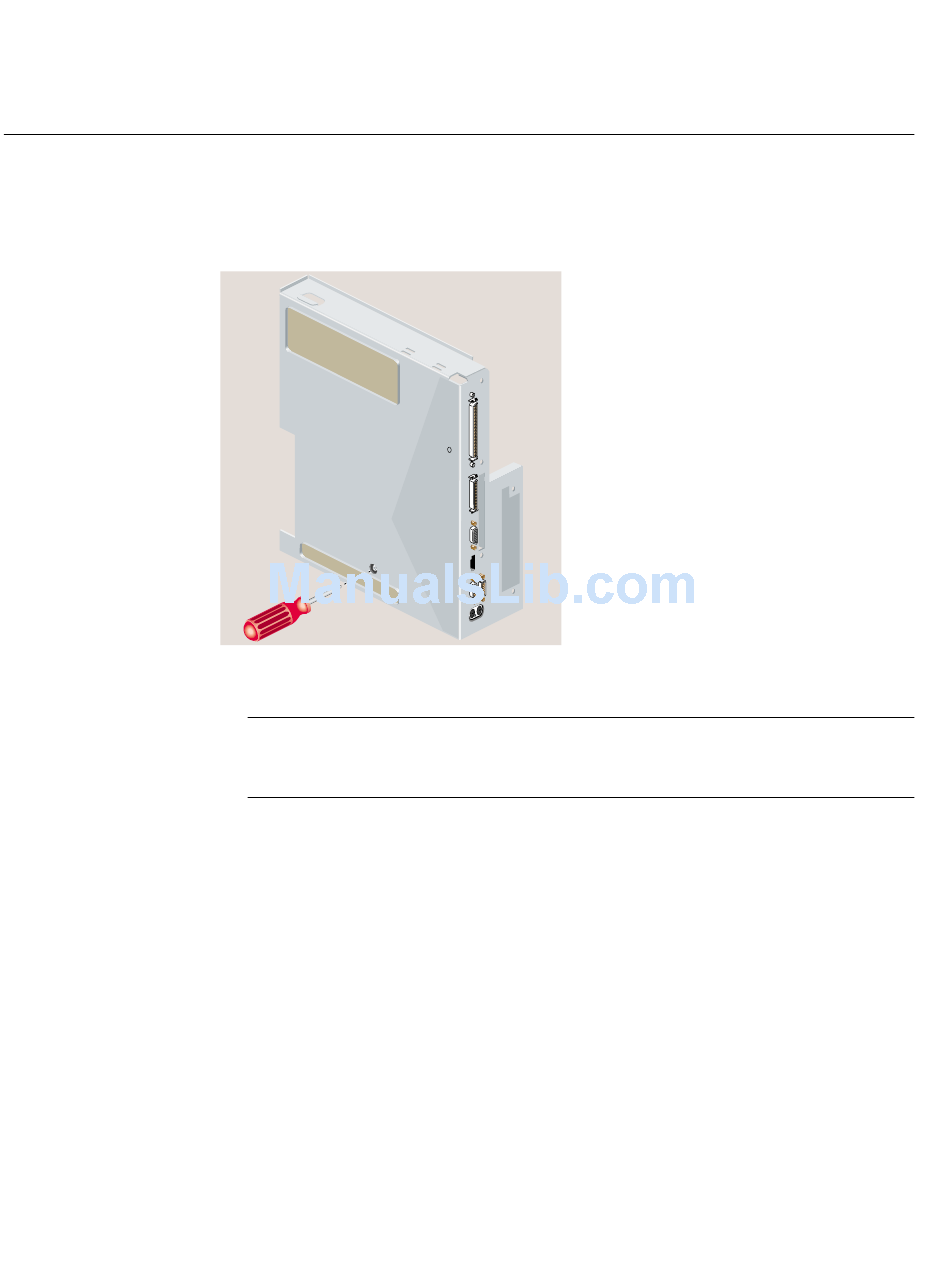

Figure 8 Removing the Bottom Screw from the CPU Support
Note: If the system module does not have a hole in the sheet metal to access this
screw, call your nearest SGI Customer Support Call center and report the nature of
the problem.
11. Remove the CPU support and set it aside.
007-3725-002
