18. Replace the faceplate by sliding it onto the system module, while at the same time
lifting slightly at the "V" to snap it in place (Figure 13).
When properly seated, the underside of the faceplate is flush to the module and the
screw holes are aligned.

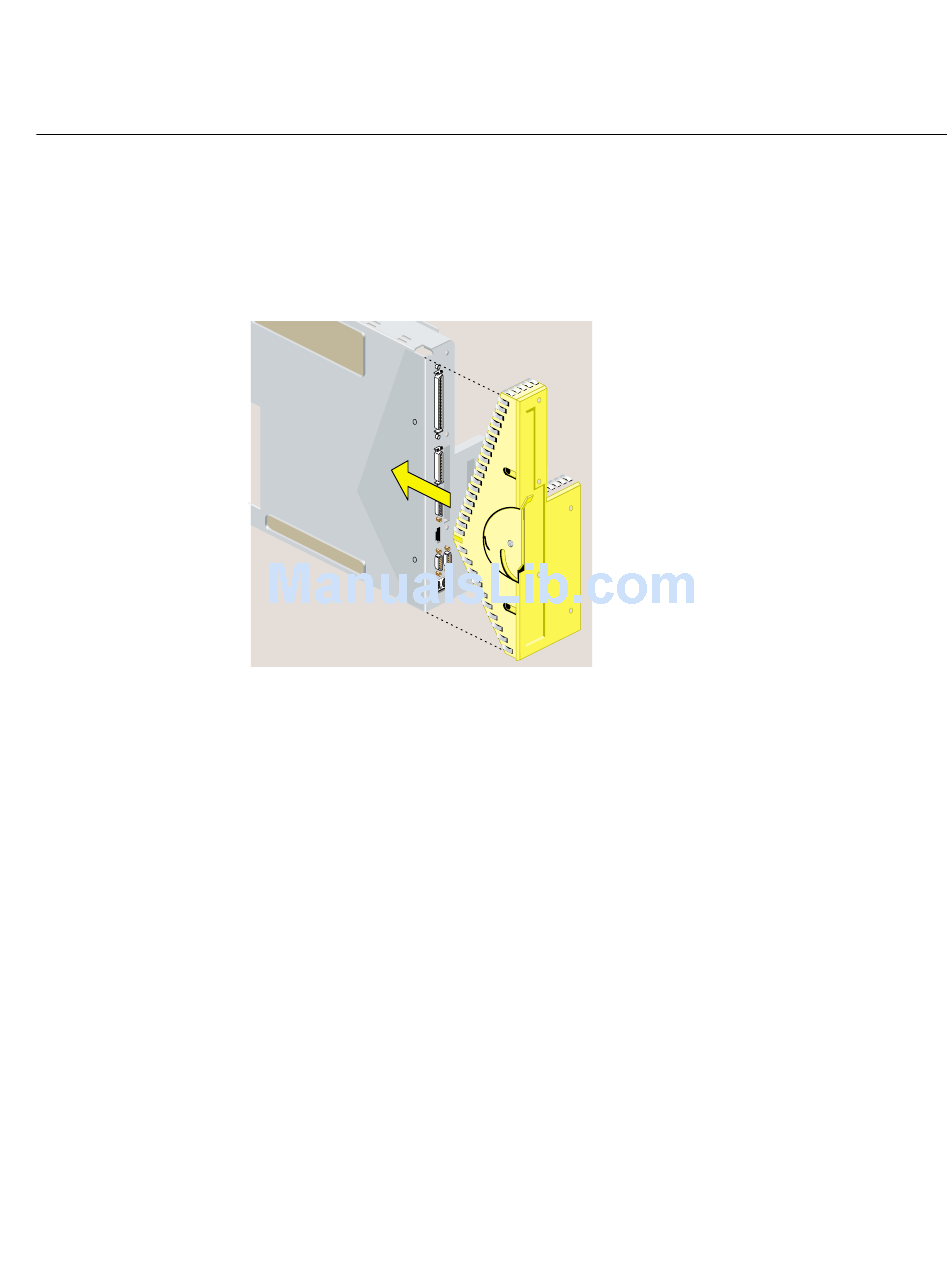

Replacing the Face Plate
Figure 13
