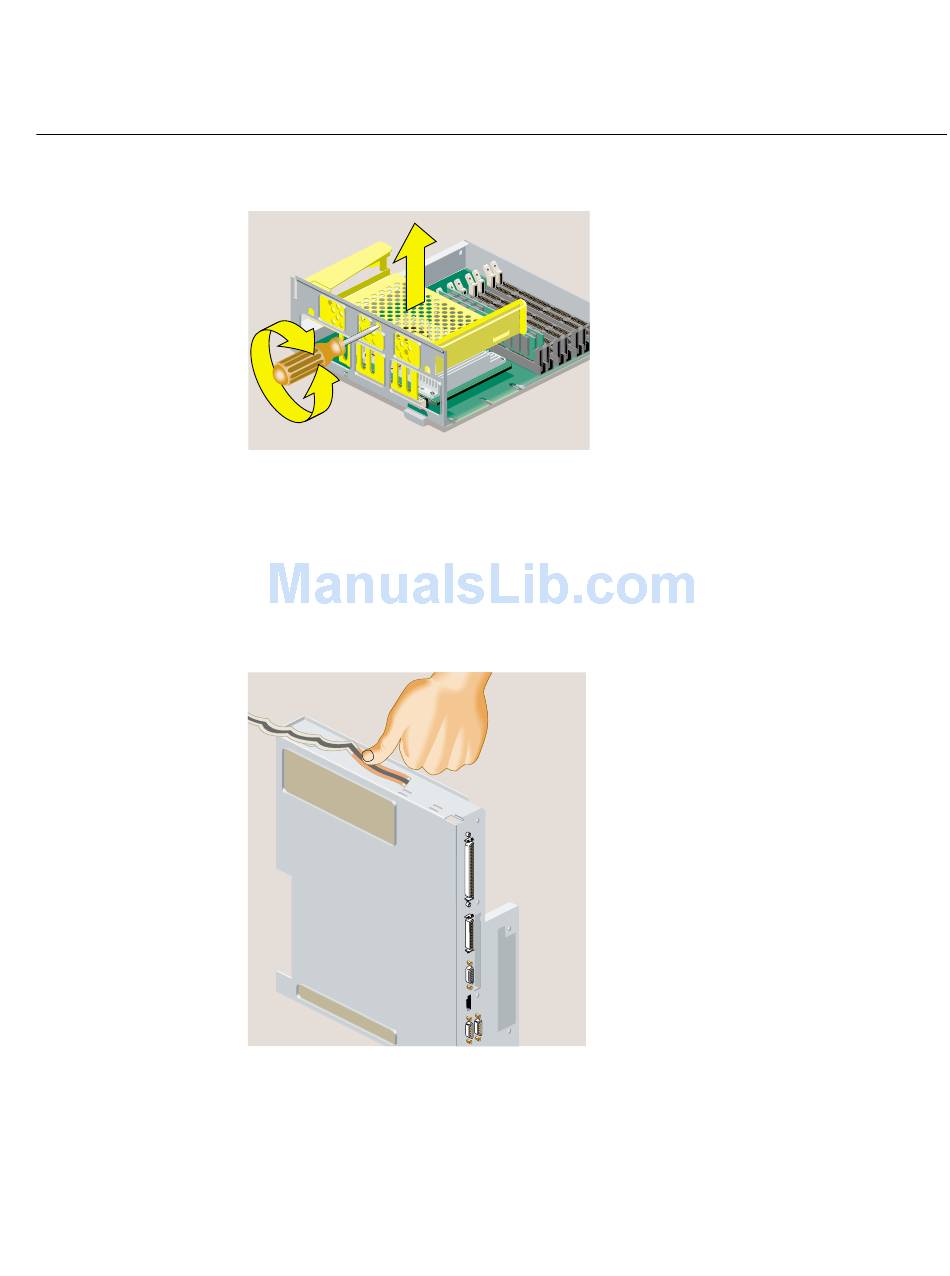

Releasing the PCI tray From the System Module
Figure 3
5. Before touching any of the components, ground yourself to a metal part of the
chassis. Attach the wrist strap as follows: (Figure 4)
• Wrap the first two folds of the wrist strap around your wrist.
• Peel the liner from the copper foil at the opposite end.
• Attach the copper foil to the chassis.
Attaching the Wrist Strap
Figure 4
