Fanned flue condensing combination boiler heating and storage domestic hot water
Hide thumbs Also See for Centora green:

Advertisement

C
Dimensions
Flue types:
C 13: - C 33 - C 53

Technical data

Heat gross input C/H maxi ............................
Heat gross input DHW maxi..........................
Heat output C/H 50°/30° maxi .......................
Heat output C/H 80°/60° maxi .......................
Heat output DHW maxi .................................
C/H operating temperature............................
C/H circuit pressures Min operating ..............
C/H circuit pressures Max operating .............
DHW flow rates 30°C ....................................
DHW flow rates 35°C ...................................
Cold water mains pressures Min operating...
Cold water mains pressures Max operating..
Flow limiter rate.............................................
Safety discharge ...........................................
Expansion vessel - Pre-charge pressure ......
Net capacity at 3 bar in liter...........................
Supply ...........................................................
Consumption .................................................
Protection ......................................................
Fuse F1/F2/F3/F4 ......................................... 2 A/1,25 A/0,315 A/0,250 A
External controls ...........................................
MAINTENANCE AND
SERVICE GUIDE
Fanned Flue Condensing
Heating and Storage Domestic Hot
212
24 kW : 380
30 kW : 405
I
Safety valve outlet
J Heating flow
K D.H.W. flow
L Gas supply
M Cold water inlet
N Heating return
24 kW
30 kW
9,2-27,8 kW
10,4-31,6 kW
9,2-27,8 kW
10,4-31,6 kW
9-26 kW
10-30 kW
8-24 kW
9-28 kW
8-24 kW
9-30 kW
80°C max
80°C max
0,7 bar
0,7 bar
2,5 bar
2,5 bar
12 l/min
14 l/min
10,3 l/min
12 l/min
0,5 bar
0,5 bar
10 bar
10 bar
8 l/min
10 l/min
3 bar
3 bar
0,7 bar
0,7 bar
5,44
5,44
230 v
230 v
150 w
150 w
IP 44
IP 44
24 v
24 v

Combination Boiler

Water
Outer case dimensions :
- Width :
440 (minimum space required 450)
- Height :
850
- Depth :
24 kW : 380
360
50
737
850
54 54 54 54
88
J K L M N
I
Natural gas G20
Gas rate C/H max ................... 2,64 m
Gas rate DHW max ................. 2,64 m
Gas rate C/H & DHW mini....... 0,87 m
Gas valve restrictor diameter ..
Propane L.P.G G31
Gas rate C/H max. .................. 1,94 kg/h
Gas rate DHW max. ................ 1,94 kg/h
Gas rate C/H & DHW mini....... 0,64 kg/h
Gas valve restrictor diameter .. 4,40 mm
30 kW : 405
67
235
L
232
J K
M N
32
Safety valve
center line
All dimensions in mm
24 kW
30 kW
3
/h
3,01 m
3
/h
3,01 m
3
/h
1 m
without
without
2,21 kg/h
2,21 kg/h
0,73 kg/h
4,8 mm
3
/h
3
/h
3
/h

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Centora green and is the answer not in the manual?

Questions and answers

Summary of Contents for Chaffoteaux & Maury Centora green

  • Page 1: Combination Boiler

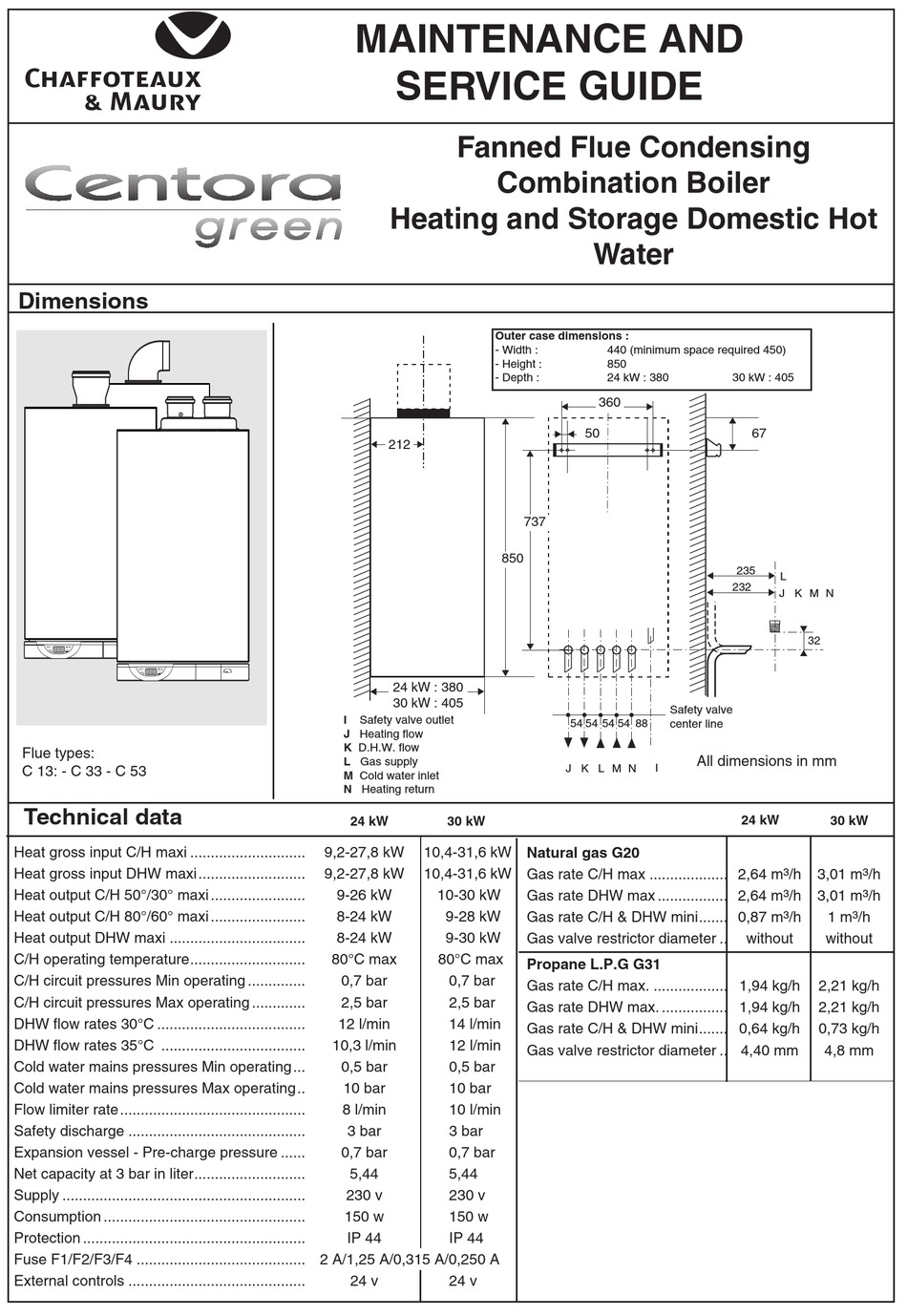

    MAINTENANCE AND SERVICE GUIDE Fanned Flue Condensing Combination Boiler Heating and Storage Domestic Hot Water Dimensions Outer case dimensions : - Width : 440 (minimum space required 450) - Height : - Depth : 24 kW : 380 30 kW : 405 24 kW : 380 30 kW : 405 Safety valve...
