Summary of Contents for Ambir ImageScan Pro 930u
-

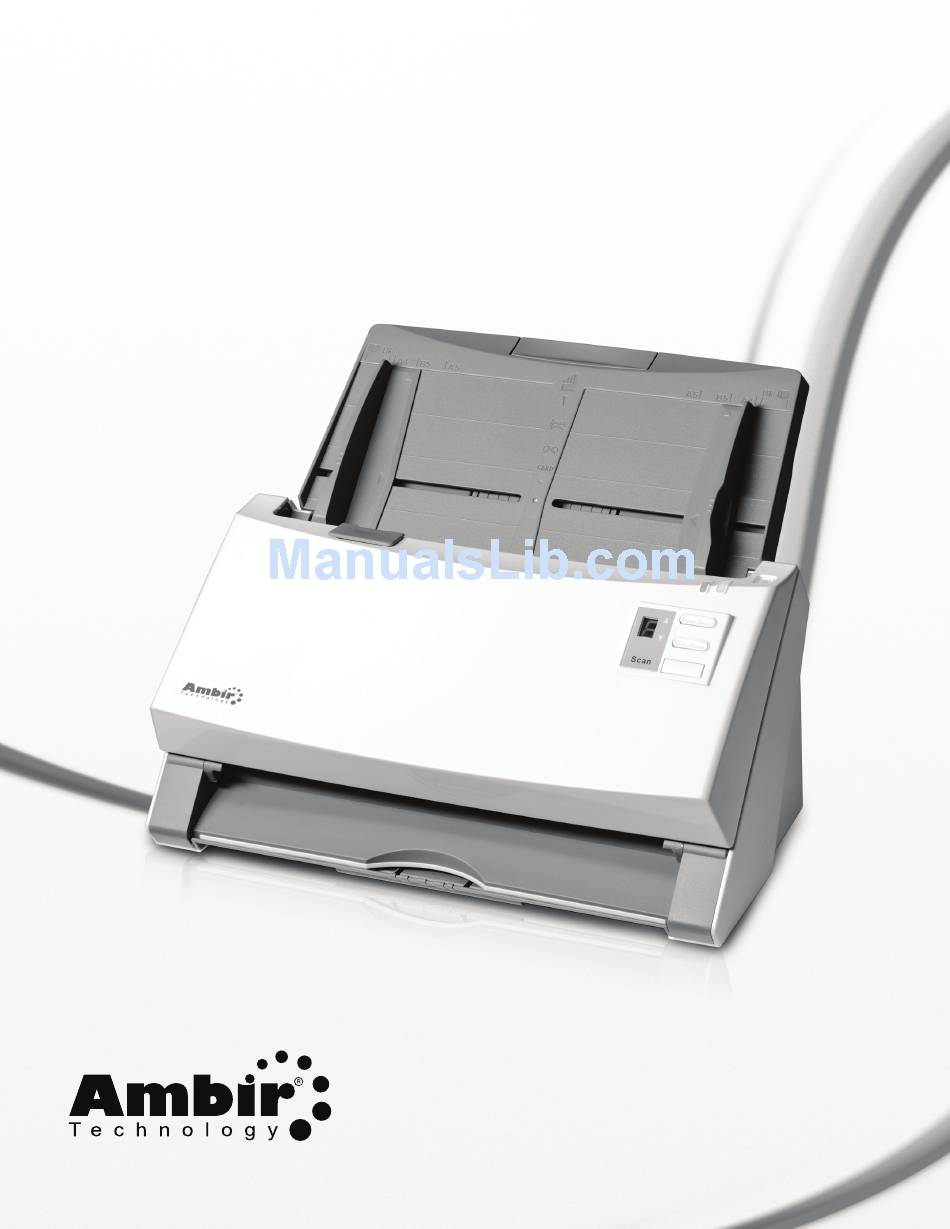

Page 1: Quick Start Guide

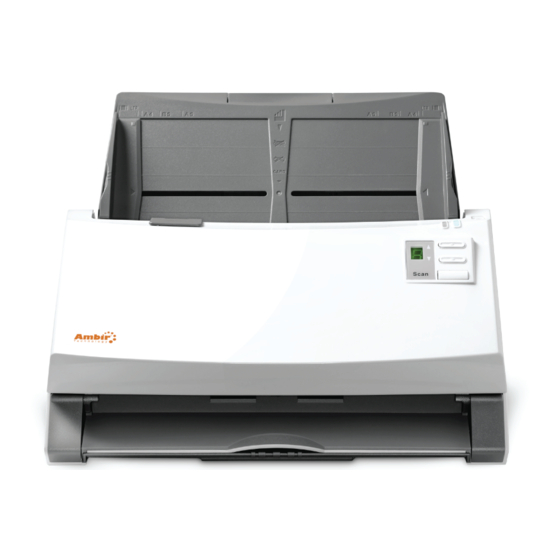

Ambir ImageScan Pro 930u High Speed Document Scanner with UltraSonic Misfeed Detection Quick Start Guide www.ambir.com Ver 1.0... -
Page 2: Box Contents
Quick Start Guide Ambir ImageScan Pro 930u Table of Contents Box Contents Installation and Setup Loading Documents Scanning 6,7,8,9 Calibration Cleaning the ADF Replacing the Pad Module Clearing Paper Jams Scanner Connection LED Indication Ultrasonic Sensor Box Contents 1. Scanner 2. -
Page 3: Installation And Setup
Quick Start Guide Ambir ImageScan Pro 930u Installation and Setup Step 1. Install the Paper Chute 1. Open the ADF cover by pulling the lever. 2. Install the paper chute by aligning and inserting the tabs of the paper chute into their slots on the scanner. -
Page 4: Step 3. Installing The Software
Quick Start Guide Ambir ImageScan Pro 930u Installation and Setup (Continued) > If your computer is off when the scanner is connected, the “Add New Hardware Wizard” message will not be displayed until the computer is on and Windows starts. -
Page 5: Loading Documents
Quick Start Guide Ambir ImageScan Pro 930u LOADING DOCUMENTS 1. L oad the documents, headfirst and face down, toward the center of the ADF paper chute and all the way into the ADF until touching the bottom. For single-sided scans, load the documents face down so that the side to be scanned faces towards the paper chute. - Page 6 Ambir ImageScan Pro 930u Quick Start Guide Scanning There are three different ways to operate the scanner: 1. By acquiring images from the scanner through our TWAIN interface within any TWAIN- compliant application programs. 2. By scanning from the buttons on the Scanner’s front panel.
-
Page 7: Scanning From The Scanner's Front Panel
Ambir ImageScan Pro 930u Quick Start Guide Scanning (Continued) Scanning from the Scanner’s Front Panel Completing scanning projects using the scanner buttons is easy and convenient. The number assigned to a scanning task displayed on the scanner’s front panel is configured through AmbirScan ADF. AmbirScan ADF offers you quick access to the most frequently-used scanning functions. They are especially useful when you need to repeatedly scan with the same settings and send images to the same destination. Before performing your first scan via scanner buttons, first configure the button... -
Page 8: Configure Button Settings
Ambir ImageScan Pro 930u Quick Start Guide Scanning (Continued) Configure Button Settings Within the “Button Configuration” window, you can find a row of icons running through the left side of the window. Each icon represents a scanning task, and the number underneath corresponds to the function number displayed on the scanner front panel. Nine (9) frequently-used scanning tasks are pre-configured for your convenience. You may, however, customize the settings of the nine tasks to best meet your needs and preferences. - Page 9 Ambir ImageScan Pro 930u Quick Start Guide Scanning (Continued) View Button Settings There are three ways to view the button settings: 1. Double-click the icon in the Windows system tray. 2. Right-click the icon in the Windows system tray, and then choose “Button Configuration…” in the pop-up menu that opens.
-
Page 10: Cleaning The Adf
Ambir ImageScan Pro 930u Quick Start Guide Calibration Calibrate the scanner if colors appear in areas that should be white, or colors of the scanned image and the original vary a lot. This allows you to adjust and compensate for variations that can occur in the optical component over time by its nature. -
Page 11: Replacing The Pad Module
Ambir ImageScan Pro 930u Quick Start Guide Replacing the Pad Module 1. Open the ADF cover by pulling the cover open lever. 2. Remove the pad module by pinching both sides of the pad module. Pull it out. 3. Install the new pad module by inserting the tabs on the module onto their slots on the scanner. -
Page 12: Scanner Connection
Ambir ImageScan Pro 930u Quick Start Guide Scanner Connection The fi rst step to take when Appearance Status troubleshooting connection The program has been successfully launched and problems with your scanner is the scanner is connected with the computer, ready to to check all physical connections. - Page 13 www.ambir.com...
