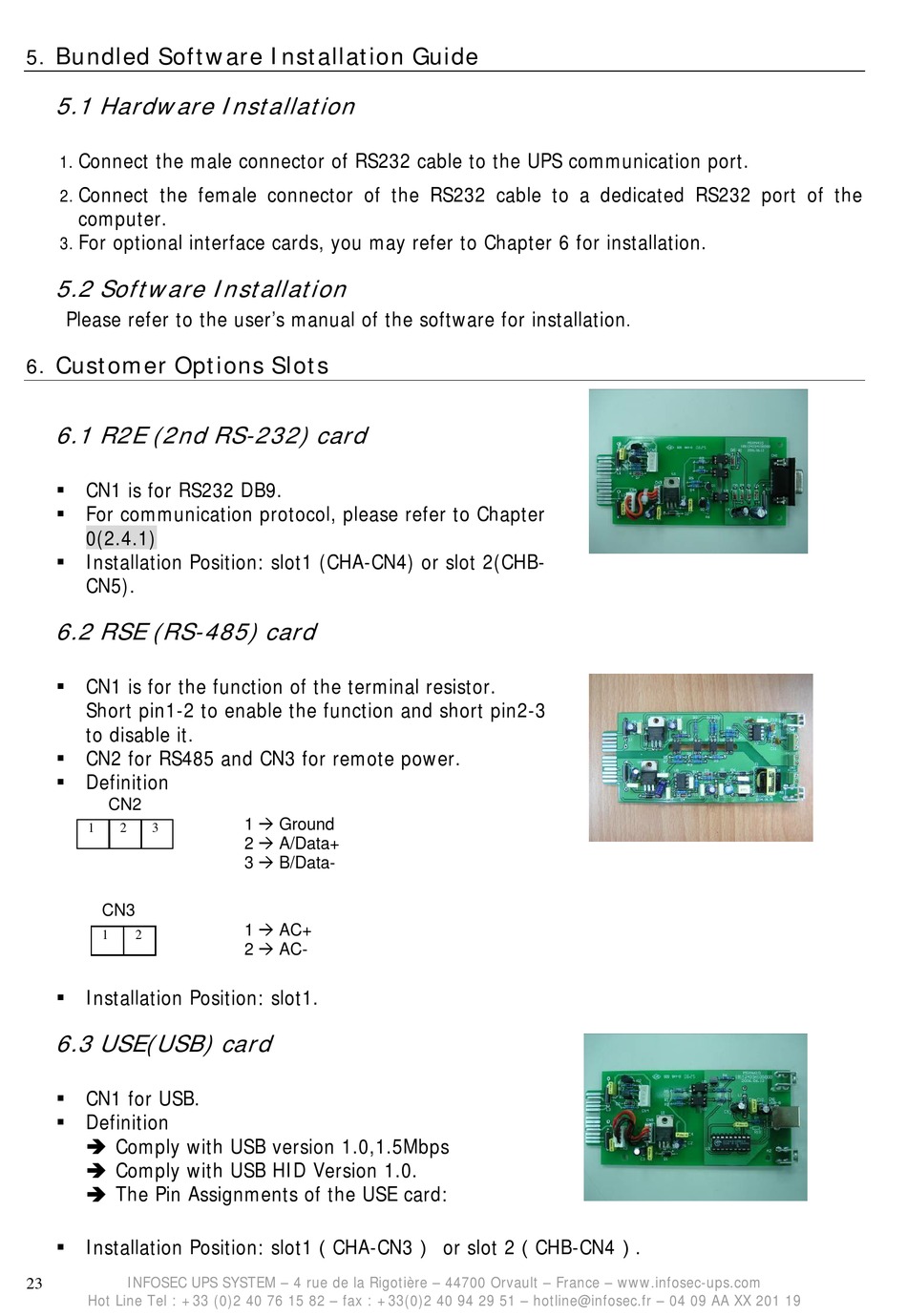

Bundled Software Installation Guide

5.

5.1 Hardware Installation

Connect the male connector of RS232 cable to the UPS communication port.
1.
Connect the female connector of the RS232 cable to a dedicated RS232 port of the
2.
computer.
For optional interface cards, you may refer to Chapter 6 for installation.
3.

5.2 Software Installation

Please refer to the user's manual of the software for installation

Customer Options Slots

6.

6.1 R2E (2nd RS-232) card

 CN1 is for RS232 DB9.
 For communication protocol, please refer to Chapter
0(2.4.1)
 Installation Position: slot1 (CHA-CN4) or slot 2(CHB-
CN5).

6.2 RSE (RS-485) card

 CN1 is for the function of the terminal resistor.
Short pin1-2 to enable the function and short pin2-3
to disable it.
 CN2 for RS485 and CN3 for remote power.
 Definition
CN2
1 2 3
CN3
1 2
 Installation Position: slot1.

6.3 USE(USB) card

 CN1 for USB.
 Definition
 Comply with USB version 1.0,1.5Mbps
 Comply with USB HID Version 1.0.
 The Pin Assignments of the USE card:
 Installation Position: slot1（CHA-CN3） or slot 2（CHB-CN4）.
