5. Drawing T means the bypass frequency window of the Inverter Output, the acceptable
setting values are ±3Hz and ±1Hz.
6. Drawing U means the acceptable Inverter Output Voltage, of which voltage is 200Vac,
208Vac, 220Vac, 230Vac, or 240Vac.
7. Drawing V1, V2, V3 and V4 mean the operation modes of the UPS, of which alternative is
Online, Eco(Economic) mode, fixed 50Hz Output or fixed 60Hz Output.
8. Drawing W means the adjustments of the Inverter Output, which may be calibrated as 0%,
+1%, -1%, +2%, -2%, +3%, or -3%.
9. Drawing X means a specified address & position of the UPS when the UPS is in Parallel
mode. The settable numbers are from 1st to 4th. The number must be 1st if the UPS is not in
parallel.
10. Drawing Y means the parallel function status. The "P 01" means parallel function disabled
and the "P 02" means parallel function enabled.
11. When all the setting changes are done, you have to press enter key Pad to save all the
changes when the LCD screen shows as drawing Z, then, the LCD screen will show as drawing
AA to complete the setting changes. If you don't want to
change those settings, you may press "OFF"
key pads for 5 seconds, then the LCD screen turns to Drawing AA directly, which means your setting changes are invalid.

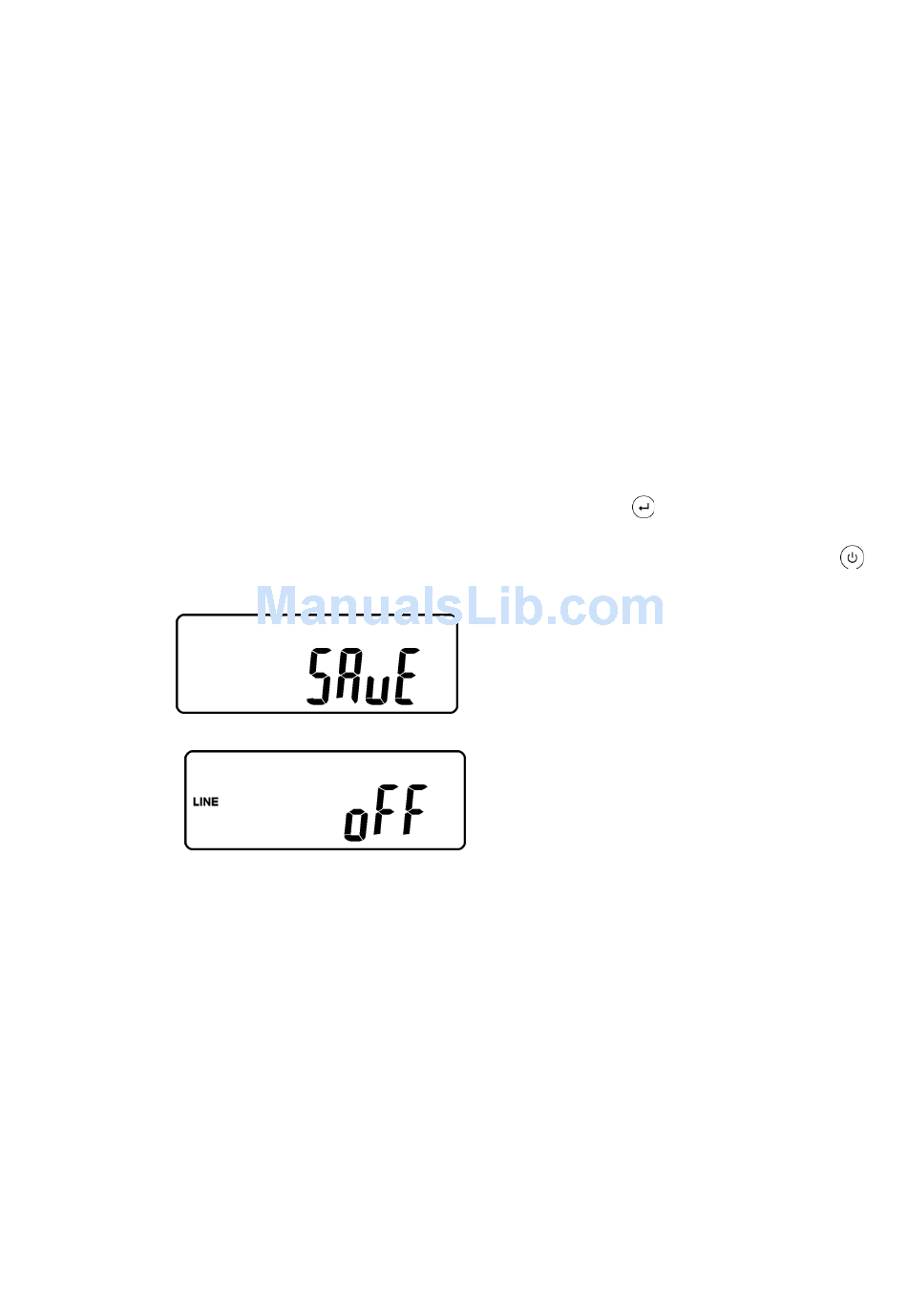

Z
* Please press Enter key to save data.
AA
* It shows the UPS is locked.
12. Turn Off the breaker of Utility Input.
13. Your Setting changes are complete.
