3.4 Terminal Block Explanation & UPS connection

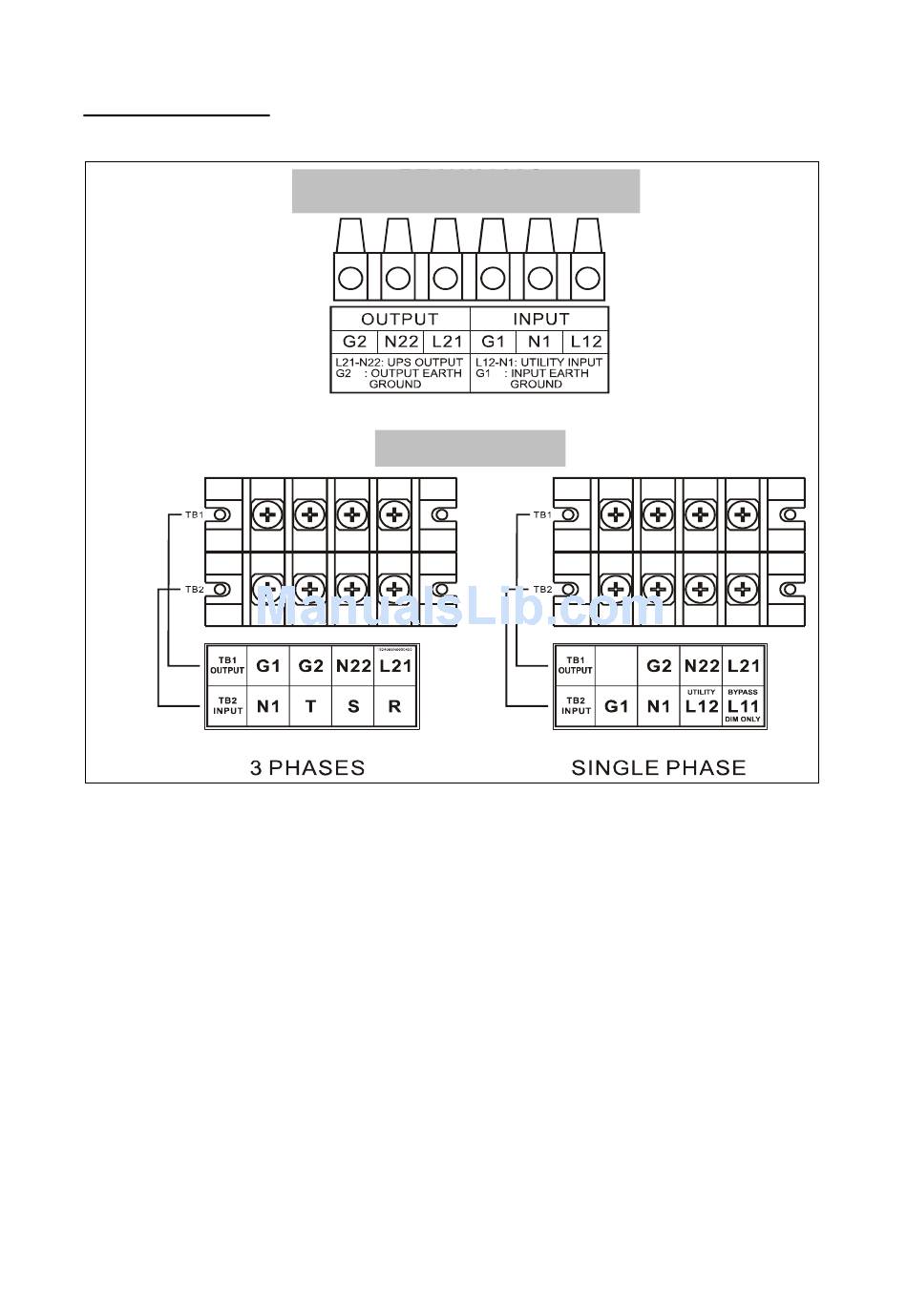

3.4.1 Terminal block
L12-N1; R-S-T-N1: the terminal for Utility Input to provide the power source when the
●
UPS is working under Utility mode.
G1: the terminal for UPS Input Ground.
●
L21-N22: the terminals for UPS Output.
●
G2: the terminal for UPS Output Ground.
●
For E6 LCD RT 10K Single phase, in standard use, main input and by-pass line are common, so
there is a shunt between L11 & L12.
L11-N1: Used only in case where the main input and by-pass line are not common: the
●
terminal for Bypass Input to provide the power source when the UPS is working
under bypass mode.
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 04 09 AA XX 201 19
5000 – 6000 – 8000 VA
10 000 VA
