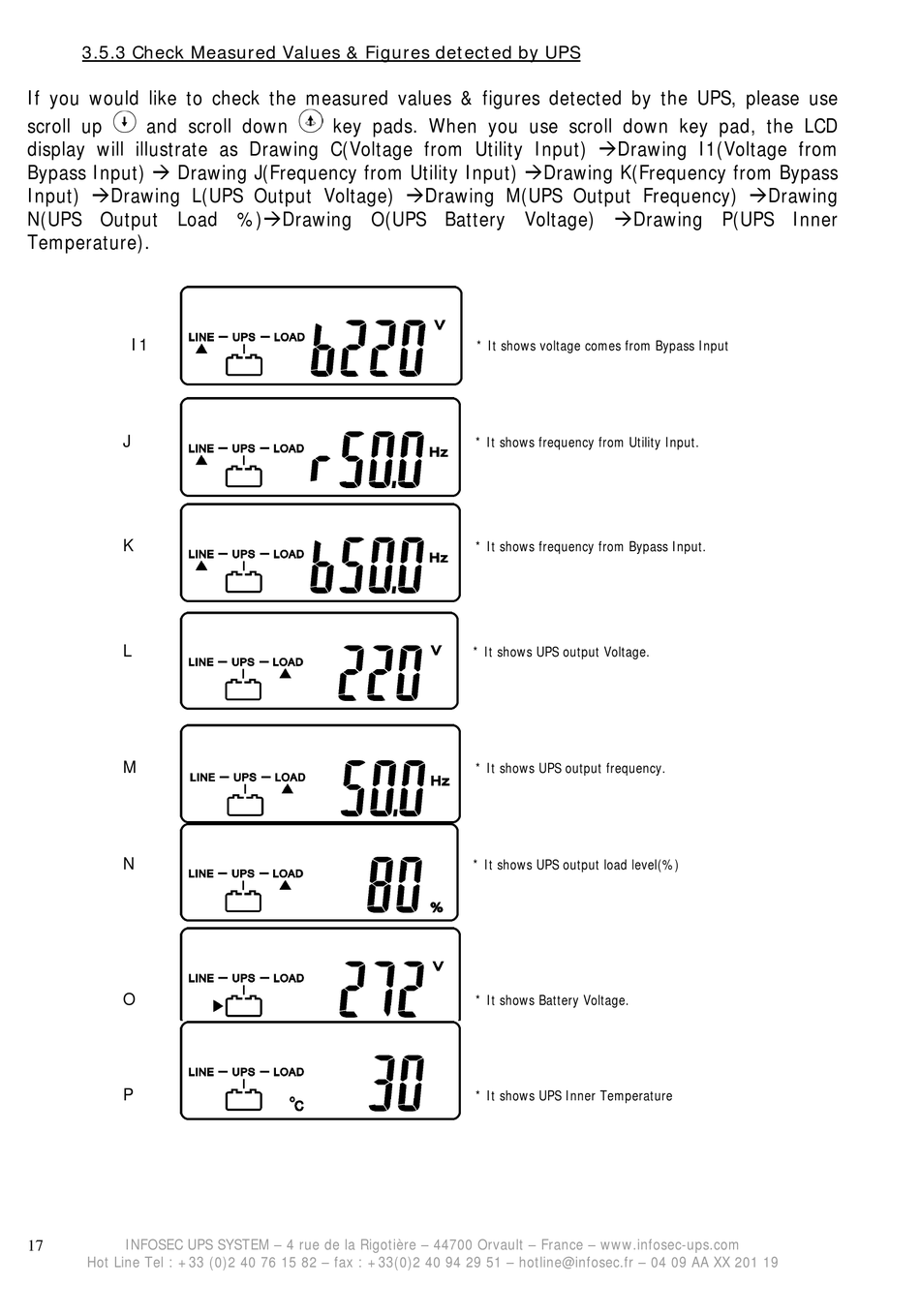

3.5.3 Check Measured Values & Figures detected by UPS
If you would like to check the measured values & figures detected by the UPS, please use
scroll up and scroll down
display will illustrate as Drawing C(Voltage from Utility Input) Drawing I1(Voltage from
Bypass Input)  Drawing J(Frequency from Utility Input) Drawing K(Frequency from Bypass
Input) Drawing L(UPS Output Voltage) Drawing M(UPS Output Frequency) Drawing
N(UPS Output Load %)Drawing O(UPS Battery Voltage) Drawing P(UPS Inner
Temperature).
I1
J
K
L
M
N
O
P
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
17
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 04 09 AA XX 201 19
key pads. When you use scroll down key pad, the LCD
* It shows voltage comes from Bypass Input
* It shows frequency from Utility Input.
* It shows frequency from Bypass Input.
* It shows UPS output Voltage.
* It shows UPS output frequency.
* It shows UPS output load level(%)
* It shows Battery Voltage.
* It shows UPS Inner Temperature
