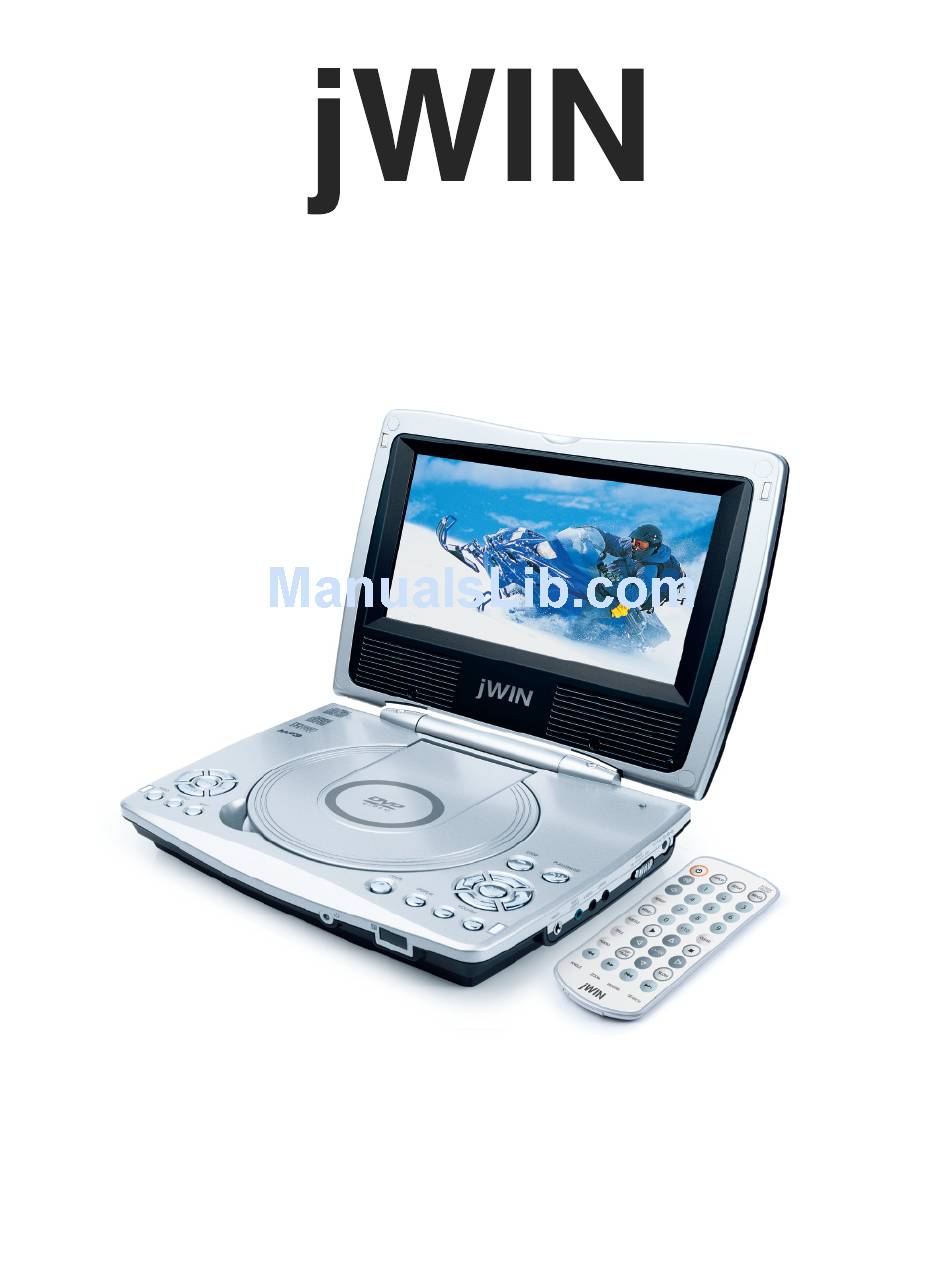

- Page 1 PORTABLE DVD PLAYER WITH 7” ACTIVE MATRIX TFT LCD Instruction Manual JD-VD760 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
-
Page 3: Important Safety Instructions
Portable DVD Player with 7” Active Matrix TFT LCD USER SAFETY GIUDE IMPORTANT SAFETY INSTRUCTIONS WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. RISK OF ELECTRIC SHOCK These markings are located on the bottom, side or back of the unit. -
Page 4: Instructions On Environment Protection
Portable DVD Player with 7” Active Matrix TFT LCD USER SAFETY GIUDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. - Page 5 Portable DVD Player with 7” Active Matrix TFT LCD USER SAFETY GIUDE IMPORTANT SAFETY PRECAUTIONS – CONTINUED 14. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings.
-
Page 6: Fcc Notice (Usa)
Portable DVD Player with 7” Active Matrix TFT LCD USER SAFETY GIUDE FCC NOTICE (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 7 Portable DVD Player with 7” Active Matrix TFT LCD V11M11_IM_EN_05302008 - 5 - www.jWIN.com...
-
Page 8: Table Of Contents
Portable DVD Player with 7” Active Matrix TFT LCD TABLE OF CONTENTS Getting Started Compatibility ……………………………………………………………………. Introduction ……………………………………………………………………… Location of Controls ……………………………………………………………. Location of Controls (Back Panel) …..……………………………………….. Location of Controls (Remote) ………………………………...……………… Installing the Batteries in the Remote Control ………………………………. -
Page 9: Getting Started
Portable DVD Player with 7” Active Matrix TFT LCD GETTING STARTED COMPATIBILITY DVD VIDEO AUDIO CD MP3 CD Kodak Picture CD ® Dolby Digital This product incorporates copyright protection technology that is protected by method claims of certain U.S patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. -
Page 10: Introduction

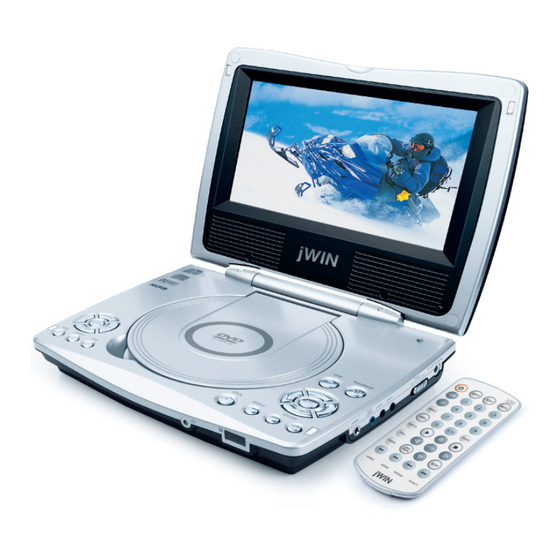

Portable DVD Player with 7” Active Matrix TFT LCD GETTING STARTED Thank you for purchasing the JD-VD760. Unpack the unit and make sure to put aside all accessories so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. -
Page 11: Location Of Controls
Portable DVD Player with 7” Active Matrix TFT LCD V11M11_IM_EN_05302008 GETTING STARTED Location of Controls - 9 - www.jWIN.com... -
Page 12: Location Of Controls (Back Panel)
Portable DVD Player with 7” Active Matrix TFT LCD GETTING STARTED Location of Controls-continued 1. TFT SCREEN 2. SPEAKERS 3. MENU KEY 4. SEARCH KEY 5. PREVIOUS &F.BWD KEY 6. TITLE KEY 7. AUDIO KEY 8. SUBTITLE KEY 9. SETUP KEY 10. -
Page 13: Location Of Controls-Remote
Portable DVD Player with 7” Active Matrix TFT LCD GETTING STARTED Location of Controls-Remote 1. POWER BUTTON 2. VOLUME BUTTONS 3. REPEAT BUTTON 4. MENU BUTTON 5. SUBTITLE BUTTON 6. PLAY BUTTON 7. TITLE BUTTON 8. AUDIO BUTTON 9. PAUSE/STEP BUTTON 10. -
Page 14: Connecting The Player To A Tv Or Amplifier
Portable DVD Player with 7” Active Matrix TFT LCD GETTING STARTED Connecting the Player to a TV or Amplifier When connecting the JD-VD760 to other devices, it is recommended that a multi-system television is used. Before connecting this unit to a TV or amplifier, make certain that all devices, including the JD-VD760 are switched off, all AC cords are disconnected from wall outlets, and that ventilation holes are not blocked. -
Page 15: Turning On The Unit
Portable DVD Player with 7” Active Matrix TFT LCD GETTING STARTED COAXIAL DIGITAL AUDIO OUTPUT When a DVD recorded in Dolby Digital/DTS is played, Dolby digital/DTS bitstream is output from the player's COAXIAL digital audio output connector. When the player is connected to a Dolby Digital/DTS decoder , you can enjoy theater-like audio quality at your home. -
Page 16: Operational Instructions
Portable DVD Player with 7” Active Matrix TFT LCD OPERATIONAL INSTRUCTIONS System Setup The SYSTEM SETUP options are illustrated below: 1. TV SYSTEM Choose the TV system best suited for your TV set. Available options are PAL, NTSC or AUTO. See user’s manual for your TV set for guidelines. -
Page 17: Audio Setup
Portable DVD Player with 7” Active Matrix TFT LCD V11M11_IM_EN_05302008 OPERATIONAL INSTRUCTIONS 4. MENU LANG Highlight the MENU LANG option using the NAVIGATION buttons to choose the language you prefer. Press the ENTER button to confirm. Audio Setup The Audio Setup options are illustrated below:... -
Page 18: Speaker Setup
Portable DVD Player with 7” Active Matrix TFT LCD OPERATIONAL INSTRUCTIONS Speaker Setup The Speaker Setup options are illustrated below: • DOWNMIX LT/RT: Choose this setting when connected to a 2-channel analog audio input. STEREO: Choose this setting when the DVD player is connected to a TV or modulator. -
Page 19: Programmed Playback
Portable DVD Player with 7” Active Matrix TFT LCD OPERATIONAL INSTRUCTIONS Basic Playback Operation-continued SEARCH • During playback, press the SEARCH button to choose a title, chapter, or chapter time to be played. Use the NAVIGATION buttons to select. •... -
Page 20: Subtitle Feature
Portable DVD Player with 7” Active Matrix TFT LCD OPERATIONAL INSTRUCTIONS Basic Playback Operation-continued 13. MULTI-ANGLE VIEWING Some DVD discs may contain scenes which have been shot simultaneously from a number of different camera angles. This function depends on a disc. -
Page 21: Notes On Cds
Portable DVD Player with 7” Active Matrix TFT LCD OPERATIONAL INSTRUCTIONS Notes on CDs Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out to the ends. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. -
Page 22: Troubleshooting Guide
Portable DVD Player with 7” Active Matrix TFT LCD TROUBLESHOOTING GUIDE When the instructions in this manual are followed, this unit should function properly. However, if any of the following difficulties occur and cannot be corrected by the user or if a problem arises that is not mentioned here, please contact jWIN Customer Service or a qualified service technician. -
Page 23: Technical Specifications
Portable DVD Player with 7” Active Matrix TFT LCD SPECIFICATIONS • Solution: Sunplus SPHE8202D • Loader: Samsung SP1CHU • TV System: NTSC / PAL/AUTO • Aspect Ratio: 16:9 / 4:3LB / 4:3PS • LCD Panel Diagonal Size: 7" Viewing Angles: (-60 ~ 60 Horizontal) / (-60 ~ 40 Vertical) (Typ.) •... - Page 24 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without prior written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system.
