Step Programming - Multiblitz User Manual

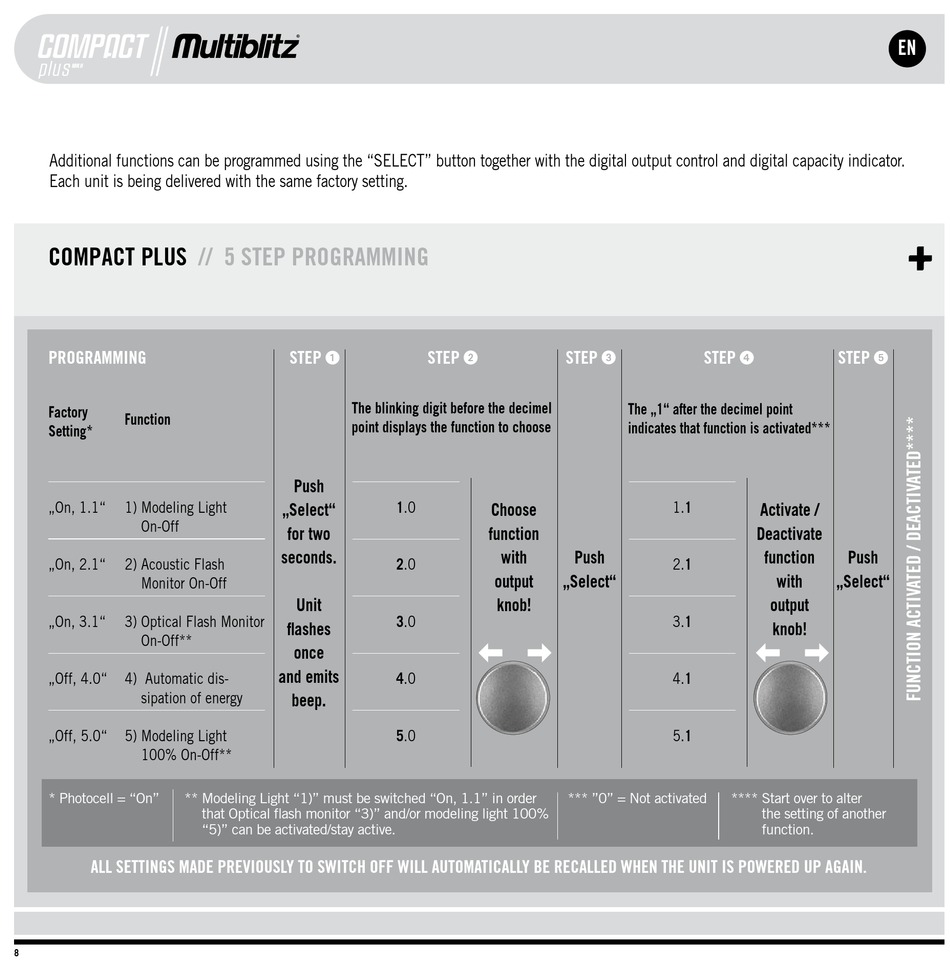

Additional functions can be programmed using the "SELECT" button together with the digital output control and digital capacity indicator.
Each unit is being delivered with the same factory setting.
COMPACT PLUS
PROGRAMMING
Factory
Function
Setting*
„On, 1.1" 1) M odeling Light
On-Off
„On, 2.1" 2) A coustic Flash
Monitor On-Off
„On, 3.1" 3) O ptical Flash Monitor
On-Off**
„Off, 4.0" 4) Automatic dis-
sipation of energy
„Off, 5.0" 5) M odeling Light
100% On-Off**
* Photocell = "On" ** M odeling Light "1)" must be switched "On, 1.1" in order
ALL SETTINGS MADE PREVIOUSLY TO SWITCh OFF WILL AUTOMATICALLY BE RECALLED WhEN ThE UNIT IS POWERED UP AGAIN.
8

// 5 STEP PROGRAMMING

STEP
1
the blinking digit before the decimel
point displays the function to choose
Push
„Select"
for two
seconds.
Unit
flashes
once
and emits
beep.
that Optical flash monitor "3)" and/or modeling light 100%
"5)" can be activated/stay active.
STEP STEP
2
1.0
Choose
function
with Push
2.0
output „Select"
knob!
3.0
4.0
5.0
*** "0" = Not activated
STEP
3 4
the „1" after the decimel point
indicates that function is activated***
1.1
Activate /
deactivate
function
2.1
with
output
3.1
knob!
4.1
5.1
**** S tart over to alter
the setting of another
function.
EN
STEP
5
Push
„Select"
