Summary of Contents for jWIN JX-MP331
-

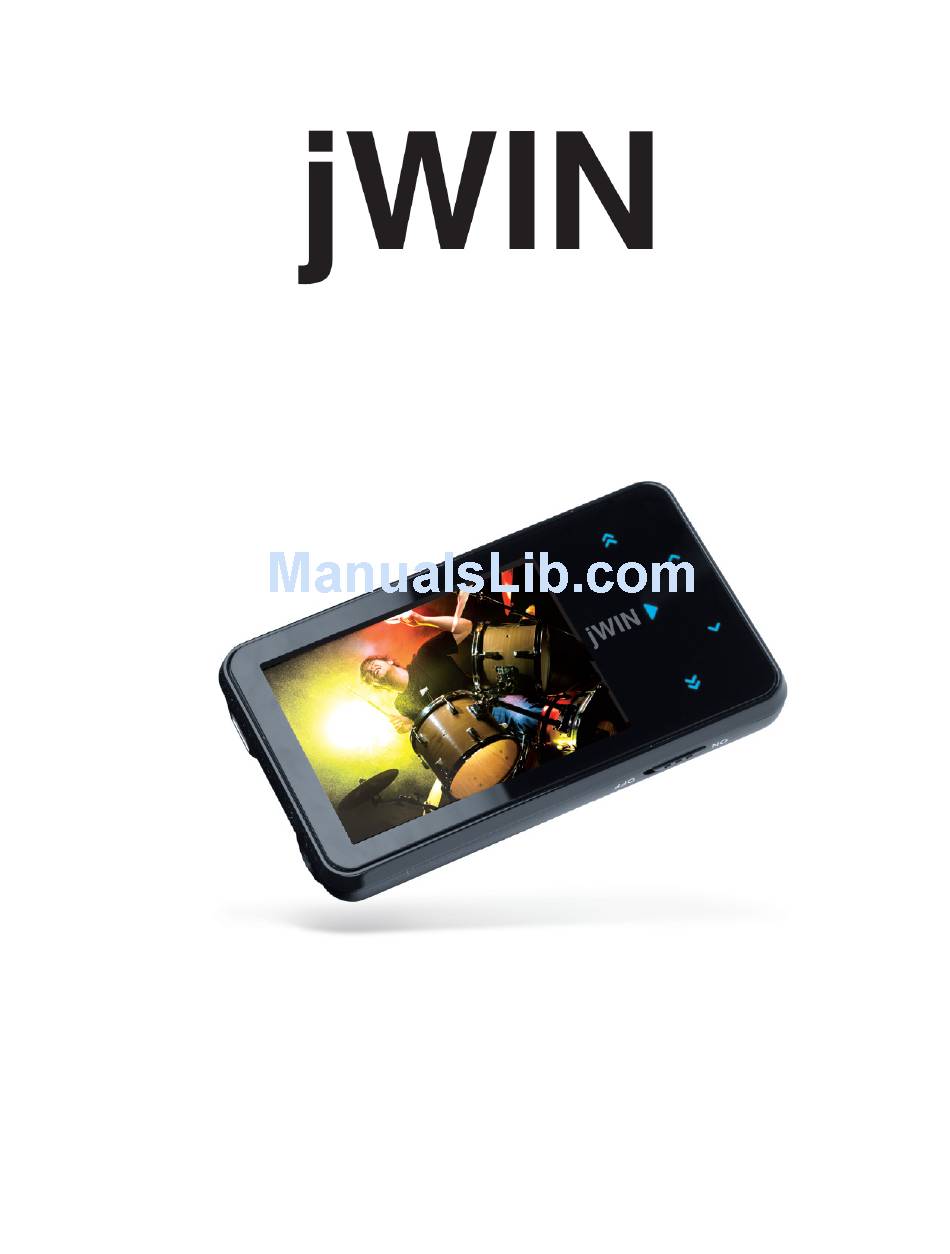

Page 1: Instruction Manual
2.4” TFT Color LCD Video MP3 Player with FM Radio, Touch Pad and Micro SD Card Slot Instruction Manual JX-MP331 (332, 334) Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com... -
Page 2: User Safety Guide
Color LCD MP3 w/ FM/Touch Pad USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENTAL PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. - Page 3 Color LCD MP3 w/ FM/Touch Pad USER SAFETY GUIDE Important Safety Instructions – Continued HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
- Page 4 Color LCD MP3 w/ FM/Touch Pad USER SAFETY GUIDE Important Safety Instructions – Continued The appliance has been dropped and suffered damage. The appliance does not appear to operate normally, or exhibits a change in performance. 13. BATTERY USAGE - To prevent battery leakage, which may result in bodily injury, property damage or damage to the unit, follow these instructions: 14.
- Page 5 Color LCD MP3 w/ FM/Touch Pad V10M10_IM_EN_01182008 USER SAFETY GUIDE Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Notes on Hearing Your hearing is very important to you and to us.
- Page 6 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Thank you for purchasing the JX-MP331 (332, 334). Unpack the unit and make sure all accessories are put aside so they will not be lost. 2.4” TFT Color LCD Video MP3 Player with FM Radio, Touch Screen, and Micro SD Card Slot •...
-
Page 7: Location Of Controls
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Location of Controls PLAY/PAUSE 1. Power/ 2. Microphone button Vol + button 5. Micro-SD Card slot 6. Mini USB jack V10M10_IM_EN_01182008 9 10 7. Color LCD screen 8. Headphone jack ON/OFF switch MENU button button... -
Page 8: Getting Started
Color LCD MP3 w/ FM/Touch Pad GETTING STARTED Minimum System Requirements • Intel Pentium 133M or above • Windows 2000/XP • 20M memory or above • CD-ROM Driver • USB interface USB Connection • Connect one end of the supplied mini USB cable to the player. -
Page 9: Power On/Power Off
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Power ON / Power OFF Turn Power ON/OFF switch to ON position, press and hold the PLAY ] button to power ON. In any mode, press and hold the [ Set Key Lock PLAY Press and hold the [ (2) seconds at the same time to set Key Lock. - Page 10 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Playing Music-continued Adjusting the Volume During Music playback, press the [ adjust volume level. Note: Pressing and holding the [ also adjust the volume level (value settings from 00 to 40). Skipping to Previous / Next Music File During Music playback, Press the [ Previous or Next track.
-
Page 11: Video Playback
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Playing Music-continued A-B Repeat During Music playback, press and hold the [ The “A-B Repeat” indicator displays “A”. Press and hold the [ displayed. Music will now repeat “A-B” playback in a loop. To cancel “A-B”... - Page 12 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Video Playback-continued FW / FF a Video file During Video playback, press and hold the [ to FW or FF playback. Adjusting the Volume During Video playback, press the [ adjust volume level. Note: Pressing and holding the [ also adjust the volume level (value settings from 00 to 40).
-
Page 13: Listening To The Radio
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Listening to the Radio The earphones must be connected to the player when using FM mode. They act as an antenna for radio frequency reception. • In Main menu, select FM menu and press the [ Manual Frequency Search In FM mode, touch the [ Scroll to “Manual”... - Page 14 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Listening to the Radio-continued Auto Frequency Search In FM mode, touch the [ Scroll to “Auto” option and touch the [ The player will automatically scan and save any available frequencies in sequential order. Playback a Preset Frequency In FM mode, touch the [ Scroll to “Preset”...
- Page 15 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Listening to the Radio-continued FM Recording During FM playback, press and hold [ recording mode. PLAY Press the [ automatically. During recording, press the [ PLAY Press the [ To end and save the recording, press and hold the MENU ] button.
-
Page 16: Viewing Photos
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Viewing Photos Displaying a Photo File In Main menu, select Photo MENU menu and press the [ button to enter Photo mode. When Photo playlist is displayed, touch the ] or the [ buttons to select a Photo file. -
Page 17: Text Mode
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Text Mode Reading Text In Main menu, select Text MENU menu and touch the [ button to enter Text mode. When Text playlist is displayed, touch the ] or the [ buttons to select a Text file. When a folder is selected, touch the [ enter folder. - Page 18 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS To Bookmark a Page The Text function supports up to 3 bookmark pages for quick search purpose. During Text playback, touch the [ to scroll backward or forward to view Text. At the desired page to create a bookmark, press the Vol+ ] button and the 3 bookmark will be displayed.
-
Page 19: Using The Recorder
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Using the Recorder Record Mode In Main menu, select Record menu and touch MENU the [ ] button to enter Record mode. In Record mode, PLAY touch the [ button and recording begins automatically. -
Page 20: Explorer Mode
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Explorer Mode The Explorer mode displays all the folders and files stored in the player. In Main menu, select Explorer menu and touch the MENU ] button to enter. When Explorer playlist is displayed, touch the [ ] or the [... -
Page 21: Settings Mode
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Settings Mode There are 7 settings available in the Settings mode. • In Main menu, select Settings menu and touch MENU the [ button to enter Settings mode. • Touch the [ ] or the [ settings in each option. - Page 22 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Music Settings-continued EQ Select • Normal / 3D / Rock / Pop / Classic/ Bass / Jazz / User EQ • User EQ Mode (User can customize their favorite EQ settings). In the User EQ settings, press [ adjust on each individual frequency segment.
- Page 23 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Music Settings-continued Record Settings • REC Quality: Recording quality & file size settings High Quality: Better recording quality with larger file size. General Quality: Normal recording quality with smaller file size. • REC Volume: The highest settings +5 will produce the loudest recording quality.
-
Page 24: Using The Avi Converter Software
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Music Settings-continued Power Off Time Settings OFF/10 Minutes/15 Minutes/30 Minutes/60 Minutes/120 Minutes Language Settings To change the desire language settings on the player. Using the AVI Converter Software This player supports AVI format video files and can transform other video formats to the supported AVI format by using the bundled AVI Converter Software. - Page 25 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Installation the AVI Converter Software Connect the player to PC and execute the preloaded AVI Converter setup program (EXE file) bundled in the player to begin. Follow the on-screen instructions to complete the installation.
- Page 26 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Installation the AVI Converter Software-continued Select the Target File Path button to save the converted video file. (Keep the rest of the settings as default and Click on Save button, followed by Close button) Click on Convert Now button to start video conversion process V10M10_IM_EN_01182008...
-
Page 27: Making Video Files
Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Installation the AVI Converter Software-continued Conversion is complete when the status information shows 100% and OK. Click on Close button to quit. Finally, transfer (using copy & paste) the converted video file (AVI format) into the player and you are now ready for video playback. - Page 28 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Making Video Files-continued (02) Appears the convert: Select the video file that you want to convert: Click the “source file” button to select the video file or MTV. Select output file path: click the “output file” path button. (03) Select the quality and size.（resolution set is320×240) Click the store button after the parameters are set.
- Page 29 Color LCD MP3 w/ FM/Touch Pad OPERATING INSTRUCTIONS Firmwear Upgrade You can upgrade the firmware by using the Firmware Upgrade Tool. Note: to upgrade the firmware, need you master certain computer knowledge, and before you upgrading read the instruction carefully. The improper upgrade may cause damage of the player, maintain the player in the current firmware version unless the functionality is not appropriate.
- Page 30 Color LCD MP3 w/ FM/Touch Pad V10M10_IM_EN_01182008 OPERATING INSTRUCTIONS （03）Firmware Update: After the installation then can upgrade: ,choose the upgrade tool. （04）Open the computer: start=>processing=>Consumer Update=>Firmware Update）,then select the *.rfw file. （05）Open the MP4, enter the settings=>system settings=>firmware upgrade=>confirm and via USB to connect the PC, then click firmware upgrade until upgrade successful Attention: the firmware upgrade is used to improve the player function and without using it there is no effect on the normal play.
-
Page 31: Troubleshooting
Color LCD MP3 w/ FM/Touch Pad TROUBLESHOOTING • No power: Please check if it is power ON • No sound from the earphone: 1. Make sure the volume level is not set to “0”. 2. Check if the earphone is properly connected to the player. -
Page 32: Specifications
Color LCD MP3 w/ FM/Touch Pad SPECIFICATIONS • Memory: (1GB / 2GB / 4GB), Flash • Display: 2.4" TFT Color LCD (320 x 240) • Audio frequency: 20 – 20kHz • Headphone Output: 5mW (L) + 5mW (R), 32Ω • Supported file format: MP3, WMA, AVI, BMP, JPEG, TXT •... - Page 33 FM SCAN RADIO V10M10_IM_EN_12272006 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp.
