Summary of Contents for jWIN JX-MP111

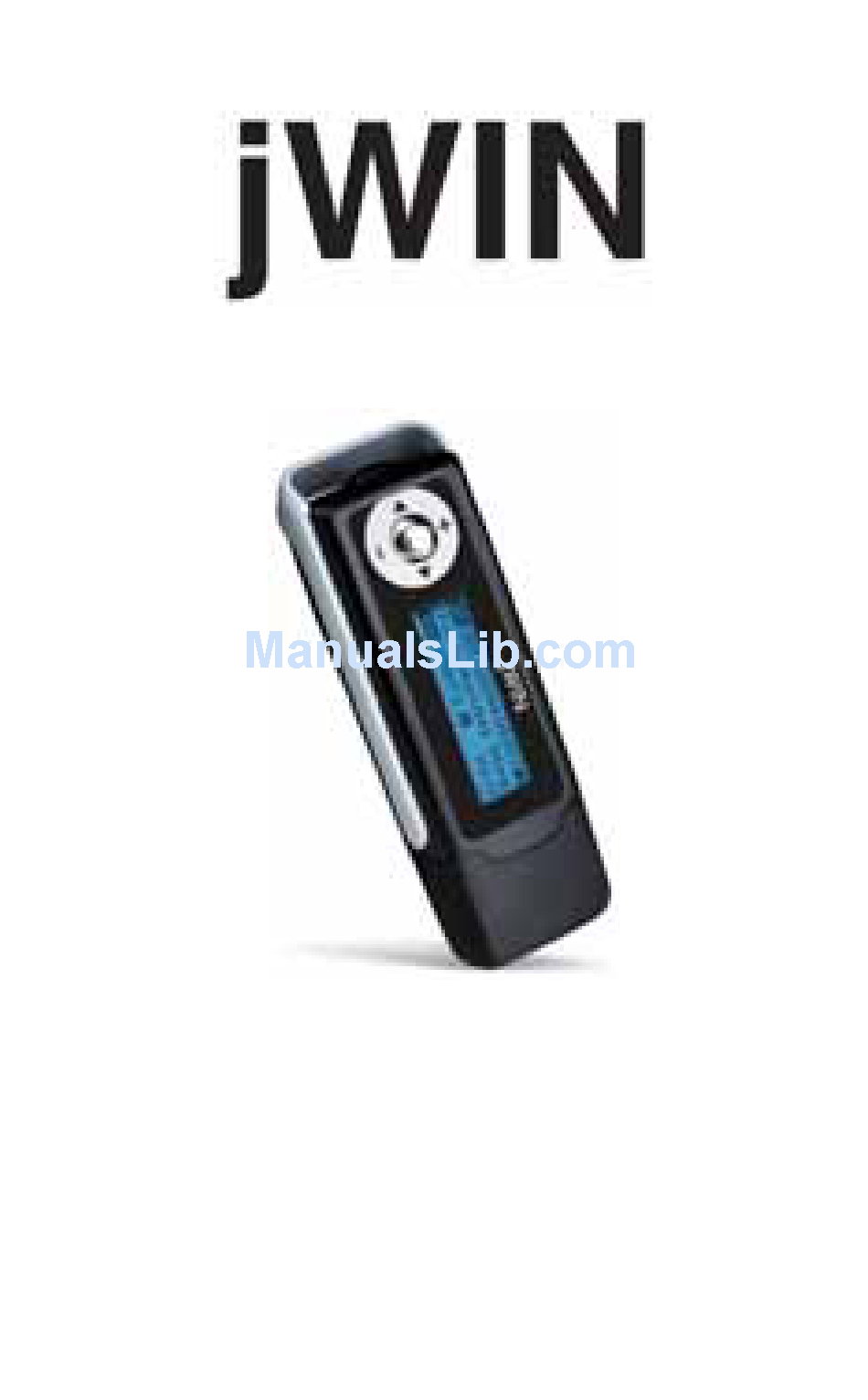

- Page 1 FM SCAN RADIO V10M10_IM_EN_12272006 Integrated USB Plug MP3 Player Instruction Manual JX-MP111 (112, 114) Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
-
Page 2: User Safety Guide
USB Plug MP3 Player USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENTAL PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol... - Page 3 USB Plug MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
- Page 4 USB Plug MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued The appliance has been dropped and suffered damage. The appliance does not appear to operate normally, or exhibits a change in performance. 13. BATTERY USAGE - To prevent battery leakage, which...
- Page 5 USB Plug MP3 Player V10M10_IM_EN_04032008 USER SAFETY GUIDE Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Notes on Hearing Your hearing is very important to you and to us.
- Page 6 USB Plug MP3 Player OPERATING INSTRUCTIONS Thank you for purchasing the JX-MP111 (112, 114). Unpack the unit and make sure all accessories are put aside so they will not be lost. Integrated USB Plug MP3 Player • Compact and stylish design for maximum portability •...
-
Page 7: Location Of Controls
USB Plug MP3 Player OPERATING INSTRUCTIONS Location of Controls Play/Pause Button 2. A-B Button 3. Lock/Unlock switch 4. ◀ Back/FR Button 5. ▶ Next/FF Button V10M10_IM_EN_04032008 6. MENU button 7. Headphone Jack 8. Lanyard Loop 9. VOL+ button 10. VOL - button... -
Page 8: Getting Started
“Driver Installation” section in this manual. Because the JX-MP111 MP3 player is a plug and play device for WIN2000/XP/ME/Vista OS, it is not necessary to install the driver. Simply connect the player to the PC and download desired files following these steps: Remove the USB cover to access the USB connector. -
Page 9: Installing The Battery
USB Plug MP3 Player GETTING STARTED Removing the player from the PC For Windows2000/XP/Vista: Left click the Click the pop-up mini-window with message of “Stop the USB Mass Storage Device – Drive (X)”. When you are prompted to remove the device, pull out the MP3 player. -
Page 10: General Features
USB Plug MP3 Player OPERATING INSTRUCTIONS General Features • Using the Menu Press and hold the Menu key to enter the main menu. Push the Menu key leftwards or rightwards to select the menu item and press the Menu key to confirm the selected item. - Page 11 USB Plug MP3 Player OPERATING INSTRUCTIONS General Features-continued • A-B Repeat To repeat specified section of the current track, Press the A-B key during playback to select the start point of the repeat. Press the A-B key again at the desired point to specify the end point of the repeat.
- Page 12 USB Plug MP3 Player OPERATING INSTRUCTIONS General Features-continued • Play Mode-continued To select the play mode: In the Music or Voice mode, press and hold the Menu key to show the main menu. Select "Setting" and press the Menu key to show the provided options.
- Page 13 USB Plug MP3 Player OPERATING INSTRUCTIONS General Features-continued • Delete track You can delete track following these steps: Press and hold the Menu key to enter the main menu. Select “Folder” and press the Menu button to enter folder navigation mode.
-
Page 14: Voice Recording
USB Plug MP3 Player OPERATING INSTRUCTIONS Voice recording • Record In the Music mode, press the pause playing. Press the A-B button to start recording. During recording, you can press the pause/resume recording. Press the Menu button to stop and save the recording. -
Page 15: System Settings
USB Plug MP3 Player OPERATING INSTRUCTIONS System Settings To customize the player settings: On the main menu, select the "Setting" item and press the Menu key to enter the system setting mode. Push the Menu key leftwards or rightwards to... -
Page 16: Checking System Information
USB Plug MP3 Player OPERATING INSTRUCTIONS Checking system information To check system version or memory information, Press and hold the Menu button to enter the main menu. Select “Info” and press Menu key to continue. You see the software version number and the memory information is displayed. -
Page 17: Troubleshooting Guide
USB Plug MP3 Player TROUBLESHOOTING GUIDE The LCD displays nothing when the No battery or battery is too low. Install or replace the battery. The keys are locked. Unlock the Hold switch. When the has no response. The keys are locked by Hold switch. - Page 18 USB Plug MP3 Player TROUBLESHOOTING GUIDE • The PC has error when you plug and unplug the player. The player is disconnected from the PC abruptly while transferring files. • Do not disconnect the player from the PC when transferring files.
-
Page 19: Specifications
USB Plug MP3 Player SPECIFICATIONS • Memory: (1GB / 2GB / 4GB), Flash • Display: 132 x 32 STN Dot Matrix LCD, with backlight • Audio frequency: 20 – 20kHz • Supported file format: MP3, WMA • Connectivity • Power Sources •... - Page 20 USB Plug MP3 Player V10M10_IM_EN_04032008 - 22 -...
- Page 21 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp.
