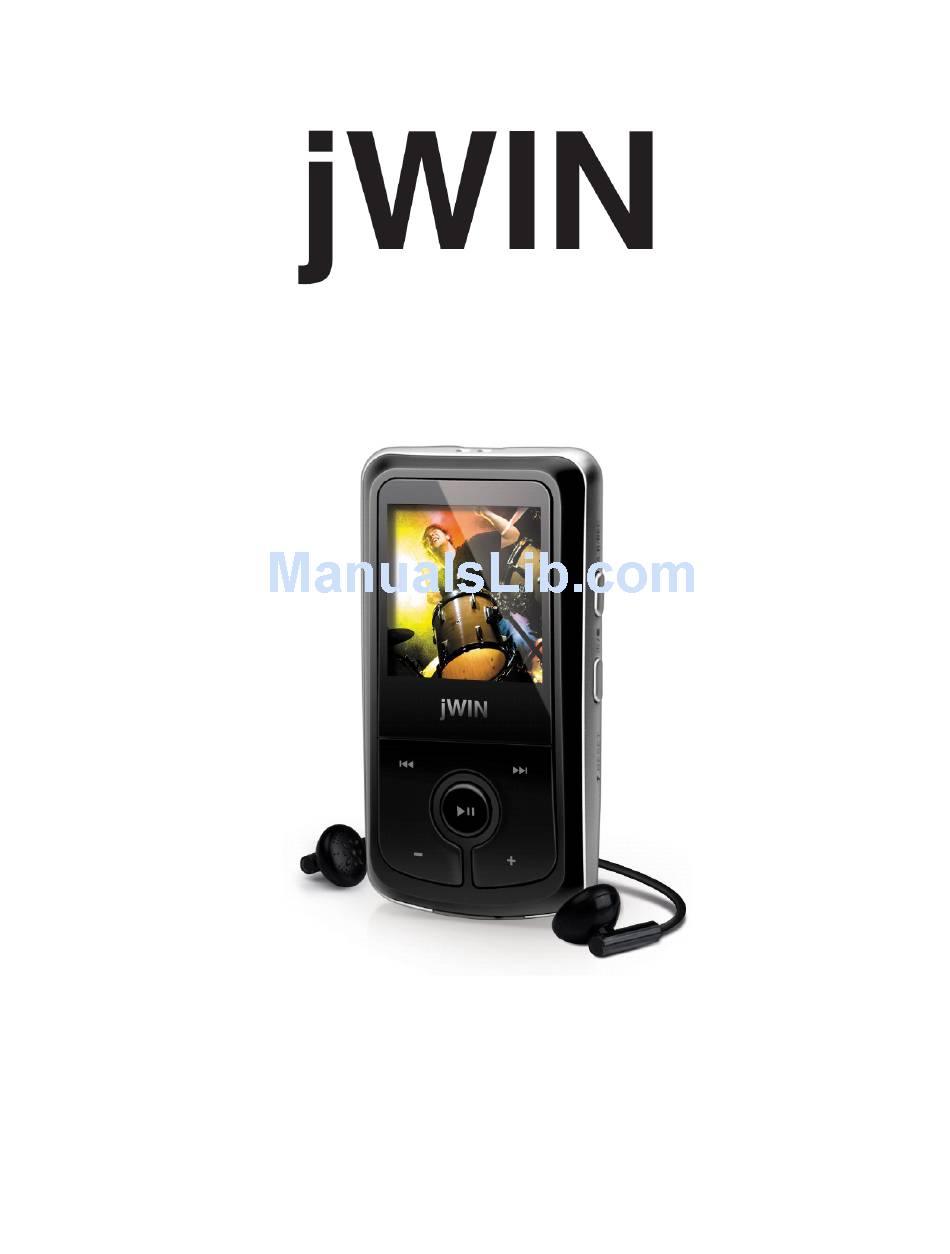

jWIN JX-MP222 Instruction Manual

1.5” video mp3 player / fm radio and micro sd card slot

Advertisement

Quick Links

FM SCAN RADIO
V10M10_IM_EN_12272006
1.5" Video MP3 Player / FM Radio
and micro SD Card Slot

Instruction Manual

JX-MP222 / 224
Please read this manual carefully before operating and save it
for future reference.
Have a question? Please visit http://www.jWIN.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JX-MP222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for jWIN JX-MP222

  • Page 1: Instruction Manual

    FM SCAN RADIO V10M10_IM_EN_12272006 1.5” Video MP3 Player / FM Radio and micro SD Card Slot Instruction Manual JX-MP222 / 224 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
  • Page 2: Sd Card Slot

    Video MP3 Player V10M10_IM_EN_05292009 OPERATING INSTRUCTIONS Thank you for purchasing the JX-MP222 / 224. Unpack the unit and make sure all accessories are put aside so they will not be lost. 1.5” Video MP3 Player / FM Radio and micro SD Card Slot •...
  • Page 3: Location Of Controls

    Video MP3 Player OPERATING INSTRUCTIONS Location of Controls 1. Headphone jack 2. LCD screen 3. HOLD switch button button 6. Microphone 7. − button V10M10_IM_EN_05292009 8. Card slot 9. USB port 10. A-B / REC button button button 13. RESET...
  • Page 4: Getting Started

    “Driver Installation” section in this manual. Because the JX-MP222 / 224 MP3 player is a plug and play device for WIN2000/XP/ME/Vista OS, it is not necessary to install the driver. Simply connect the player to the PC and download audio files following these steps: Connect one end of the supplied USB cable to the player.
  • Page 5: Driver Installation

    Drive (X)”. When you are prompted to remove the device, pull out the MP3 player. Note: • Make sure the data transfer is completed before unplugging the MP3 player. V10M10_IM_EN_05292009 icon on the right end of the taskbar. - 4 -...
  • Page 6: Charging The Battery

    Video MP3 Player GETTING STARTED Charging the battery This device has a built-in lithium-ion rechargeable battery. It is charged via USB connection. You are required to charge it when you use it for the first time. It takes about 3 hours to fully charge the battery.
  • Page 7: Hold Function

    The hold function can help you lock all buttons to avoid accidental player operation. To lock all buttons of MP3 player, slide the [HOLD] switch in the direction of the arrow. All buttons will be disabled. To deactivate the lock function, slide back the [HOLD] switch.
  • Page 8: Navigating The Settings Menu

    NAVIGATING THE SETTINGS MENU This section describes how to access and change various features through the MP3 player settings menu. Press and hold the [ to open the main menu. Select the Settings using the [ ] or [ ] button and press the [ ] button to open the sub-menu.
  • Page 9: Setting Play Mode

    Video MP3 Player GETTING STARTED Settings - continued SETTING PLAY MODE Select the repeat mode for the music, voice and movie playback. • Normal: Play all saved files in order once. • Repeat One: Play the current or selected file repeatedly.
  • Page 10 Video MP3 Player GETTING STARTED Settings – continued STORAGE Internal: To select the player as the media source. SD/TF Card: To select the micro SD card as the media source. Note: Please ensure the microSD card is inserted into the card slot when selecting the SD/TF card.
  • Page 11: Operational Instructions

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing music GENERAL Press and hold the [ The display will light. The MP3 player will enter the Main menu with Music option default. Press the [ ] button to enter the Music mode. By default the player will be in STOP mode.
  • Page 12: Using The Music Menu

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing music - continued A-B FUNCTION A desired section of a track can be played back repeatedly by using the A-B function. While a track is playing, press the [A-B / REC] button to set the beginning point of the section. The icon displayed.
  • Page 13: Setting Repeat Mode

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing music - continued SETTING REPEAT MODE The repeat mode setting lets you to select a play mode to enjoy the music in a desired order. Press the [ listening to music. The music menu appears on the screen.
  • Page 14: Setting The Equalizer

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing music - continued SETTING THE EQUALIZER The equalizer setting lets you to select an equalizer from the six preset equalizer settings to suit the type of audio output or customize your personal equalizer effect.
  • Page 15 Video MP3 Player OPERATIONAL INSTRUCTIONS Playing music – continued SETTING 3D EFFECT This player features 3D effect sound. 3D effect sound is a fuller reproduction of music similar to surround sound. Press the [ music menu appears on the screen.
  • Page 16: Lyric Display

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing music – continued NAVIGATING MUSIC FILES Press the [ listening to music. The music menu appears on the screen Use the [ ] or [ ] button to select File, and press the [ button.
  • Page 17: Viewing Photos

    Video MP3 Player OPERATIONAL INSTRUCTIONS Viewing photos This player supports the playback of JPEG and BMP pictures. Press and hold the [ enter the main menu. Use the [ ] or [ ] button to select Photo and press the [ button.
  • Page 18: Playing Videos

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing videos This player supports the playback of videos in MTV & AVI format.* Press and hold the [ enter the main menu. Use the [ ] or [ ] button to select Movie and press the [ The first video appears on the screen in STOP mode.
  • Page 19: Searching Backward Or Forward

    Video MP3 Player OPERATIONAL INSTRUCTIONS Playing videos - continued SEARCHING BACKWARD OR FORWARD Press and hold the [ ] button to search forward within a video file. Press and hold the [ ] button to search backward within a video file.
  • Page 20: Listening To Fm Radio

    AUTOMATICALLY SEARCHING A FREQUENCY AND STORING THE FREQUECIES Press and hold the [ ] or [ ] button, the MP3 player automatically searches with lower or higher frequency range for the radio station with next strongest reception.
  • Page 21 Press the [ Use the [ ] or [ ] button to select the Auto Scan to start the search. The MP3 player automatically searches for all radio stations with the strongest reception and save them in the 20 memory locations (CH01-CH20). The unit will start to play the first channel automatically after finishing the search.
  • Page 22 FM radio playback mode. The recorded files are saved in the FMIN.DIR folder of the MP3 player as WAV files (format: FM000001.WAV, FM000002.WAV) and can be listened to in Voice mode. Note: FM recording is automatically stopped when the memory of the player is full or the battery power is no longer sufficient.
  • Page 23: Voice Recording

    To save recording and return to main menu, press the ] button. The player will go to Voice playback interface. The recorded files are saved in the MICIN.DIR folder of the MP3 player as WAV files (format: MIC0000X.WAV) and can be listened to in Voice mode. Press the [...
  • Page 24: Listening To Recordings

    Video MP3 Player OPERATIONAL INSTRUCTIONS Listening to recordings All recordings can be played in the voice mode. Press and hold the [ Use the [ ] or [ ] button to select the Voice and press the [ button. The screen displays the voice mode and will be in stop mode.
  • Page 25: Reading E-Book

    Video MP3 Player OPERATIONAL INSTRUCTIONS Reading E-book This player only supports playback of files in TXT format. Other formats must be saved as TXT format before transfer. Press and hold the [ to enter the main menu. Use the [ ] or [ ] button to select E-BOOK and press the [ ] button.
  • Page 26 Video MP3 Player OPERATIONAL INSTRUCTIONS Reading E-book - continued SKIPPING TO THE NEXT PAGE AUTOMATICALLY Press the [ ] button while viewing the text. The player will skip to the next page after a short time automatically until reaching the last page. Press the [ to stop the automatic skipping.
  • Page 27: Deleting Files

    Video MP3 Player OPERATIONAL INSTRUCTIONS Deleting files In the Delete mode, you can delete the files and folders stored on your player or microSD card without a computer. Press and hold the [ enter the main menu. Use the [ ] or [ ] button to select Delete and press the ] button.
  • Page 28 Video MP3 Player OPERATIONAL INSTRUCTIONS About In the About mode, you can check and review the firmware version, total memory and free memory of the player. Press and hold the [ to enter the main menu. Use the [ ] or [ ] button to select about and press the ] button.
  • Page 29: Additional Information

    Video MP3 Player ADDITIONAL INFORMATION Converting videos to MTV or AVI format This player supports the playback of converter MTV or converter AVI format through Video Converter V2.9. Video Converter V2.9 support formats including MTV, AVI, WMV, MEPG1, Quick Time, MPEG2, Real Media, MPEG4, 3GP.
  • Page 30 Video MP3 Player ADDITIONAL INFORMATION Converting videos to MTV or AVI format - continued Notes: To make your video playable on the player, you must select 128x128 or less in the Output Frame Size box (Advanced Setting). Otherwise, the message “Device Not Support”...
  • Page 31: Troubleshooting Guide

    Video MP3 Player TROUBLESHOOTING GUIDE Problem The LCD displays nothing when the device is started. The player has no response when the Play button is pressed to play an audio. No sound when playing an audio file. The player cannot be...
  • Page 32 Video MP3 Player TROUBLESHOOTING GUIDE Problem The PC has error when you plug and unplug the player. Total memory displayed on the player is not in accordance with the marked amount. Some of MP3 files cannot be played properly. The video cannot be played.
  • Page 33 Video MP3 Player TROUBLESHOOTING GUIDE Problem The photo cannot be displayed The TXT file cannot be read V10M10_IM_EN_05292009 Possible Cause The file format is not supported The image resolution is beyond limitation of the device. The file format is not supported.
  • Page 34: User Safety Guide

    Video MP3 Player USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENTAL PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods for disposal.
  • Page 35 Video MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
  • Page 36 Video MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued The appliance has been dropped and suffered damage. The appliance does not appear to operate normally, or exhibits a change in performance. 13. BATTERY USAGE - To prevent battery leakage, which...
  • Page 37 Video MP3 Player V10M10_IM_EN_05292009 USER SAFETY GUIDE Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Notes on Hearing Your hearing is very important to you and to us.
  • Page 38: Specifications

    Video MP3 Player SPECIFICATIONS • Memory: (2GB / 4GB), Flash • Display: 1.5" Color LCD display • Audio frequency: 20 – 20kHz • Supported file format: MP3, WMA, MTV, AVI, JPEG, BMP, • Supported languages: English, German, French, Spanish, Italian, Dutch, Portuguese •...
  • Page 39 Video MP3 Player V10M10_IM_EN_05292009 - 38 -...
  • Page 40 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2009 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp.
