Summary of Contents for jWIN JX-MP101
-
Page 1: Lcd Screen

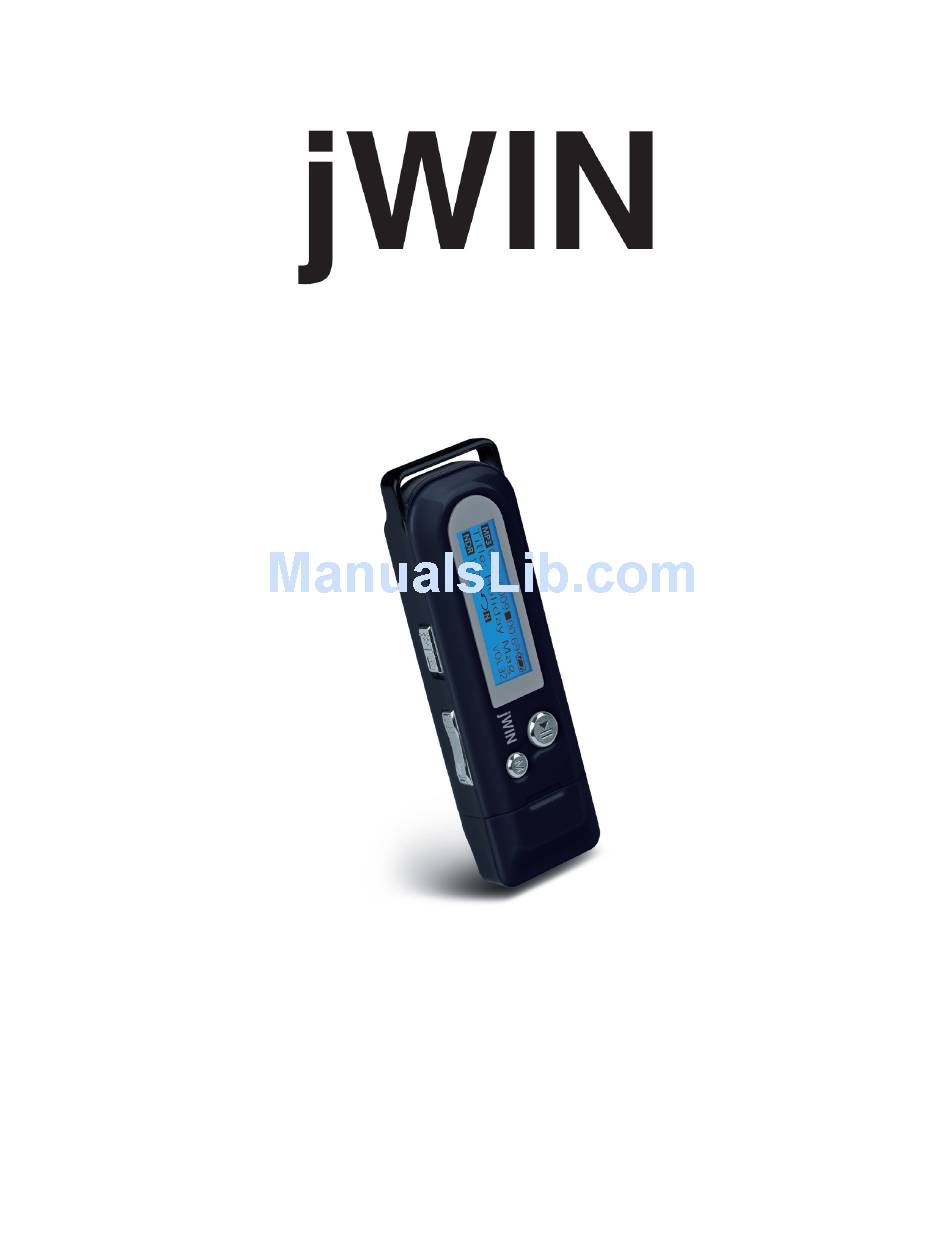

FM SCAN RADIO V10M10_IM_EN_12272006 USB Plug MP3 Player with LCD Screen Instruction Manual JX-MP101 (102, 104) Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com... -
Page 2: User Safety Guide
USB Plug MP3 Player USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENTAL PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods for disposal. - Page 3 USB Plug MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
-
Page 4: Fcc Notice (Usa)
USB Plug MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued The appliance has been dropped and suffered damage. The appliance does not appear to operate normally, or exhibits a change in performance. 13. BATTERY USAGE - To prevent battery leakage, which... - Page 5 USB Plug MP3 Player V11M11_IM_EN_03102008 USER SAFETY GUIDE Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Notes on Hearing Your hearing is very important to you and to us.
- Page 6 USB Plug MP3 Player OPERATING INSTRUCTIONS Thank you for purchasing the JX-MP101 (102, 104). Unpack the unit and make sure all the accessories are put aside so they will not be lost. We suggest that you retain the packaging materials for future transporting or moving the product in the future.
-
Page 7: Location Of Controls
USB Plug MP3 Player OPERATING INSTRUCTIONS Location of Controls 1. Headphone jack 2. LCD Screen 3. Volume - / + button 4. Play / Pause button V11M11_IM_EN_03102008 5. Hold switch 6. FWD/RWD 7. M button 8. USB cap - 6 -... -
Page 8: Connecting The Player To A Computer
USB Plug MP3 Player OPERATING INSTRUCTIONS Connecting the Player to a Computer Remove the USB cap. Install driver. Plug directly into the USB port on your computer It is not necessary to install this driver program under WINDOWS 2000 / WINDOWS XP or higher operating system. -
Page 9: Playing Music
USB Plug MP3 Player OPERATING INSTRUCTIONS Playing Music Press and hold [ Press and hold [ Press [ Press [ ] to enter music playing mode. Press [ ] to play music. Note: This player supports lyric files of *.LRC and recognizes the synchronous playing of music and lyric. - Page 10 USB Plug MP3 Player OPERATING INSTRUCTIONS Recording Mode (set sound source to MIC) Press and hold [ Press and hold [ Press [ Press [ ] to enter. Press [ ] again to record. Press [ ] to save the recording.
- Page 11 USB Plug MP3 Player V11M11_IM_EN_03102008 OPERATING INSTRUCTIONS Settings-continued Repeat Mode The Play Mode includes 7 kinds settings, (Normal, Repeat one, Repeat all, Random repeat, Dir normal, Dir all repeat and Dir random repeat） Contrast Set the LCD contrast Backlight Set the backlight time. (Always on, 5sec, 10sec, Always off).
- Page 12 USB Plug MP3 Player OPERATING INSTRUCTIONS Settings-continued Folder • The Folder setting displays the folders and files (music and recorded) stored in the player. • When a folder is selected, press [ a file is selected, press [ can play or delete the file in the folder.
-
Page 13: Specifications
USB Plug MP3 Player SPECIFICATIONS • Memory: (1GB / 2GB / 4GB), Flash • Display: 132 x 32 STN Dot Matrix LCD, with 7 color backlight • Audio frequency: 20 – 20kHz • Audio Output: 5mW (L) + 5mW (R), 32Ω... - Page 14 FM SCAN RADIO V10M10_IM_EN_12272006 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp.
