Summary of Contents for jWIN JX-MP201

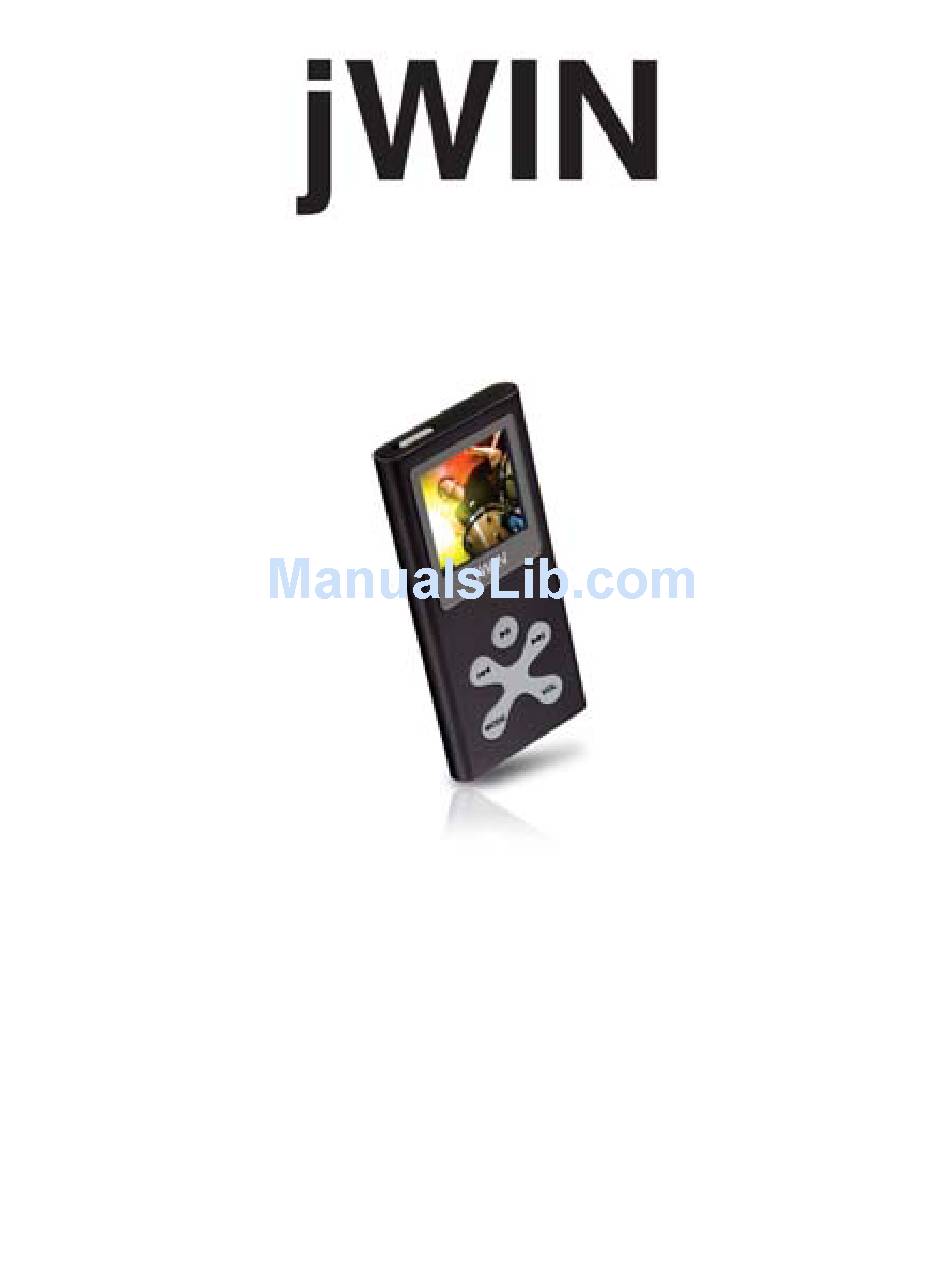

- Page 1 FM SCAN RADIO V10M10_IM_EN_12272006 1.5” Color LCD Video MP3 Player with FM Radio Instruction Manual JX-MP201 (202, 204) Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
-
Page 2: User Safety Guide
Color LCD MP3 Player USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENTAL PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods for disposal. - Page 3 Color LCD MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
-
Page 4: Fcc Notice (Usa)
Color LCD MP3 Player USER SAFETY GUIDE Important Safety Instructions – Continued The appliance has been dropped and suffered damage. The appliance does not appear to operate normally, or exhibits a change in performance. 13. BATTERY USAGE - To prevent battery leakage, which... - Page 5 Color LCD MP3 Player V10M10_IM_EN_03032008 USER SAFETY GUIDE Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Notes on Hearing Your hearing is very important to you and to us.
- Page 6 Color LCD MP3 Player OPERATING INSTRUCTIONS Thank you for purchasing the JX-MP201 (202, 204). Unpack the unit and make sure all accessories are put aside so they will not be lost. 1.5” Color LCD Video MP3 Player with FM Radio •...
-
Page 7: Location Of Controls
Color LCD MP3 Player OPERATING INSTRUCTIONS Location of Controls 1. Power On/Off Switch 2. Color LCD Screen Button [ II] Button Button V10M10_IM_EN_03032008 6. Mini USB Jack 7. Headphone Jack 8. Lanyard Loop [MODE] button [VOL] button - 6 -... -
Page 8: General Instructions
Color LCD MP3 Player OPERATING INSTRUCTIONS General Instructions ON/OFF: POWER ON/OFF; To turn the power on, slide the ON position, Short press play the music and pause. Press and hold to power off. Short press browse next picture. While in play pause or playing modes, press hold to fast forward;... -
Page 9: Music Playback
Color LCD MP3 Player OPERATING INSTRUCTIONS Music Playback In the main menu, select music, short press [MODE] to enter. [ II] Short press the file. [MODE] Press to enter into the file list. Press select the required music file to play. -
Page 10: Photo Display
Color LCD MP3 Player OPERATING INSTRUCTIONS Photo Display In the main menu, press to select PHOTO. [MODE] Press to enter. Press to browse previous page, press to browse next page [MODE] Press to enter the file list. Press to browse, press... - Page 11 Color LCD MP3 Player OPERATING INSTRUCTIONS Listening to the Radio-continued [MODE] Press to save the recording. [MODE] Press and hold mode. Press [MODE] Press to confirm. [MODE] Press and hold Listen state. [MODE] Press to exit to main menu. Recording...
- Page 12 Color LCD MP3 Player OPERATING INSTRUCTIONS Recording-continued Playing the recording In the main menu, press to select VOICE. [MODE] Press to enter. Press to select a file. [ II] Press the to play the file. (The basic operation please refer to the “Music Playback”...
- Page 13 Color LCD MP3 Player OPERATING INSTRUCTIONS Settings In the main menu, press to select setup. [MODE] Press to enter. • Play mode : Normal, Repeat One, Repeat all, Shuffle Repeat , Preview • EQ: Normal, Rock, Jazz, Classical, Pop, Bass •...
-
Page 14: Deleting Files
Color LCD MP3 Player OPERATING INSTRUCTIONS Deleting Files In the main menu, press to select Delete. [MODE] Press to enter. • Select the file you want to delete by pressing • [ II] Press Delete File menu to select the file to delete. - Page 15 Color LCD MP3 Player V10M10_IM_EN_03032008 OPERATING INSTRUCTIONS Converting video files into SMV format When playing video files, you need to convert the files into SMV format. AVI, DAT, WMV and other formats of files can be converted into SMV format. The specific procedures are as...
-
Page 16: Usb Connection
Color LCD MP3 Player OPERATING INSTRUCTIONS Converting into SMV format-continued Select FULL SCREEN, press CONVERSION button and begin to convert the files into SMV files. (The size please select 128*128 ) USB connection Connect MP3 to the computer, you can find folder include: FM... -
Page 17: Troubleshooting
Color LCD MP3 Player TROUBLESHOOTING • No power: Please check if it is power ON • No sound from the earphone: 1. Make sure the volume level is not set to “0”. 2. Check if the earphone is properly connected to the player. 3. Check if the music file is corrupted. -
Page 18: Specifications
Color LCD MP3 Player SPECIFICATIONS • Memory: (1GB / 2GB / 4GB), Flash • Display: 1.5" full color LCD (65k colors) • Audio frequency: 20 – 20kHz • Audio Output: 5mW (L) + 5mW (R) • Supported file format: MP3, WMA, SMV, BMP, JPEG, •... - Page 19 Color LCD MP3 Player V10M10_IM_EN_03032008 - 18 -...
- Page 20 FM SCAN RADIO V10M10_IM_EN_12272006 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp.
