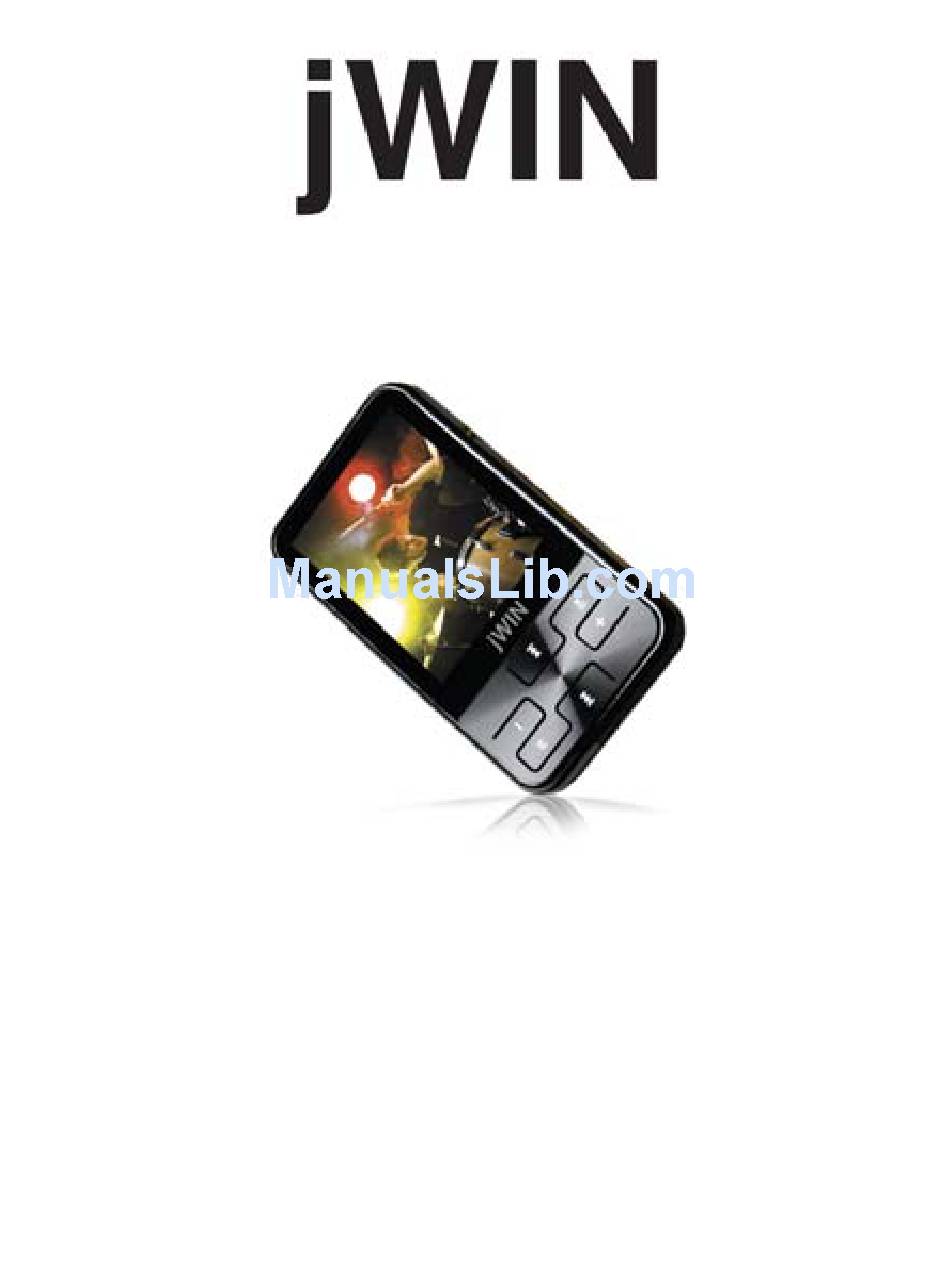

- Page 1 FM SCAN RADIO V10M10_IM_EN_12272006 2.0” TFT Color LCD Video MP3 Player with FM Radio Instruction Manual JX-MP301 (302, 304) Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
-
Page 2: User Safety Guide
Color LCD MP3 w/ FM Radio USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENTAL PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. - Page 3 Color LCD MP3 w/ FM Radio USER SAFETY GUIDE Important Safety Instructions – Continued HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
-
Page 4: Fcc Notice (Usa)
Color LCD MP3 w/ FM Radio USER SAFETY GUIDE Important Safety Instructions – Continued The appliance has been dropped and suffered damage. The appliance does not appear to operate normally, or exhibits a change in performance. 13. BATTERY USAGE - To prevent battery leakage, which may result in bodily injury, property damage or damage to the unit, follow these instructions: 14. - Page 5 Color LCD MP3 w/ FM Radio V10M10_IM_EN_02192008 USER SAFETY GUIDE Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Notes on Hearing Your hearing is very important to you and to us.
- Page 6 Color LCD MP3 w/ FM Radio INTRODUCTION Thank you for purchasing the JX-MP301 (302, 304). Unpack the unit and make sure all accessories are put aside so they will not be lost. 2.0” TFT Color LCD Video MP3 Player with FM Radio and Touch Screen •...
-
Page 7: Getting Started
Color LCD MP3 w/ FM Radio GETTING STARTED Location of Controls 1. Color LCD Screen 2. Power On/Off switch 3. Headphone jack 4. Mini USB jack 5. Battery compartment 6. Microphone V10M10_IM_EN_02192008 PLAY/PAUSE button Vol+ button Vol- button button button - 6 - button... -
Page 8: Minimum System Requirements
Color LCD MP3 w/ FM Radio GETTING STARTED Minimum System Requirements • Intel Pentium processor 200MHz and above. • Windows 2000 and Windows XP. • 32MB of RAM (128MB recommended) • Up to 100MB of available hard-disk space • Standard USB Port USB Connection •... -
Page 9: Power On/Power Off
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Power ON / Power OFF Turn Power ON/OFF switch to ON position, press and hold the ] button to power ON. In any mode, press and hold the [ Set Key Lock Press and hold the [ ] button and the [ seconds at the same time to set Key Lock. - Page 10 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Playing Music-continued Function Song Title & ID3 Display Playback Time Playback Mode Play/Pause Status Playback Setting Volume Level Adjusting the Volume During Music playback, press the [ adjust volume level. Note: Pressing and holding the [ also adjust the volume level (value settings from 00 to 40).
- Page 11 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Deleting a Music File During Music playback, press the [ submenu. Touch the [ ] or the [ Music file. When a folder is selected, touch the [ folder. When a Music file is selected, press the [ delete.
-
Page 12: Video Playback
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Synchronous Song Lyrics Display When a Music file in the player has a song lyrics file with same file name, song lyrics will be displayed automatically during Music playback. Video Playback In Main menu, select Video menu and touch the [ enter Video mode. -
Page 13: Listening To The Radio
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Deleting a Video File During Video playback, press the [ submenu. Touch the [ ] or the [ Video file. When a folder is selected, touch the [ folder. When a Video file is selected, press the [ delete. - Page 14 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Listening to the Radio-continued Manual Frequency Search In FM mode, touch the [ Scroll to “Manual” option and touch the [ Touch the [ ] or the [ favorite frequency. To manually preset the selected frequency, touch the [ button and scroll to “MEM”...
- Page 15 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Playback a Preset Frequency In FM mode, touch the [ Scroll to “Preset” option and touch the [ preset mode. Touch the [ ] or the [ previous or next preset frequency. (Example: CH:01, CH02 etc.) Press and hold the [ ] button to return to Main menu.
- Page 16 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS FM Recording During FM playback, press and hold [ recording mode. Press the [ ] button and recording begins automatically. During recording, press the [ Press the [ ] button again to resume. To end and save the recording, press and hold the [ button.
-
Page 17: Viewing Photos
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Viewing Photos Displaying a Photo File In Main menu, select Photo menu and press the [ ] button to enter Photo mode. When Photo playlist is displayed, touch the [ the [ ] buttons to select a Photo file. -
Page 18: Text Mode
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Text Mode Reading Text In Main menu, select Text menu and touch the [ ] button to enter Text mode. When Text playlist is displayed, touch the [ ] or the [ buttons to select a Text file. - Page 19 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS To Bookmark a Page The Text function supports up to 3 bookmark pages for quick search purpose. During Text playback, touch the [ to scroll backward or forward to view Text. At the desired page to create a bookmark, press the [ button and the 3 bookmark will be displayed.
-
Page 20: Using The Recorder
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Using the Recorder Record Mode In Main menu, select Record menu and touch the [ ] button to enter Record mode. In Record mode, touch the ] button and recording begins automatically. During recording, press the [ ] button to pause recording and press the [... -
Page 21: Explorer Mode
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Explorer Mode The Explorer mode displays all the folders and files stored in the player. In Main menu, select Explorer menu and touch the [ ] button to enter. When Explorer playlist is displayed, touch the [ the [ ] buttons to select a file. -
Page 22: Settings Mode
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Playing the Brick Game The player comes with a free built-in Brick Game. • In Main menu, select Game menu and touch the [ ] button to enter Game mode. Game Control Keys To begin / pause, press the [ ] button. -
Page 23: Music Settings
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Music Settings Repeat Mode • Once: To play all the files once. • Repeat 1: To repeat one file. • Folder Once: To play all the files in the folder once. • Folder Repeat: To repeat all files in the folder. - Page 24 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS FM Radio Settings • Stereo SW: Set FM stereo mode ON/OFF • • • FM Region: Configure FM for your region. China Europe Japan Record Settings • REC Quality: Recording quality & file size settings •...
-
Page 25: Using The Avi Converter Software
Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS System Settings • About: To display information on firmware version, date and memory status. • Upgrade: For firmware upgrade (if any). • Default Set: To restore the player to original default settings. Power Off Time Settings OFF/10 Minutes/15 Minutes/30 Minutes/60 Minutes/120 Minutes Language Settings... - Page 26 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Installation the AVI Converter Software Connect the player to PC and execute the preloaded AVI Converter setup program (EXE file) bundled in the player to begin. Follow the on-screen instructions to complete the installation.
- Page 27 Color LCD MP3 w/ FM Radio OPERATING INSTRUCTIONS Installation the AVI Converter Software-continued Select the Target File Path button to save the converted video file. (Keep the rest of the settings as default and Click on Save button, followed by Close button) Click on Convert Now button to start video conversion process V10M10_IM_EN_02192008...
- Page 28 Color LCD MP3 w/ FM Radio V10M10_IM_EN_02192008 OPERATING INSTRUCTIONS Installation the AVI Converter Software-continued Conversion is complete when the status information shows 100% and OK. Click on Close button to quit. Finally, transfer (using copy & paste) the converted video file (AVI format) into the player and you are now ready for video playback.
-
Page 29: Troubleshooting
Color LCD MP3 w/ FM Radio TROUBLESHOOTING • No power: Please check if it is power ON • No sound from the earphone: 1. Make sure the volume level is not set to “0”. 2. Check if the earphone is properly connected to the player. -
Page 30: Specifications
Color LCD MP3 w/ FM Radio SPECIFICATIONS • Memory: (1GB / 2GB / 4GB), Flash • Display: 2.0" TFT Color LCD (220 x 176 / 262K real color) • Audio frequency: 20 – 20kHz • Headphone Output: 5mW (L) + 5mW (R), 32Ω •... - Page 31 FM SCAN RADIO V10M10_IM_EN_12272006 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp.
