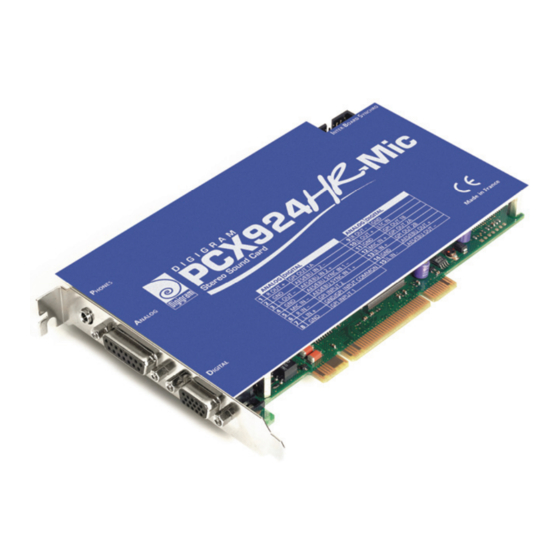

- Page 1 PCX924HR PCX924HR-Mic PCX22HR Professional Stereo Sound Cards User manual...
- Page 2 Digigram S.A. 82/84 Allée Galilée, 38330 Montbonnot-Saint-Martin, FRANCE Tel: +33 (0)4 76 52 47 47• Fax: +33 (0) 4 76 52 18 44• E-mail: info@digigram.com Digigram Inc. 2000 North 14th Street - Suite 530, Arlington, VA 22201, USA Tel: +1 703 875 9100 •...
-
Page 3: Table Of Contents
IMPORTANT NOTICE ....................CONTENTS OF THIS PACKAGE ............... FEATURES ..........................PCX924HR & PCX924HR-Mic Main hardware features .......... 6 PCX924HR-Mic Additional hardware features .............. 7 PCX22HR - Main hardware features ................7 PCX924HR, PCX924HR-Mic, and PCX22HR Main software features....8 REQUIREMENTS ....................... - Page 4 While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and reserves the right to make improvements or changes in the products and programs described without notice.
-
Page 5: Information For The User
PCX924HR & PCX924HR-Mic, PCX22HR User manual INFORMATION FOR THE USER This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Contents Of This Package
They are delivered separately. FEATURES PCX924HR-Mic, PCX924HR, and PCX22HR are audio cards for PCI bus. They are ‘Universal PCI’ (32-bit/66 MHz), which means they can be plugged in 32-bit/33 MHz 5 V keyed PCI slots as well as in 64-bit/66 MHz 3.3 V keyed PCI slots. -
Page 7: Pcx924Hr-Mic Additional Hardware Features
This output is in parallel of the analog outputs 1 and 2. • 2 General Purpose inputs and 2 outputs (GPIOs) • Inter-card synchronization connector PCX924HR-Mic - Additional hardware features • 1 analog microphone input with - high-quality preamplifier - switchable 48 V phantom power - analog expander/compressor/limiter This input is mixed with the two line inputs before A/D conversion. -
Page 8: Pcx924Hr, Pcx924Hr-Mic, And Pcx22Hr Main Software Features
CPU power and memory required depend on the operating system and on the audio application used. Software requirements To use your PCX924HR, PCX924HR-Mic or PCX22HR, install the driver from the np Runtime HR package version 1.40 (Vista: 1.60) or higher. This package includes: •... -
Page 9: Hardware Installation
This application allows the configuration of the hardware resources of Digigram cards for all audio applications. The DHS allows for instance to define the clock of the card, the input source, input and output analog and digital gain, Sample Rate Converters, digital output format, etc... - Page 10 Click Allow in the “User Account Control” window. Click Install in the “Windows Security” window. • In the “Digigram drivers” window, select the number and the size of buffers required by your applications. Click on Ok. • Click Finish to complete the driver installation.
-
Page 11: Parameterizing The Asio Driver
Parameterizing the ASIO driver To use the ASIO driver on your PCX HR sound card, the option “PCM only” has to be activated in the Digigram control panel (CPL). To access this control panel, go to <Start>, <Programs>, <Digigram>, <Digigram Control Center>. -
Page 12: Removing The Driver Under Windows Xp And Windows Server 2003
• Open the Windows Control Panel and double-click on the Programs and Features icon. • Select “Digigram HR Runtime for Vista…”, and Change/Remove. • Select Remove in the HR Runtime window. • Follow the instructions to finish removing the driver. -
Page 13: The 'Digigram Hardware Settings' ('Dhs')
“setup x_topology” has been executed to install the driver. A resource being managed by the DHS application can not be modified by any other applications. To enable an audio application to modify a Digigram card resource, this resource must not be managed by the DHS. -
Page 14: Specifications
SPECIFICATIONS Configuration PCX924HR PCX924HR-Mic PCX22HR PCI 2.2, “Universal PCI 32-bit/66 MHz” master mode, Bus/Format “short-length” PCI format compatible, PCI-X compatible Digital Signal Motorola 56303 at 100 MHz Processor 512 kWords Size 175 mm x 99 mm x 20 mm Power requirements ∗... -
Page 15: Additional Functionalities - Pcx924Hr-Mic
PCX924HR & PCX924HR-Mic, PCX22HR User manual Additional functionalities – PCX924HR-Mic 1 professional mono with - high-quality preamplifier - switchable 48 V phantom power Microphone input - analog expander/compressor/limiter This input is mixed with the two line inputs before A/D conversion. -
Page 16: Audio Specifications
THD + noise 1 kHz at -2 dBfs Analog out: <-95 dB Crosstalk 1 kHz at 24 dBu: <–115 dB (Analog in or out) 15 kHz at 24 dBu: <-100 dB PCX924HR & PCX924HR-Mic only Sample rate converter performance PCX924HR PCX924HR-Mic Maximum frequency 192 kHz... -
Page 17: Analog Mono Microphone Input Features - Pc924Hr-Mic
Mixed together before A/D, with independent level and mic inputs mute controls Programmable DSP effects 3-band parametric equalizer plus Maximizer on the output AES42 microphone input features - PCX924HR-Mic Power supply 10 V min / 250 mA max Remote control Operational mode 1 Supported synchronization... -
Page 18: Appendices
APPENDICES PCX924HR Schematic Diagram CRYSTAL AES/EBU RECEIVE SYNC CLOCK GENERATION AES/EBU IN RECEIVE TRANSMIT AES/EBU OUT Bypass ANALOG LINE IN LINE OUT 1 – 2 Headphones Level adjust GP OUT GPIO INTERFACE CONTROL GP IN PCI BUS PCX924HR-Mic Schematic Diagram... -
Page 19: Pcx924Hr & Pcx924-Mic Layout
PCX924HR & PCX924HR-Mic, PCX22HR User manual PCX924HR & PCX924-Mic layout PCX22HR layout PCX22HR J1: Headphone connector (3.5 mm TRS female jack) Contact Signal Sleeve Ground Left channel Ring Right channel J2: Analog cable J3: Digital cable J4: Inter-card synchronization connector... -
Page 20: Pcx924Hr - Analog Cable Diagram
PCX924HR - analog cable diagram: Analog cable delivered by Digigram: PCX924HR-Mic - analog cable diagram: Analog cable delivered by Digigram:... -
Page 21: Pcx924Hr - Wiring Diagram - Analog Cable
PCX924HR & PCX924HR-Mic, PCX22HR User manual PCX924HR Wiring Diagram - analog cable Signal number Right OUT male Left OUT male Right IN female Left IN female PCX924HR-Mic Wiring Diagram - analog cable Signal number Right OUT male Left OUT male... -
Page 22: Pcx924Hr & Pcx924Hr-Mic Digital Cable With Gpios
GPIOs Schematic diagram of the cable delivered by Digigram*: PCX924HR & PCX924-Mic digital cable without GPIOs Schematic diagram of the cable delivered by Digigram*: * Your cable may look different if it is not a Digigram cable. -
Page 23: Pcx924Hr & Pcx924Hr-Mic Wiring Diagram - Digital Cable With Gpios
PCX924HR & PCX924HR-Mic, PCX22HR User manual PCX924HR & PCX924HR-Mic Wiring Diagram - digital cable with GPIOs 9-pin SubD GPI OUT 1A GPI OUT 1B GPI OUT 2A GPI OUT 2B female GPI IN 1 GPI IN 2 3, 7, 8... -
Page 24: Pcx22Hr - Analog Cable Diagram
PCX22HR - analog cable diagram Analog cable delivered by Digigram: PCX22HR - Wiring Diagram - analog cable Signal number Right OUT male Left OUT male... -
Page 25: Pcx22Hr - Digital Cable With Gpios
PCX22HR - digital cable with GPIOs Schematic diagram of the cable delivered by Digigram*: PCX22HR - digital cable without GPIOs Schematic diagram of the cable delivered by Digigram*: * Your cable may look different if it is not a Digigram cable. -
Page 26: Pcx22Hr - Wiring Diagram - Digital Cable With Gpios
PCX22HR - Wiring Diagram - digital cable with GPIOs PCX22HR - Wiring Diagram – digital cable without GPIOs... -
Page 27: Pcx924Hr - Cable Pinout
PCX924HR & PCX924HR-Mic, PCX22HR User manual PCX924HR - cable pinout Pin # ANALOG DIGITAL R OUT + GPIO OUT 1A AES/EBU IN - L OUT - AES/EBU IN + AES/EBU SYNC IN - AES/EBU SYNC IN + R IN -... -
Page 28: Pcx22 V2 Cable Pinout
PCX22 cable pinout Pin # ANALOG DIGITAL R OUT + GPI OUT 1A L OUT - AES/EBU SYNC IN 1- AES/EBU SYNC IN 1+ GPI INPUT 2 GND/GPI INPUT COMMON GPI INPUT 1 R OUT - L OUT + GPI OUT 1B GPI OUT 2A GPI OUT 2B AES/EBU OUT +...
