Summary of Contents for Digigram PCX881HR

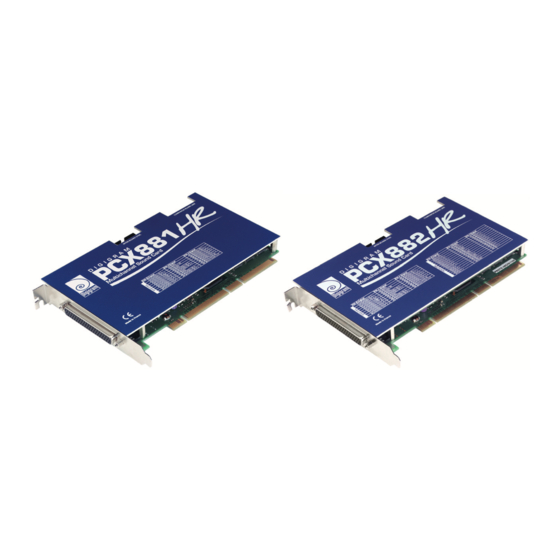

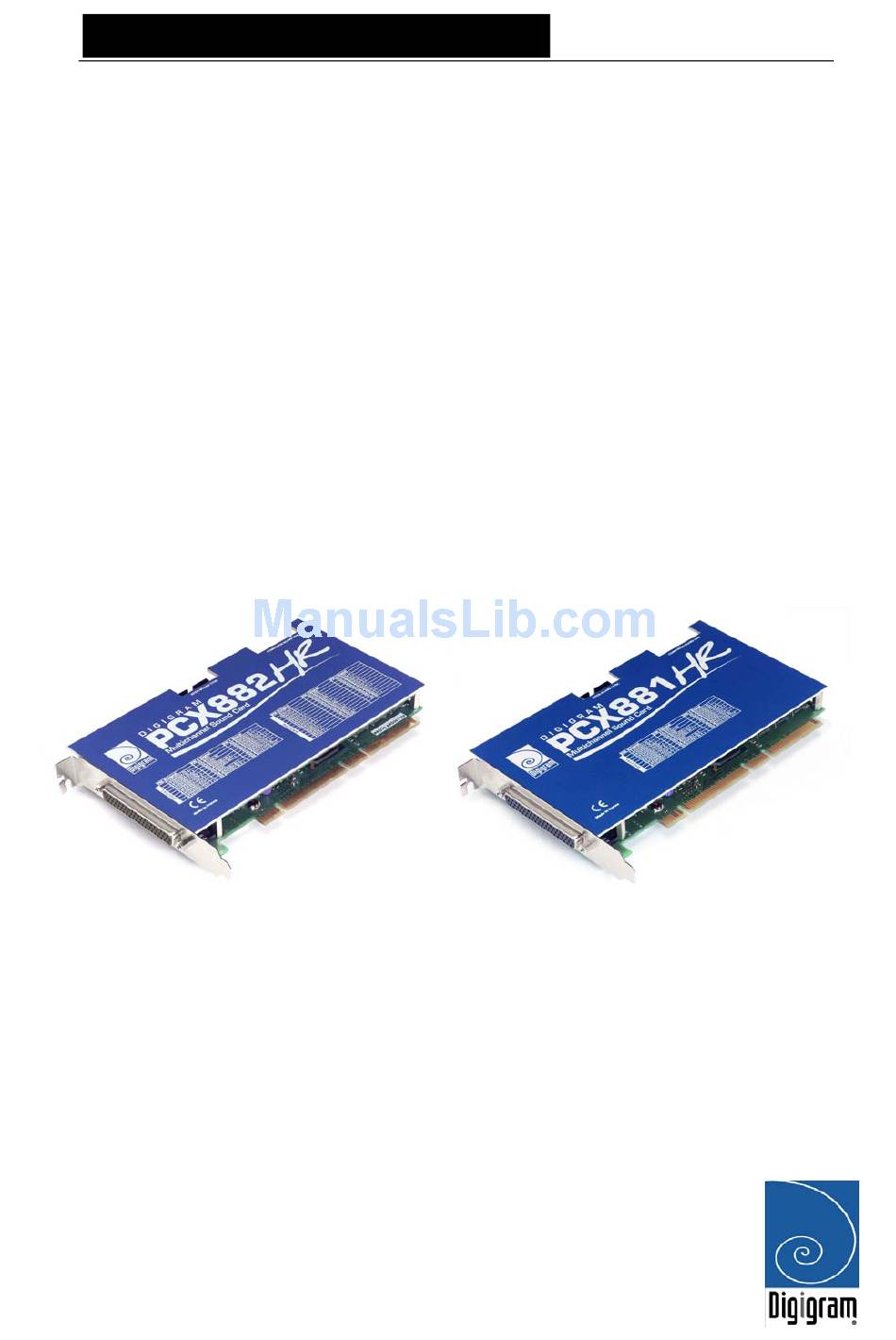

- Page 1 PCX881HR PCX882HR Professional Sound Cards User’s manual...
- Page 2 Digigram S.A. Parc de Pré Milliet, 38330 Montbonnot - FRANCE Tel: +33 (0)4 76 52 55 01• Fax: +33 (0) 4 76 52 53 07• E-mail: info@digigram.com Digigram Inc. 2101 Wilson Boulevard, Suite 1004, Arlington, VA 22201-USA Tel: +1 703 875 9100 •...
-
Page 3: Table Of Contents
INFORMATION FOR THE USER ....................4 IMPORTANT NOTICE ..........................5 CONTENTS OF THIS PACKAGE ....................5 FEATURES ................................5 PCX881HR main hardware features......................5 PCX882HR main hardware features......................6 Main software features............................6 HARDWARE REQUIREMENTS ......................6 Minimum requirements ............................. 6 SOFTWARE REQUIREMENTS ......................6 Supported operating systems........................... 7 HARDWARE INSTALLATION ......................7... -
Page 4: Information For The User
While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and reserves the right to make improvements or changes in the products and programs described without notice. -
Page 5: Important Notice
The cables (optional) are delivered separately. FEATURES PCX881HR and PCX882HR are audio cards for PCI bus. They are ‘Universal PCI 64-bit/66 MHz’, which means they can be plugged in 32-bit/33 MHz 5 V PCI slots, 3.3V keyed PCI slots as well as in 64-bit/66 MHz 3.3 V keyed PCI slots. -
Page 6: Pcx882Hr Main Hardware Features
One free PCI or PCI-X slot SOFTWARE REQUIREMENTS To use your PCX881HR or PCX882HR, you have to install the driver from the np Runtime HR package version 1.00 or higher. This package also includes a WDM DirectSound driver so that the cards can be used with standard multimedia applications. -
Page 7: Supported Operating Systems
Please visit the Digigram web site at www.digigram.com for the most recent driver. In case you run a specific application developed or installed by a Digigram Partner, it might require the use of a specific driver version. In this case, make sure that the updated driver has been approved by your supplier. -
Page 8: Removing The Driver Under Windows 2000 And Xp
• Click on Continue anyway in the “Hardware installation” window (Windows XP). • In the “Digigram drivers” window, “PCX HR Settings” tab select the number and the size of buffers required by your applications. Click on Ok. • Click on Finish to complete the driver installation. - Page 9 PCX881HR PCX882HR & User’s Manual If the card you have installed is listed: • Right click on the icon of the card. • Select Diagnostics, and Play sine. This plays in loop a sine wave signal on the outputs of the card.
-
Page 10: Specifications
SPECIFICATIONS CONFIGURATION PCX881HR PCX882HR Bus / format 64-bit/66 Mhz Universal PCI master mode Digital Signal Processor Motorola 56321 at 240 MHz 512 kWords Size 175mm x 99 mm Power requirements 0 A /0.6 A /0.1A /0 A 0 A /0.7 A /0.5A /0.2 A (+3.3 V /+5 V / +12 V / -12... -
Page 11: Audio Specifications
PCX881HR PCX882HR & User’s Manual AUDIO SPECIFICATIONS PCX881HR PCX882HR Sampling frequencies Programmable from 8 to 192 kHz available A/D and D/A 24 bits converter resolution Supported audio formats MPEG, PCM (8, 16, 24 bits) AUDIO PERFORMANCE PCX881HR PCX882HR Frequency response 20 Hz–20 kHz: ±0.2 dB... -
Page 12: Appendices
APPENDICES PCX881HR – Pinout Pin Signal Pin Signal Pin Signal AES/EBU 2 - AES/EBU IN 1 - AES/EBU 2 + Vidéo IN AES/EBU IN 1 + AES/EBU SYNC - AES/EBU OUT 3 - AES/EBU SYNC + AES/EBU IN 3 -... -
Page 13: Pcx882Hr - Pinout
PCX881HR PCX882HR & User’s Manual PCX882HR – Pinout Pin Signal Pin Signal Pin Signal AES/EBU 2 - AES/EBU IN 1 - AES/EBU 2 + Vidéo IN AES/EBU IN 1 + AES/EBU SYNC - AES/EBU OUT 3 - AES/EBU SYNC +...
