Summary of Contents for Digigram PCX1221HR

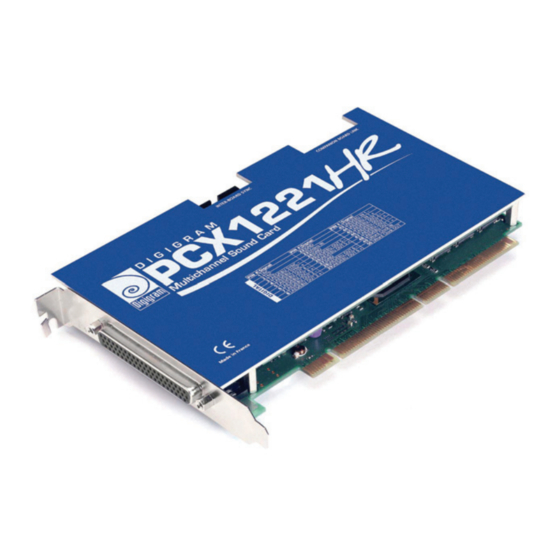

- Page 1 PCX1221HR PCX1222HR Professional Multichannel Sound Cards User’s manual...
- Page 2 Digigram S.A. Parc de Pré Milliet, 38330 Montbonnot - FRANCE Tel: +33 (0)4 76 52 55 01• Fax: +33 (0) 4 76 52 53 07• E-mail: info@digigram.com Digigram Inc. 2101 Wilson Boulevard, Suite 1004, Arlington, VA 22201-USA Tel: +1 703 875 9100 •...
-
Page 3: Table Of Contents
While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and reserves the right to make improvements or changes in the products and programs described without notice. -
Page 4: Information For The User
INFORMATION FOR THE USER This device complies with part of FCC rules. Operation is subject to the following two conditions: ( ) This device may not cause harmful interference, and ( ) This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Contents Of This Package
• Ground any tool that will contact the device. CONTENTS OF THIS PACKAGE Thank you for purchasing a Digigram PCX sound card. The package consists of the following components: * a PCX1222HR or PCX1221HR sound card * the user’s manual at hand The breakout cables to connect the card’s I/Os are not part of this package. -
Page 6: Features
FEATURES PCX1222HR and PCX1221HR are audio cards for PCI bus. They are ‘Universal PCI 64-bit/66 MHz’, which means they can be plugged in 32-bit/33 MHz 5 V PCI slots as well as in 64-bit/66 MHz 3.3 V keyed PCI slots. The cards are also compatible with PCI-X interfaces. -
Page 7: Main Software Features
• One free PCI or PCI-X slot (5 V or 3.3 V) Software requirements To use your PCX1221HR or PCX1222HR, install the driver from the HR Runtime package version 1.60 or higher. This package includes: • a Digigram np driver enabling OEM applications to best capitalize on the HR boards •... -
Page 8: Hardware Installation
This application allows the configuration of the hardware resources of Digigram cards for all audio applications. The DHS allows for instance to define the clock of the card, the input source, input and output analog and digital gain, Sample Rate Converters, digital output format, etc... - Page 9 Click on Continue anyway in the “Hardware installation” window (Windows XP, Server 2003). • In the “Digigram drivers” window, select the number and the size of buffers required by your applications. Click on Ok. • Click Finish to complete the driver installation.
-
Page 10: Parameterizing The Asio Driver
• To use the ASIO driver on your on chart PCX HR sound card, the option “PCM only” has to be activated in the Digigram control panel (CPL). To access this control panel, go to <Start>, <Programs>, <Digigram>, <Digigram Control Center>. -
Page 11: Removing The Driver Under Windows 2000, Xp, And Windows Server 2003
The card is also visible via the np interface: go to <Start> <Programs> <Digigram> and select <Digigram Control Center>. • In the “Digigram drivers” window, select the ‘General Information’ tab. In the “Modules Information” window, you can see the HR Runtime modules that have been installed, and their versions. - Page 12 Play file to play in loop a file of your choice (PCM only). If the playback is correct, the card is correctly installed and works. • To stop the playback, right click on the card icon, and select Stop Activities. •...
-
Page 13: The 'Digigram Hardware Settings' ('Dhs') Control Panel
“setup x_topology” has been executed to install the driver. A resource being managed by the DHS application can not be modified by any other applications. To enable an audio application to modify a Digigram card resource, this resource must not be managed by the DHS. -
Page 14: Specifications
SPECIFICATIONS Configuration PCX1221HR PCX1222HR 64-bit/66 Mhz Universal PCI master mode, Bus/Format PCI-X compatible Digital Signal Processor Motorola 56321 at 240 MHz 512 kWords 175 mm × 99 mm x 20 mm Size Power requirements 0 A / 0.8 A / 0.1 A / 0 A / 1.8 A / 0.1 A /... -
Page 15: Outputs
PCX1221HR & PCX1222HR User’s Manual Outputs PCX1221HR PCX1222HR ∗∗∗ Analog line outputs (mono) 12 servo-balanced Maximum output level / +24 dBu / <100 Ω impedance ∗∗ Digital outputs (stereo) 6 AES/EBU , up to 192 kHz analog: digital: from –86 dB to +24 dB Programmable output gain from –110 dB to +18 dB... -
Page 16: Audio Performance
Audio Performance measured at Fs=48 kHz PCX1221HR PCX1222HR Frequency response 20 Hz–20 kHz: ±0.3 dB (record + play) Channel phase difference: <0.2°/2° 20/20kHz Dynamic range Analog In: >104 dB (A-weighted) Analog Out: >110 dB Analog In: <–96 dB THD + noise 1 kHz at –1 dBfs Analog Out: <–98 dB... -
Page 17: Appendices
PCX1221HR & PCX1222HR User’s Manual APPENDICES PCX1221HR Schematic Diagram CRYSTAL Word Clock Video AES/EBU Sync RECEIVE CLOCK GENERATION AES/EBU TRANSMIT OUT 1 - 6 AES/EBU RECEIVE IN 1 Bypass INTERFACE PCI BUS PCX1222HR Schematic Diagram CRYSTAL Video Word Clock AES/EBU Sync... -
Page 18: Layout
LAYOUT Inter-board Companion sync board connector PCX1221HR PCX1222HR • Digital cable (PCX1221HR) • Analog/digital cable (PCX1222HR) -
Page 19: Pcx1221Hr Cable Diagram
AES EBU OUT 4 WORD CLOCK IN BNC Female WORD CLOCK OUT AES EBU SYNC VIDEO IN RCA Female LTC IN * Your cable may look different if it is not a Digigram cable. PCX1221HR wiring diagram Shell Shell Shell Shell Shell Shell... -
Page 20: Pcx1222Hr Cable Diagram
AES EBU OUT 2 AES EBU OUT 3 AES EBU OUT 4 BNC Female WORD CLOCK IN WORD CLOCK OUT AES EBU SYNC VIDEO IN RCA Female LTC IN * Your cable may look different if it is not a Digigram cable. -
Page 21: Pcx1222Hr Wiring Diagram
PCX1221HR & PCX1222HR User’s Manual PCX1222HR wiring diagram S h ell S h ell S h ell S h ell S h ell S h ell S h ell S h ell S h ell S h ell S h ell... -
Page 22: Pcx1221Hr Cable Pinout
PCX1221HR cable pinout Pin Signal Pin Signal Pin Signal AES/EBU IN 1 - Vidéo IN AES/EBU IN 1 + AES/EBU SYNC - AES/EBU OUT 3 - AES/EBU SYNC + AES/EBU OUT 5 - AES/EBU OUT 3 + AES/EBU OUT 4 -...
