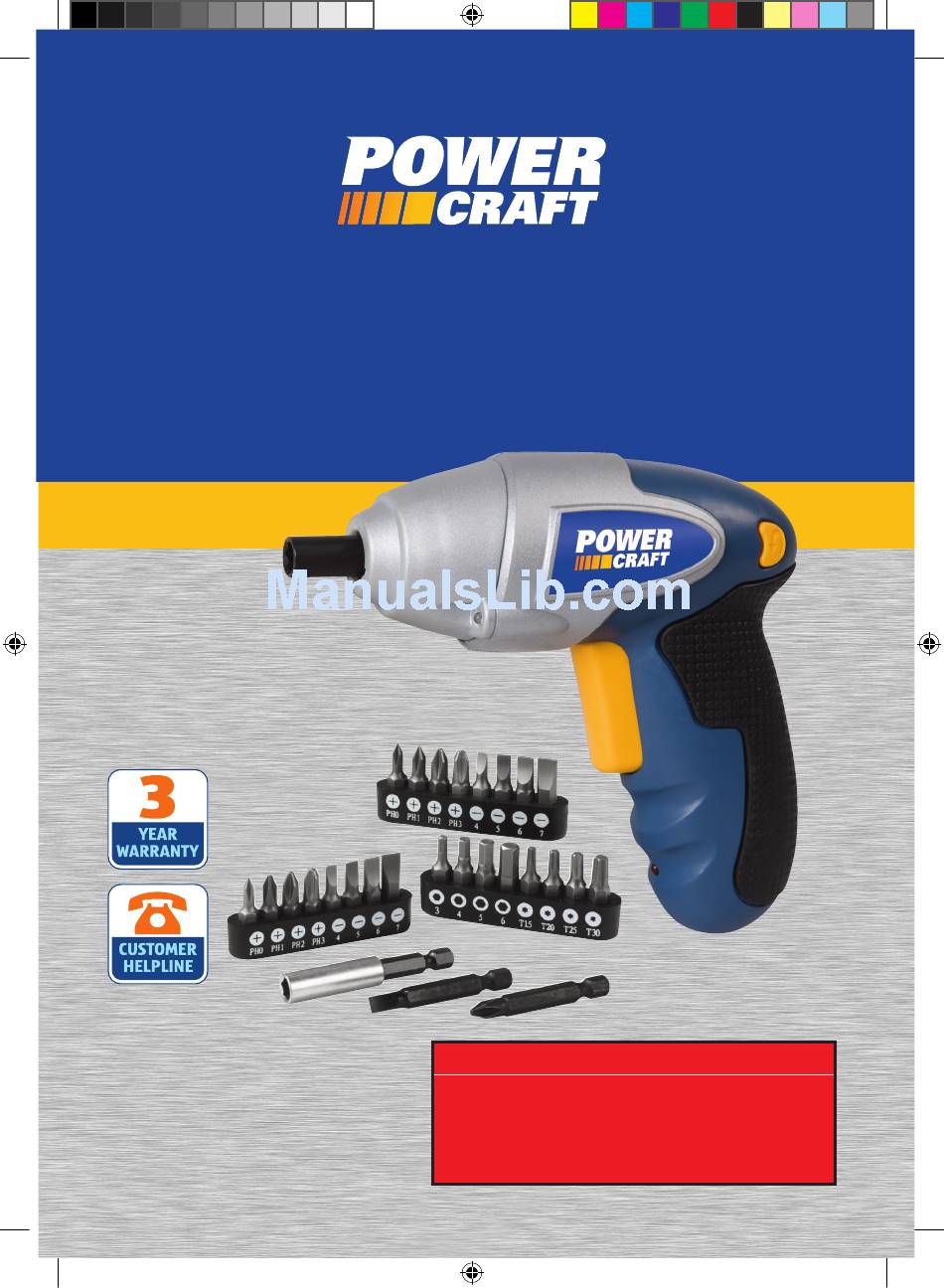

3.6V Lithium-iON
ScrewdriVer aNd kit
After Sales Support
Now you have purchased a Power Craft
product you can rest assured in the
knowledge that as well as your 3 year
parts and labour warranty you have
the added peace of mind of dedicated
helplines and web support.
CDM6100 Ma-GB-IRE # 0808-15.indd 1
user Guide & warranty
AFTER SALES SUPPORT
UK HELPLINE NO
IRELAND HELPLINE NO
WEB SUPPORT
Model nuMber: PSC-360/2lK
0905-1460005
(£ 0,06 /min.)
1520-932626 (E 0,15 /min.)
www.heltec.eu
15-08-2008 09:51:04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Power Craft PSC-360
Summary of Contents for Power Craft PSC-360
- Page 1 3 year IRELAND HELPLINE NO 1520-932626 (E 0,15 /min.) parts and labour warranty you have the added peace of mind of dedicated WEB SUPPORT www.heltec.eu helplines and web support. Model nuMber: PSC-360/2lK CDM6100 Ma-GB-IRE # 0808-15.indd 1 15-08-2008 09:51:04...
- Page 2 Operation - Locking the screwdriver - Screwdriving - User tips for optimum use - Charging the Lithium-Ion battery Maintenance Warranty UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 2 15-08-2008 09:51:04...
- Page 3 This screwdriver is intended for tightening and loosening screws (fig. 1-5). The screwdriver is not suitable for screwdriving heavy constructions, e.g. repairing a large fence. Fig. 1 Fig.2 UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 3 15-08-2008 09:51:05...
- Page 4 Fig. 3 Fig.4 Fig. 5 UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 4 15-08-2008 09:51:05...
-
Page 5: Machine Specifications
340 gr Sound pressure level (Lpa) 60.5 dB(A) Sound power level (Lwa) 71.5 dB(A) Vibration 4 m/s Product information Fig.6 UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 5 15-08-2008 09:51:06... - Page 6 Extension piece Charger Package contents 1 Cordless screwdriver 1 Charger 1 Extension piece 26 Accessories 1 Instruction manual 1 Warranty card UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 6 15-08-2008 09:51:06...
-
Page 7: Safety Instructions
Faulty and/or discarded electrical or electronic machines have to be collected at the appropriate recycling locations. Do not use in damp and wet conditions. UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 7 15-08-2008 09:51:10... - Page 8 A moment of carelessness in the use of the machine could lead to serious injuries. UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 8 15-08-2008 09:51:10...
- Page 9 Only use this tool for the purpose for which it is intended. UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 9 15-08-2008 09:51:11...
- Page 10 Overloading and damaging the battery or motor can be prevented this way. Use the torque to loosen the fastened screw. UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 10 15-08-2008 09:51:11...
-
Page 11: Bit Holder
assembly Inserting and removing bits Fig. 6 (page 5) + 7 The bits can easily be placed directly into the bit holder or onto the extension piece. The extension piece can be used for screws that are difficult to reach. Fig.7 UK Helpline 0905-1460005 •... -
Page 12: Operation
Operation Always observe the safety instructions and appli cable regulations. Firmly hold the machine and fasten the bit with even pressure into the workpiece. Do not force the machine. Use only bits that do not yet show any signs of wear. Worn bits have a negative effect on the efficiency of the machine. - Page 13 Operation When the On/Off switch is pressed, the 2 white LED worklights will light up. Warning! Looking directly into the light for a longer period from a short distance can cause damage to the eyes. Therefore do not look directly into the light. User tips for optimum use Fig.
-
Page 14: Charger
Operation Charging the Lithium-Ion battery Fig. 10 The battery charger supplied is matched to the Lithium-ion battery installed in the machine. Do not use another battery charger. The Lithium-ion battery is protected against excessive discharging. When the battery is empty, the machine is switched off by means of a protective circuit: the tool holder no longer rotates. -
Page 15: Maintenance
maintenance This machine has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning. Cleaning Regularly clean the machine housing with a soft cloth, preferably after each use. - Page 16 UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PCS-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 16 15-08-2008 09:51:12...
- Page 17 UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PCS-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 17 15-08-2008 09:51:12...
- Page 18 UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PCS-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 18 15-08-2008 09:51:13...
-
Page 19: Ec Declaration Of Conformity
This warranty does not affect your statutory rights. UK Helpline 0905-1460005 • Ireland Helpline 1520-932626 Web Support: www.heltec.eu Model Number: PSC-360/2LK CDM6100 Ma-GB-IRE # 0808-15.indd 19 15-08-2008 09:51:13... -
Page 20: Web Support
3.6 V ScrewdriVer PSC-360/2LK If you are requested by the manufacturer to return the item for repair please complete the enclosed section and send it together with your product and your receipt (proof of purchase) to the service address shown below.
