USER MANUAL

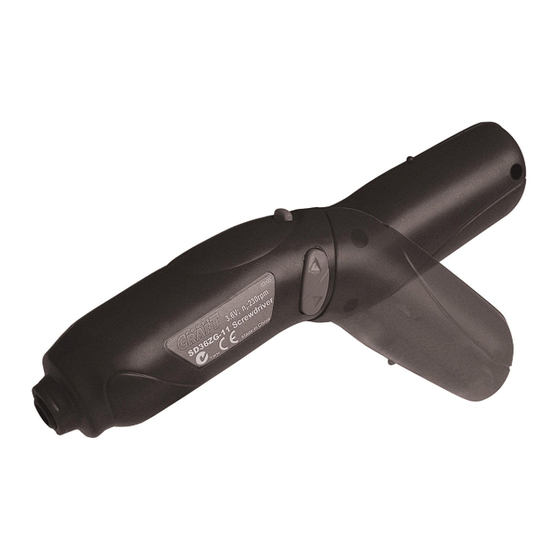

CORDLESS SCREWDRIVER
Model: SD36ZG-11
For any customer query or in the unlikely event of a product failure, please phone or
email the helpline contact details below for assistance.
DO NOT RETURN THE PRODUCT TO THE RETAILER.
Toll Free Help line: 1300 366 144
Email: info@telefixsales.com.au
Advertisement
Table of Contents
Related Manuals for Power Craft SD36ZG-11
Summary of Contents for Power Craft SD36ZG-11
- Page 1 USER MANUAL CORDLESS SCREWDRIVER Model: SD36ZG-11 For any customer query or in the unlikely event of a product failure, please phone or email the helpline contact details below for assistance. DO NOT RETURN THE PRODUCT TO THE RETAILER. Toll Free Help line: 1300 366 144...
-
Page 2: Technical Specifications
Cordless Screw driver TECHNICAL SPECIFICATIONS Screwdriver 3.6V DC (3 x 1.2V Ni-Cd Battery) Battery Voltage Speed 230 rpm Weight 250 g Normal Charge time 5-7 hours Battery charge adaptor Input voltage 230-240 V AC 50Hz Output voltage DC 6 V 300 Charging time 5-7 Hours 1. - Page 3 CONTENTS: 3.6 V screwdriver; 1 pc charging adaptor; 1 pc bit holder; 83 pc 25 mm screwdriver bits; 19 pc 50mm screwdriver bits; 7 pc nut drivers, 6 pc socket, 1pc socket adaptor 25mm screwdriver bits: 3X3, 4X4, 4X5, 4X6, 3X7mm 3 X PH#0, 3XPH#1, 6XPH#2, 4XPH#3 3 X PZ#0, 3XPZ#1, 6XPZ#2, 4XPZ#3 2PC for each:...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Carefully read this manual before using this cordless screwdriver. Make sure that you know how the power tool functions and how to operate it. Maintain the power tool in accordance with the instructions to ensure that it functions properly. Keep this manual with the power tool. If the power tool is to be used by a third party, this instruction manual must be supplied with it. -
Page 5: General Safety
Electrical Safety Switch or isolating transformer be used. Always unplug from mains supply when not in use. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. - Page 6 2. KEEP CHILDREN AWAY This appliance is not intended for use by young children or infirm persons without supervision. Young children must be supervised to ensure that they do not play with this tool. 3. DON’T FORCE THE TOOL Do not put undue strain or force on this power tool. Do not operate for extended periods continuously, allow tool to cool.
-
Page 7: Operation
10. DAMAGED OR DROPPED Always inspect your power tool before use. Check guards and other parts are correctly attached. Do not use this power tool if it has been damaged, dropped, left outdoors or dropped in water. Return it to an authorised service dealer for examination and repair. - Page 8 • Adjustable / Twisting Handle The handle of the screwdriver may be angled or twisted for ease of control. The handle is fixed in position by a locking switch beside the forward / reverse switch. To adjust the handle angle, push and hold this switch forward and at the same time move the handle to the desired position.
-
Page 9: Maintenance
MAINTENANCE • WARNING: Always check that the power supply adaptor is switched off and unplugged from the mains before carrying out any work on the screwdriver. • Use only mild soap and a slightly damp cloth to clean the screwdriver and dry it afterwards with a dry towel. Many household cleaners contain chemicals, which could seriously damage the plastic. -
Page 10: Warranty Card
WARRANTY CARD This product is guaranteed against faulty materials and workmanship for a period of twelve months from the date of purchase. This warranty becomes void if the product has been tampered with, damaged by accident, damaged in any other way by improper use or has been purchased second hand. All production orders have quality inspections.
