jWIN JX-CD678 Instruction Manual

Cd player with bass boost, 60-second super a.s.p.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

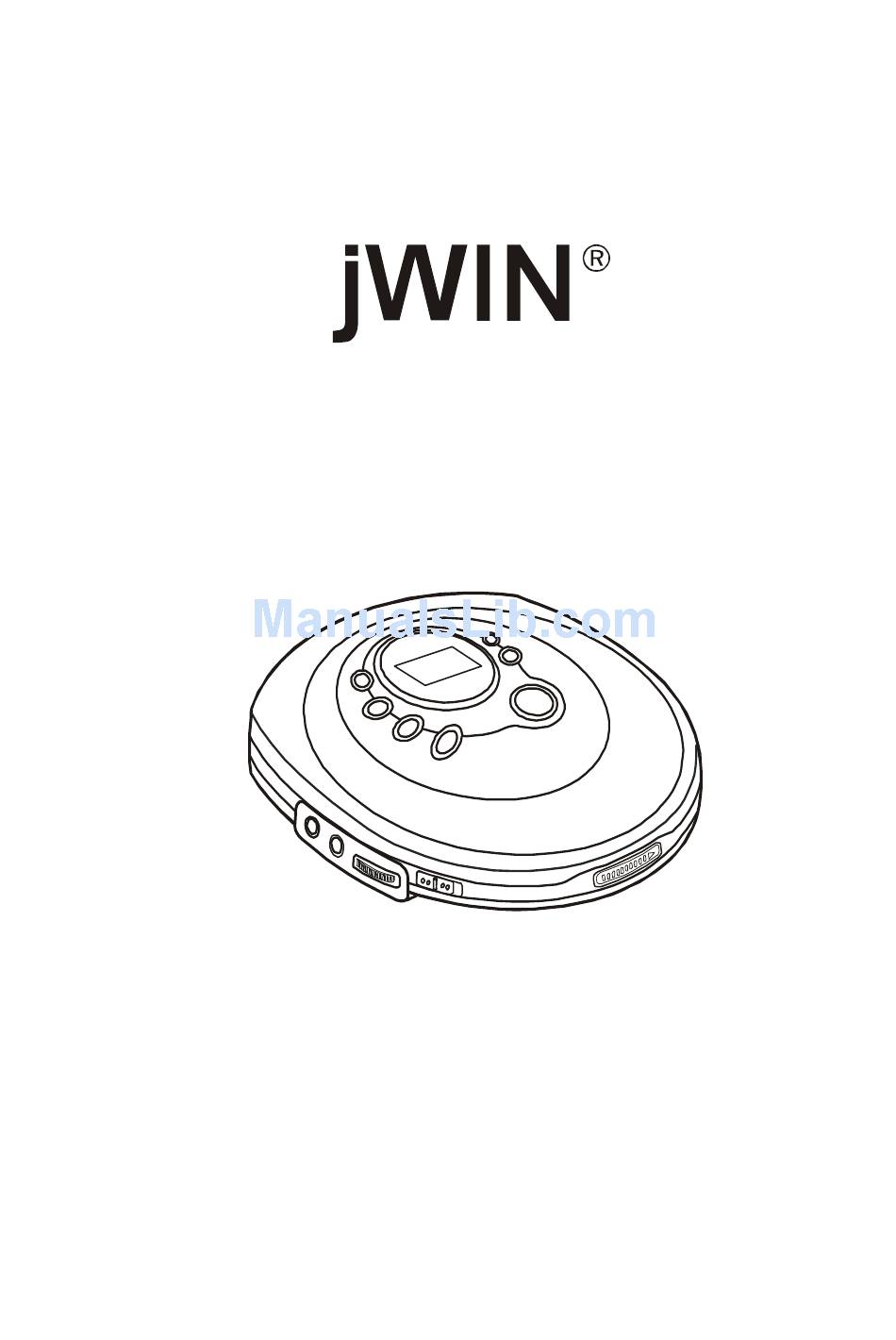

MODEL # JX-CD678
CD PLAYER WITH BASS BOOST,
60-SECOND SUPER A.S.P.
INSTRUCTION MANUAL
Visit our web site www.jwin.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JX-CD678 and is the answer not in the manual?

Questions and answers

Related Manuals for jWIN JX-CD678

Summary of Contents for jWIN JX-CD678

  • Page 1 MODEL # JX-CD678 CD PLAYER WITH BASS BOOST, 60-SECOND SUPER A.S.P. INSTRUCTION MANUAL Visit our web site www.jwin.com...

  • Page 2: Safety Precaution

    To prevent fi re or shoc k haz ar d, do not expose the unit to rain or mois ture. To avoid el ectrical shock , do not open the c abinet. Refer s ervic ing to qualified person- nel only. SAFETY PRECAUTION 1.

  • Page 3: Important Notes

    IMPORTANT NOTES Yo ur hearing is very important to you and to us so please take care when operating this equipment. It is strongly recommended that you follow the listed guidelines in ord er to pre vent possible damage or lo ss of hea ring: ESTABLISH A SAFE SOUND LEVEL •...

  • Page 4: Power Sources Normal Batteries / Ac Adaptor

    POWER SOURCES NORMAL BATTERIES / AC ADAPTOR Battery Power Operation 1. Open the battery compartment cover and insert two “AA” (UM-3) alkaline batteries (not included) inside the battery compartment. Follow the polarity as indicated in the battery compartment. 2. Close the battery compartment cover.

  • Page 5: Headphone And Hi-Fi Connection

    HEADPHONE AND HI-FI CONNECTION Listening with the headphones Connect the plug of the stereo headphones ( included ) into the PHONES ( GREEN ) socket. Caution: Avoid excessive volume lev- els for a long period of time when using headphones, as this may impair your hearing.

  • Page 6: Location Of Controls

    LOCATION OF CONTROLS 1. DISPLAY WINDOW 2. PROGRAMME BUTTON 3. MODE BUTTON 4. LINEOUT SOCKET 5. PHONES SOCKET 6. VOLUME CONTROL 7. BASS BOOST SWITCH 8. OPEN SWITCH 9. PLAY/PAUSE BUTTON 10. STOP BUTTON 11. SKIP/SEARCH FORWARD BUTTON 12. SKIP/SEARCH BACKWARD BUTTON 13.

  • Page 7: Basic Disc Play

    BASIC DISC PLAY Remove the disc Hold the edge and gently press the center pivot as illustrated, then pick up the disc. Caution: Wait for the disc to stop rotating before pressing the OPEN butt on. NOTE: This unit can play 3” ( 8cm ) single CD’s without an adaptor.

  • Page 8: Lcd Display Information

    LCD DISPLAY INFORMATION During PLAY mode The track number and the elapsed playing time are displayed. During STOP mode The total number of tracks and the total playing time of the disc are displayed. During PAUSE mode The track playback is paused, the elapsed time and track number is flashing.

  • Page 9: Repeat / Play Modes

    REPEAT / PLAY MODES Every time the MO DE button is pressed, the corresponding mode appears in the dis pla y win dow, in t he following sequence : Shown in the LCD display. Th e c u rre nt t ra ck on th e disc will be repeated.
  • Page 10 INTRO SCAN AND PROGRAMMED TRACK PLAY INTRO Plays the first 10 seconds of each track on the disc. Press to start playing “ INTRO ” scan. PROGRAM This allows selec ted track s on the disc to be played in any des ired order. To set the pr ogra m play * Programs can be set in the STOP mode.

  • Page 11: Locating A Particular Point In A Track

    RANDOM PLAY/SKIP AND SEARCH FUNCTIONS RANDOM Enables all the tracks on a disc to be played in a Random ( RAND ) sequence. For example : If “RAND” is selected while playing track 8, the random function will commence once track 8 has ended. When all tracks on a disc have been played the player will automatically stop and power down in approx.
  • Page 12 SUPER ANTI-SKIP OPERATION This player incorporates a superior electronic anti-skip circuit which prevents interruption of the sound output when the unit is subjected to shock, vibration or rolling during disc playback. If in use the player is likely to be subjected to s hock, vibration or rolling ( i.e.

  • Page 13: Player Maintenance

    PLAYER MAINTENANCE Cleaning the C abine t Wipe with a so ft cloth. I f the cabinet is very dirty, dampen the clo th with a weak solution of neu tral de tergent and water, and then wipe clean. Cleaning the Lens A dirt y len s will caus e sound skip ping.

  • Page 14: Cleaning The Disc

    DISC CLEANING AND TROUBLESHOOTING GUIDE Cleaning the Disc When a dis c bec omes dirty, clea n it wit h a c leaning clo th. Wipe the disc from t he cent er out. Note: Do not use solv ents such as benz ene, thinner, commercially available cleaners or anti-static s pray intended for analog discs.
