jWIN JX-CD280 Instruction Manual

Jwin compact disc player instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PORTABLE
COMPACT DISC PLAYER
INSTRUCTION MANUAL
PLEASE READ CAREFULLY BEFORE USING YOUR UNIT
MODEL: JX-CD280

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JX-CD280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jWIN JX-CD280

Summary of Contents for jWIN JX-CD280

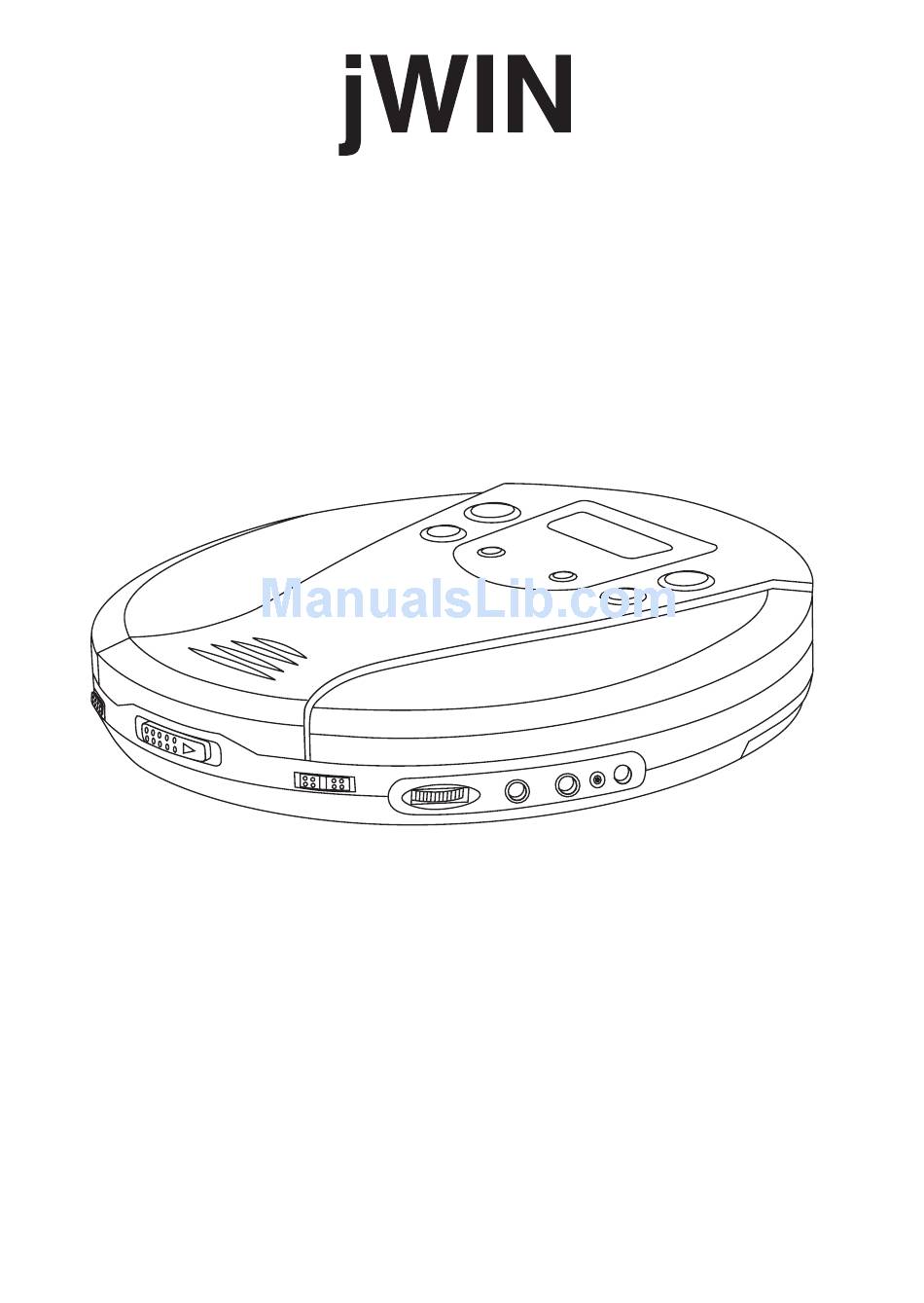

  • Page 1 PORTABLE COMPACT DISC PLAYER INSTRUCTION MANUAL PLEASE READ CAREFULLY BEFORE USING YOUR UNIT MODEL: JX-CD280...

  • Page 2: Location Of Controls

    DOOR OPEN CONTROL OPERATION AND FUNCTION POWER SUPPLY Your CD player requires 2 size “AA” alkaline batteries (not included), or use the AC adapter (not included) AC ADAPTER OPERATION Plug one end of the AC adapter into the DC 4.5V jack, then plug the other end into AC wall outlet.

  • Page 3: Auto Power On Function

    they are used for the first time or they have not been used for a long period of time (over 60 days). 1. Open the battery compartment cover and insert two of the recommended rechargeable batteries, matching polarity. (1.2V 650mA). ALL BATTERIES MUST BE OF RECHARGEABLE NICKEL-CADMIUM TYPE, OTHERWISE THE BATTERIES MAY EXPLODE OR LEAK.

  • Page 4: The Hold Function

    THE HOLD FUNCTION It is useful during playing, the function will lock the key on the panel to protect the mistake in the Playing. During playing slide the HOLD switch to “ON” position, the “HOLD” will appear in the display, the key on the panel will be locked, the panel key is disabled. Slide the HOLD Switch to “OFF”...

  • Page 5: Bass Boost

    BASS BOOST Use the Bass Boost function to increase the bass output when listening with headphones. During bass boost on setting, some- times, you may hear some distortion, adjust the volume control to a lower level when using the bass boost feature. PROGRAMMED PLAY The tracks on the disc can be programmed for play in any order.

  • Page 6: Connecting To Home Stereo Systems

    2. Press the CD Mode button 4 times during playing. 3. The “RAND” will appear in the display. 4. The display will show the first track the CD player select. 5. Press the skip button to skip the next random song.

  • Page 7: Cleaning Discs

    Compact Disc standard. Also, the unit might not play discs that are scratched, soiled or carry fingerprints. • Both 8cm and 12cm discs can be played in this unit. TECHNICAL SPECIFICATIONS CD PLAYER SECTION Frequency response ... 20Hz-20KHz Wow and flutter ... below measure limits Sampling frequency ... 44.1KHz D/A converter ...

  • Page 8: Troubleshooting Guide

    Try another compact disc. Clean or replace the compact disc or clean the lens with a camera brush or blower. Reduce movement of CD player. Decrease the volume control level. Batteries are getting weak, replace both batteries or use the AC adapter.
