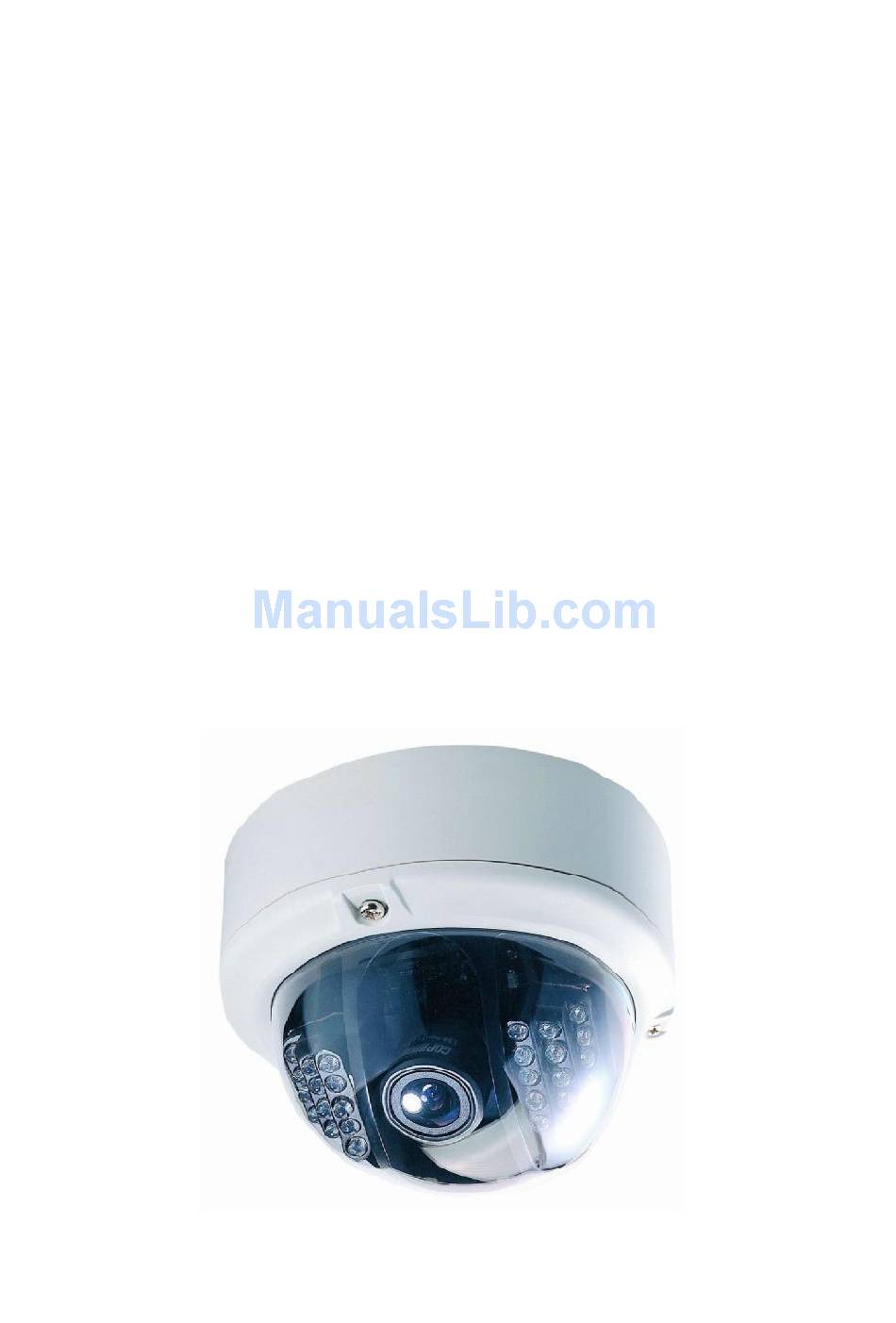

- Page 1 High Resolution High Sensitivity HDR Wide Dynamic Dome Camera INSTRUCTION MANUAL □15-CD453VB □15-CD453VBI □15-CD453VBC □15-CD453VBIC □15-CD453V □15-CD453VI □15-CD453VC □15-CD453VIC...
-
Page 2: Table Of Contents
CONTENTS PRECAUTION……………………………………………….2 FEATURES….……………………………………………….3 SPECIFICATIONS…………………………………………..3 INSTALLATION……………………………………………...5 OSD MENU OPERATION INSTRUCTION……………….6... -
Page 3: Precaution
PRECAUTION Do not open or modify Do not adjust the camera's internal circuits or power supply modules, as it may cause damage to the unit. For internal set up and repair, please consult our dealer. Do not put objects inside the unit Do not put metal objects or flammable substance inside the camera for it may cause damage to the unit. -
Page 4: Features
Back Light Compensation adjustable l S/N Ratio with Auto 3D-DNR l Challenging High Lighting Condition l 0 Lux @ 24 IR LEDs, range up to 30M (15-CD453VBI / 15-CD453VBIC / 15-CD453VI / 15-CD453VIC) l Special Shielding to Eliminate IR Reflections (15-CD453VBI / 15-CD453VBIC) - Page 5 Digital Zoom 2X, Manual, PAN / TILT S/N Ratio WITH Auto 3D-DNR More than 56 dB Wide Dynamic Range 48dB Gamma Characteristic 0.45 / 1.0 Auto/Manual Electronic Shutter NTSC: 1/60s~1/120,000s, PAL: 1/50s~1/120,000s Digital Slow Shutter 2X~64X Flickerless Mode Mirror Function HORIZONTAL / VERTICAL / ROTATION FREEZE、NEGATIVE、CROSS LINE Image Function...
-
Page 6: Installation
INSTALLATION Step1: Remove the 3 screws from the domes housing. Step2: Attach the base of the housing to the wall/ceiling by fixing the screws into the drilled holes. BNC(VIDEO OUT) POWER INPUT Step3: SINGLE POWER Connect power and video signal (see left) Ensure the polarity is correct when BNC(VIDEO OUT) connecting power to the terminal block. -
Page 7: Osd Menu Operation Instruction
OSD Key explains 15-CD453VBI、15-CD453VBIC 15-CD453VB、15-CD453VBC OSD Menu Operation Instruction SETUP MANU (1/3) I M A G E Q U A L → 1 A G C / S E N S G A M M A E N H A N C E... - Page 8 SETUP MANU (3/3) E X T R A S E T T I N G → 1 L A N G U A G E T L E R E S E T / S Y N C 1. To display OSD MENU on the screen, press the MENU key for 2 seconds. 2.
- Page 9 / A U T O 1. AUTO ━ Color in the daytime and B/W in the nighttime (Low Lux situation) (15-CD453VB、15-CD453VBC recommended) 2. EXT━ ICR filter controlled by external Infrared signal.(15-CD453VBI、 15-CD453VBIC recommended) 3. OFF━ Color image all the time.
- Page 10 BACK LIGHT B A C K L I G H T → / O F F A R E A Backlight function is not working. B A C K L I G H T → / O F F A R E A 48 backlight areas can be selected and shown by gray marking.
- Page 11 MOTION DETECT M O T I O N D E T E → O F F / O N → A R E A → 1 0 T I M E — — — — █ — — — — H S E N S D I S P L A Y F F /...
- Page 12 FREEZE F R E E Z E → O F F / O N CROSS LINE C R O S S L I N E → O F F / O N MASK M A S K → N O = 1 O F F / O N →...
- Page 13 TITLE T I T L E → ! " # $ % & ' ( ) * + - / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L N M O P Q R S T U V W X Y Z [ \ ] ^ _ ` a b c d e f g h i j k l n o p q r s t u v w x y z { | } ~ █...
