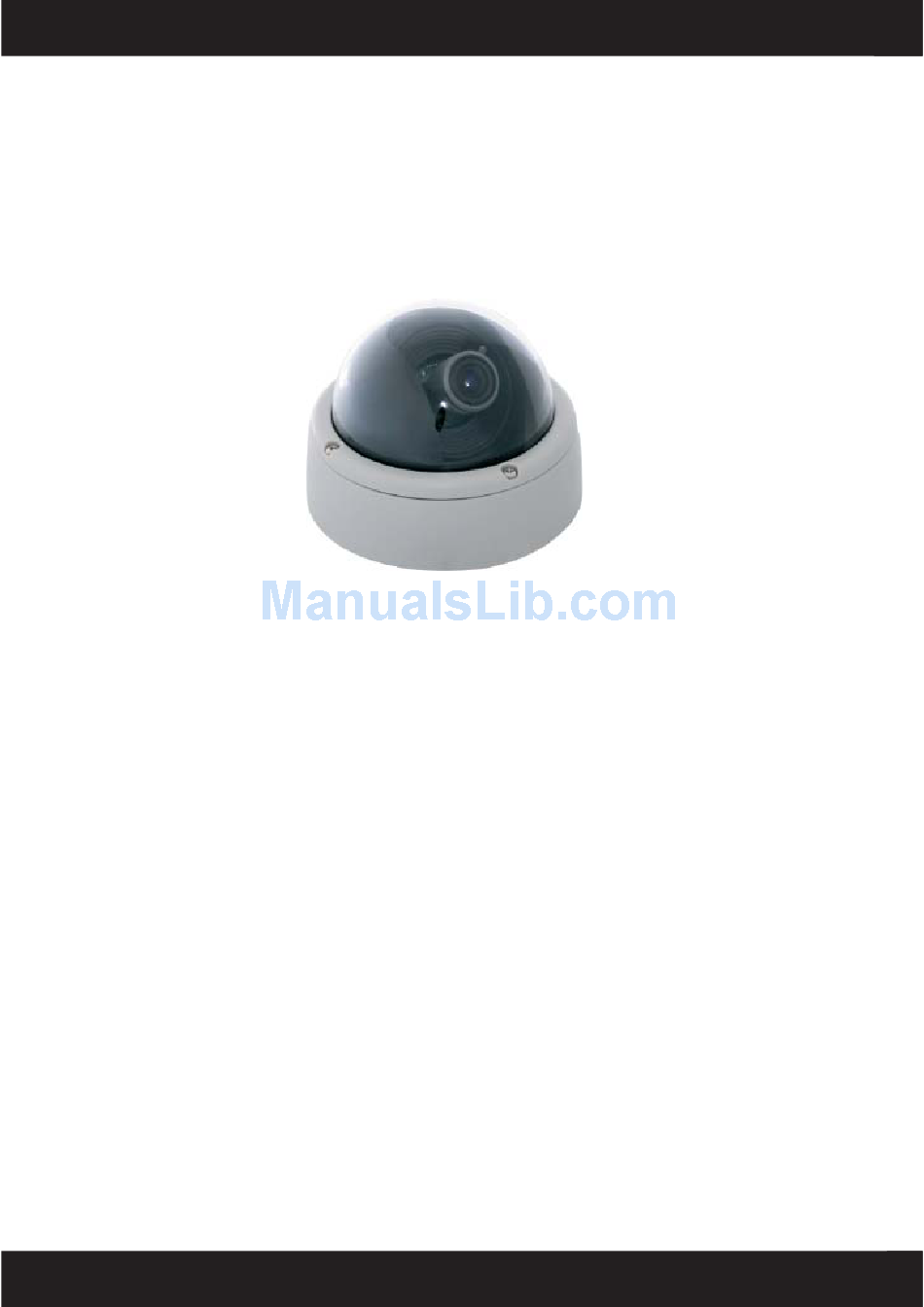

COP Security 15-CD35F Installation Manual

Internal dome surface mount cameras

Advertisement

The information in this manual provides installation details for the following :-
15-CD35F
Colour SONY Super HAD medium resolution 3.6mm lens, 12v
15-CD35VA
Colour SONY Super HAD medium resolution 3.9-8.3mm lens, 12v
15-CD45F
Colour SONY Super HAD HQ1 high resolution 3.6mm lens 12v-24v
15-CD45VA
Colour SONY Super HAD HQ1 high resolution 3.7-12mm lens, 12v-24v
15-CD45HVA
Day/Night SONY Super HAD HQ1 high resolution 3.7-12mm lens, 12v-24v
Internal Dome

Surface Mount

Cameras
Installation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-CD35F and is the answer not in the manual?

Questions and answers

Summary of Contents for COP Security 15-CD35F

  • Page 1: Surface Mount

    Internal Dome Surface Mount Cameras Installation Manual The information in this manual provides installation details for the following :- 15-CD35F Colour SONY Super HAD medium resolution 3.6mm lens, 12v 15-CD35VA Colour SONY Super HAD medium resolution 3.9-8.3mm lens, 12v 15-CD45F Colour SONY Super HAD HQ1 high resolution 3.6mm lens 12v-24v...
  • Page 2 This unit is designed for indoor use only. Do not use the unit in locations where it is susceptible to rain or moisture. © Copyright 2008 Cop Security Ltd. All rights reserved. Product specifi cations subject to change without notice.
  • Page 3 Camera Board mounted in 3-Axis Gimbal. Surface mount. Mirror picture function. Moving IR cut fi lter. (15-CD45HVA). Mini fi xed iris lens 3.6mm. (15-CD35F,15-CD45F) Vari-focal iris 3.9~8.3mm lens. (15-CD35VA) Vari-focal iris 3.7~12.0mm lens. (15-CD45VA, 15-CD45HVA) Digital slow shutter. (DSS) (15-CD45F, 15-CD45VA,15-CD45HVA)
  • Page 4 Ensure the the rubber grommet is seated Ensu correctly in the base of the dome and around the cable to help prevent the ingress of dust or moisture. Grommet A rubber gasket is supplied to be A rub Gasket fi tted between the base of the dome camera and the mounting surface.
  • Page 5 Use only Class 2 indoor/dry or Class 3 outdoor/wet power supplies. (depending on the installation environment). Since the PSU supplying the camera will be running continuously, it is recommended to use a PSU that is rated to supply at least 25% higher than the maximum current required by the camera.
  • Page 6 Unplug connector Carefully unplug the connector of the existing Caref cable as shown. Remove the cable and grommet from the camera. Install the rubber grommet and make a small Insta hole in the grommet to feed the cable through Ensure the grommet is seated correctly in the base of the dome to help prevent the ingress of dust or moisture.
  • Page 7 Connections POWER (Orange) The camera is provided with two The c 2way Plug-on screwed terminal blocks. A 2way block for the Power connection. (Orange). V+ V- A 2way block for the video VIDEO connection. (Green). (Green) Use only Class 2 indoor/dry or Class 3 outdoor/wet power supplies. (depending on the installation environment) Since the PSU supplying the camera will be running continuously, it is recommended to use a PSU that is rated to supply at least 25% higher than the maximum current required by the...
  • Page 8: Camera Setup

    Camera Set-up The camera position can be adjusted in three axis - Pan (horizontal) Tilt (vertical) and Rotate. Pan and tilt the camera/lens assembly to obtain the desired picture. Do not hold the lens when moving the camera/lens assembly. The picture can be “squared up” by rotating the camera about its own axis.
  • Page 9: Function Switch Settings

    Function Switch Settings 15-CD35F | 15-CD35VA 15-CD45F | 15-CD45VA | 15-CD45HVA 1 2 3 4 5 6 AWB / ATW The camera has two settings, AWB (Auto White Balance) and ATW (Auto Tracing White balance) ABW will set white objects white according to the colour temperature at the time.
  • Page 10: Troubleshooting

    Completion When the camera is installed and set-up as required, re-fi t the dome cover to the camera base and secure with the three screws using the Allen key provided. Trouble Shooting No Picture: - Check the supply voltage to the camera. - Check the BNC video lead connection.
  • Page 11: Specifications

    Specifi cations 15-CD35F 15-CD35VA Type COLOUR Pick Up Device 1/3” SONY CCD Image Sensor Picture Elements NTSC: 537H x 505V PAL: 537H x 597V Horizontal Resolution 420 TV Lines Mini Illumination 0.5Lux Vertical Frequency NTSC: 60 Hz PAL: 50 Hz...
