COP Security 15-CD55TWAI Installation And Operation Manual

High speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operation Manual
for
High Speed Dome Camera
VER: V1.0
15-CD55TWAI
15-CD55TWA
15-CD52WI
Please read the operation manual carefully
before installing and using this unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-CD55TWAI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COP Security 15-CD55TWAI

Summary of Contents for COP Security 15-CD55TWAI

  • Page 1 Installation and Operation Manual High Speed Dome Camera VER: V1.0 15-CD55TWAI 15-CD55TWA 15-CD52WI Please read the operation manual carefully before installing and using this unit...
  • Page 2 CAUTl0N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：To reduce the risk of electrical shock, do not open covers. No user serviceable parts inside. Refer servicing to qualified service personal. This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 3: Important Safeguard

    ▌▌Important Safeguard Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments／Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Water and Moisture Do not use this product near water or moisture.

  • Page 4: Table Of Contents

    Features 1. Introduction Product and Accessories Preparations 2. Installation Guide Installation Method Installation Dimensions DIP Switch Setup 3. Dome Setting Cabling Check points before operation Reserved Preset OSD Menu Functions Language 4. How to use OSD Menu System Information Display Setup IDLE Camera Motion...

  • Page 5: Features

    Pan 0.01~120 /S, Tilt 0.01 ~120 /S (15-CD52WI) Auto object track with zoom in/out and motion detection (15-CD55TWAI) Timing actions for 7 days of programmable schedule Built-in Semi-conductor heater & digital temperature sensor PWM cooling fan vari-speed temperature control Reserved network interface and space for network module Pan Tilt accuracy +/- 0.01...
  • Page 6 ▌▌Integrated Super Speed PTZ Rotator.. Delicate stepping motor, stable, sensitive and accurate 360° Pan and 90° Tilt range (auto-flip) without blind area Stepless speed change, auto zoom/speed matching Near / far IR Light auto matches camera zoom in/out   ▌▌All-weather Outdoor Design High die-cast alloy aluminum construction High Precision Mould with high heat conductivity Fully enclosed isolation design for heat sink...
  • Page 7 Cruising Track The preset position can be programmed to be recalled in a set of sequences. This sequence can be set to let the camera scan from one position to the next in a cycle at a set speed. This feature is called the “auto cruise”.
  • Page 8 Auto Tracking (only for 15-CD55TWAI) The dome will automatically fix and track the moving object according to the user’s setup via OSD. Motion Detection The dome will detect the changes in the defined video zone and trigger alarm. It supports to 8 video Locations, each with 4 detection zones.

  • Page 9: Product And Accessories

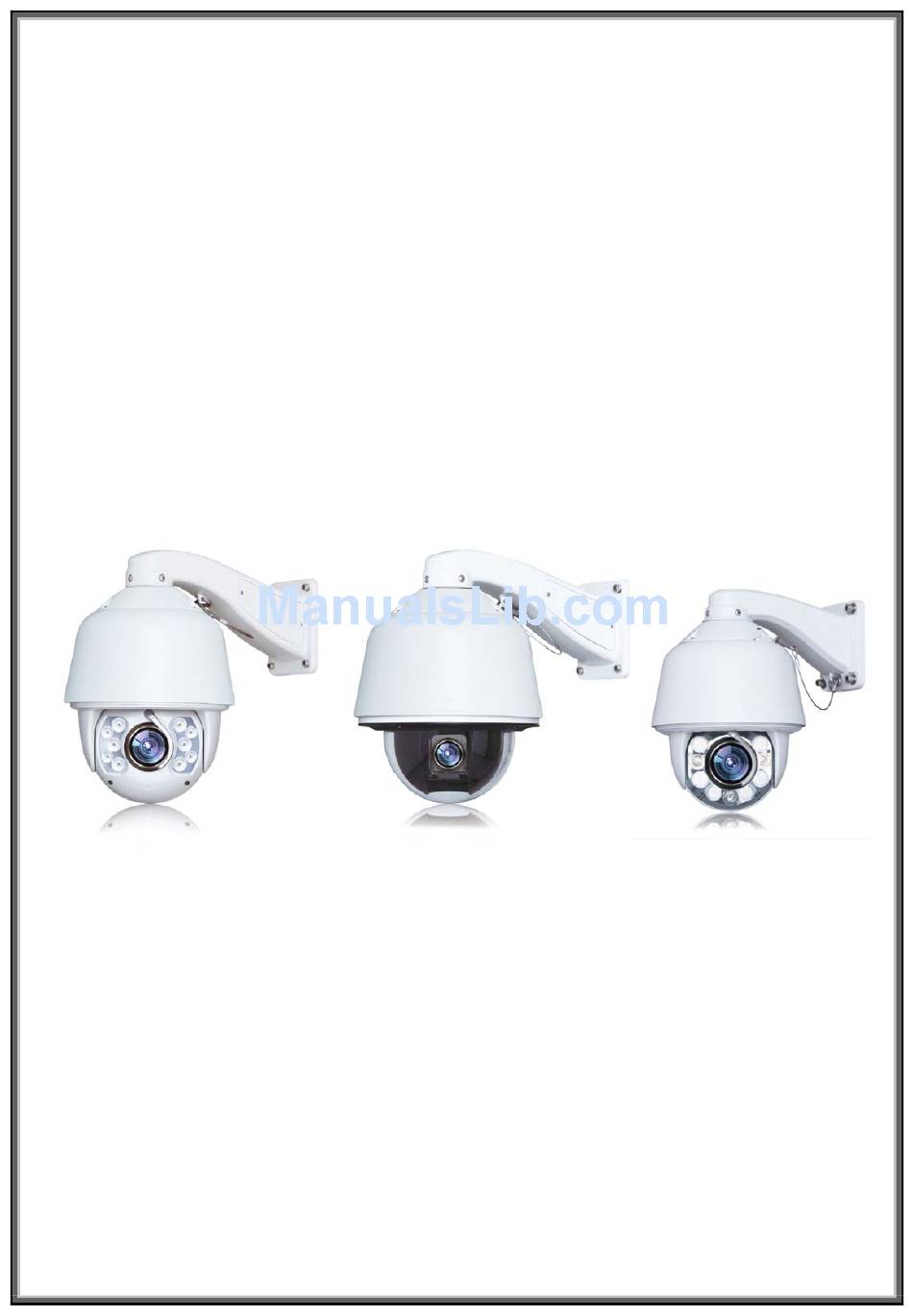

    ▌▌Product & Accessories 15-CD55TWAI 15-CD55TWA 15-CD52WI Accessories: User’s Manual Anti-drop Rope Caution：DC12V/4A power for 15-CD55TWA DC12V/5A power for 15-CD55TWAI & 15-CD52WI High Speed Dome Camera Introduction Manual...

  • Page 10: Preparations

    █ ▐ ▌ █ █ ▐ ▌ █ ▌▌Preparations Basic Requirements All the electric work must be finished under the latest electric & fire prevention law and rules (and any related law and rules). Please check according to the packing list if every accessory is included. And also make sure the installation is operated as required.

  • Page 11: Installation Method

    ▌▌Installation Method The IR speed dome could be installed in wall-mount and pendant-mount ▌▌Installation Dimensions Wall Mount 15-CD55TWAI 15-CD55TWA 15-CD52WI Drill Drawing：   High Speed Dome Camera Introduction Manual...

  • Page 12: Pendant Mount

    Pendant Mount                   15-CD55TWAI 15-CD55TWA 15-CD52WI     Drill Drawing：                     High Speed Dome Camera Introduction Manual...
  • Page 13 *Notice: The wall and ceiling must be thick enough to install the expansion and can bear 4 times the weight of the dome camera itself. Wall-mount Installation Procedures: 1). Take out the bracket from the package (as shown), mark the installation hole positions on the wall referencing to the bottom of bracket.
  • Page 14 Pendant-mount Installation Procedures: *Notice: Pendant-bracket is not designed for outdoor installation. If specially required, please do make sure the waterproof installation of the dome. 1) Take out the bracket from the package (as shown), mark the installation hole positions on the ceiling referencing to the bottom of bracket.

  • Page 15: Dip Switch Setup

    ▌▌DIP Switch Setup 15-CD52WI : The dip switches are under the cover as following picture. 15-CD55TWA&15-CD55TWAI: The dip switches are under the flange as following picture. SW1 — Dip switch for the dome address SW2 — Dip switch for the dome protocol...
  • Page 16 Protocol Setup (SW2) Our IR speed dome supports two protocols including Pelco P and Pelco D. All of them supports baud rate of 9600bps、4800bps、2400bps. Set the No.1~4 dip switch for the protocol configuration. Protocol SW2-1 SW2-2 SW2-3 SW2-4 PELCO-P PELCO-D Reserved …...

  • Page 17: Cabling

    Rated Power Input Voltage Range Current Consumption Model DC 12V DC 11V~13 V 15-CD52WI&15-CD55TWAI DC 12V DC 11V~13 V 15-CD55TWA RS-485 Communication 1. For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time,RS-485 communication lines of them is connected in parallel as shown below.
  • Page 18 Video Connection Connect with BNC coaxial cable. Alarm input (15-CD55TWA、15-CD55TWAI) Signal Description IN COM Common point for alarm IN1-,IN2-,IN3-, IN4-,IN5,IN6,IN7 Alarm input signal Speed dome can detect the status of alarm input (NO or NC) automatically. Normal Open and Normal Close define as below:...

  • Page 19: Check Points Before Operation

    ▌▌Check points before operation Before power is applied, please check the cables carefully. The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switch of the camera. If your controller supports multi-protocols, the protocol must be changed to match to that of the camera.

  • Page 20: Reserved Preset

    ▌▌Reserved Preset Description Some Preset numbers are reserved to special functions. <Call> [95]<Enter> Enters into OSD menu <Call> [99]<Enter> Run Pan Scan Default as scan 1 <Call> [98]<Enter> Run Cruise(SEQ) Default as Cruise(SEQ) 1 <Call> [97]<Enter> Run Pattern Default as Pattern 1 <Call>...

  • Page 21: General Rules Of Key Operation For Menu

    <Call>[80]<Enter> + Start the pp pattern. <Call>[pp]<Enter> + <Call>[97]<Enter> <Call>[80]<Enter> + Start setting of the pp pp: Pattern 1-4 <Call>[pp]<Enter> + <Set>[86]<Enter> pattern. <Call> [96]<Enter> End setting of the pp pattern. <Call> [94]<Enter> Reset <Call> [82]<Enter> Load Default <Call> [94]<Enter> Reset <Call>...

  • Page 22: Osd Menu Functions

    ▌▌OSD MENU FUNCTIONS   High Speed Dome Camera Introduction Manual...

  • Page 23: Language

    ▌▌MAIN MENU Language Language selection System Information The user can check the dome system information as required. The system information includes: Dome ID, dome address, baud rate, protocol, temperature, voltage, alarm info, dome title, version, date, time, and temperature scale. Display Setup Enable/Disable of OSD display on Main Screen Display Setup splay setup allows the user to define the way to display the dome titles on...
  • Page 24 ▌▌LANGUAGE The language for the on-screen menus is Selectable. To change the display language: Press Iris Open to enter selection. All on-screen menus are changed to the selected language. ▌▌SYSTEM INFORMATION   The user can check the dome system information as required. The system information includes: Dome ID, dome address, baud rate, protocol, temperature, voltage, alarm info, dome title, version, date, time, and temperature scale.
  • Page 25   ▌▌DISPLAY SETUP Display setup allows the user to define the way to display the dome titles on the monitor. The displayed titles are listed as follows: DOME TITLE Indicate dome PRESET Indicate the dwell time for preset title MOTION Indicate the dwell time for auto function titles (auto scan/auto cruise/pattern tour) ZONES...
  • Page 26 ▌▌IR LED   The user can open and close the IR LED manually and set up the IR LED work mode under this OSD mean. (Under normal operation mode, the user can press IRIS OPEN and IRIS CLOSE to adjust the IR LED power): 1.
  • Page 27 7. SENSITIVITY: When the AUTO CONTROL is on, the user can set up the sensitivity to detect the moving objects. 8. ENHANCED MODE: Under normal status, press IRIS OPEN to enhance the IR LED power, when it is turned to maximum, press IRIS OPEN continuously for 2 seconds to enter the enhanced mode.
  • Page 28 The dome system has 7 alarm inputs and 2 alarm output. (optional function). When an alarm is received, an input signal to the dome triggers the user defined action (such as presets, patterns, etc.), and at meantime the alarm output signals is activated. 1.
  • Page 29 ▌▌PRIVACY MASK   rivacy mask allows the user to mask the privacy areas with black frame. The user can set up 8 privacy masks at most. 1. MASK NO.: Move the cursor here and press IRIS OPEN to enter the setup of Mask Number of the privacy zone, 2.
  • Page 30 ▌▌CLOCK The dome can display the data and time. And the user could enter this CLOCK menu to set up the DATE and TIME. 1. DATE: Move the cursor here and press IRIS OPEN to enter. Move the joystick left and right to choose the date position and move it up and dome to adjust the figures.
  • Page 31   ▌▌PASSWORD The dome features password protection function to prevent unanthorized changes to the dome settings. If the PASSWORD function is enabled, the operator can not access any dome setting without entering a valid password. 1. EDIT PASSWORD: Move the cursor here and press IRIS OPEN to enter. Please under the old password before set up the new password.
  • Page 32   ▌▌DOME TITLE The user can set up the dome title to define each camera. Dome title support up to 12 characters Move the cursor according the left steps and select INPUT. Press IRIS OPEN to enter. 1. Move the joystick left and right to position “←”, and press IRIS OPEN to delete the character at“←”.
  • Page 33 ▌▌SOFT ADDRESS SET The use can set up the SOFT ADDRESS, SOFT PROTOCOL and SOFT BAUD RATE under this menu here to activate the soft address function. And then the defined dome address by dip switch will be disabled. 1. Move the cursor to INPUT (under DOME ID) and press IRIS OPEN to enter the mode of setting dome ID, Move the joystick to position the cursor beside :0 1 2 3 4 5 6 7 8 9”...
  • Page 34 ▌▌AUX The user can set up the auxiliary output to trigger other devices from an alarm or a controller. Move the cursor to AUX and press IRIS OPEN to enter to select “ON” or “OFF” to enable or disable this function.  ...
  • Page 35 ▌▌SOFT LIMIT The user can set up the soft limit to define the left and right boundaries for the pan movement. SOFT LIMIT: Move the cursor here and press IRIS OPEN to enter. Move the joystick to select “ON” or “OFF” to enable or disable this function. 1.
  • Page 36 ▌▌DOME SPEED To make a selection of the dome speed, the user can enter this menu to set up. Move the cursor to DOME SPEED and press IRIS OPEN to enter. Move the joystick to select the dome speed when doing the pan movement. Move the cursor to BACK/EXIT and press IRIS OPEN to run the command of BACK or EXIT.
  • Page 37 ▌▌POWER ON ACTION The user can define the dome action when power on, Move the cursor to POWER ON ACTION and press IRIS OPEN to enter the mode of setup.     NONE (default) No action. PRESET Dome goes to preset. (Default as Preset 1) SCAN Dome starts auto scan (Default as Auto Scan 1) Dome runs auto cruise (Default as Auto Cruise 1)
  • Page 38 ▌▌CAMERA The dome can automatically recognize the main camera modules in the market. For the cameras it can not recognize, the user can set up here. 1. CAMERA: Move the cursor here and press IRIS OPEN to enter the setup mode. Move the joystick up and down to select the camera types.
  • Page 39 ▌▌COMMUNICATION TEST The dome can do self diagnosis for the communications between keyboard and speed dome. The test needs to match with our software VK200. If the self testing is successfully finished via the software, the system will show up the testing results as left diagram.  ...
  • Page 40 ▌▌OTHERS The user can set up TEMP MODE, INTERNAL FAN, PRESET FREEZE, STOP TIME. MENU OFF TIME and NORTH ZERO here under the menu of “OTHERS” 1. TEMP MODE: To set up the control mode of dome fans and heaters. It includes three modes of AUTO, FAN HIGH SPEED and FAN LOW SPEED.
  • Page 41 ▌▌CAMERA (Module) The user can make adjustment for the cameras under this menu. 1. FOCUS MODE: AUTO FOCUS allows the camera lens to remain in focus during zooming in, zooming out and pan/tilt movement. Move the cursor here and press IRIS OPEN to enter. Setup the mode: AUTO”...
  • Page 42 enter. Move the joystick to choose and press IRIS OPEN to confirm ►CAMERA ADVANCED The use can set up more detailed parameters of camera here under the menu of CAMERA ADVANCED. 1. WB: To set up the white balance of the camera. Options include AUTO, MANUAL.
  • Page 43 ▌▌PRESET The dome supports 220 presets. Please check the following steps to set up a preset. 1. PRESET NO.: Move the cursor here and press IRIS OPEN to enter the setup of Preset Number. Move the joystick to select a preset number (1-64 and 100-255) and press IRIS OPEN to confirm.
  • Page 44 ▌▌SCAN The dome supports 8 groups of auto scan. Please check the following steps to set up a scan. 1. SCAN NO.: Move the cursor here and press IRIS OPEN to enter the setup of SCAN Number. Move the joystick to select a preset number (1-8) and press IRIS OPEN to confirm.
  • Page 45 ▌▌AUTO CRUISE (SEQUENCE) The dome supports 8 groups of auto cruise and each cruise supports 32 presets. . Please check the following steps to set up cruise. 1. SEQ NO.: Move the cursor here and press IRIS OPEN to enter the setup of Sequence Number.
  • Page 46 ▌▌PATTERN The dome supports 4 pattern tours and each pattern cover at most 10 Minutes of 500 commands. Please check the following steps to set up a pattern. 1. PATTERN NO.: Move the cursor here and press IRIS OPEN to enter the setup of Pattern Number.
  • Page 47 ▌▌ZONES The use can set up zone title when the camera moves to a defined location, which will make it much easier for the user to identify the location. The dome supports 8 zone titles. Please check the following steps to set up a zone 1.
  • Page 48 ▌▌TIMING ACTION TIMING ACTION allows the user to set up the actions of the dome in 7 days (each day with 8 timing segments). When fishing the setup, the dome will do the actions according to the setup motion during the defined time segment. 1.

  • Page 49: Motion Detect

    ▌▌MOTION DETECT The user can set up 8 motion detection scenes (each scene with 4 detecting areas) under this menu. The alarm output will be triggered when moving objects enter these detecting areas 1. SCENE NO.: Move the cursor here and press IRIS OPEN to enter the setup of Scene Number.
  • Page 50 ▌▌AUTO TRACKING Under the auto tracking mode, the dome will auto track the moving objects entering the scene. When the object is moving out of the scene, the dome will return to a preset position as defined after the defined time. 1.
  • Page 51 ▌▌RESTART     The dome allows the user to reset its settings remotely under this  menu.    Move the cursor here and press IRIS OPEN to enter.  Select “OK” or “CANCEL” to continue the reset or cancel the    reset.   High Speed Dome Camera Introduction Manual...
  • Page 52 ▌▌FACTORY DEFAULTS   FACTORY DEFAULTS will allow the user to recover all the setting to factory default setting. Move the cursor here and press IRIS OPEN to enter. Select “OK” or “CANCEL” to continue the reset or cancel the reset. High Speed Dome Camera Introduction Manual...

  • Page 53: Specifications

    ▌▌SPECIFICATIONS Product No. 15-CD52WI 15-CD55TWA 15-CD55TWAI Video Signal System NTSC / PAL 1/4" Interline CCD SCM-2270(SAMSUNG)： NTSC: 768(H)×494 (V) / PAL: 752(H)×582 (V) CZ36SCM(COP)： NTSC: 1028(H)×508(V)520K / PAL: 1028(H)×596(V)610K Effective Pixels SCM-2370(SAMSUNG)： NTSC: 768(H)×494 (V) / PAL: 752(H)×582 (V) FCB-EX1020(SONY)：...
  • Page 54 0.01~120°/S 0.01~600°/S 0.01~360°/S Pan Speed Range:360°endless Range:360°endless Range:360°endless 0.01~120°/S 0.01~120°/S 0.01~120°/S Tilt Speed/Range Range:-5°~90° Range:-10°~90° Range:-5°~90° Preset(Label) Preset Preset Accuracy +/- 0.01° 8 cruising tracks, each cruising tracks has 32 preset positions, Auto Cruising(Sequence) user-defined dwell time 8 auto scan tracks, user-defined left and right boundaries and scan Auto Scan speed Pattern...
  • Page 55 ▌▌OPTIONAL BRACKET ► Ceiling Bracket (CD03BU1) ► Pole Bracket (CD04BH) ► Inside Corner Bracket (CD06BH) ► Outside Corner Bracket (CD05BH) V.20140115 High Speed Dome Camera Introduction Manual...
