Summary of Contents for COP Security 15-CD66WIB

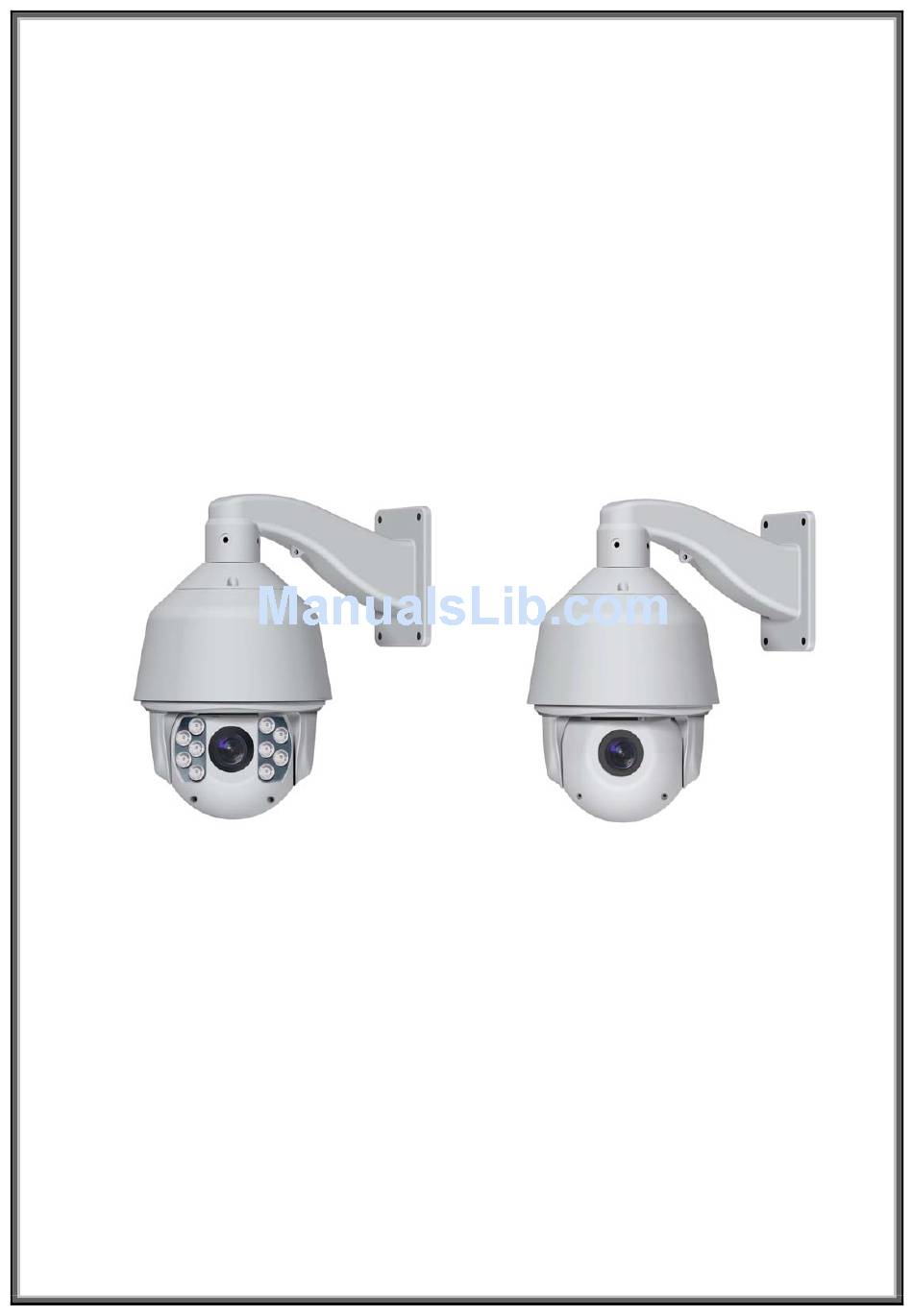

- Page 1 Installation and Operation Manual High Speed Dome Camera VER: V1.0 15-CD66WIB 15-CD66WB Please read the operation manual carefully before installing and using this unit...
- Page 2 CAUTl0N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：To reduce the risk of electrical shock, do not open covers. No user serviceable parts inside. Refer servicing to qualified service personal. This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
-
Page 3: Important Safeguard
▌▌Important Safeguard Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments／Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Water and Moisture Do not use this product near water or moisture. -
Page 4: Table Of Contents
Features 1. Introduction Product and Accessories Preparations 2. Installation Guide Installation Method Installation Dimensions DIP Switch Setup 3. Dome Setting Cabling Check points before operation Start OSD Menu Reserved Preset OSD Display of Main Screen Main Menu 4. How to use OSD Menu System Information Display Setup IR Setup... -
Page 5: Features
█ ▐ ▌ █ █ ▐ ▌ █ ▌▌Camera Specifications CCD Sensor: 1 / 4 " Interline Transfer CCD Camera Support: CZ36SCM(COP) Zoom Magnification: x 36 Optical Zoom, x 32 Digital Zoom Camera Support: FCB-EX1020(SONY) Zoom Magnification: x 36 Optical Zoom, x 12 Digital Zoom Camera Support: SCM-2270/SCM-2273(SAMSUNG) Zoom Magnification: x 27 Optical Zoom, x 16 Digital Zoom Camera Support: SCM-2370/SCM-2373(SAMSUNG) - Page 6 ▌▌Integrated Super Speed PTZ Rotator.. Delicate stepping motor, stable, sensitive and accurate 360° Pan and -10°~90° Tilt range (auto-flip) without blind area Stepless speed change, auto zoom/speed matching Near / far IR Light auto matches camera zoom in/out ▌▌All-weather Outdoor Design High die-cast alloy aluminum construction High Precision Mould with high heat conductivity Fully enclosed isolation design for heat sink...
- Page 7 Group The preset position can be programmed to be recalled in a set of sequences. This sequence can be set to let the camera scan from one position to the next in a cycle at a set speed. This feature is called the “auto cruise”.
- Page 8 PTZ and Lens Control Zoom Control Users can control zoom by keyboard to get near or far images. Focus Control The default setting is auto focus. The camera will auto focus based on the center of the video display to get the clear image. In some special occasions, the user could do the manual focus to get the desired image effect.
-
Page 9: Product And Accessories
▌▌Product & Accessories 15-CD66WIB 15-CD66WB Accessories: User’s Manual Anti-drop Rope&Screw Caution：AC24V/3A power for 15-CD66WIB AC24V/2A power for 15-CD66WB High Speed Dome Camera Introduction Manual... -
Page 10: Preparations
█ ▐ ▌ █ █ ▐ ▌ █ ▌▌Preparations Basic Requirements All the electric work must be finished under the latest electric & fire prevention law and rules (and any related law and rules). Please check according to the packing list if every accessory is included. And also make sure the installation is operated as required. -
Page 11: Installation Method
▌▌Installation Method The high speed dome could be installed in wall-mount and pendant mount. Wall-Mount Pendant Mount ▌▌Installation Dimensions Wall Mount 15-CD66WIB 15-CD66WB Drill Drawing： High Speed Dome Camera Introduction Manual... - Page 12 Pendant Mount 15-CD66WIB 15-CD66WB Drill Drawing： *Notice: The wall and ceiling must be thick enough to install the expansion and can bear 4 times the weight of the dome camera itself.
- Page 13 Wall-mount Installation Procedures: 1). Take out the bracket from the package (as shown), mark the installation hole positions on the wall referencing to the bottom of bracket. 2). Drill the hole and install 4 pieces of M8 expansion bolt into the hole. 3) Take out the high speed dome and put the cables through the bracket.
- Page 14 Pendant-mount Installation Procedures: *Notice: Pendant-bracket is not designed for outdoor installation. If specially required, please do make sure the waterproof installation of the dome. 1) Take out the bracket from the package (as shown), mark the installation hole positions on the ceiling referencing to the bottom of bracket.
-
Page 15: Dip Switch Setup
█ ▐ ▌ █ █ ▐ ▌ █ Before the dome is installed, please finish the setup of the baud rate and dome address. Set the DIP switch inside the dome body. The relative DIP switch site and connecting wires are diagramed below for reference. -
Page 16: Cabling
Please check the voltage and current capacity of rated power carefully. Rated power is indicated in the back of main unit. Rated Power Input Voltage Range Current Consumption Model AC24V AC24V±2V 15-CD66WIB AC24V AC24V±2V 15-CD66WB High Speed Dome Camera Introduction Manual... - Page 17 RS-485 Communication 1. For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time,RS-485 communication lines of them is connected in parallel as shown below. 2. Speed Dome OSD Menu, support the distal 120R resistance of the opening and closing. Video Connection Connect with BNC coaxial cable.
-
Page 18: Check Points Before Operation
▌▌Check points before operation Before power is applied, please check the cables carefully. The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switch of the camera. If your controller supports multi-protocols, the protocol must be changed to match to that of the camera. -
Page 19: Starting Osd Menu
▌▌Starting OSD Menu Function Using the OSD menu, Preset, Pattern, Swing, Group and Alarm Input function can be configured for each application. Enter Menu Press <Call> + Preset Number [95] +<Enter> ▌▌Reserved Preset Description Some Preset numbers are reserved to special functions. Function <Call>... -
Page 20: Osd Display Of Main Screen
▌▌OSD Display of Main Screen P/T/Z Information Current Pan/Tilt angle in degree and a compass direction. Camera ID Current Camera ID (Address). Dome Title Current speed dome title. Action Title Following are possible Action-Titles and their meaning. "SET PRESET xxx" When Preset xxx is stored "CALL PRESET xxx"... -
Page 21: General Rules Of Key Operation For Menu
▌▌General Rules of Key Operation for Menu The menu items surrounded with <>always has its sub menu. For aIl menu level, to go into sub menu, use joystick to the right. To return last level of menu by pressing BACK key. To move from items to item in the menu, use joystick in the Up/Down. -
Page 22: System Information
▌▌System Information The user can check the dome system information as required. The system information includes: firmware version、 color system、 Series code、protocol、120ohm end resistor setup、Date/Time setup. ■ Date Time Setup ■ Date Time Setup <SYSTEM INFORMATION>→<DATE/TIME SETUP> The dome can display the data and time. And the user could enter this CLOCK menu to set up the DATE and TIME. -
Page 23: Display Setup
▌▌Display Setup This menu defines Enable/Disable of OSD display on Main Screen. If an item is set to be AUTO, the item is displayed only when the value of it is changed. Camera ID [ON/OFF] IR Information [ON/OFF] Date / Time [ON/OFF] PTZ Information [ON/OFF/AUTO] Motion... -
Page 24: Ir Setup
▌▌IR Setup The user can open and close the IR LED manually and set up the IR LED work mode under this OSD mean. control the joystick left or right to set the IR mode. IR Mode [AUTO/TIME/CAM/NEAR/FAR/ON/OFF] To select the IR LED mode such as AUTO/TIME/CAM/NEAR/FAR/ON/OFF. -
Page 25: Dome Setup
■ IR timing Setup <IR SETUP>→<IR TIMING SETUP> To set the start time and stop time when the infrared was set TIME mode. Start Time：18：00 Stop Time：08：00 ▌▌Dome Setup Some of function can be set form user such as wiper, soft limit, power-up action, privacy zone, parking action, north direction and the tilt angle adjustment. -
Page 26: Power Up Action
■ Soft Limit <DOME SETUP>→<SOFT LIMIT> The user can set up the soft limit to define the left and right boundaries for the pan movement. Soft Limit [ON/OFF] To set soft limit function on/ off. Left Limit To set left limit of the soft limit function. Right Limit To set right limit of the soft limit function. -
Page 27: Privacy Zone
■ Privacy Zone <DOME SETUP>→<PRIVACY ZONE> Privacy mask allows the user to mask the privacy areas with black frame. The user can set up 8 privacy masks at most. Mask No. [1~8] Select Mask number. If the selected mask has already data, camera moves as it was set. -
Page 28: Parking Action Setup
■ Parking Action Setup <DOME SETUP>→<PARKING ACTION SETUP> Parking action setup means if there is no command for the dome for a period of time, the dome will run the actions as defined. Parking Action [NOTHING] To select parking action on/off . including NOTHING/AUTO SCAN/SWING1-8/GROUP1-8/PATTER1-4/PRESET1-8. - Page 29 ■ADVANCED <DOME SETUP>→<ADVANCED> Motion Lock [ON/OFF] To set the motion lock on/off. If the function was turned on all of the scanning will be locked user can not delete such as preset,swing,pattern and group. Freeze in Preset [ON/OFF] At start point of preset movement, camera starts freezing the image of start point.
-
Page 30: Camera Setup
▌▌Camera Setup The user can make adjustment for the cameras under this menu. Focus Mode [AUTO/MANUAL/SEMIAUTO] Sets camera focus mode. ■ SEMIAUTO Mode This mode exchanges focus mode automatically between Manual Focus mode and Auto Focus mode Manual Focus mode activates in preset operation and Auto Focus mode activates when jog operation Starts.With Manual mode at presets, Focus data ismemorized in each preset in advance Note: the above camera menu... - Page 31 ■ White Balance Setup <CAMERA SETUP>→<WHITE BALANCE SETUP> WB Mode [AUTO/MANUAL] In Manual mode, Red and Blue level can be set up manually Red Adjust [50～200] Blue Adjust [50～200] ■ Auto Exposure Setup <CAMERA SETUP>→<AUTO EXPOSURE SETUP> Backlight [ON/OFF] Sets Backlight Compensation [ON/OFF] Wide dynamic range (WDR) balances thebrightest and darkest sections of a scene to produce a picture that is...
-
Page 32: Motion Setup
▌▌Motion Setup User can enter this menu to set the scanning function of dome, like preset,swing,group,auto scan,zones and timing action. ■Preset Setup <MOTION SETUP>→<PRESET SETUP> Preset Number [1~255] (Except [95]) If a selected preset is already defined, camera moves to pre- defined position. -
Page 33: Swing Setup
<MOTION SETUP>→<SWING SETUP> ■Swing Setup Swing Number [1~8] Selects Swing number to edit. Start And End Position Setup the 2 position for Swing function if a selected preset is not defined, "UNDEFINED" will be displayed. When swing function runs, camera moves form the preset assigned as the start point to the preset assigned as the end point in CW (Clockwise) direction. -
Page 34: Pattern Setup
<DOME SETUP>→<PATTERN SETUP> ■Pattern Setup Pattern Number [1~4] Selects Pattern number to edit.If a selected pattern number is not defined,"UNDEFINED" will be displayed under selected pattern number. Clear Pattern [CANCEL/OK] Deletes data in current pattern. Edit Pattern Move the cursor here and then Move the cursor here and Edit Pattern then joystick to the right to enter.To start pattern recording, Move camera with joystick of controller or run preset... -
Page 35: Group Setup
<MOTION SETUP>→<GROUP SETUP> ■Group Setup Group Number [1~8] Selects Group number to edit.If a selected Group number is not defined,"UNDEFINED" will be displayed under selected Group number. Clear Group [CANCEL/OK] Deletes data in current Group Edit Group Edit Group 1、 Press OPEN key to start Tour setup. 2、... -
Page 36: Auto Scan Setup
<MOTION SETUP>→<AUTO SCAN> ■Auto Scan Setup Scan Speed [10~50] Sets Pan scan speed rating from 10 to 50. Tilt Position Sets Auto scan Tilt position (Including the ZOOM). Run Scan Run current scan Run Auto SCAN, ball machine according to a preset angle of TILT and ZOOM, 360º... -
Page 37: Zones Setup
<MOTION SETUP>→<ZONES SETUP> ■Zones Setup The use can set up zone title when the camera moves to a defined location, which will make it much easier for the user to identify the location. The dome supports 8 zone titles. Please check the following steps to set up a zone Zones No. -
Page 38: Timing Action Setup
<MOTION SETUP>→<TIMING ACTION SETUP> ■Timing Action Setup TIMING ACTION allows the user to set up the actions of the dome in 7 days (each day with 6 timing segments). When fishing the setup, the dome will do the actions according to the setup motion during the defined time segment. -
Page 39: Alarm Input Setup
▌▌Alarm Input Setup Match the Alarm sensor input to one of Preset Positions /Home/Auto Scan/Group/Pattern/Swing. If an external sensor is activated, camera will corresponding command position when this item is predefined. Alarm Enable [ON/OFF] Open or close the dome alarm function. Alarm No. -
Page 40: System Initialize
▌▌System Initialize The dome allows the user to reset its settings remotely under this menu. Clear All Data Deletes all configuration data such as display, camera, motion setup and so on. Clear Display Set Initializes Display Configuration Clear Camera Set Initializes Camera Configuration Clear Motion Set Initializes Motion Configuration Clear Edit Data Deletes Preset Date, Swing Data,... -
Page 41: Specifications
▌▌Specifications Product No. 15-CD66WIB 15-CD66WB Video Signal System NTSC / PAL 1/4" Interline CCD SCM-2270(SAMSUNG)： NTSC: 768(H)×494 (V) / PAL: 752(H)×582 (V) SCM-2273(SAMSUNG)： NTSC: 976(H)×494 (V) / PAL: 976H)×582 (V) CZ36SCM(COP)： NTSC: 1028(H)×508(V)520K / PAL: 1028(H)×596(V)610K Effective Pixels SCM-2370(SAMSUNG)： NTSC: 768(H)×494 (V) / PAL: 752(H)×582 (V) SCM-2373(SAMSUNG)：... - Page 42 Shutter 1/1~ 1/10000 sec ON / Off White Balance Auto / Manual(Red, Blue Gain Adjustable) ON/ Off 0.01~360°/S Pan Speed Range:360°endless 0.01~120°/S Tilt Speed/Range Range:-10°~90° 255 Preset Preset Preset Accuracy +/- 0.01° 8 auto scan tracks, user-defined left and right boundaries and scan Swing speed Pattern...
-
Page 43: Optional Bracket
▌▌Optional Bracket ► Ceiling Bracket (15-CD03BU1) ► Pole Bracket (15-CD04BHI) ► Inside Corner Bracket (15-CD06BHI) ► Outside Corner Bracket (15-CD05BHI) ► 21cm Pendent Bracket ► 3Feet Pendent Bracket (15-CD03BH3) (15-CD03BH1) ► 6Feet Pendent Bracket ► Power Box(15-CD10BC) (15-CD03BH6) V.20150318 High Speed Dome Camera Introduction Manual...
