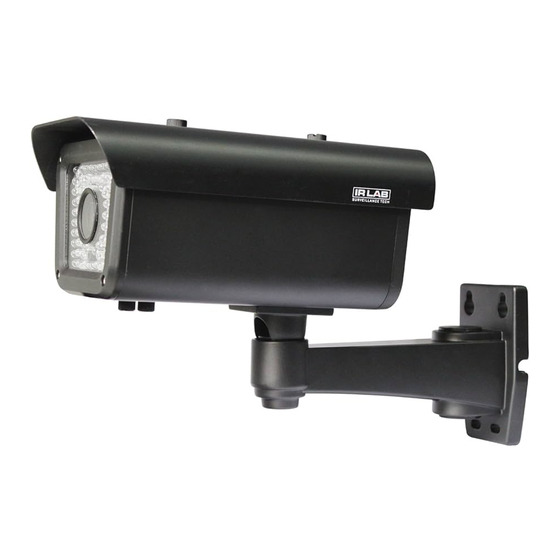

COP Security CIR-UW34WP Manual

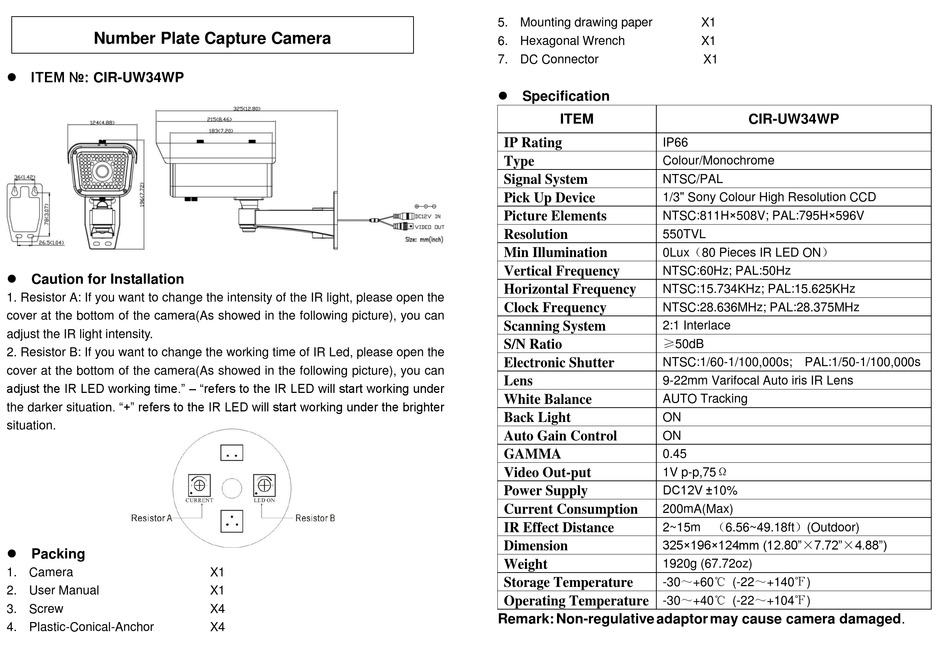

Number Plate Capture Camera
 ITEM №: CIR-UW34WP
 Caution for Installation
1. Resistor A: If you want to change the intensity of the IR light, please open the
cover at the bottom of the camera(As showed in the following picture), you can
adjust the IR light intensity.
2. Resistor B: If you want to change the working time of IR Led, please open the
cover at the bottom of the camera(As showed in the following picture), you can
adjust the IR LED working time." – "refers to the IR LED will start working under
the darker situation. "+" refers to the IR LED will start working under the brighter
situation.
 Packing
1. Camera
2. User Manual
3. Screw
4. Plastic-Conical-Anchor
X1
X1
X4
X4
5. Mounting drawing paper
6. Hexagonal Wrench
7. DC Connector
 Specification
ITEM
IP Rating IP66
Type Colour/Monochrome
Signal System NTSC/PAL
Pick Up Device 1/3" Sony Colour High Resolution CCD
Picture Elements NTSC:811H×508V; PAL:795H×596V
Resolution 550TVL
Min Illumination 0Lux（80 Pieces IR LED ON）
Vertical Frequency NTSC:60Hz; PAL:50Hz
Horizontal Frequency NTSC:15.734KHz; PAL:15.625KHz
NTSC:28.636MHz; PAL:28.375MHz
Clock Frequency
Scanning System 2:1 Interlace
≥50dB
S/N Ratio
NTSC:1/60-1/100,000s; PAL:1/50-1/100,000s
Electronic Shutter
Lens 9-22mm Varifocal Auto iris IR Lens
White Balance AUTO Tracking
ON
Back Light
Auto Gain Control ON
GAMMA 0.45
Video Out-put 1V p-p,75Ω
DC12V ±10%
Power Supply
Current Consumption 200mA(Max)
2~15m （6.56~49.18ft）(Outdoor)
IR Effect Distance
325×196×124mm (12.80"×7.72"×4.88")
Dimension
Weight 1920g (67.72oz)
Storage Temperature -30～+60℃ (-22～+140℉)
Operating Temperature -30～+40℃ (-22～+104℉)
Remark: Non-regulative adaptor may cause camera damaged.
X1
X1
X1
CIR-UW34WP
