Connecting the telephone

Although not essential batteries can be fitted in order to support the display if
you are connected to a very low voltage telephone line. They will also backup
the memories if the telephone is disconnected from the telephone line for a
period exceeding 3 minutes.

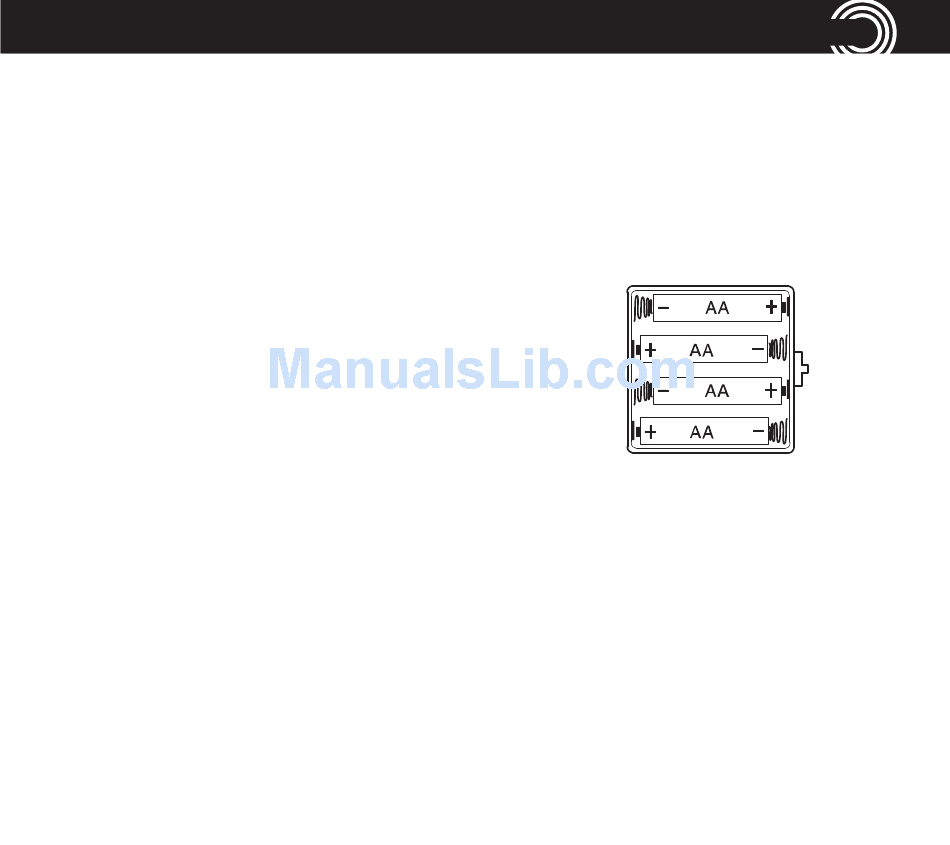

1. Insert the batteries in the open battery
compartment.
Only use batteries of the type AA 1.5 V.
Pay attention to the correct polarity.
Close the battery compartment cover.
Pay attention that the telephone is not connected to the telephone line sock-
et and/or mains power connection when the batteries are being inserted or
replaced.
2. Connect the telephone as illustrated in the diagram. Only use the telephone
cable supplied because the equipment may not function if another tele-
phone cable is used.
