INSTALLATION & MAINTENANCE MANUAL
®

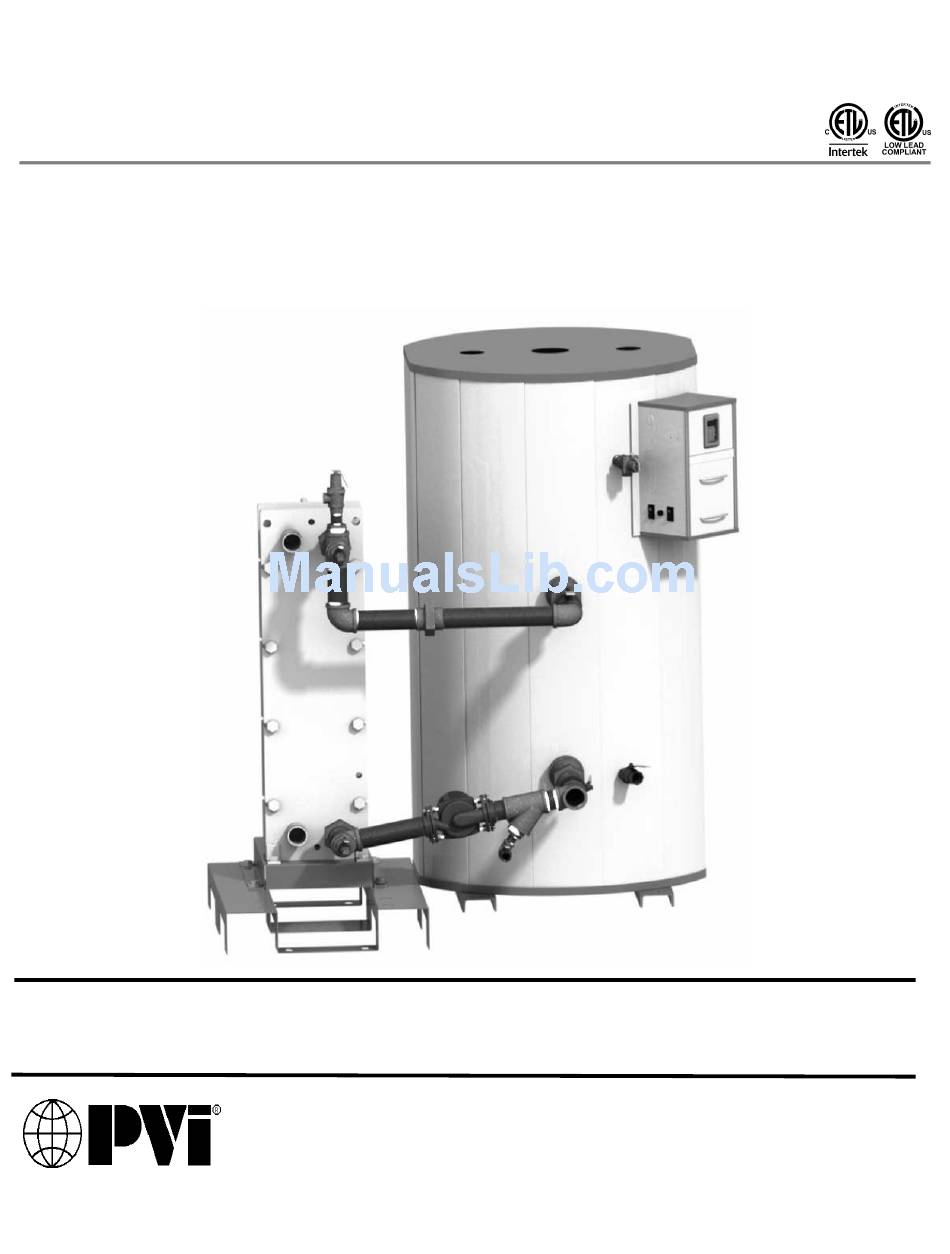

EZ PLATE
STORAGE WATER HEATER
Boiler Water Energy Source
Models (600-7200)(L)(150-4500)A(TRPF,TRBP)
Installation and service must be performed by a qualified service installer, service agency or qualified plumbing
contractor.
IMPORTANT:
THIS
MANUAL
CONTAINS
INFORMATION
REQUIRED
FOR
INSTALLATION,
OPERATION
AND
MAINTENANCE OF THIS EQUIPMENT. READ AND FOLLOW THE INFORMATION IN THIS MANUAL AND ALL OTHER
PROVIDED INSTRUCTIONS, LABELS AND MARKINGS BEFORE INSTALLING, OPERATING OR SERVICING THIS
EQUIPMENT.
TO THE INSTALLER: After installation, these instructions must be given to the equipment user or left near the appliance.
SPECIAL INSTRUCTIONS TO THE OWNER: Retain this manual for future reference. These instructions contain
important information that will help you in maintaining and operating this appliance.
PVI INDUSTRIES, LLC – 3209 Galvez Ave. - Fort Worth, Texas 76111 - 1-800-433-5654
PV500-64 12/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ Plate and is the answer not in the manual?

Questions and answers

Related Manuals for PVI Industries EZ Plate

Summary of Contents for PVI Industries EZ Plate

  • Page 1 SPECIAL INSTRUCTIONS TO THE OWNER: Retain this manual for future reference. These instructions contain important information that will help you in maintaining and operating this appliance. PVI INDUSTRIES, LLC – 3209 Galvez Ave. - Fort Worth, Texas 76111 - 1-800-433-5654 PV500-64 12/14...

  • Page 2: Table Of Contents

    Tank Heat Exchanger Checking and Adjusting 2-Way or 3-Way Valve Operation Recommended Maintenance Schedule Troubleshooting Notes 10 Standard EZ Plate Storage Water Heater Wiring Diagrams 10.1 Point to Point Wiring Diagram 10.2 Ladder Diagram Warranty forms ship separately with each water heater.

  • Page 3: Safety Considerations

    EZ Plate™ Storage Water Heater SAFETY CONSIDERATIONS WARNING: Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the unit and to replace any part of the control system and any other items affecting safe appliance operation and which has been under water.

  • Page 4: Product Descriptions

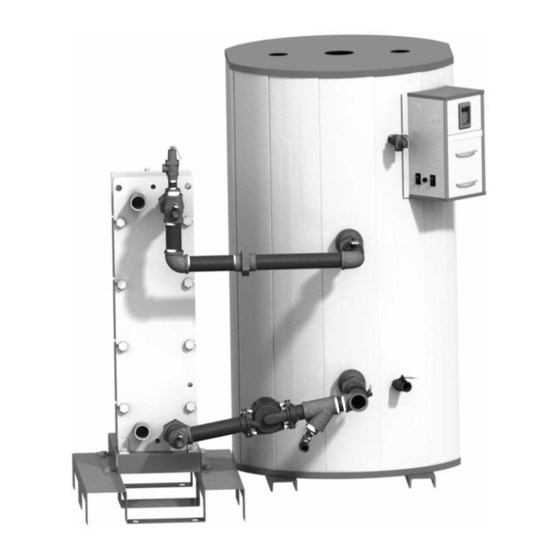

    EZ Plate™ Storage Water Heater PRODUCT DESCRIPTION Typical EZ Plate™ Storage Water Heater Construction 1. Heat Exchanger (Heat Engine) 7. Isolation Shutoff Valves 2. Control Enclosure 8. Tank Drain Valve 3. Potable Water Inlet 9. Boiler Water Inlet 4. Potable Water Outlet 10.
