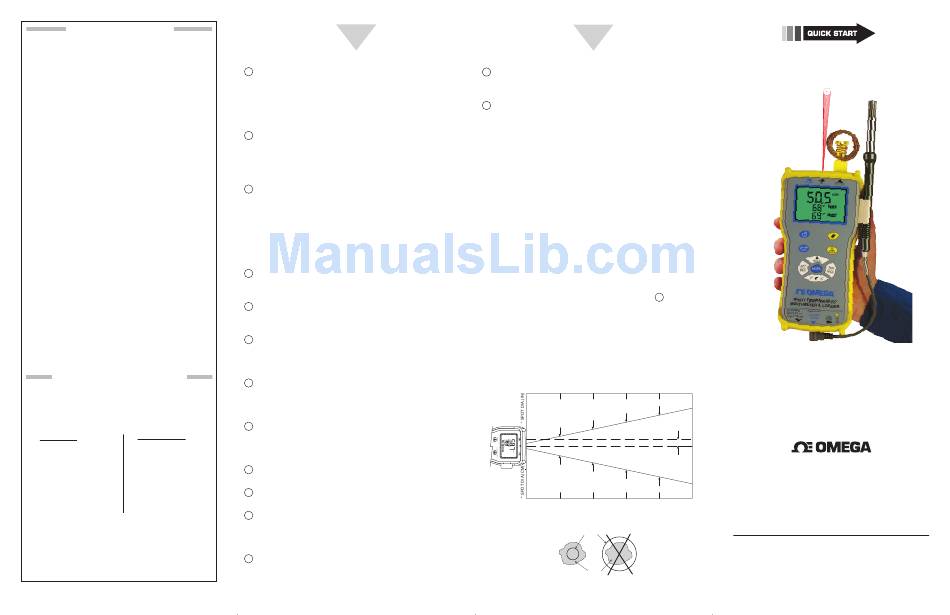

Omega RH511 Quick Start Manual

WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects
in materials and workmanship for a period of 13 months from
date of purchase. OMEGA's WARRANTY adds an additional one (1)
month grace period to the normal one (1) year product warranty
to cover handling and shipping time. This ensures that OMEGA's
customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for
evaluation. OMEGA's Customer Service Department will issue an
Authorized Return (AR) number immediately upon phone or written
request. Upon examination by OMEGA, if the unit is found to be
defective, it will be repaired or replaced at no charge. OMEGA's
WARRANTY does not apply to defects resulting from any action of
the purchaser, including but not limited to mishandling, improper
interfacing, operation outside of design limits, improper repair,
or unauthorized modification. This WARRANTY is VOID if the unit
shows evidence of having been tampered with or shows evidence of
having been damaged as a result of excessive corrosion; or current,
heat, moisture or vibration; improper specification; misapplication;
misuse or other operating conditions outside of OMEGA's control.
Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various
products. However, OMEGA neither assumes responsibility for
any omissions or errors nor assumes liability for any damages
that result from the use if its products in accordance with
information provided by OMEGA, either verbal or written.
OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT
THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING
ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
LIMITATION OF LIABILITY: The remedies of purchaser set forth
herein are exclusive, and the total liability of OMEGA with
respect to this order, whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise,
shall not exceed the purchase price of the component upon
which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used,
nor shall it be used: (1) as a "Basic Component" under 10 CFR 21 (NRC),
used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or
with any nuclear installation or activity, medical application, used on
humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and,
additionally, purchaser will indemnify OMEGA and hold OMEGA
harmless from any liability or damage whatsoever arising out of the use
of the Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA
Customer Service Department. BEFORE RETURNING ANY
PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA'S CUSTOMER
SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.
FOR WARRANTY RETURNS, FOR NON-WARRANTY REPAIRS,
consult OMEGA for current repair
please have the following
charges. Have the following
information available BEFORE
information available BEFORE
contacting OMEGA:
contacting OMEGA:
1. Purchase Order number under
1. Purchase Order number to
which the product was
cover
PURCHASED,
the COST of the repair or
2. Model and serial number of
calibration,
the product under warranty, and
2. Model and serial number of the
3. Repair instructions and/or
product, and
specific problems relative to 3. Repair instructions and/or specific
problems relative to the product.
the product.
OMEGA's policy is to make running changes, not model changes,
whenever an improvement is possible. This affords our customers
the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2013 OMEGA ENGINEERING, INC. All rights reserved.
This document may not be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine-readable
form, in whole or in part, without the prior written consent of OMEGA
ENGINEERING, INC.
MQS4954/0913
5
Down arrow keys to change the Emissivity value.
This is the High alarm display screen (HAL). It shows
7
the high alarm set point for the relative humidity, and the
status. You can change the alarm set point value using the
Up and Down arrow keys. You can change the alarm set
point value using the Up and Down arrow keys. You can
change the alarm status (On/Off) by pressing the SET key.
This is the Low alarm display screen (LAL). It shows
8
the low alarm set point for the relative humidity, and the
status. You can change the alarm set point value using
the Up and Down arrow keys. You can change the alarm
status (On/Off) by pressing the SET key.
This is the recording interval display screen. You can
9
set the recording interval from 2 to 60 seconds using the
Up and Down arrow keys. When the recording function
is initiated (Pressing SET/REC key), the LOG icon will
turn on, and the unit will record relative humidity,
ambient temperature, infrared temperature, and the two
thermocouple temperatures per recording interval in the
non-volatile memory.
This is the Auto Power shut off display screen. You can
10
turn on/off the auto power shut off by pressing the SET
key.
This is the main display screen when the data logging
11
function is turned on. The LOG icon is shown on the
display.
This display shows the maximum values of the
12
relative humidity, ambient temperature, and the infrared
temperature during the session. You can press the SET key
to reset the Max/Min values.
This display shows the minimum values of the
13
relative humidity, ambient temperature, and the infrared
temperature during the session. You can press the SET key
to reset the Max/Min values.
This is the main display screen when the Hold function
14
is turned on. The relative humidity, ambient temperature,
and infrared temperature values are frozen until the Hold
key is pressed again to turn off the function.
This display screen shows the relative humidity, Dew
15
point temperature (DP) and the infrared temperature (IR-T).
This display screen shows the relative humidity, Wet
16
Bulb temperature (WB), and the infrared temperature (IR-T).
This display screen shows the air moisture content in
17
GPP (Grains per Pound), ambient temperature, and the
infrared temperature. The moisture content can be displayed
in g/Kg when the temperatures are displayed in °C.
This display shows the status of the wireless radio. It
18
can be turned on/off using the SET key. When turned on,
the RH511 becomes a wireless receiver and can receive
wireless signals from our wireless temperature
ARTWORK/PRODUCT ART/
DWGS/START HERE ARROW
6
humidity transmitter, model CTXL-PT series.
This display shows the wireless transmission interval.
19
It can be set to 2, 10, 30, 60, 120 seconds using the Up and
Down arrow keys.
This display shows the unit ID address. It can set from
20
00 to 99 using the Up and Down arrow keys.
Enable Data Logging
You initiate logging data (Relative Humidity, Ambient
temperature, Infrared temperature, Thermocouple 1,
Thermocouple 2) by pressing the SET/REC key from the
following display menus: RH/Temp/IR (Main Menu)
RH/TC1/IR
RH/TC1/TC2
RH/TC1-TC2/IR
RH/Temp/TC2
The LOG display icon will turn on. The unit will log the
five sets of data until the internal memory gets full. It will
then stop logging data. The LOG display icon will blink
accompanied by a one-time 3 beep warning. You can also
stop logging data at any time by pressing the SET/REC
key again.
Infrared Function
You can set the target emissivity from screen
6
Display Screens Explained Section). Simply aim the
infrared lens to the target object, press and hold the laser
button to turn on the laser beam. The laser beam indicates
either the center of the target object (Laser Dot) or the area
of the target being measured (Laser Circle). There is a 5/8
inch offset between the center of the optical field of view
and the laser beam. It may take a few moments for the IR
reading to stabilize.
DISTANCE: SENSOR TO OBJECT (FT)
0' 1' 2' 3' 4'
4.8"
3.6"
2.4"
1.2"
LINE OF SIGHT OF THE LASER BEAM
.50"@0"
LINE OF SIGHT OF THE THERMOMETER
1.3cm@0"
3.0 * SPOT DIAMETER MEASURED AT 90% ENERGY
6.0 D:S = 10:1
9.0
12
0 30 60 91 122
DISTANCE: SENSOR TO OBJECT (CM)
Infrared Optical Field Of View Diagram
FIELD
OF VIEW
TARGET
SURFACE
ACCEPTABLE UNACCEPTABLE
Positioning Infrared Target Temperature
For complete product manual:
www.omega.com/manuals/manualpdf/M4954.pdf
TM
(from
RH511
Temperature/Relative Humidity
Non-contact Infrared/Thermocouple
Handheld Meter & Logger
with Wireless Temp/RH Probe Option
5'
6.0"
5/8"(1.6cm)
