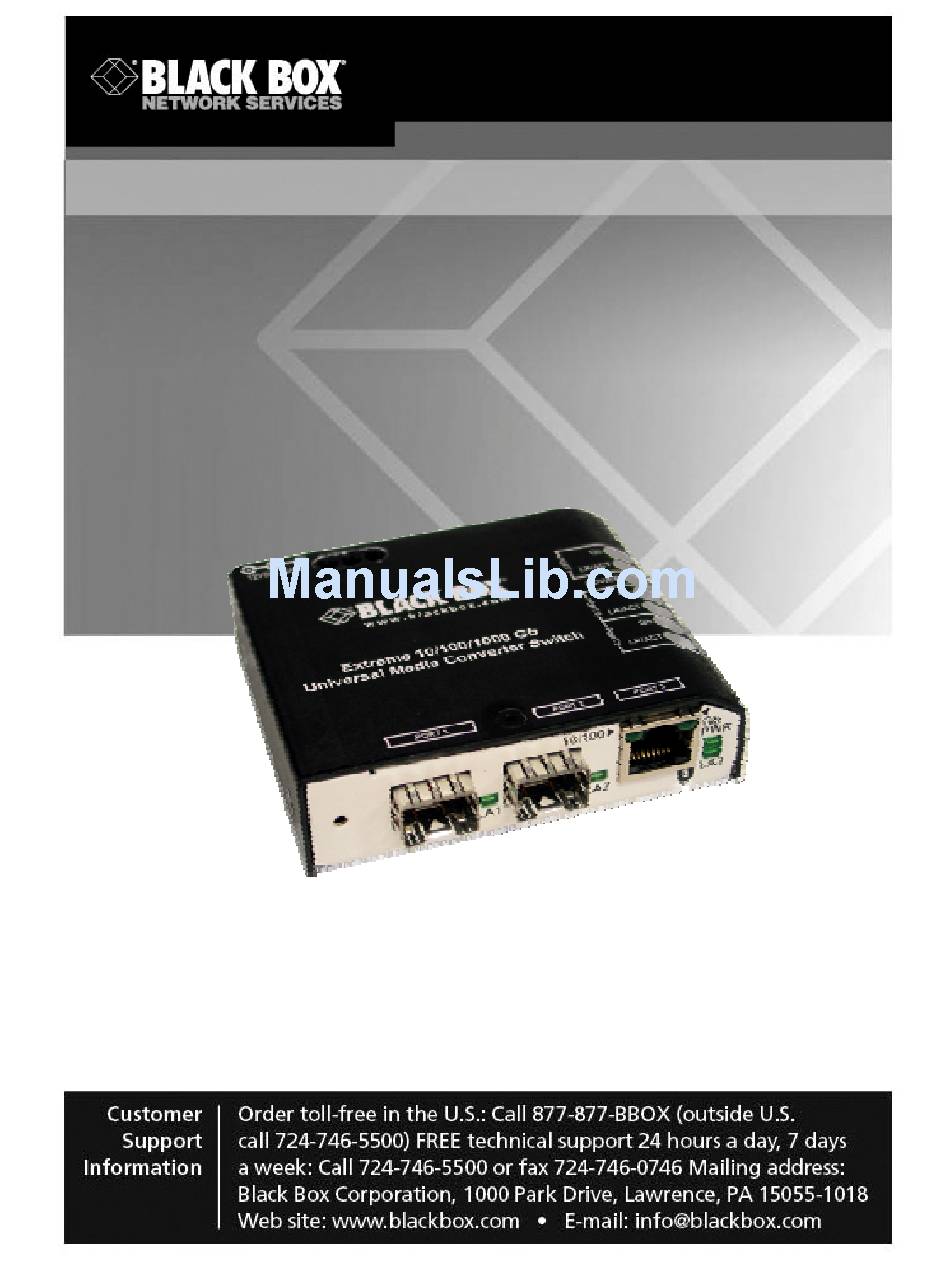

Universal Media Converter Switch
Provides full 1000-/100-/10-Mbps switching services
for high performance Ethernet LANs.
Includes two SFP open transceiver fiber switch ports
and one 10-/100-/1000-Mbps copper switch port.
LBH21xA-H-SFP
LBH21xAE-H-SFP
LBH212A-HD-SFP
LBH21xA-P-SFP
LBH21xAE-P-SFP
LBH212A-PD-SFP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LBH21xA-H-SFP
Summary of Contents for Black Box LBH21xA-H-SFP
- Page 1 LBH21xA-H-SFP LBH21xA-P-SFP LBH21xAE-H-SFP LBH21xAE-P-SFP LBH212A-HD-SFP LBH212A-PD-SFP Universal Media Converter Switch Provides full 1000-/100-/10-Mbps switching services for high performance Ethernet LANs. Includes two SFP open transceiver fiber switch ports and one 10-/100-/1000-Mbps copper switch port.
- Page 3 Radio Interference Regulations Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 4 NOM Statement Instrucciones de Seguridad (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 5 NOM Statement 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
- Page 6 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Ethernet is a trademark of Xerox Corporation NEBS is a trademark of Telcordia Technologies UL is a registered trademark of Underwriters Laboratories Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 7: Table Of Contents
Table of Contents Table of Contents SPECIFICATIONS ................9 Technical Specifications ............9 Summary of models and descriptions: ........ 17 INTRODUCTION ................19 Inspecting the Package and the Product ......19 ... - Page 8 Table of Contents TROUBLESHOOTING ..............47 Before Calling for Assistance ..........48 When Calling for Assistance ..........49 Return Material Authorization (RMA) Procedure ....50 Shipping and Packaging Information ........51 ...
-
Page 9: Specifications
Chapter 1: Specifications SPECIFICATIONS Technical Specifications Ports Performance Data Rate: 10-/100-/1000-Mbps Network Standards 1000Mb: Ethernet IEEE 802.3ab and 802.3z 1000BASE-T, -SX, -LX and -ZX 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX 10 Mb: Ethernet IEEE 802.3, 10BASE-T Auto-sensing for speed: IEEE 802.3z Packet-Processing Between Domains Filter and Forward Rate from 1000-Mbps ports: 1,488,000 pps max. - Page 10 Chapter 1: Specifications Maximum Ethernet Segment (or Domain) Lengths 10BASE-T (Unshielded twisted pair) 100 m (328 ft) 100BASE-TX (CAT 5 UTP) 100 m (328 ft) 100BASE-FX, half-duplex: (multi-mode) 412 m (1350 ft) 100BASE-FX, full duplex: (multi-mode) 2 km (6562 ft) 100BASE-FX, half-duplex: (single-mode) 412 m (1350 ft) 100BASE-FX, full duplex: (single-mode)
- Page 11 Chapter 1: Specifications Note: LBH21-Series are designed for NEBS compliance, including, vibration, shock and altitude. Packaging: Enclosure: Rugged sheet metal (Aluminum) Dimensions of the Switch unit: 3.5"H x 3.0"W x 1.0"D (8.9 x 7.6 x 2.5 cm) Weight: LBH21-Series: 6.1 oz. (173g) Power supply: LBH210A &...
- Page 12 Chapter 1: Specifications POWER SUPPLY AC POWER SUPPLY (using an external power adapter): All models have a (8-15) VDC output with 6-ft. (1.8-m) long cord and a 2.5-mm center +ve jack. The power supplies are temperature rated to match the Converter Switch ratings. Factory Floor (H) Ratings (-25 to 60°C) North America (LBH210A-H) models.
- Page 13 Chapter 1: Specifications Temperature uncontrolled Extreme (P) Ratings (-40 to 75°C) North America (LBH210A-P) models. Outdoor temperature rated. Input: 6-ft. (1.8-m) AC power cord to IEC 320 connector on the 100-240 VAC, 47-63-Hz external power adapters. Output: 12-VDC, 2Amps. International (LBH210AE-P) models. Outdoor temperature rated. Input: IEC 320 connector on the 100-240-VAC, 47-63-Hz external power adapter.
- Page 14 Chapter 1: Specifications Port Connectors: One RJ-45 Port: supports 10/100/1000Mbps with auto cross (MDIX). It is shielded 8-pin female connector for shielded (STP) and unshielded (UTP) CAT 3, 4, 5 cables. Two Fiber optic ports: The LBH21-Series is 100BASE-FX or 1000BASE-SX /-LX / -ZX with a optional choice of multimode or singlemode SFP connectors.
- Page 15 Chapter 1: Specifications LED Indicators (Two sets) top-front and end with ports Top-Front: (shown) POWER: Steady ON when power applied Gb per port: Steady ON for 1000 Mbps; OFF for 100 Mbps or 10 Mb speed LK/ACT per port: Steady ON for LINK (LK) with no traffic, LK/ACT BLINKING for Activity...
- Page 16 Chapter 1: Specifications Mounting options : Metal mounting clips for panel mounting: included DIN-Rail mounting option: (see Section 3.4) Rack-mount option: LE1505-RACK Mean Time Between Failure (MTBF): over 15 years, Telcordia (Bellcore) Method Agency Approvals and Standards Compliance: UL Listed (UL 60950), cUL, CE, Emissions FCC Part 15 Class A NEBS L3 and ETSI compliant.
-
Page 17: Summary Of Models And Descriptions
Chapter 1: Specifications Summary of models and descriptions: (Hardened Model) for 1000Mb fiber LBH210A-H-SFP = Hardened (H), one 10/100/1000Mb RJ-45+ two LBH210AE-H-SFP* = 1000Mb Fiber ports for factory floor (-25 to 60C) using a direct DC ( 8-15VDC) and/or external AC hardened power supply (included). - Page 18 Chapter 1: Specifications Fiber Port Connectors: Optional SFP Fiber transceivers for open SFP slots LFP220P = 1000BASE-SX-LC: 850nm multi-mode SFP, 550 m LFP221P = 1000BASE-SX Extended: 1310nm multi-mode fiber optic with LC type connector, 2 km LFP222P = 1000BASE-LX-SLC: 1310nm single-mode SFP, 10 km LFP223P = 1000BASE-LX-SLC: 1310nm single-mode SFP, 25 km LFP224P = 1000BASE-ZX-SLC: 1550nm single-mode SFP, 40 km LFP225P = 1000BASE-ZX-SLC: 1550nm single-mode SFP, 70 km...
-
Page 19: Introduction
If items are missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. If you need to return the unit, use the original shipping container. Refer to Chapter 5, Troubleshooting, for specific return procedures. -
Page 20: Product Description
Chapter 2: Introduction Product Description 2.2.1 LBH21-Series Product Description The latest technology of SFP fiber transceivers has been integrated into the LBH21-Series Universal Converter Switch package. It can handle any Gb fiber type – multi-mode and single-mode – and fiber media distance with a selection of Gb SFP fiber transceivers, up to two of which can be plugged in. - Page 21 Chapter 2: Introduction No internal airflow is required for cooling, so it resists dust, dirt, moisture, smoke and insects. Mounting options include stand-alone panel mounting, DIN-Rail, or rack-mount tray. The LBH21xA-P Extreme-rated units are for temperature uncontrolled applications (-40 to 75° C), typically located outdoors. The Extreme (-P) models are built with premium-grade extended temperature components, and use similar thermal techniques as the Hardened units.
- Page 22 Chapter 2: Introduction Fig 2.2.1a LBH210A-H with two SFP slots The “Hardened” labeled LBH21-Series units (as shown in Fig 2.2.1a) are designed for office and wiring closet environments and factory floor/Industrial applications. Using special thermal techniques and a sealed rugged metal case for heavy- duty industrial applications no air inflow is required for cooling, so the LBH21-Series resist dust, dirt, moisture, smoke and insects.
- Page 23 Chapter 2: Introduction Fig 2.2.1b LBH210A-P with two SFP slots The “Extreme” labeled LBH21-Series (as shown in Fig. 2.2.1b) are premium rated units suitable for temperature uncontrolled outdoor applications. Specially designed with premium- grade extended temperature components, the LBH21xA-P units use similar thermal techniques to the LBH21xA-H hardened units for cooling.
-
Page 24: Frame Buffering And Latency
Chapter 2: Introduction The front side of the unit has one twisted-pair 10/100/1000Mb switch port and two 100 or 1000Mb fiber ports. The RJ-45 port of the LBH21-Series Converter switches support auto cross (MDI-X) operation performing the autocross function under auto-negotiation mode only. The LBH21 models are factory configured at Full Duplex. - Page 25 Chapter 2: Introduction collisions, to be forwarded to add to the network traffic. Since there is no way to filter frames with a bad CRC (the entire frame must be present in order for CRC to be calculated), the result of indiscriminate cut-through forwarding is greater traffic congestion, especially at peak activity.
- Page 26 Chapter 2: Introduction Another feature implemented in LBH21-Series Converter Switches is a collision-based flow-control mechanism (when operating at half-duplex only). When the Switch detects that its free buffer queue space is low, the Switch prevents more frames from entering by forcing a collision signal on all receiving half-duplex ports in order to stop incoming traffic.
-
Page 27: Features And Benefits
Chapter 2: Introduction Features and Benefits Full 1000Mb, 100Mb or 10 Mb switching services for high performance Ethernet LANs LBH21-Series Switches provide Fast Ethernet switching on all ports. They perform high-speed filter/forward operations on the traffic, giving each port’s segment a full 1000Mb, 100Mb or 10 Mb of bandwidth. - Page 28 Chapter 2: Introduction Two sets of LEDs for viewing status from any angle Each LBH21-Series Converter Switch is equipped with two sets (front and top) of LEDs to provide status information when viewed at almost any angle or mounting arrangement whether rack (LE1505-RACK) or wall-mounted.
-
Page 29: Applications For Lbh210-Series Converter Switches
The edge-of-the-network connectivity solutions offered by Black Box Converter Switches are focused on providing easier, more economical and ultra-reliable industrial application products. The compactly designed LBH21-Series act as very useful tools in the modern life of fast expanding network requirements. - Page 30 Chapter 2: Introduction Example 1: In this application, where in expanding an industrial network environment, the new PLC units are deployed on an existing network and each needs one (or two for redundancy) Ethernet ports to carry status and control data to the control center the hardened version of LBH21 is typically used.
- Page 31 Chapter 2: Introduction Example 2: LBH21-Series “Drop & Add” capability In this example, LBH21-Series Converter Switches form a gigabit backbone LAN with a “Drop & Add” capability that enables connecting many disparate devices in a fiber-media string, covering even very long distances (for example, a pipeline). Such designs are easily extended or expanded as conditions and devices needing network attachment change over time.
-
Page 32: Installation
Chapter 3: Installation INSTALLATION This section describes the installation of the LBH21-Series Converter Switches, including location, mountings, and power supply options and media connection. Locating the Converter Switch Unit All the LBH21-Series Switches operate in transparent half-and full-duplex mode. The store and forward switch easily takes care of network traffic and can be used as a useful, economical tool to expand an existing network. -
Page 33: Le1505-Rack For Rack Mounting Applications
RJ-45 connector in the front. Any mix of the Converter Switches and/or Media Converters may be placed on a tray, up to a maximum of 16 units. (The mounting spaces of the LBH21-Series are specific to the Black Box LBH10, LBH11 and LBH21-Series products and will not permit other models to be properly mounted). -
Page 34: Lh1505P-Rack For Rack Mounting
Chapter 3: Installation In a typical installation, the LE1505-RACK, 19” rack-mount tray will hold a few (three to eight) LBH21-Series Converter Switches, with their power supplies plugged into power strips (not included) in the rear area of the tray. Metal mounting screws in the bottom-front hold the Converter Switches firmly in place. -
Page 35: Din-Rail Mounting Option
Chapter 3: Installation Metal mounting screws in the bottom-front hold each of the media converters securing them in the tray and enabling separate removal for service. The dual LEDs permit viewing of Switch status from any angle. DIN-Rail mounting option The LBH21xA-HD and LBH21xA-PD Converter Switches, designed for use in “Factory Floor”... -
Page 36: Power Requirements For Lbh21-Series Switches
Chapter 3: Installation Power Requirements for LBH21-Series Switches LBH21-Series Switches are power-efficient and can work with an external AC power supply. LBH21-Series require a 12VDC input power supply. The 12V DC power input has a plug of 2.5mm, center +ve , with 6 ft. -
Page 37: Powering The Lbh21-Series With Dc Power Input
Chapter 3: Installation Powering the LBH21-Series with DC power input Each LBH21-Series is reliably equipped with an internal DC power supply, and has built-in screw terminals for secure attachment of the power leads. Three models support a range of power input types. The three model choices are for use with 12-VDC, 24-VDC or -48-VDC power. -
Page 38: Lbh21-Series, Dc-Powered Installation
Chapter 3: Installation LBH21-Series, DC-powered Installation This section describes the proper connection of the -48VDC leads (or 24VDC, 12VDC leads) to the DC power terminal block on the LBH21-Series media converter (as shown in Figure below). The DC terminal block on the LBH21-Series is located on the left side of the unit and is equipped with three (3) screw-down lead posts. -
Page 39: Connecting Ethernet Media
Chapter 3: Installation Connecting Ethernet Media The LBH21-Series Converter Switch can be connected to two media types i.e. fiber and copper (RJ-45) types, run at 1000BASE-T, 100BASE-TX, 10BASE-T and 1000BASE-SX/LX/ZX or 100BASE-FX. CAT 5E cables should be used when making 1000BASE-T connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. -
Page 40: Connecting Twisted Pair
Chapter 3: Installation 3.8.1 Connecting Twisted Pair The following procedure describes how to connect a 10BASE- T, 100BASE-TX or 1000BASE-T twisted pair segment to the RJ-45 port. The procedure is the same for both unshielded and shielded twisted pair cables. Using standard twisted pair media, insert either end of the cable with a RJ-45 plug into the RJ-45 connector of the port. -
Page 41: Connecting Single-Mode Fiber Optic
Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media installations using Black Box products, the following equations should be used: OPB (Optical Power Budget) = P... - Page 42 Chapter 3: Installation Page 42 724-746-5500 | blackbox.com...
-
Page 43: Connections To Nics Which Support Auto-Negotiation
Chapter 3: Installation * Note: The use of either multi-mode or single-mode fiber to operate at 1000Mbps speed over long distances (i.e., over approx. 400 meters) can be achieved only if the following factors are both applied: • The 1000Mb fiber segment must operate in full-duplex (FDX) mode, •... -
Page 44: Operation
Chapter 4: Operation OPERATION Triple-Speed Functionality, and Switching The LBH21-Series Converter Switches provide three switched ports. The architecture supports a triple speed-switching environment, with standard auto-negotiation capability. The switched RJ-45 ports are full- or half-duplex auto-sensing for mode and speed, and auto cross for plug polarity. (See Section 2.2). When the connected device is 10 Mbps, the LBH21-Series switch obeys all the rules of 10-Mbps Ethernet configurations. -
Page 45: Auto-Cross (Mdi-X), Auto-Negotiation And Speed-Sensing
Chapter 4: Operation Switching, Address Learning The LBH21-Series units have address table capacity of 1K node addresses, and are suitable for use in large networks. They are self- learning, so that as nodes are added or removed or moved from one segment to another, the LBH21-Series switch automatically keeps up with node locations. -
Page 46: Dual Leds, Top-Front And In End With Ports
Chapter 4: Operation this will result in agreement to operate at 10Mbps, 100Mbps or 1000Mbps speed, and full- or half-duplex mode. Dual LEDs, Top-front and in End with ports Description Illuminates GREEN to indicate power applied. LK/ ACT Steady ON for LINK w/no traffic, blinking for activity per port. LINK will turn off in the event connectivity is lost between the ends of the twisted pair segment or a loss of power occurs in the unit or remote device. -
Page 47: Troubleshooting
All Black Box Ethernet products are designed to provide reliability and consistently high performance in all network environments. The installation of Black Box LBH21-Series Switch is a straightforward procedure (see INSTALLATION, Section 3.0); the operation is also straight forward and is discussed in Section 4. -
Page 48: Before Calling For Assistance
If the problem continues after completing Step 3 above, contact your supplier of the LBH21-Series Switch unit or if unknown, contact Black Box Tech support (see page 6 of this guide) for assistance. Page 48 724-746-5500 | blackbox.com... -
Page 49: When Calling For Assistance
The components involved in the problem; d. Any particular application that, when used, appears to create the problem; An accurate list of Black Box product model(s) involved, with serial number(s). Include the date(s) that you purchased the products from your supplier. -
Page 50: Return Material Authorization (Rma) Procedure
Box, the unit will be returned as: No Problem found. Black Box reserves the right to charge for the testing of non- defective units under warranty. Testing and repair of product that is not under warranty will result in a customer (user) charge. -
Page 51: Shipping And Packaging Information
Chapter 5: Troubleshooting Shipping and Packaging Information Should you need to ship the unit back to Black Box, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap"... -
Page 52: Appendix A: Warranty Information
Box, the product has been damaged by misuse, misapplication, or as a result of service or modification other than by Black Box. Black Box reserves the right to make a charge for handling and inspecting any product returned for warranty repair which turns out not to be faulty. - Page 53 724-746-5500 | blackbox.com...
- Page 54 LBH210A-H-SFP, rev. 1...
