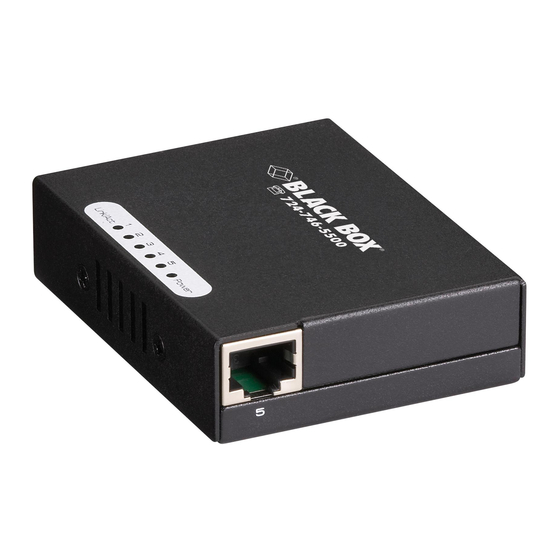

5- and 8-Port USB-Powered 10/100 Switches
Provides five or eight 10-/100-Mbps ports.
Perfect for small to medium workgroups.
Customer
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
Support
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
Information
a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
LBS005A
LBS008A
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LBS005A
Summary of Contents for Black Box LBS005A
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. Support call 724-746-5500) • FREE technical support 24 hours a day, 7 days Information a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 5- and 8-Port USB-Powered 10/100 Switches FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Instrucciones De Seguridad
NOM Statement Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. - Page 4 5- and 8-Port USB-Powered 10/100 Switches 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
-
Page 5: Table Of Contents
4. LED Indicators ..................11 Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. -
Page 6: Specifications
Power: 7.5-VDC power supply, 0.8 amps, 4 watts maximum or through provided USB cable Size: LBS005A: 2.3"H x 2.4"W x 3.1"D (6 x 6.2 x 7.9 cm); LBS008A: 2.3"H x 2.4"W x 3.7"D (6 x 6.2 x 9.4 cm) Weight: LBS005A: 0.35 lb. (0.16 kg);... -
Page 7: Overview
• Easy to install, just plug-and-play. 2.3 What’s Included Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • Fast Ethernet switch • Power adapter • USB cable •... -
Page 8: Hardware Description
2.4.1 Front Panel Figures 2-1 and 2-2 show the front panel of the switches. Table 2-1 describes their components. Figure 2-1. LBS005A front panel. Figure 2-2. LBS008A front panel. Table 2-1. LBS005A and LBS008A front-panel components. Number Component Description 1–4 RJ-45 connectors Links to 10-/100-Mbps devices. -
Page 9: Back Panel
Chapter 2: Overview 2.4.2 Back Panel Figures 2-3 and 2-4 show the back panel of the switches. Tables 2-2 and 2-3 describe their components. Figure 2-3. LBS005A back panel. Figure 2-4. LBS008A back panel. Table 2-2. LBS005A back-panel components. Number... -
Page 10: Connecting The Switch
5- and 8-Port USB-Powered 10/100 Switches 3. Connecting the Switch This switch features Auto MDI/MDI-X, so it’s easy to link to another switch without crossover cable. 724-746-5500 | blackbox.com Page 10... -
Page 11: Led Indicators
Table 4-1. LED descriptions. Status Operation Power Power is on. Power is off. LINK/ACT Port is connected. Port is not connected. Flashing Data is being transmitted or received. LBS005A LBS008A Figure 4-1. LED panels on the switches. 724-746-5500 | blackbox.com Page 11... - Page 12 724-746-5500 or blackbox.com. About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
