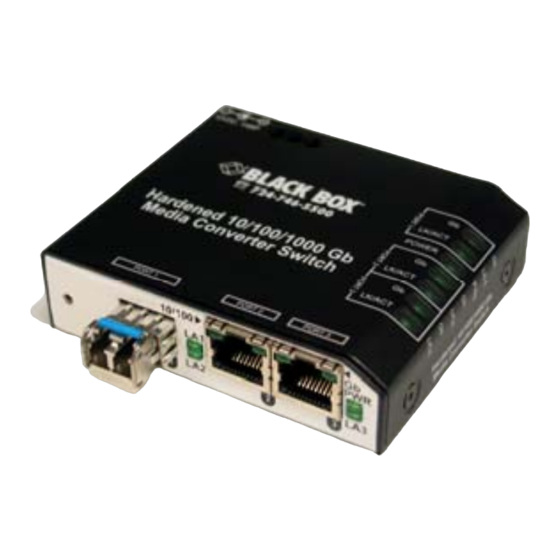

Black Box LBH2001A-H Installation And User Manual

Gigabit media converter switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

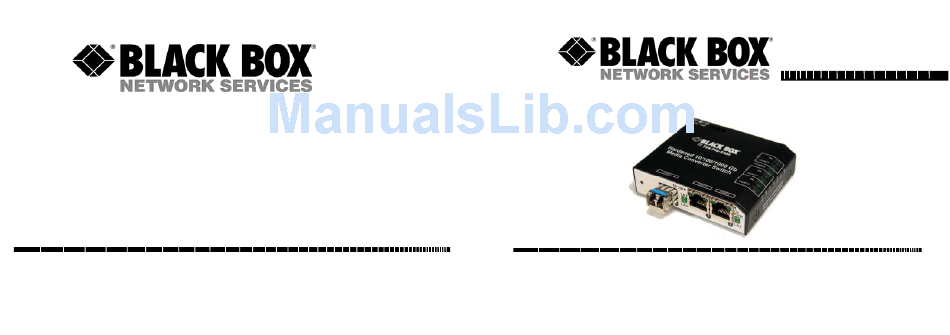

© Copyright 2009. Black Box Corporation. All rights reserved.
1000 PARK DRIVE • LAWRENCE, PA 15055-1018 • 724-746-5500 • FAX 724-746-0746
Gigabit Media Converter Switch
CUSTOMER
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
SUPPORT
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
INFORMATION
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
December 2009
LBH2001A-H
LBH2001A-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LBH2001A-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LBH2001A-H

Summary of Contents for Black Box LBH2001A-H

  • Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...

  • Page 2: Black Box

    Ethernet is a trademark of Xerox Corporation NEBS is a trademark of Telcordia Technologies ® Important: BLACK BOX Gigabit Converter Switches contain no user serviceable parts. Attempted service by unauthorized personnel shall render any and all warranties null and void. If problems are experienced with a Gigabit Converter Switch, consult Section 5, Troubleshooting, of this User Guide.
  • Page 3 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Contacting Black Box Corporation Please use these mailing address and phone and fax numbers: Black Box Corporation 1000 Park Drive Pittsburgh, PA 15055 Phone: (724) 746-5500 Fax: (724) 746-0746 E-mail: info@blackbox.com...
  • Page 4 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide FEDERAL COMMUNICATIONS COMMISSION CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.

  • Page 5: Instrucciones De Seguridad

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of Communications.
  • Page 6 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean reconnendados por el fabricante.
  • Page 7 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Precaución debe ser tomada de mal manera que la tierra fisica y la polarización del equipo no sea eliminada. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los...
  • Page 8 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Certification Notice for Equipment Used in Canada The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications-network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.
  • Page 9 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together.
  • Page 10 Class 2, or listed ITE Power Supply, marked LPS, which has suitably rated output voltage (i.e. 24VDC or 48VDC) and suitable rated output current. Product does not contain user replaceable fuses. Any internal fuses can ONLY be replaced by Black Box personnel through the RMA process.

  • Page 11: Table Of Contents

      Inspecting the Package and the Product ..........14     Product Description ................15     2.2.1 LBH2001A-H/P Product Description ........15     Frame Buffering and Latency ............21     Features and Benefits ................. 24    ...
  • Page 12 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide     Powering the LBH2001A with 12V, 24V or –48VDC power input .. 42     LBH2001A Series, DC-powered, -48, 24 and 12VDC Installation .. 44     Connecting Ethernet Media ............... 46  ...
  • Page 13 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide     Shipping and Packaging Information ..........60 Revisions: Rev A 12/09: Initial Release...

  • Page 14: Specifications

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide SPECIFICATIONS Technical Specifications Ports Performance Data Rate: 10Mbps, 100Mbps, 1000Mbps Network Standards 1000Mb: Ethernet IEEE 802.3ab and 802.3z 1000Base-T, -SX, -LX 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX 10 Mb: Ethernet IEEE 802.3, 10BASE-T Auto-sensing for speed: IEEE 802.3z...
  • Page 15 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Latency (not including packet time): 1000 to 1000Mbps: <3μs 100 to 100Mbps: <5μs 10 to 10Mbps: <18μs 100 to 10 Mbps: <5μs 10 to 100Mbps: <15μs Path Delay Value: 50 BT on all ports...
  • Page 16 -40ºF to 185ºF (-40ºC to 85ºC) Short term per IEC Type tests Storage Temperature, All models: -40ºF to 212ºF (-40ºC to 100ºC) Cold Start: LBH2001A-H to -20ºC LBH2001A-P to -40ºC Ambient Relative Humidity: 5% to 95% (non-condensing) Altitude (All models): -200 to 50,000ft. (-60 – 15,000 m)
  • Page 17 Dimensions of the Switch unit: 3.5 in H x 3.0 in W x 1.0 in D (8.9 cm x 7.6 cm x 2.5 cm) Weight: LBH2001A-H/P: 9 oz. (255g) Power supply, for LBH2001A-H: 5.8 oz (165g) for LBH2001A-P: 7.9 oz (225g) Cooling Method: Convection on the LBH2001A Series models.
  • Page 18 All models have a (8-15) VDC output with 6ft long cord and a 2.5mm center. The power supplies are temperature rated to match the Converter Switch ratings. Factory Floor (LBH2001A-H) Ratings (-25 to 60°C) North America (-Hd) models. Hardened, factory floor temperature rated. Input: 6ft AC power cord to IEC 320 connector on the 100-240vac 47-63Hz external power adapter.
  • Page 19 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Temperature un-controlled Premium (LBH2001A-P) Ratings (-40 to 75°C) North America (-Pd) models. Outdoor temperature rated. Input: 6ft AC power cord to IEC 320 connector on the100- 240vac 47-63Hz external power adapters.
  • Page 20 DC terminal block. Power supply protection is provided by internal diodes. Note 2: The Direct DC power floats. The user may ground either “+” or “-” if desired. Port Connectors (LBH2001A-H/P): Two RJ-45 Ports: supports 10/100/1000Mbps with auto cross (MDIX).
  • Page 21 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide LED Indicators (Two sets) top-front and end with ports Top-Front: (shown) POWER: Steady ON when power applied Gb per port: Steady ON for 1000Mbps; OFF for 100Mbps or 10Mb speed...
  • Page 22 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Mounting options Metal mounting clips for panel mounting: included DIN-Rail mounting optional: (see Section 3.4) Rack-mount option: LE1505-RACK Mean Time Between Failure (MTBF ) – over15 years, Telcordia (Bellcore) Method Agency Approvals and Standards Compliance: Emissions meets FCC Part 15 Class A.

  • Page 23: Summary Of Models And Descriptions

    Gigabit Media Converter Switch Installation & User Guide Summary of models and descriptions: LBH2001A-H (Hardened Model) for 1000Mb Multi-mode fiber LBH2001A-H-SC = Hardened (H), two 10/100/1000Mb RJ-45+ one 1000Mb Multi-mode SC Fiber port for factory floor (-25 to 60C) using a direct DC ( 8-15VDC) and/or external 110 VAC hardened power supply (included).
  • Page 24 BLACK BOX Gigabit Media Converter Switch Installation & User Guide LBH2001A-H (Hardened Model) for 1000Mb Single-mode fiber LBH2001A-H-LX = Hardened (H), two 10/100/1000Mb RJ-45+ one 1000Mb Single-mode 10km LC Fiber port for factory floor (-25 to 60C) using a direct DC ( 8- 15VDC) and/or external 110 VAC hardened power supply (included).
  • Page 25 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide LBH2001A-P (Extreme Model) for 1000Mb Multi-mode fiber LBH2001A-P-SC = Extreme (P), two 10/100/1000Mb RJ-45+ one 1000Mb Multi-mode SC Fiber port for factory floor (-40 to 75C) using a direct DC ( 8-15VDC) and/or external 110 VAC premium power supply (included).
  • Page 26 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide LBH2001A-P (Extreme Model) for 1000Mb Single-mode fiber LBH2001A-P-LX = Extreme (P), two 10/100/1000Mb RJ-45+ one 1000Mb Single-mode 10km LC Fiber port for factory floor (-40 to 75C) using a direct DC ( 8- 15VDC) and/or external 110 VAC premium power supply (included).

  • Page 27: Introduction

    Inspect the contents of this package for any signs of damage and ensure that the items listed below are included. This package should contain: LBH2001A-H/P Series Converter Switch unit, External Power Supply, (for LBH2001A-H-SC/LX, LBH2001AE-H-SC/LC, LBH2001A-P-...

  • Page 28: Product Description

    Product Description 2.2.1 LBH2001A-H/P Product Description Combine a 10, 100 or 1000Mb Fiber Media Converter and a two-port 10/100/1000 copper Switch, and you have the Converter Switch, a flexible edge-of-the- network Ethernet product. Add in fiber port choices of SC multi-mode and LC single- mode fiber connector types plus AC or DC input power selection and multiple application environments, and you have the LBH2001A Converter Switch family.
  • Page 29 (-40 to 75C), typically located outdoors. The LBH2001A-P models are built with premium-grade extended temperature components, and use similar thermal techniques as the LBH2001A-H Hardened units. In addition to a premium-rated AC power option and jack, terminals for internal DC power choices at 8 to15V, 24V or -48V...
  • Page 30 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide DC are included. When used outdoors, the LBH2001A-P should be protected from falling rain. Mounting options include stand-alone panel mounting, DIN-rail, or rack- mount tray. The LBH2001A series provides switching between two 10/100/1000 auto- negotiating copper ports and one 1000Mb fiber port which may be SC, LC or SFP multi- mode or single-mode.
  • Page 31 Gigabit Media Converter Switch Installation & User Guide Fig 2.2.1a LBH2001A-H with 1000Mb LC connector The LBH2001A-H hardened units are designed for office and wiring closet environments and factory floor/Industrial applications. Using special thermal techniques and a sealed rugged metal case for heavy-duty industrial applications...
  • Page 32 The LBH2001A-P Series are Extreme rated units suitable for temperature un-controlled outdoor applications. Specially designed with premium-grade extended temperature components, the LBH2001A-P units use similar thermal techniques to the LBH2001A-H hardened units for cooling. Mounting options include panel mounting, DIN-rail, or rack- mount tray.
  • Page 33 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide The front side of the unit has two twisted-pair 10/100/1000Mb switch ports and one 10, 100 or 1000Mb fiber port. Both the RJ-45 ports of the LBH2001A Series Converter switches support auto cross (MDIX) operation performing the autocross function under auto-negotiation mode only.

  • Page 34: Frame Buffering And Latency

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Frame Buffering and Latency The LBH2001A Series Converter Switches are store-and-forward switches. Each frame (or packet) is loaded into the Switch’s memory and inspected before forwarding can occur. This technique ensures that all forwarded frames are of a valid length and have the correct CRC, i.e.
  • Page 35 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide memory pool, ensuring that heavily used ports receive very large buffer space for packet storage. (Many other switches have their packet buffer storage space divided evenly across all ports, resulting in a small, fixed number of packets to be stored per port. When the port buffer fills up, dropped packets result.) This dynamic buffer allocation provides...
  • Page 36 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Another feature implemented in LBH2001A Series Converter Switches is a collision-based flow-control mechanism (when operating at half-duplex only). When the Switch detects that its free buffer queue space is low, the Switch prevents more frames from entering by forcing a collision signal on all receiving half-duplex ports in order to stop incoming traffic.

  • Page 37: Features And Benefits

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Features and Benefits Full 1000Mb, 100Mb or 10 Mb switching services for high performance Ethernet LANs LBH2001A Series Switches provide Fast Ethernet switching on all ports. They perform high-speed filter/forward operations on the traffic, giving each port’s segment a full 1000Mb, 100Mb or 10 Mb of bandwidth.
  • Page 38 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Installation is “Plug and Play”, operation is transparent to software The LBH2001A Series Switches operate as hardware switches, only forwarding those packets from each domain that are needed on the other domains.
  • Page 39 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Qualified to use for temperature un-controlled “outdoor” application The LBH2001A Extreme rated versions of Converter Switches have an ambient temperature rating between –40C to +75C for DC models and qualify for temperature un-controlled “outdoor”...

  • Page 40: Applications For Lbh2001A Series Converter Switches

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Applications for LBH2001A Series Converter Switches Enriched with the two tier hardness rating flavors (“Hardened” and “Extreme rated (outdoor)”), the multifunctional, multi-media and multi-environmental, LBH2001A Series Converter Switches fit very well in almost any environment enabling users to scale their networks quickly and cost effectively.
  • Page 41 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide The LBH2001A-P fit very well in high temperature locations experiencing a need to scale the LAN quickly and cost effectively. The LBH2001A-P provide a very economical high bandwidth solution at each cable user access point of copper, and also easily solve long distance requirements.
  • Page 42 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Example 1: Indoor Office LBH2001A-H...
  • Page 43 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Example 1: In this example, the indoor office location is a Data Mining function with an ongoing demand to grow the network. This need can be easily met using the economical LBH2001A Converter Switch.
  • Page 44 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Example 2: LBH2001A-H...
  • Page 45 Ethernet ports to carry status and control data to the control center the hardened version of LBH2001A-H is typically used. . The Fiber port on the converter switches is ideal for secure data communications over long distances that may be encountered in this edge of network application.
  • Page 46 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Example 3: LBH2001A-P...
  • Page 47 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Example 3: In this example, the LBH2001A-P Extreme Converter Switches are deployed to serve as a secure corporate or transportation surveillance system. CCTV cameras may be spread out over many miles in temperature un-controlled locations and with pan, tilt and zoom (PTZ) controlled through an Ethernet copper port .The premium...

  • Page 48: Installation

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide INSTALLATION This section describes the installation of the LBH2001A Series Converter Switches, including location; mountings and power supply options and media connection. 3.1 Locating the Converter Switch Unit All the LBH2001A...
  • Page 49 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide The compact and lightweight design of the LBH2001A Series allows it to be easily installed in almost any location. A Velcro strip may be used for mounting the unit on a vertical surface such as a wall or cabinet, or for securing the unit on a table-top or shelf.

  • Page 50: Le1505-Rack For Rack Mounting Of Lbh2001A Series Switches

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide LE1505-RACK for Rack Mounting of LBH2001A Series Switches For 19” rack-mounting of LBH2001A Series Converter Switches, a rack-mount tray is available, the LE1505-RACK. The Converter Switches are mounted with the DC power jack in the back, with the fiber and the RJ-45 connectors in the front.

  • Page 51: Lh1505P-Rack For Rack Mounting, Includes Power Supply

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide area of the tray. Metal mounting screws in the bottom-front hold the Converter Switches firmly in place. The beveled-top edge of the units permits the LEDs of each unit to be viewed for operational status, even when the units are very close together.
  • Page 52 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide The side-view above is an example of an installation of the model LH1505P- RACK, 19” rack-mount tray, holding a few Converter Switches, each with their power input plugged into the built-in common AC power supply in the rear area of the tray. (PS units that come with the MC’s are not used).

  • Page 53: Din-Rail Mounting Option

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide DIN-Rail mounting option The LBH2001A Converter Switches, designed for use in “Factory Floor” Industrial Ethernet environments, are also available for DIN-Rail mounting in an enclosure having DIN Rails. A LBH2001A is shown with the DIN...

  • Page 54: Power Requirements For Lbh2001A Series Switches

    AC power supply info detail is provided in Technical Specifications Section 1.1. The LBH2001A Series are designed to be used with UL listed Class II power supplies. The LBH2001A-H/P converter switches provide reliable operation, withstand higher temperature environments, and provide the DC power choices to the user to deploy in uncontrolled temperature environments.

  • Page 55: Powering The Lbh2001A With 12V, 24V Or -48Vdc Power Input

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide The Direct DC (Internal) 12V DC (8 – 15V DC) has a built-in terminal block for +, -, ground. The 9V DC jack is also present. Detailed information about the 12 VDC, the 24V DC and the –48V DC is provided in the Technical Specifications Section 1.1.
  • Page 56 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide The extended temperature capability of the DC-powered LBH2001A-P can go into temperature uncontrolled environments, rated at –40`C to +75`C. If indoors, the DC jack is also present and optionally can be used with an external AC power supply.

  • Page 57: Lbh2001A Series, Dc-Powered, -48, 24 And 12Vdc Installation

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide LBH2001A Series, DC-powered, -48, 24 and 12VDC Installation This section describes the proper connection of the -48VDC leads (or 24VDC, 12VDC leads) to the DC power terminal block on the LBH2001A media converter (as shown in Figure).
  • Page 58 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide NOTE: Always use a voltmeter to measure the voltage of the incoming power supply and figure out the +ve potential lead or -ve potential lead. The more +ve potential lead will connect to the post-labeled “+ve”...

  • Page 59: Connecting Ethernet Media

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Connecting Ethernet Media The LBH2001A Series Converter Switch can be connected to two media types i.e. fiber and copper (RJ-45) types, run at 1000BASE-T, 100BASE-TX, 10BASE-T and 1000BASE-SX/LX, 100BASE-FX, or 10BASE-FL. CAT 5E cables should be used when making 1000BASE-T connections.

  • Page 60: Connecting Twisted Pair

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Fiber (Multi-mode, Single-mode) 1000BASE-SX SC, LC Fiber (Single-mode) 1000BASE-LX NOTE : It is recommended that high quality CAT 5E or CAT 6 cables (which work for 10Mbps, 100Mbps and 1000Mbps) be used whenever possible in order to provide flexibility in a mixed-speed network, since LBH2001A Series switch ports are auto-sensing for either 10,100 or 1000Mbps.

  • Page 61: Connecting Fiber Optic Lc-Type, "Small Form Factor (Sff)

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Using standard twisted pair media, insert either end of the cable with a RJ-45 plug into the RJ-45 connector of the port. Note that, even though the connector is shielded, either unshielded or shielded cables and wiring may be used.

  • Page 62: Connecting Fiber Optic Sc-Type, "Snap-In

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide 3.8.3 Connecting Fiber Optic SC-type, "Snap-In" The following procedure applies to installations using SC-type fiber connectors, i.e., using multi-mode SC. While connecting fiber media to SC connectors, simply snap on the two square male connectors into the SC female jacks of the Fiber connector until it clicks and secures.

  • Page 63: Power Budget Calculations For Lbh2001A, Fiber Media

    Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media installations using Black Box products, the following equations should be used: OPB (Optical Power Budget) = P...

  • Page 64: Connections To Nics Which Support Auto-Negotiation

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Fiber Speed, Std. km Wavel Cable X’mitr R’cvr Worst Worst* typical typical* Port ength Size Output Sens. OPB, distance OPB, distance Mode Std. μm Module (hdx) Km, fdx Km, fdx...
  • Page 65 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Fast Link Pulse (FLP) coding for the 1000BASE-T signaling system. When connecting a NIC to the LBH2001A Series, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 1000BASE-T (such as 100BASE-TX).

  • Page 66: Operation

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide OPERATION Triple-Speed Functionality, and Switching The LBH2001A Series Converter Switches provide three switched ports. The architecture supports a triple speed-switching environment, with standard auto- negotiation capability. The switched RJ-45 ports are full- or half-duplex auto-sensing for mode and speed, and auto cross for plug polarity.
  • Page 67 ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Switching, Filtering and Forwarding Each time a packet arrives on one of the switched ports, the decision is taken to either filter or to forward the packet. Packets whose source and destination addresses lie on the same port segment, will be filtered, constraining them to one port and relieving the rest of the network from processing them.

  • Page 68: Auto-Cross (Mdix), Auto-Negotiation And Speed-Sensing

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide An address-aging algorithm causes least-used addresses to fall out in favor of new frequently used addresses. To reset the address buffer, cycle power down-and-up. Auto-cross (MDIX), Auto-negotiation and Speed-sensing The RJ-45 ports support auto cross (MDI or MDIX) in the auto-negotiation mode according to the IEEE 802.3z standard.

  • Page 69: Dual Leds, Top-Front And In End With Ports

    ® BLACK BOX Gigabit Media Converter Switch Installation & User Guide Depending upon the devices connected, this will result in agreement to operate at 10Mbps, 100Mbps or 1000Mbps speed, and full- or half-duplex mode. Dual LEDs, Top-front and in End with ports Description Illuminates GREEN to indicate power applied.

  • Page 70: Troubleshooting

    However, if you are unsure of any procedure described in this section, or if the Economy BNC Media Converter is not operating as expected, do not attempt to repair or alter the unit. Contact Black Box for assistance.

  • Page 71: Before Calling For Assistance

    Verify whether or not the problem is corrected. If not, go to Step 5 below. If the problem is corrected, the Media Converter and its associated cables are functioning properly. If the problem continues after completing Step 4 above, contact Black Box.

  • Page 72: When Calling For Assistance

    Black Box by phone at (724) 746-5500 or by other appropriate method . Before you do, make a record of the history of the problem. Black Box will be able to provide more efficient and accurate assistance if you have a complete description, including: •...
  • Page 73 Gigabit Media Converter Switch Installation & User Guide Shipping and Packaging Information Should you need to ship the unit back to Black Box Corporation, please follow these instructions: 1. Package the unit carefully. It is recommended that you use the original container if available.
