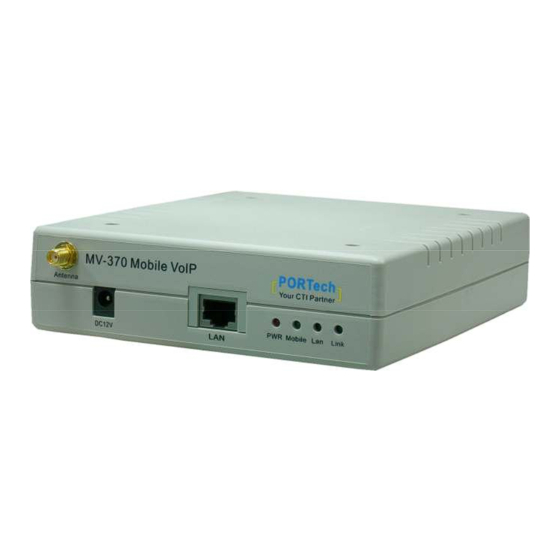

Portech MV-372 User Manual

Voip gsm gateway
Hide thumbs Also See for MV-372:
Table of Contents

Advertisement

Quick Links

Download this manual
MV-370 / MV-372
VoIP GSM Gateway

User Manual

MV-370
MV-372
PORTech Communications Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV-372 and is the answer not in the manual?

Questions and answers

Related Manuals for Portech MV-372

Summary of Contents for Portech MV-372

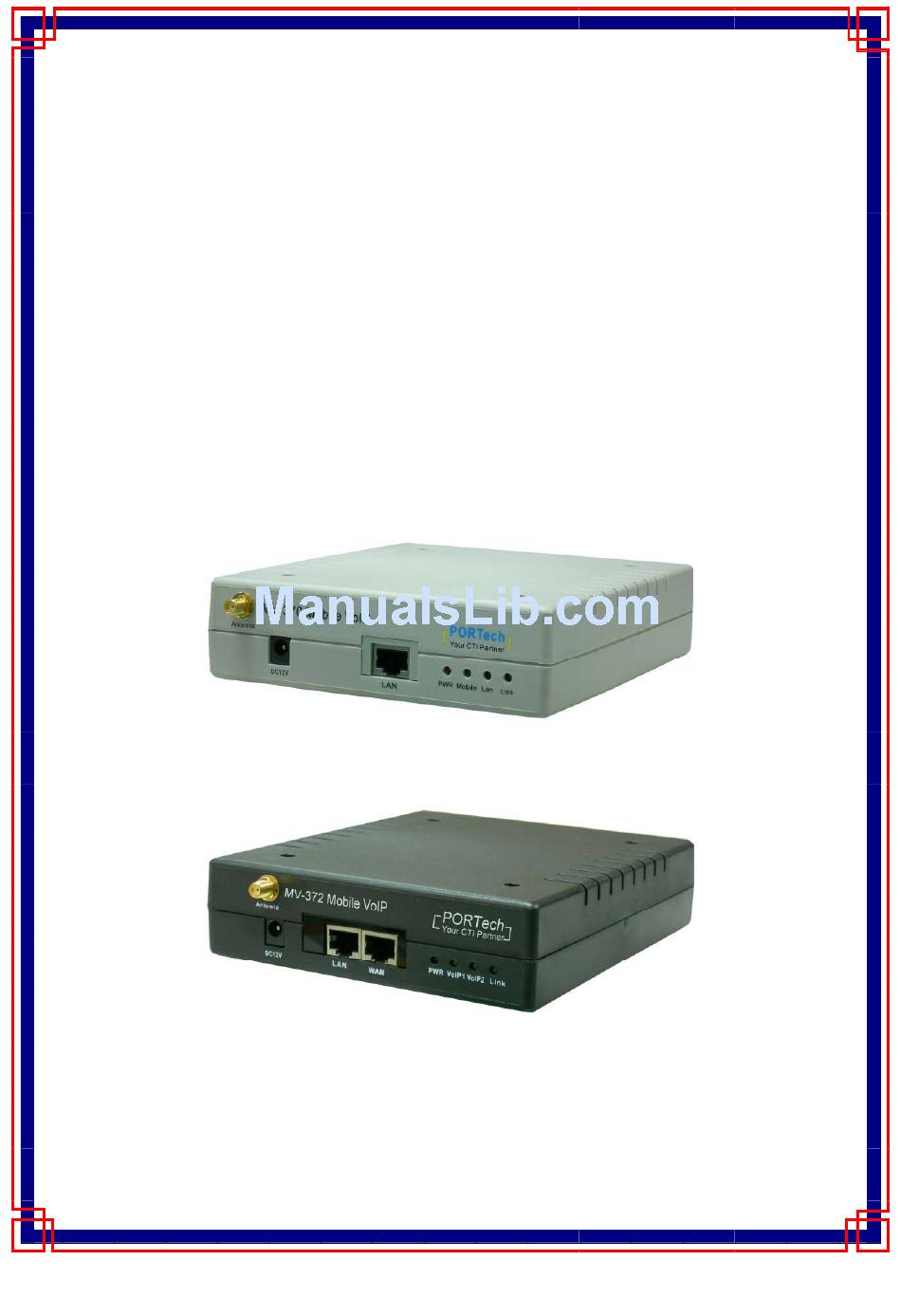

  • Page 1: User Manual

    MV-370 / MV-372 VoIP GSM Gateway User Manual MV-370 MV-372 PORTech Communications Inc.

  • Page 2: Table Of Contents

    3. Parts list ......................... 1 4. Dimension: 14.5cm x 17cm x 3.9cm ..............2 5. MV-370 Panel description ..................3 6. MV-372 Panel description ..................4 7. CABLING ....................... 5 8. Web Page Setting ....................6 9. System Information....................7 10.
  • Page 3 20.1 Protocols ....................... 60 20.2 TCP/IP ......................60 20.3 Codec ......................60 20.4 Voice Quality ....................60 20.5 GSM (MV-370/MV-372) ................. 61 21. Simple Steps ..................... 62 22. Appendix: Setup MV-370/MV-372 with Asterisk ..........63 www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 4 www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 5: Introduction

    1. Introduction MV-370/MV-372 is a 1/2 channels VoIP GSM Gateway for call termination (VoIP to GSM) and origination (GSM to VoIP). It is SIP based and compatible with Asterisk. It can enable to make 1/2 calls simultaneously from IP phones to GSM networks and GSM network to IP phone.

  • Page 6: Dimension: 14.5Cm X 17Cm X 3.9Cm

    (3.1) MV-370 (3.1) MV-372 4. Dimension: 14.5cm x 17cm x 3.9cm 3.9cm 17cm 14.5cm www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 7: Mv-370 Panel Description

    5. MV-370 Panel description 14.5cm 3.9cm 17cm (5.1) (5.2) (5.3) (5.4) (5.6) (5.5) (5.7) 5.1 Antenna：Antenna connector. 5.2 DC 12V：Power socket. 5.3 LAN: Standard RJ-45 socket, connecting to Hub circuit. 5.4 PWR: Power indicator light, red light. Light is on when system’s power supply is normal.

  • Page 8: Mv-372 Panel Description

    6. MV-372 Panel description 6.5 6.6 6.7 6.8 6.1 Antenna：Antenna connector. 6.2 DC 12V：Power input. 6.3 LAN：LAN port. It also can be DHCP Server. 6.4 WAN: RJ-45 internet connector，standard RJ-45 socket，connect to HUB. 6.5 PWR (Power LED)：Light up when power is normal.

  • Page 9: Cabling

    7.1 Connect the internet cable from HUB to the ‘WAN’ connector of the MV-372. *If you need to stack up more MV-372, you can stack up as follows. 7.2 Connect the antenna and put it in proper position to get the best signal reception.

  • Page 10: Web

    STEP: Please press the SW2 about 7~8 seconds till the Mobile and LAN led flash blink. 7.4.3 SW1 + SW2 function: Manual restore and restart MV to original firmware for update failure. STEP: Please remove the MV power cable, and press the SW1 and SW2 at meantime.

  • Page 11: System Information

    9. System Information. 9.1 When you login the web page, you can see the demo system current system information like firmware version, company… etc in this page. 9.2 Also you can see the function lists in the left side. You can use mouse to click the function you want to set up.

  • Page 12: Mobile To Lan Settings

    10.1 Mobile TO LAN Settings The operator may assign 50 sets of routing rule to transfer the call incoming from MOBILE to LAN. The MV-370/MV-372 will transfer to the URL according to the caller ID of the Mobile. *CID： (1) may enter the whole number, e.g. 0911111111 (2) only part of the number (prefix) e.g.
  • Page 13 When the caller’s prefix number is 0932,MV-370/MV-372 will connect 0911123456 automatically (2) Mobile to Lan: *,* Any caller call the MV-370/MV-372’s sim,MV-370/MV-372 will prompt dial tone. Caller can enter IP or sip extension or phone number. *sip extension or phone number both need to register SIP Proxy Server or Asterisk.

  • Page 14: Call Back Service (50 Sets)

    Application: a. Call MV-370/ MV-372 b. MV-370/ MV-372 will detect the phone number is in call back list or not c. If yes, MV-370/ MV-372 will reject the call, and call it back d. You will receive the call from MV-370/ MV-372, and prompt a dial tone -10- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 15: Mobile To Lan Speed Dial Settings

    10.3 Mobile to LAN Speed Dial Settings When you set Mobile to LAN Speed Dial Settings and Mobile to LAN at the same time, MV-370/MV-372 will give priority to Mobile to LAN Speed Dial Settings. *The call will be answered and prompt dial tone again. When the caller may enter the “Num”, system will connect the “URL”...

  • Page 16: Lan To Mobile Settings

    10.4 LAN to Mobile Settings The operator may assign 50 sets of routing rule to transfer the call incoming from LAN to MOBILE. The MV-370/MV-372 will transfer to the mobile number according to the incoming URL URL：The IP address of the incoming call.
  • Page 17 (3)When you dial any destination phone number from lan phone,MV-370/MV-372 will connect this call auto. Example of Application: When you call the ch.1 MV-370/MV-372 GSM number, it will provide dial tone and you enter a destination number. Then ch.2 MV-370/MV-372 will dial this number and connect.

  • Page 18: Mobile

    11. Mobile 11.1 Mobile Status (1)Network Registration ： The SIM card of telecom carrier is been registered (2)SIM Card ID：SIM card ID. (3)Signal Quality：Signal quality. (4)GSM S/N : IMEI Number (5)Motion State: The status of SIM card (6)Incoming IP：The IP address of the last incoming call from LAN. (7)Incoming IP Name: proxy server name (8)Outgoing IP：The IP address of the last outgoing call to LAN.

  • Page 19: Mobile Setting

    11.2 Mobile Setting Only change “mobile” into “on” or “off”, just click “submit”, no need to click “save change” (10) (11) (12) (13) (14) (15) (16) Mobile 1: (6)Rx VoIP Codec (5) Tx DTMF Mobile 2: (1)VoIP Tx Gain Codec (2) VoIP Rx Gain DTMF (1) VoIP Tx Gain: To adjust the volume of LAN side.
  • Page 20 LAN, please refer 21.How to setup Asterisk to receive Caller ID from MV-370/MV-372 (page 42) MV-370/MV-372 will send the message as follows in the Packet. From: “caller number” <sip:3001@192.168.0.228>;tag=51088abb User/User (Standard): If you need to register to Asterisk and proxy server, please choose this option.
  • Page 21 (11)Mobile PIN Code: If you need to unlock pin code via MV-370/MV-372, you can click “On” and enter pin code. (12) Dial Prefix: The prefix number of outgoing calls. When Lan to Mobile, MV-370/MV-372 will automatically add the “Dial prefix” for outgoing mobile.

  • Page 22: Mobile / Forward Setting

    11.3 Mobile / Forward Setting: When the first route are busying, SIP can transfer phone call to another free route. When the device are busying, the phone call can be transfer to another device (external equipments). "Forward Enable" is not motivate on Default value. So please, mark "Forward Enable"...
  • Page 23 Name URL:Port 192.168.0.100:5060 Fwd to Mobile1: 192.168.0.100:5062 Fwd to Mobile2: Fwd to External: The Explanation of Picture: Fwd to Mobile1:192.168.0.100 : 5060, it means when 5062 Port are busying, SJ Phone can transfer the call to 5060 Port (192.168.0.100). Fwd to Mobile2:192.168.0.100 : 5062, it means when 5060 Port are busying, SJ Phone can transfer the call to 5062 Port (192.168.0.100).

  • Page 24: Mobile / Sms Agent

    11.4 Mobile / SMS Agent: Read received SMS 2 mode: ASC7(ASCII 7 bit) UCS2(Unicode 16 (1) Rx List: Read received SMS (2) Dest Num: the Receiver’s phone number (3) Message: Please fill the messages that want to send to receiver. When you click Rx List, you can view all received SMS as follows.
  • Page 25 -21- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 26: Send Bulk Of Sms Via Microsoft Excel

    11.5 Send Bulk of SMS via Microsoft Excel First of all, please open a new Excel file. Step 1 Format Cells Here, we need you to format cells to “Text” first. Please click mouse right key, and choose “Format Cells” BLANk A -22- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 27 BLANk B Step 2 In the Format Cells, please select “Text” Please do this action for BLANk A and B both. -23- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 28 Step 3 BLANK A: is for you to key “phone numbers” BLANK B: is for you to key “text” Step 4 Save the file -24- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 29 Save the type as “Unicode Text” -25- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 30 Step 5 Open MVsms_exe - MV-SMS (Configuration Settings) Step 6 Please do the configuration as following: MV-378 -26- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 31 MV-374 MV-372 & MV-370 -27- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 32 Step 7 Run MV-SMS program Step 8 1. Open File -28- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 33 2. Open the “Excel file” that you just saved -29- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 34 Step 9 Sending -30- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 35 Step 10 Send SMS Complete -31- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 36: Use At Command Via Telnet Or Your Program

    11.6 use AT Command via Telnet or your program Allows your program or Telnet Send/receive SMS with AT Command Port: 23 Please enter account and password Choose module Enter “ate1”,then you can see your at command below Enter at+cmgs=”phone number” Enter short message and ctrl+Z -32- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 37: Ussd Sim Balance Check Via Telnet

    11.7 USSD SIM Balance Check via Telnet 1. USSD Request 2. Module command 1. USSD Request: It’s the USSD code for your operator to check balance AR. 2. Module command: Please enter “15” for Siemens BG2W module Please enter “0” for Simcom module You can check this information on main page in Module Description -33- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 38 After you send the USSD request, MV will receive the SMS from operator Please check the incoming SMS on SMS Agent -34- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 39: Network

    12. Network In Network you can check the Network status, configure the WLAN Settings, LAN Setting and SNTP settings. 12.1 Network Status: You can check the current Network setting in this page. -35- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 40 12.2 WAN Settings (1) The TCP/IP Configuration item is to setup the WAN port’s network environment. You may refer to your current network environment to configure the system properly. (2) The PPPoE Configuration item is to setup the PPPoE Username and Password.
  • Page 41 12.3 LAN Settings (1) The TCP/IP Configuration item is to setup the WAN port’s network environment. You may refer to your current network environment to configure the system properly. (2)DHCP Server: You may refer to your current network environment to configure the system properly -37- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 42 12.4 SNTP Settings: SNTP Setting function: you can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again.

  • Page 43: Sip Setting

    13. SIP Setting In SIP Setting you can setup the Service Domain, Port Settings, Codec Settings,RTP setting,RPort Setting and Other Settings. If the VoIP service is provided by ISP,you need to setup the related informations correctly then you can register to SIP Proxy Server correctly. 13.1 In Service Domain Function you need to input the account and the related informations in this page, please refer to your ISP Provider.
  • Page 44 (5) Register Password: you need to input the Register Password get from ISP. (6) Domain Server:you need to input the Domain Server get from your ISP. (7) Proxy Server:you need to input the Proxy Server get from your ISP. (8) Outbound Proxy: you need to input the Outbound Proxy get from your ISP.
  • Page 45 13.2 Port Setting You can setup the SIP and RTP port number in this page. Each ISP provider will have different SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the setting, please click the Submit button.
  • Page 46 13.3 Codec Settings: You can setup the Codec priority, RTP packet length in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. -42- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 47 13.4 Codec ID Setting You can setup the Codec ID in this page. -43- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 48 13.5 DTMF Setting 1. Format: a. 2833: Default RFC2833, the type of DTMF Data Transfer Format b. Inband: The Type of Inband DMTF Data Transfer Format c. SIP Info: The Type of SIP-Info DMTF Data Transfer Format; 2. Duration: Default is -1. It’s the duration for MV-374/MV-378 to defect sender’s DTMF.
  • Page 49 13.6 RPort Function: You can setup the RPort Enable/Disable in this page. To change this setting, please follow your ISP information. When you finished the setting, please click the Submit button. -45- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 50 13.7 SIP Responses Dial Peer Configuration Table corresponding IP (please read next page) *** If you have dial peer server, Sip server/Asterisk set GSM route,please set Dial Peer server’s IP** -46- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 51: 486(Busy Here), 503(Service Unavailable)

    13.7.1 486(busy here), 503(Service unavailable): When Device is busy, you can select 486 or 505 to response to SIP. 13.7.2 180 Ring on/off: LAN TO MOBILE two stage dialing can be turn off, therefore there will be no the Ring Back Tone, all the phone call will be transferred to prompt voice directly.
  • Page 52 Edit DialPeer.ini [Window] 14=5070 Xpos=512 15=5072 The second Ypos=252 16=5074 MV-378 Width=471 [RtpPort] Total ip / port Height=399 1=60000 [Info] 2=60002 Total=16 3=60004 [VoipIP] 4=60006 1=192.168.0.100 The first 5=60008 2=192.168.0.100 6=60010 MV-378 3=192.168.0.100 The first 7=60012 4=192.168.0.100 8=60014 MV-378 5=192.168.0.100 9=60000 6=192.168.0.100 10=60002...
  • Page 53 -49- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 54 Status The first MV-378 doesn’t register dial peer software The 2,3ch of Second MV-378 idle The 1,4-8ch of Second MV-378 turn off -50- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 55 13.8 Other Settings Other Settings: you can setup the Hold by RFC and QoS in this page. To change these settings. please following your ISP information. When you finished the setting, please click the Submit button. The QoS setting is to set the voice packets’...

  • Page 56: Nat Trans

    14. NAT Trans In NAT Trans. you can setup STUN and uPnP function. These functions can help your VoIP device working properly behind NAT. 14.1 STUN Setting: you can setup the STUN Enable/Disable and STUN Server IP address in this page. This function can help your VoIP device working properly behind NAT.

  • Page 57: Update

    15. Update In Update you can update the system’s firmware to the new one or execute the factory reset to let the system back to default setting. 15.1 Update firmware (1) Select the firmware code type, Risc code only. (3)Click the “Browse” button in the right side of the File Location or you can type the correct path and the filename in File Location blank.
  • Page 58 15.2 Restore Default Settings In this page: Update/ Default Settings, you could restore the factory default settings to the system. All setting will restore default setting. IP will retain original IP as usual not default IP. -54- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 59: System Auth

    16. System Auth. In System Authority you can change your login name and password. -55- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 60: Save Change

    17. Save Change In Save Change you can save the changes you have done. If you want to use new setting in the VoIP system, you have to click the Save button. After you click the Save button, the system will automatically restart and the new setting will effect.

  • Page 61: Reboot

    18. Reboot Reboot function you can restart the system. If you want to restart the system, you can just click the Reboot button, then the system will automatically. -57- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 62: Ip Setting

    19. IP Setting The operator can setup or query the network parameters by dialing in the mobile number which it SIM card has been put in the main body. The status or result is response by voice. In the first 20 seconds after power-on, the VoIP GSM Gateway enters the IP setting mode.
  • Page 63 IVR will announce the current Check Primary #125# setting in the Primary DNS DNS Server field. Default : 192.168.0.1 IVR will announce the version Check Firmware #128# of the firmware running Version The system will change to DHCP #111# DHCP client Client type DHCP will be disabled and...

  • Page 64: Specification

    20. Specification 20.1 Protocols SIP (RFC2543,RFC3261) 20.2 TCP/IP IP/TCP/UDP/RTP/RTCP/ CMP/ARP/RARP/SNTP DHCP/DNS Client IEEE802.1P/Q ToS/DiffServ NAT Traversal STUN uPnP IP Assignment Static IP DHCP PPPoE 20.3 Codec G.711 u-Law G.711 a-Law G.723.1 (5.3k) G.723.1 (6.3k) G.729A G.729A/B 20.4 Voice Quality -60- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...

  • Page 65: Gsm (Mv-370/Mv-372)

    AEC, LEC Packet loss 20.5 GSM (MV-370/MV-372) Quad Band:900/1800/1900/850MHZ 3G/UMTS: for all world and Japan (SoftBank Mobile,Docomo) 3G:EDGE/GPRS 850, 900, 1800, 1900 MHz / HSDPA/UMTS 850, 1900, 2100 MHz CDMA 2000(800MHZ/1900MHZ) **Please note** Most CDMA operators don't offer Polarity reversing . So VoIP to Mobile, MV-370 will connect soon.

  • Page 66: Simple Steps

    LAN: (1) *,* --->it is two stage dialing. when mobile call in,MV-370/MV-372 will provide dial tone and you can enter ip or asterisk extension or phone number. * If you want to enter phone number,please note your asterisk need to have route of destination number.

  • Page 67: Appendix: Setup Mv-370/Mv-372 With Asterisk

    22. Appendix: Setup MV-370/MV-372 with Asterisk MV-370/372 Settings Asterisk want to transfer CLID,please choose Tel/Tel (Not Reg) Can register Asterisk or not -63- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 68 Set your Asterisk IP,extension or * As Asterisk GSM Route -64- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 69 Port Settings: Mobile1 > Sip port: 5060 Mobile2 > Sip port: 5062 Important!!! Don't forget to Save changes and then reboot -65- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 70 Asterisk / Trixbox setting Add SIP Trunk: MV-372 must create 2 trunk. First trunk: MV-372 ip:5060 Second Trunk:MV-372 ip:5062 Type your mobile number -66- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 71 Type a trunk name Type MV-37X’s ip and port The channel 2 is 5062 port -67- www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846...
  • Page 72 Set GSM Route that dial out via MV-37X After change , please press “Sumbit changes” and “apply configuration changes” The prefix of route : 09XXXXXXXX Choose SIP Trunk Frequency: Quad Band:900/1800/1900/850MHZ GSM Module use Simcom sim340 Compliant to GSM phase 2/2+ -Class 4 (2W@850/900 MHz) -Class 1 (1W@1800/1900 MHz) -68-...
  • Page 73 15.21 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 74 FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
