Configuring Portech 372 GSM Gateway for 3CX PhoneSystem
IMPORTANT This device has been tested for Voice using firmware 'PCB mark: 2N149A '.
Configuration is a 2 step process. First you configure
Step 1: Configuring 3CX PhoneSystem to work for use with the Portech MV372
1. In the 3CX Management Console, click on the "Add PSTN" link in the left-hand side.
2. Assign a name to this device; e.g. "Portech MV372"
3. Select the Radio button labeled "Generic Gateway" and click the "Next>" button.
4. The "VoIP Gateway Configuration" page will require you to insert the IP Address of the device (in this example
10.0.0.37), the port number (default is 5060), and the Number of ports.
5. The "Add VoIP Lines: Create Lines" page will appear and the necessary fields will be pre-populated with suggested
values. You may customise these values for your requirements, even though the default values suggested should
work well. In particular, the "Identification" field may be set to the number of the line provided by the telephone
company for that line. Click on the "Next " button.
6. The "Create Outbound Rule" page will allow you to quickly create a rule with which to deliver calls through this
device. Specify a prefix for the rule to identify outbound calls. Click on the "Finish" button when ready, or click on
the "Skip" button if you do not wish to create an outbound rule for this device at this stage.
7. The "Gateway Created" summary page will list the settings you will require to apply to the device.
8. Repeat steps 1 to 7, however at step 4 you will need to change the port to 5062.
At this stage 3CX is set and awaiting registrations and subsequent calls to and from the Portech.
Step 2: Configuring the Portech MV372 to register and communicate with 3CX PhoneSystem
1.
Connect the Portech 372 GSM gateway to the network and mains power supply. The device will boot up, using its
factory-configured default IP address 192.168.0.100.
2.
Now point your browser to the gateway's configuration site:
3.

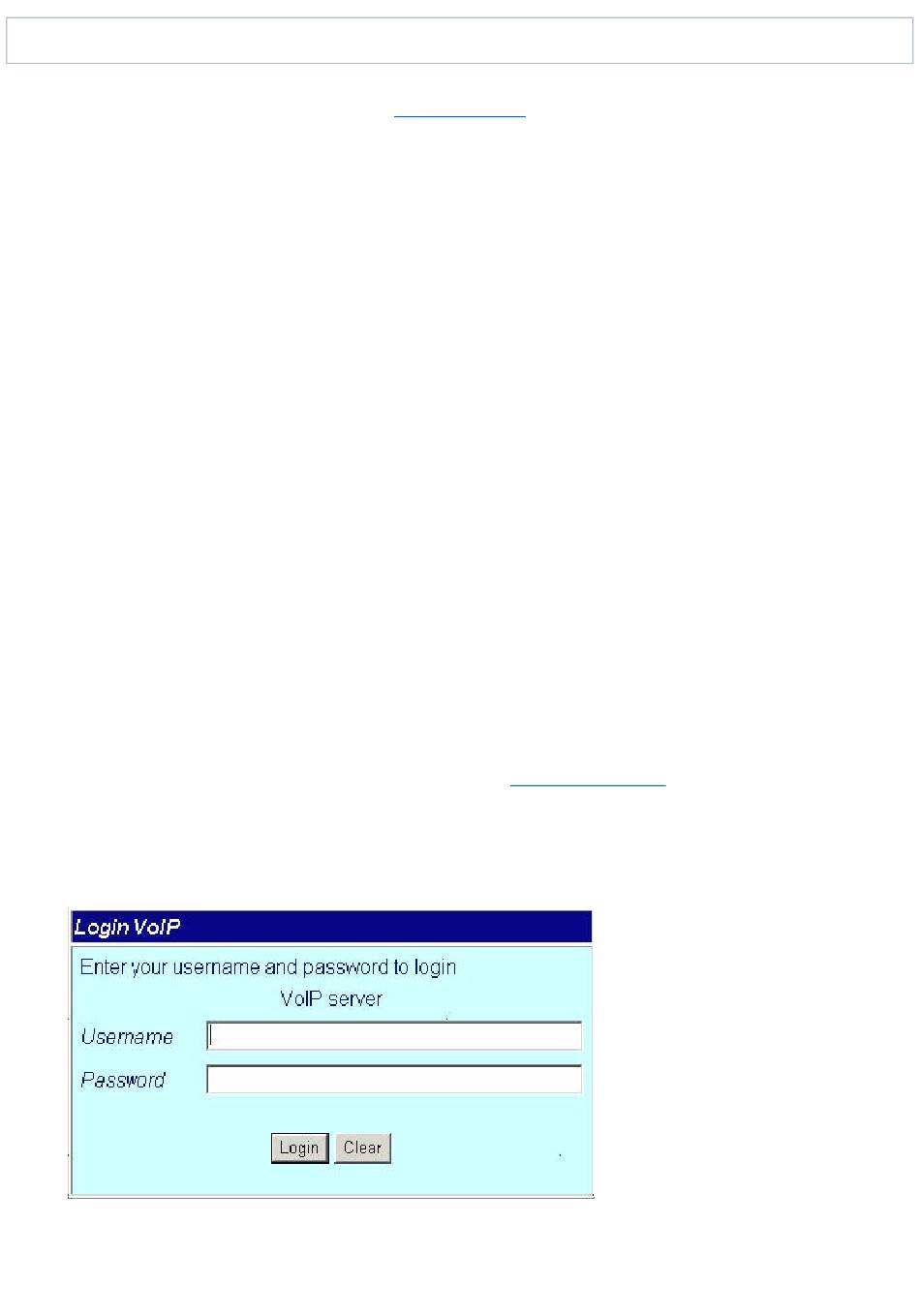

Enter the Username and password of the device and click 'OK' to access the gateway's configuration. The default
Username is "voip" and the password is "1234".
3CX Phone System
for use with the Portech.
http://192.168.0.100
Advertisement
Table of Contents
Related Manuals for Portech 372
Summary of Contents for Portech 372
- Page 1 At this stage 3CX is set and awaiting registrations and subsequent calls to and from the Portech. Step 2: Configuring the Portech MV372 to register and communicate with 3CX PhoneSystem Connect the Portech 372 GSM gateway to the network and mains power supply. The device will boot up, using its factory-configured default IP address 192.168.0.100.
- Page 2 On the “Network” node click on the “WAN Settings” subsection. You should now set the desired IP address, subnet mask, Gateway and DNS settings for the device. Click “Submit” to confirm the changes. Now point your browser to the gateway’s new IP. Once the page loads click on the “SIP settings”...
- Page 3 g. Click the “Submit” button at the bottom of the page. Once the page loads click on the “SIP settings” node and select the “Codec Settings” node; a. Set "Codec Priority 1" to "G711 u-law". b. Click the “Submit” button at the bottom of the page. 10.
- Page 4 3. Call Num:= # 4. Click the “Add” button at the bottom of the page. 13. Mobile/ Mobile Status Select from the drop down menu the mobile device you like to configure In this page: Mobile Status, you could get the information of your GSM network and the latest operation.
- Page 5 14. Mobile/ Mobile Setting In this page: Mobile setting, you could adjust the parameter and click on the option to fit your need. You could leave those default value before you had tried the complete operation of this device. a. VoIP Volume: the sound volume that VoIP passes to Mobile. b.
- Page 6 15. Click on the “Save change” node at the top right site of the page, then click on the "Save" button. After the gateway has restarted, switch to the 3CX Phone System Management Console, and click on Phone System -> ‘Line Status’...
