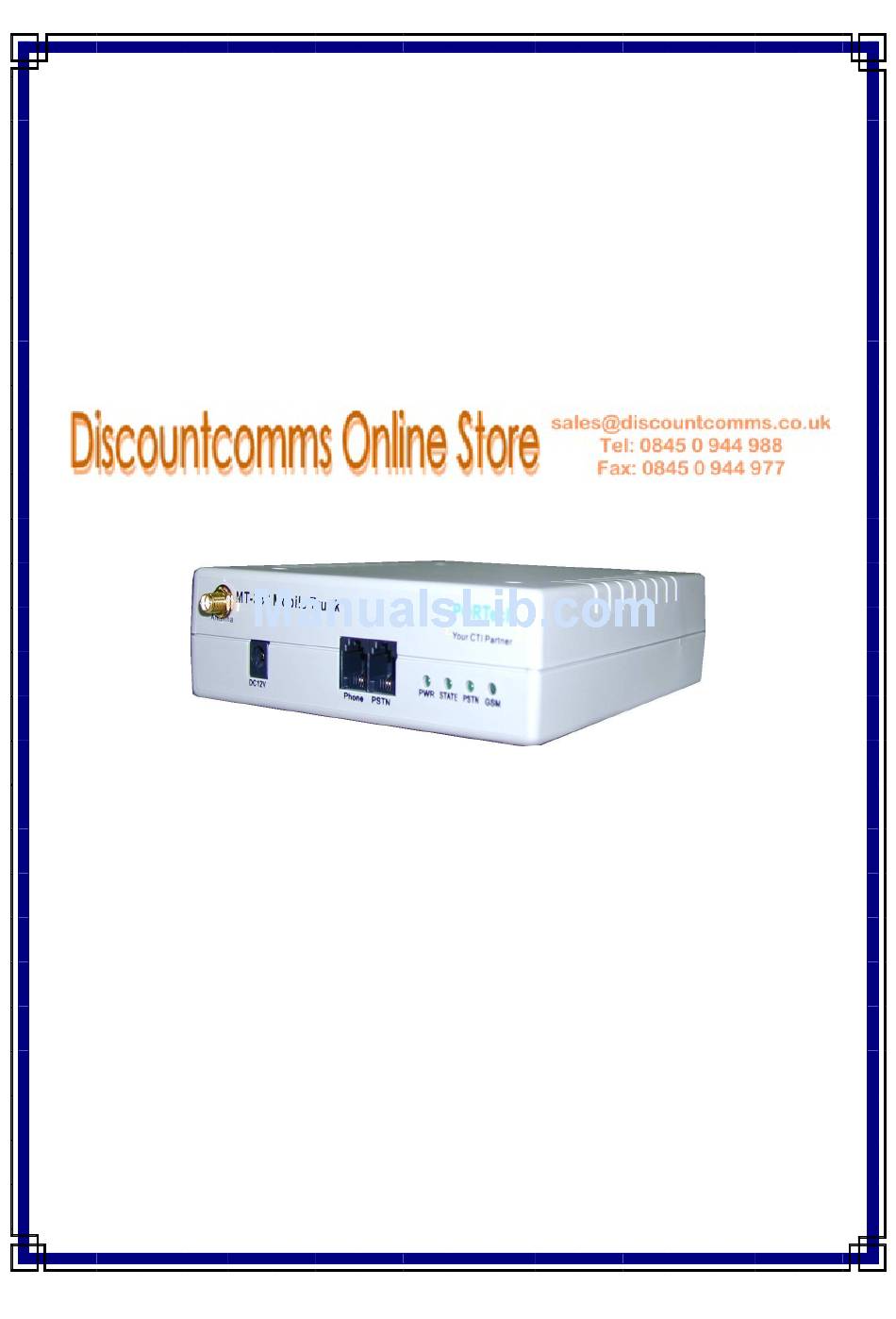

  • Page 1 MT-350 Mobile Trunk Operation Manual www.discountcomms.co.uk PORTech Communications Inc.

  • Page 2: Table Of Contents

    § INDEX § 1. Preface ...................1 2. Function Interpretation ............1 3. Parts Names................2 4. Dimension Drawing ..............2 5. Demonstration on Double Sides of Equipment ......3 6. Install Line Connections ............4 7. Set the Allow-to-Dial Code .............5 8. Code Conversion Setting ............5 9.
  • Page 3 (12)GSM isn’t ready, call will be forced to dial out from PSTN 9 (13)Supervisor Password Setting ..........9 (14)Input for PIN Code Request ..........10 11.Setting of Specific Call-Transfer..........10 (1)PSTN TO GSM..............10 (2)GSM TO PSTN..............10 (3)GSM free transfer setup ............11 12. Short Code Setting .............12 13.

  • Page 5: Preface

    2. Function Interpretation (1) Conversion of wire & wireless communication We can use MT-350 Mobile Trunk to apply conventional telephone set replacing cell phone to perform sending and receiving phone calls. (2) Auto-select economic route...

  • Page 6: Parts Names

    MT-350 Operation Manual 2 3. Parts Names After opening the package, please check whether all parts attached to MT-350 Wizard are provided in the package. If there is any missing, please query the sales agent promptly to supplement for the insufficient parts. The parts on the list are specified below: (1) ”MT-350”...

  • Page 7: Demonstration On Double Sides Of Equipment

    MT-350 Operation Manual 3 5. Demonstration on Double Sides of Equipment (3) (4) (5)(6)(7) (8) (1)Connecting seat of externally connected antenna. (2)DC 12V: power input. (3)PHONE: Telephone/switchboard connector; with standard RJ-11 USA type plug, connected to the Telephone Office loop of phone set or switchboard. (4)PSTN phone jack : Central office line interface, standard RJ11 phone jack.

  • Page 8: Install Line Connections

    MT-350 Operation Manual 4 6. Install Line Connections Wiring Diagram (1)Take apart your local PSTN connecting line from the phone or switchboard, and connect it to the LINE connecting slut of MT-350. If you use MT-350 to send and receive calls only, then you don’t need to connect the local PSTN line. (2)Connect PHONE connecting slut to the inlet side (Telephone Office) of phone or switchboard.

  • Page 9: Set The Allow-To-Dial Code

    MT-350 Operation Manual 5 7. Set the Allow-to-Dial Code (1)Hold the phone and dial numbers following the order illustrated below: ***#nnnn#: n means the code that allows sending calls out from GSM. Hang up the phone and the setting is thus completed. When the coding number is altered, follow the above steps to set up again.

  • Page 10: Set Parameter

    MT-350 Operation Manual 6 10. Set Parameter (1)Set GSM dial-out code amount Format: *#** [Waiting for confirming voice] 71aabb# aa means dial-out code amount, bb have to be inputted in exactly identical to aa. Example: *#**711010#, which means setting dial-out codes amount = 10. If correct, the MT-350 then will beep up once in response.

  • Page 11: Gsm Function Of Dialing Out The Prompt Voice

    MT-350 Operation Manual 7 communicating time of 4:30, and hang up it at about 4:55. If correct, the MT-350 will beep up once in response. If not correct, the MT-350 then will beep up four times consecutively instead. Default setting = 00 (5)GSM function of dialing out the prompt voice Format: *#** [Waiting for confirming voice] 530101# turn off prompt voice.

  • Page 12: Sound Volume Modulation

    MT-350 Operation Manual 8 of the other code numbers. If correct, the MT-350 will beep up once in response. If not, the MT-350 then will beep up four times consecutively instead. Default setting =00, to turn off this function. Note: If it isn’t connecting to PSTN, then the phone won’t dial out through GSM, in case not setting up this function and not passing through the checking number of allow-to-dial code.

  • Page 13: Gsm Isn't Ready, Call Will Be Forced To Dial Out From Pstn

    MT-350 Operation Manual 9 57aabb It’s the function of dialing out phone call from GSM and generates echo-bell-sound before starting to talk in the phone. aa means echo-bell-sound time in a unit of 0.1 sec. ( 00-98). bb needs to be inputted identical to aa. This function will disable if setting up to “00”. If setting up to “99”, it won’t have time limit on it.

  • Page 14: Input For Pin Code Request

    MT-350 Operation Manual 10 And when the phone hangs up, the function setting is forbidden again. To reset the supervisor’s password and allow the function setting for anyone, press *#**76**# (14)Input for PIN Code Request If the PIN Code Request of the SIM card is ON, there are 4 short dial tone prompt when the operator picks up the phone.

  • Page 15: Gsm Free Transfer Setup

    MT-350 Operation Manual 11 Example: *#**810423210287*#, it means dialing out phone call to 0423210287# (2.2)GSM call-Transfer setting time to PSTN auto response When GSM phone call is dialed out through PSTN, it doesn’t have the responding signal in some practical applications and requires to use this function to auto-respond a few seconds later.

  • Page 16: Short Code Setting

    MT-350 Operation Manual 12 Once the GSM-to-PSTN free mode has be set, all the incoming calls from GSM will be answered and prompt to enter password. If the password is correct, the calling party can hear the Bi tone, then he/she can dial out using the PSTN line.

  • Page 17: Call-Transfer Restriction Setting

    MT-350 Operation Manual 13 function 31 below), user may press 00# ~ 99# for fast dialing. (*0# ~ *9# are also accepted and regards as *00# ~ *09#). The routing function applies to the setup number rather than the short code itself. To enable/disable the short code function : Format : *#** (wait for confirming voice) 30aabb#...

  • Page 18: Echo Cancel Function

    MT-350 Operation Manual 14 Restrict number setting Format : *#** (wait for confirming voice) 37aabbbbbb# aa should be 2 digits ranges from 00 to 09 as restrict code bbbbbb : the number to be associated with the restrict code, max. 15 digits !!Note : the function cod 99 (reset to factory setting) doesn’t affect the restrict code number setting 14.
  • Page 19 MT-350 Operation Manual 15 Step II: lift up phone. Step III: dial ＊＊＊＃, and set up all-to-dial code after hearing “beep” sound, then press ＃ again to confirm. If we need to set up more than one allow-to-dial codes, use ＃ to separate them off.

  • Page 20: Specification

    MT-350 Operation Manual 16 A : Yes, it could, yet is confined to dial out by PSTN only. Q11: Can the phone make inspection on the echo signal of polarity reversal? : Yes, it could. When call is dialed out through GSM, the phone will make linear polarity reversal when it’s called for echo response.
  • Page 21 MT-350 Operation Manual 17 ℃ ℃ Normal operation: -20 to +55 ℃ ℃ ℃ ℃ Restricted operation:-25 and +55 to 70 ℃ ℃ Storage:-40 to +85...
  • Page 22 PORTech Communications Inc. 150, Shiang-Shung N. Road Taichung, Taiwan 403, R.O.C. Tel: 886-4-2305-8000 Fax: 886-4-2302-2596 http://www.portech...
