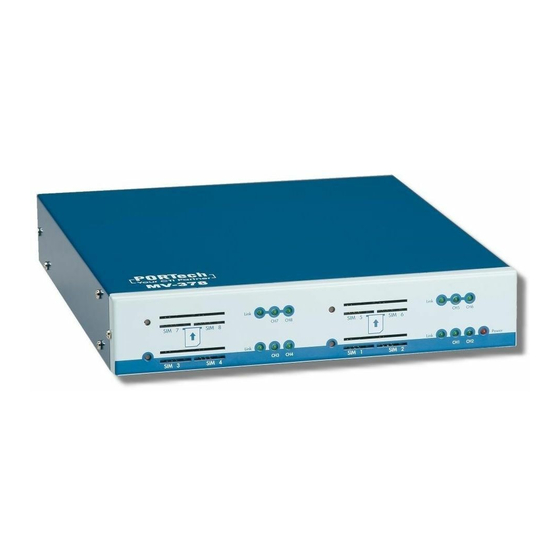

Portech MV-374 User Manual

Voip gsm gateway
Hide thumbs Also See for MV-374:
Table of Contents

Advertisement

Quick Links

MV-374 / MV-378
VoIP GSM Gateway

User Manual

MV-374
MV-378
PORTech Communications Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV-374 and is the answer not in the manual?

Questions and answers

Related Manuals for Portech MV-374

Summary of Contents for Portech MV-374

  • Page 1: User Manual

    MV-374 / MV-378 VoIP GSM Gateway User Manual MV-374 MV-378 PORTech Communications Inc.

  • Page 2: Table Of Contents

    【Content】 1. Introduction......................1 2. Function description .................... 1 3. Parts list ........................ 1 4. Dimension: 30x28x4 cm ..................2 5. Chart of the device ....................3 6. Web Page Setting ....................4 7. System Information ....................5 8. Dial Peer ........................ 6 8.1 Status..........................
  • Page 3 17. Reboot ....................... 72 18. Specification ..................... 73 18.1 Protocols ........................73 18.2 TCP/IP ........................73 18.3 Codec ......................... 73 18.4 Voice Quality ......................73 18.5 GSM (MV-374/MV-378)................... 74 19. Simple Steps ..................... 74 20. Appendix: Setup MV-37x with Asterisk ............75...

  • Page 5: Introduction

    1. Introduction MV-374/MV-378 is a 4 / 8 channels VoIP GSM Gateway for call termination (VoIP to GSM) and origination (GSM to VoIP). It is SIP based and compatible with Asterisk. It can enable to make 4 / 8 calls simultaneously from IP phones to GSM networks and GSM network to IP phone.

  • Page 6: Dimension: 30X28X4 Cm

    (3.1) MV-378 (3.1) MV-374 (3.2) MV-378 (3.2) MV-374 (3.4) (3.3) (3.5) option 4. Dimension: 30x28x4 cm...

  • Page 7: Chart Of The Device

    5. Chart of the device 5.7 5.6 5.1 Antenna：Antenna Connector. 5.2 WAN: RJ-45 internet connector，standard RJ-45 socket，connect to HUB. 5.3 DC 12V：Power input. 5.4 PWR (Power LED)：Light up when power is normal. 5.5 IP Reset Button: Press this button about 10 seconds 5.6 CH3：An indicator light of VoIP3 5.7 LINK Indicator：Light up when network is connected.

  • Page 8: Web

    6. Web Page Setting When the IP setting is done, the operator may setup all the rest parameters via web page. Browse the IP address from Internet Explorer (e.g. http://192.168.0.100). The following page shows up： Enter the username and password for authentication. (Default username=voip, password=1234).

  • Page 9: System Information

    7. System Information 7.1 When you login the web page, you can see the demo system current system information like firmware version, company… etc in this page. 7.2 Also you can see the function lists in the left side. You can use mouse to click the function you want to set up.

  • Page 10: Dial Peer

    8. Dial Peer 8.1 Status You can check Dial Peer Status here All the information will be shown on this page. Default: Ch1: 5064 Ch2: 5066 Ch3: 5068 Ch4:5070….… You can change the ports on SIP Settings/Ports settings State status: NIT/0: GSM module is initialing IDLE/0: GSM module not register IDLE/1: GSM module registered...

  • Page 11: Settings

    8.2 Settings Dial Peer Configuration Table corresponding IP (please read next page) *** If you have dial peer server, Sip server/Asterisk set GSM route,please set Dial Peer server’s IP** 1. Transfer SIP Message The Replace contact to dial peer: The default is OFF, which won’t send the SIP message to corresponding port through Dial Peer.
  • Page 12 MV-378 will use the second port to dial out…and so forth. External  MV-378/MV-374 will be controlled by external dial peer program. External URL  External dial peer program’s IP address and port number.
  • Page 13 Edit DialPeer.ini ( External Dial Peer) [Window] 14=5070 Xpos=512 15=5072 The second Ypos=252 16=5074 MV-378 Width=471 Total ip / port [RtpPort] Height=399 1=60000 [Info] 2=60002 Total=16 3=60004 [VoipIP] 4=60006 1=192.168.0.100 The first 5=60008 2=192.168.0.100 MV-378 6=60010 3=192.168.0.100 The first 7=60012 4=192.168.0.100 8=60014 MV-378...
  • Page 14 External Dial Peer Log You can check the Statue here 1. CH: The number for GSM port of MV-37X 2. MvIP: The IP address of MV-37X for Dial Peer connection 3. Port: The corresponding port for MV-37X 4. Sq: Signal Quality for MV-37X GSM Port: 5.

  • Page 15: Call Data To Server (Cdr)

    8.3 Call Data to Server (CDR) MV can provide Call Detail Record (CDR) for traffic and accounting management. User need to download external Dial Peer software on PC and can monitor traffic. Data ID: MV will create one default Data ID Data Server: Please fill the PC’s IP, which is executed External Dial Peer Software -11-...
  • Page 16 External Dial Peer You can check CDR Statue here 1. ID: The MV’s Data ID 2. CH: The GSM channel of MV-37X 3. Cimi: The SIM Card ID 4. Lan: Show the outgoing Lan IP or Incoming Lan IP 5. Dir: The Arrow shows the route to be Lan to Mobile or Mobile to Lan 6.
  • Page 17 CDR Files store at C:\Program Files\DialPeer The CDR log is stored in this “cdr” file each hour, which includes all gsm port call detials record. If there’s no calls in this hour, it won’t creat any log. CDR File -13-...
  • Page 18 Example: 1. Id=Mv-000000: The MV’s Data ID 2. Ch=1: The 1 channel for MV ID 3. Cimi=466922202956645 : The SIM card ID for this GSM port 4. dir=L2M: The route is Lan to Mobile (If it’s Mobile to Lan, that shows M2L) 5.

  • Page 19: Route

    9. Route Important: The route table -50 sets can share by two channels(1,2 ch / 3,4 ch / 5,6 ch / 7,8 ch ) . The setting, please refer 9.2 Mobile setting ex: Mobile 1 use the route table for item 0-24, Mobile 2 use the route table for item 25-49 9.1 Mobile TO LAN Settings The operator may assign 50 sets of routing rule to transfer the call...
  • Page 20 The MV-374/MV-378 will transfer to the URL according to the caller ID of the Mobile. *CID： (1) It may enter the whole number, e.g. 0911111111 (2) Only part of the number (prefix) e.g. 0911* means any number starting with 0911 will be accepted...
  • Page 21 (1) Mobile to Lan: 0932*,0911123456 MV-374/MV-378 have register proxy server/Asterisk The proxy server/Asterisk have the route “09” When the caller’s prefix number is 0932, MV-374/MV-378 will connect 0911123456 automaticlly (2) Mobile to Lan: *,* Any caller call the MV-374/MV-378’s sim,MV-374/MV-378 will prompt dial tone.

  • Page 22: Call Back Service (50 Sets)

    (# is the command of call back) Application: a.Call MV-374/MV-378 b.MV-374/MV-378 will detect the phone number is in call back list or not c.If yes, MV-374/MV-378 will reject the call, and call it back d.You will receive the call from MV-374/MV-378, and prompt a dial tone...

  • Page 23: Mobile To Lan Speed Dial Settings

    9.3 Mobile to LAN Speed Dial Settings When you set Mobile to LAN Speed Dial Settings and Mobile to LAN at the same time, MV-374/MV-378 will give priority to Mobile to LAN Speed Dial Settings. *The call will be answered and prompt dial tone again. When the caller may enter the “Num”, system will connect the “URL”...

  • Page 24: Lan To Mobile Settings

    9.4 LAN to Mobile Settings The operator may assign 50 sets of routing rule to transfer the call incoming from LAN to MOBILE. The MV-374/MV-378 will transfer to the mobile number according to the incoming URL *URL：It’s the IP address of the incoming call.
  • Page 25 (3)When you dial any destination phone number from Lan phone, MV-374/MV-378 will connect this call auto. Example of Application: When you call the ch.1 MV-374/MV-378 GSM number, it will provide dial tone and you enter a destination number. Then ch.2 MV-374/MV-378 will dial this number and connect.

  • Page 26: Mobile

    10. Mobile 10.1 Mobile Status (1)Choose Mobile 1,2,3 or 4 (MV-378: Mobile 1,2,3,4,5,6,7,8) (2)Network Registration ： The telecom carrier, which is the SIM card been registered. (3)SIM Card ID：SIM card ID. (4)Signal Quality：Signal quality. (5)GSM S/N: IMEI Number (6)Motion State: The status of SIM card (7)Incoming IP：The IP address of the last incoming call from LAN.

  • Page 27: Mobile Setting

    10.2 Mobile Setting (1) VoIP Tx Gain: To adjust the volume of LAN side. (2) VoIP Rx Gain: To adjust the volume of Mobile side. -23-...
  • Page 28 LAN, please refer 21.How to setup Asterisk to receive Caller ID from MV-374/MV-378 (page 42) MV-374/MV-378 will send the message as follows in the Packet. From: “caller number” <sip:3001@192.168.0.228>;tag=51088abb  User/User (Standard): If you need to register to Asterisk and proxy server, please choose this option.
  • Page 29 (11)Mobile PIN Code: If you need to unlock pin code via MV-374/MV-378, you can click “On” and enter pin code. (12) Dial Prefix: The prefix number of outgoing calls. When Lan to Mobile, MV-374/MV-378 will automatically add the “Dial prefix” for outgoing mobile.

  • Page 30: Mobile / Forward Setting

    10.3 Mobile / Forward Setting: When the first route are busying, SIP can transfer phone call to another free route. When the device are busying, the phone call can be transfer to another device (external equipments). "Forward Enable" is not motivate on Default value. So please, mark "Forward Enable"...
  • Page 31 The Explanation of Picture: Fwd to Mobile1:192.168.0.100: 5060, it means when 5062 Port are busying, SJ Phone can transfer the call to 5060 Port (192.168.0.100). Fwd to Mobile2:192.168.0.100: 5062, it means when 5060 Port are busying, SJ Phone can transfer the call to 5062 Port (192.168.0.100). ...

  • Page 32: Mobile / Sms Agent

    10.4 Mobile / SMS Agent: Read received SMS 2 mode: ASC7(ASCII 7 bit) UCS2(Unicode 16 bit) (1) Rx List: Read received SMS (2) Dest Num: the Receiver’s phone number (3) Message: Please fill the message that wants to send to receiver. When you click Rx List, you can view all received SMS as follows.
  • Page 33 Click the serial no, you can view message as follows. -29-...

  • Page 34: Send Bulk Of Sms Via Microsoft Excel

    10.5 Send Bulk of SMS via Microsoft Excel First of all, please open a new Excel file. Step 1 Format Cells Here, we need you to format cells to “Text” first. Please click mouse right key, and choose “Format Cells” Blank A -30-...
  • Page 35 Blank B Step 2 In the Format Cells, please select “Text”  Please do this action for Blank A and B both. -31-...
  • Page 36 Step 3 Blank A: is for you to key “phone numbers” Blank B: is for you to key “text” Step 4 save the file -32-...
  • Page 37 Save the type as “Unicode Text” Step 5 Open MVsms_exe - MV-SMS (Configuration Settings) -33-...
  • Page 38 Step 6 Please do the configuration as following: MV-378 MV-374 -34-...
  • Page 39 MV-372 & MV-370 Step 7 Run MV-SMS program -35-...
  • Page 40 Step 8 1. Open File 2. Open the “Excel file” that you just saved -36-...
  • Page 41 Step 9 Sending Step 10 Send SMS Complete -37-...

  • Page 42: Use At Command Via Telnet Or Your Program

    10.6 use AT Command via Telnet or your program Allows your program or Telnet Send/receive SMS with AT Command available in PCB194A (approximately after April , 2008) Telnet PORT Corresponding port as follows: SLAVE 1:8023 SLAVE 2:8123 SLAVE 3:8223 SLAVE 4:8323 Please enter account and password Choose module...

  • Page 43: Ussd Sim Balance Check Via Telnet

    10.7 USSD SIM Balance Check via Telnet 1. USSD Request 2. Module command 1. USSD Request: Please enter USSD code for your operator to check balance 2. Module command: Please enter “15” for Siemens BG2W module Please enter “0” for Simcom module You can check this information on main page in Module Description -39-...
  • Page 44 After you send the USSD request, MV will receive the SMS from operator Please check the incoming SMS on SMS Agent -40-...

  • Page 45: Sim Setting

    10.8 SIM Setting 1. CU ID: It’s the ID for MV and SIM Server Transfer Protocol, within 1~9999. Each MV under same SIM Sever should setup different CU ID, and no reusing parameter. E.g. If you put “888” on 1 MV-378 that you can’t use “888”...
  • Page 46 b. Group: Fill in SIM Group number for Remote GSM module. Server follow SIM Group Number to allocate SIM card to correspond GSM module 4. Card ID: Put in 8 digits (hexadecimal, also base 16), which used for SIM Card ID identification to Remote SIM protocol. User can define the ID.

  • Page 47: Operator Setting

    10.9 Operator Setting 1. Operator ID: When GSM module is registered, user can click the List to show all available operators in that area. You will see like follows diagram. -43-...
  • Page 48 2. Work Mode: a.Every time reset module: Fill the assigned Operator ID, then press Submit bottom and save change. After reboot, GSM module will research the operator ID and registered the base station. b.Manual: Fill the assigned Operator ID, then press Now bottom. GSM module will search that Operator ID and registered after reboot.

  • Page 49: Cell Info

    10.10 Cell Info It shows BTS (BCCH) cells of the cellular network and register to new BCCH selection. Support Quad band-BG2W, Quad band-M10 and firmware V10.185 above only. Please work with this feature when the mobile status is “Stand by/Active”. It detects the surrounding active cell, up to 7 cells and shows Cell ID, signal and best signal (RXlev).
  • Page 50 How to Configure 1. You can choose a BCCH channel by clicking on the cell. The module will automatically register in the new BCCH. E.g. If you would like to register BCCH channel on No.4 cell, please click no4 select like below.
  • Page 51 2. System will show the cell number information once you select on Preferred this Cell form. Please click the submit button and Save Change on left to restart the module. -47-...
  • Page 52 After system restart and turn to Standby, please check on No.0 cell and confirm the current registered cell you selected. At the point, the GSM module won’t provide the data of surrounding cell signal, but shows -110dbm on No.1 to No.6 RxLev, which means GSM signal 0.
  • Page 53 3. If you would like to research all the surrounding BCCH cells again, please cancel Preferred this Cell selection first and send Submit, Save Change to restart the gateway. That, System can detect the surrounding active cell, up to 6 cells and display Cell ID, signal and best signal (RXlev).

  • Page 54: Ussd (Unstructured Supplementary Service Data)

    10.11 USSD (Unstructured Supplementary Service Data) You can check USSD screen for SIM balance remaining and SIM recharge (add value) automatically. Please work with this feature when the mobile status is “Stand by/Active”. And ensure your Service provider has given you a USSD string(Command) for checking SIM Balance and Recharge the SIM Card.
  • Page 55 2. Recharge (add value) Step1: Enter the Recharging USSD command in column Step 2: Click Send button When selected, system will display the reply of receive message as below 3. Checking (If above ways are failed, please select this) Step 1: Enter the complete AT command in Cm3 column AT+CUSD=1,*145*11#,15 Step 2: Click Send button When selected, system will display the reply of receive message as below...
  • Page 56 4. Rx Decoder a. None: GSM Format (Default) b. ASC7: ASCII 7bit c.UCS2: Unicode 16bit When user select default GSM Format(None), it may not receive correct GSM code due to the different operator or GSM module/chipset. Please check below example, -52-...
  • Page 57 In this case, user need to select other RX Decoder (ASCII or UCS2) to receive correct message. For Example, None format: When user send command, “*145*11#”, the return message show on system, “C1F1B80CA797C9” ASC7 Format: In this format, the return message is “Accepted” -53-...

  • Page 58: Network

    11. Network In Network you can check the Network status, configure the WLAN Settings, LAN Setting and SNTP settings. 11.1 Network Status: You can check the current Network setting in this page. -54-...
  • Page 59 11.2 WAN Settings: WAN IP (Master) Default: 192.168.0.100 Slaver1: Master IP: 8080 Slaver2: Master IP: 8180 Slaver3: Master IP: 8280 Slaver4: Master IP: 8380 WAN IP Corresponding port 5064 5066 5068 5070 5072 5074 5076 5078 (1) The TCP/IP Configuration item is to setup the WAN port’s network environment.
  • Page 60 11.3 SNTP Settings: SNTP Setting function: you can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again.

  • Page 61: Sip Setting

    12. SIP Setting In SIP Setting you can setup the Service Domain, Port Settings, Codec Settings, RTP setting, RPort Setting and Other Settings. If the VoIP service is provided by ISP, you need to setup the related information correctly then you can register to SIP Proxy Server correctly. 12.1 Service Domain Setting In Service Domain Function you need to input the account and the related information in this page please refer to your ISP Provider.
  • Page 62 (1) Choose Mobile 1, 2, 3 or 4 (2) Display name: you can input the name you want to display. (3) User name: you need to input the User Name get from your ISP. (4) Register Name: you need to input the Register Name get from your ISP.

  • Page 63: Ports Setting

    12.3 Ports Setting In Ports Setting, you can change dial peer port, SIP port, and RTP port. Internal Dial Peer Port: default = 5060 (*important* this port number can’t coincide with SIP port or RTP port) SIP port: default = ch1:5064 ch2:5066 ch3:5068…etc (*important* this port number can’t coincide with dial peer port or RTP port) You can only change the port number on Ch1;...

  • Page 64: Codec Settings

    12.3 Codec Settings: You can setup the Codec priority, RTP packet length in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. -60-...

  • Page 65: Codec Id Setting

    12.4 Codec ID Setting You can setup the Codec ID in this page. -61-...

  • Page 66: Dtmf Setting

    Inband: The Type of Inband DMTF Data Transfer Format c. SIP Info: The Type of SIP-Info DMTF Data Transfer Format; 2. Duration: Default is -1. It’s the duration for MV-374/MV-378 to defect sender’s DTMF. If the parameter is 0, MV-374/MV-378 won’t detect sender’s DTMF.

  • Page 67: Rport Function

    12.6 RPort Function: You can setup the RPort Enable/Disable in this page. Please follow your ISP information to make the settings. When you finished the setting, please click the Submit button. -63-...

  • Page 68: Sip Responses

    12.7 SIP Responses 12.7.1 486(busy here), 503(Service unavailable): When Device is busy, you can select 486 or 505 to response to SIP. 12.7.2 180 Ring on/off: LAN TO MOBILE two stage dialing can be turn off, therefore there will be no the Ring Back Tone, all the phone call will be transferred to prompt voice directly.

  • Page 69: Call Data To Server(Cdr)

    12.7.4 Call data to server(CDR) MV can provide Call Detail Record (CDR) for traffic and accounting management. User need to download external Dial Peer software on PC and can monitor traffic. Data ID: MV will create one default Data ID Data Server: Please fill the PC’s IP, which is executed External Dial Peer Software 12.8 Other Settings Other Settings: you can setup the Hold by RFC and QoS in this page.

  • Page 70: Stun Setting

    ISP information. When you finished the setting, please click the Submit button. Public STUN OFF  Default is OFF; While MV-374/MV-378’s WAN Setting is in Static IP or Private IP please selects Public STUN OFF. Public STUN ON  While MV-374/MV-378 is working under Firewall or behind NAT, It will cause SIP can’t register, or one side...

  • Page 71: Update

    NOTE: Please open the webpage from Internet Explorer, not compatible with FF or Google Chrome 14.1.1 MV-374 Need to update firmware for 3 times (Slave1, Slave2, and Master) Step 1: Slave 1: 192.168.0.100.8080, please update the firmware Step 2: Slave 2: 192.168.0.100:8180, please update the firmware Step 3: MASTER: 192.168.0.100 please updates the firmware...
  • Page 72 (1) Select the firmware code type, Risc code only. (3)Click the “Browse” button in the right side of the File Location or you can type the correct path and the filename in File Location blank. (4)Select the correct file you want to download to the system then click the Update button.
  • Page 73 14.2 Restore Default Settings In this page: Update/ Default Settings, you could restore the factory default settings to the system. All setting will restore default setting. The device IP will back to user original IP, but not the default IP. Factory all: all setting includes IP will restore default setting.

  • Page 74: System Authority

    15. System Authority In System Authority you can change your login name and password. -70-...

  • Page 75: Save Change

    16. Save Change In Save Change you can save the changes you have done. If you want to use new setting in the VoIP system, you have to click the Save button. After you click the Save button, the system will automatically restart and the new setting will effect.

  • Page 76: Reboot

    17. Reboot Reboot function you can restart the system. If you want to restart the system, you can just click the Reboot button, and then the system will automatically. -72-...

  • Page 77: Specification

    18. Specification 18.1 Protocols SIP (RFC2543, RFC3261) 18.2 TCP/IP IP/TCP/UDP/RTP/RTCP/ CMP/ARP/RARP/SNTP DHCP/DNS Client IEEE802.1P/Q ToS/DiffServ NAT Traversal STUN uPnP IP Assignment Static IP DHCP PPPoE 18.3 Codec G.711 u-Law G.711 a-Law G.729A G.729A/B 18.4 Voice Quality AEC, LEC -73-...

  • Page 78: Gsm (Mv-374/Mv-378)

    Packet loss 18.5 GSM (MV-374/MV-378) Quad Band: 900/1800/1900/850MHZ 3G/UMTS: for all world and Japan (SoftBank and Docomo) 3G: EDGE/GPRS 850, 900, 1800, 1900 MHz / HSDPA/UMTS 850, 1900, 2100 MHz CDMA 2000(800MHZ/1900MHZ) **Please note** 1. Most CDMA -2000 operators don't offer Answer signal.

  • Page 79: Appendix: Setup Mv-37X With Asterisk

    mobile to Lan: (1) *,* --->it is two stage dialing. when mobile call in,MV-37x will provide dial tone and you can enter ip or asterisk extension or phone number. * If you want to enter phone number, please note your asterisk need to have route of destination number.
  • Page 80 Asterisk want to transfer CLID,please choose Tel/Tel (Not Reg) Can register Asterisk or not -76-...
  • Page 81 Set your Asterisk IP or extension or * As Asterisk GSM Route -77-...
  • Page 82 -78-...
  • Page 83 Don't forget to Save changes and then reboot -79-...
  • Page 84 Asterisk / Trixbox setting Add SIP Trunk: Type your mobile number MV-374: 4 MV-378: 8 -80-...
  • Page 85 Type MV-37X’s IP and port -81-...
  • Page 86 Set GSM Route that dial out via MV-37X After change, please press “Sumbit changes” and “apply configuration changes” The prefix of route : 09XXXXXXXX Choose SIP Trunk Frequency: Quad Band:900/1800/1900/850MHZ GSM Module use Simcom sim340 Compliant to GSM phase 2/2+ -Class 4 (2W@850/900 MHz) -Class 1 (1W@1800/1900 MHz) -82-...
  • Page 87 15.21 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 88 FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
