Portech IS-381 User Manual

Ip audio gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

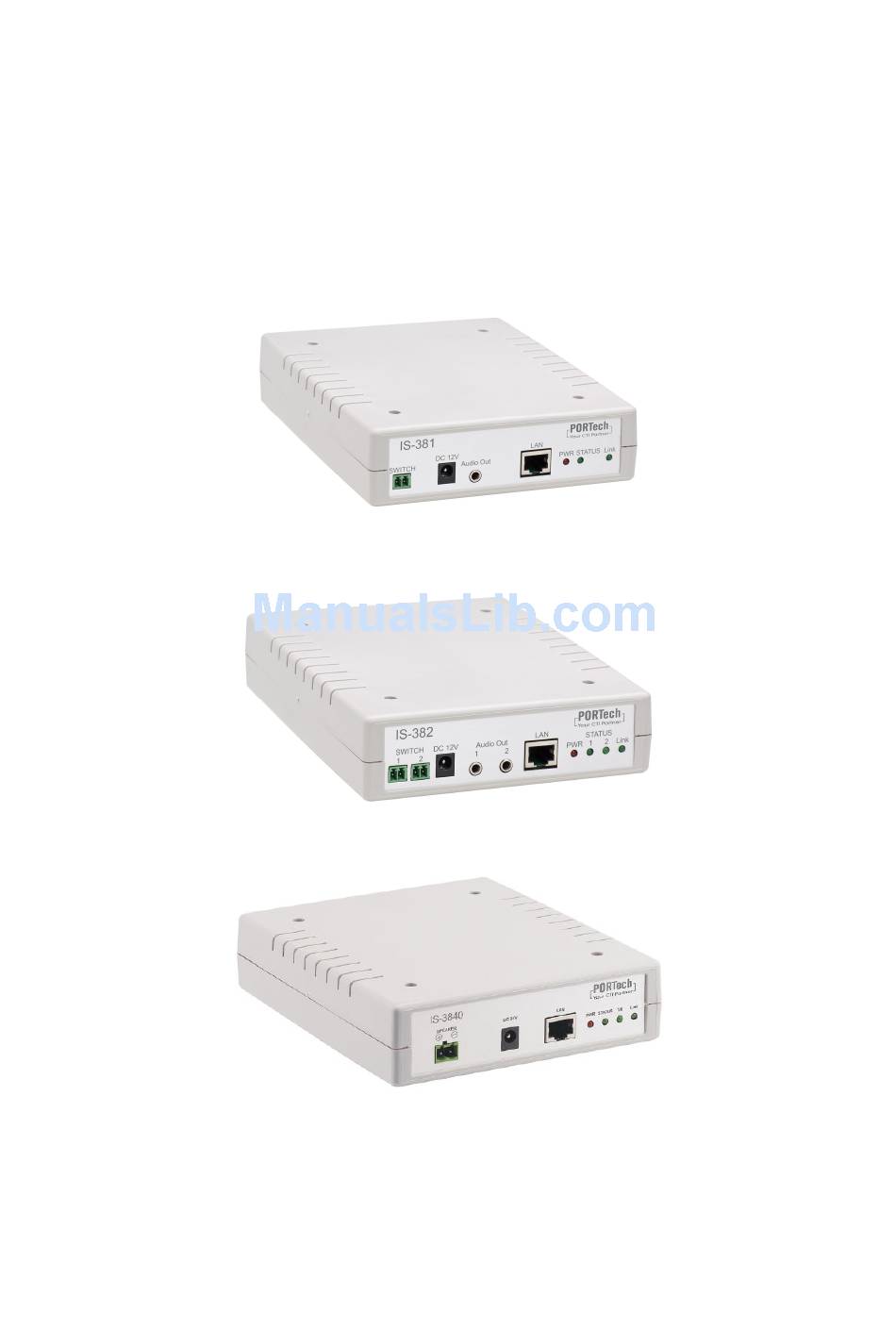

IS-381/IS-382/IS-3840
IP Audio Gateway
User Manual
IS-381
IS-382
IS-3840
PORTech Communications lnc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-381 and is the answer not in the manual?

Questions and answers

Related Manuals for Portech IS-381

Summary of Contents for Portech IS-381

  • Page 1 IS-381/IS-382/IS-3840 IP Audio Gateway User Manual IS-381 IS-382 IS-3840 PORTech Communications lnc.

  • Page 2: Table Of Contents

    Contents Brief Introduction ............................. 1 Product Package Content: ........................2 Main body Size ............................3 Panel Introduction ........................... 3 Link schematic diagram ......................... 5 Web picture .............................. 7 Set the main interface ..........................8 Network (Network Environment) ......................9 Status (network status) ....................... 9 WAN Setting (WAN network setting) ..................

  • Page 3: Brief Introduction

    IS-381/IS-382/IS-3840 User manual 1. Brief Introduction A IP broadcast system is composed of a microphone, broadcast software (Windows computer) and network loudspeaker (or audio receiver). The network loudspeaker is connected through internetwork. The broadcast can be in human voice and scheduling. The scheduling broadcast function is to play audio (MP3/WAV) in computer at appointed time, as well as edit group function to conduct group broadcast or multipoint broadcast.

  • Page 4: Product Package Content

    IS-381/IS-382/IS-3840 User manual 2. Product Package Content: IS-3840 IS-381 IS-382 (1) Host X 1 (1) Host X 1 (1) Host X 1 (2) Ethernet line 2Mx1 (2) Ethernet line 2Mx1 (2) Ethernet line 2Mx1 (3) Power Adaptor (3) Power Adaptor...

  • Page 5: Main Body Size

    IS-381/IS-382/IS-3840 User manual 3. Main body Size (L) 17X (W) 14.5 X (H) 3.9 cm 4. Panel Introduction 4.1 IS-3840 (1)SPEAKER : the contact can be used to connect a loudspeaker with a resistance of 8 and a maximum power of 40W (2)DC 24V : power supply input interface (3)LAN: network port;...
  • Page 6 IS-381/IS-382/IS-3840 User manual (7)Link : network connection indicator lamp 4.2 IS-382 (1) SWITCH 1: Normally Open 1; can be connected to an amplifier with external start function through the contact. When Audio 1 outputs the sounds, it can start the amplifier synchronously.

  • Page 7: Link Schematic Diagram

    IS-381/IS-382/IS-3840 User manual 4.3 IS-381 (1) SWITCH : can be connected to an amplifier with external start function through the contact. When Audio outputs the sounds, it can start the amplifier synchronously. (2) DC 12V: power input port (3) Audio output : 3.5mm Sound output port (4) LAN: internet connection port;...
  • Page 8 IS-381/IS-382/IS-3840 User manual 5.2 IS-381 5.3 IS-382...

  • Page 9: Web Picture

    IS-381/IS-382/IS-3840 User manual 6. Web picture Step 1: open IE browser (or other browser software), input [http://192.168.0.100] Step 2: enter [Login WEB] picture, input [Username & Password (defaults: username: voip， Password: 1234)] data, and then click [OK] to enter the equipment management interface after confirming the password is correct (as shown in the following picture).

  • Page 10: Set The Main Interface

    IS-381/IS-382/IS-3840 User manual 6.2 IS-381 6.3 IS-382 7. Set the main interface It provides the following function items: Network, SIP Setting, System Auth, (Account and Password Description of function items. Change), SaveChange, Update and Reboot.

  • Page 11: Network (Network Environment)

    IS-381/IS-382/IS-3840 User manual (1)Network : Network provides Status and WAN Setting (2)SIP Settings : SIP Setting provides Service Domain (SIP registration setting)，Port Setting (SIP and RTP ports setting)，Code Setting (voice format setting)，Audio Setting (loudspeaker volume and sound detection setting)，Other Setting.

  • Page 12: Wan Setting (Wan Network Setting)

    IS-381/IS-382/IS-3840 User manual Column Introduction Master Show the network environment data of the network port (WAN port) Type Show current network connection mode Show set or gained network address data Mask Show set or gained network coding data Gateway Show set or gained preset gateway data Show MAC position data of the machine 8.2 WAN Setting (WAN network setting)

  • Page 13: Sntp Setting

    IS-381/IS-382/IS-3840 User manual Press [submit] to finish storage setting after changing the data to be adjusted, and select the main menu's [SaveChange], to execute storage change setting, the system will restart automatically * 8.3 .SNTP Setting SNTP Setting picture provides server address and timing time.

  • Page 14: Sip Setting

    IS-381/IS-382/IS-3840 User manual 9. SIP Setting 9.1 Service Domain (broad system server registration setting) Service Domain (registration setting) picture provides registration account data and state of setting the broadcast system server. Column Introduction Active Preset to be Off; put the account into use. Put the registration account into use when it is set to be On.

  • Page 15: Port Setting (Sip And Rtp Port Setting)

    IS-381/IS-382/IS-3840 User manual 9.2 Port Setting (SIP and RTP port setting) Port Setting (SIP and RTP port setting) picture provides setting of SIP and RTP communication port positions. Column Introduction SIP Port Preset to be 5060; set SIP port position.

  • Page 16: Codec Setting (Voice Format Setting)

    IS-381/IS-382/IS-3840 User manual 9.3 Codec Setting (voice format setting) Code Setting (voice format setting) picture provides Codec format priority, RTP package size and VAD function. Column Introduction Codec Priority Provide format priority of using voice. Codec Priority 1 Preset to be G.711 u-law; the first syn-position voice format.

  • Page 17: Audio Setting (Related Setting Of Voice Output)

    IS-381/IS-382/IS-3840 User manual G.723 Preset to be 30ms; G,723 package length Provide 30ms，60ms， 90ms and other formats. G.723 5.3K Provide data of setting G.726 5.3K Voice VAD Preset to be Off; G.723 5.3K function. Start 5.3K when it is set to be On.
  • Page 18 IS-381/IS-382/IS-3840 User manual 9.4.2 IS-381 9.4.3 IS-382 Column Introduction Output Level Preset to be 45; set output volume level of audio 1, maximum is 64 and minimum is 0. RTP Timeout Preset to be 10s: it can be set that the machine restores...

  • Page 19: Other Setting

    IS-381/IS-382/IS-3840 User manual 9.5 Other Setting Other Setting interface provides SIP Expire Time SIP Expire Time Preset to be 60; set registration interval; data setting section (30-86400). CutLine Interrupt present sound output and restore to idle status Submit [key] Execute storage and change setting.

  • Page 20: Update

    IS-381/IS-382/IS-3840 User manual 10. Update 10.1 New Firmware Code Type Preset to be Risc (.gz). Select the type of documents to be updated. Provide Risc (system firmware. gz) and DSP (DSP firmware. ds) updating modes. File Location Input file positon or name to be updated or press [Browse] to select file data;...
  • Page 21 IS-381/IS-382/IS-3840 User manual Step 2: enter [select file] interface, to select [gz] file to be updated [for example, VP5110_70105.gz], and then press [open] (as shown in the following picture), to return to the main interface. Step 3: back to [Update Firmware], wherein [File Location] has data to be updated if it is confirmed to be correct;...

  • Page 22: Default Setting

    IS-381/IS-382/IS-3840 User manual Step 5: back to the main interface after firmware updating, please press [reload (F5)].Conduct other settings. 10.2 Default Setting Restore Default Setting provides data content of all change setting (not containing data in Network) to restore default setting value; the system will automatically restart.

  • Page 23: System Authority

    IS-381/IS-382/IS-3840 User manual Step 3: back to the main interface after starting up, please press [reload (F5)] Conduct other settings. 11. System Authority Set system authority Column Introduction New username Input the new user's data Input digits or string. New password Input new password Input digits or string.

  • Page 24: Save Change

    IS-381/IS-382/IS-3840 User manual 12. Save Change Save Changes provides save changes setting and restart system automatically. Column Introduction Save [key] Execute storage and change setting. 13. Reboot Reboot System interface provides manual reboot.
  • Page 25 IS-381/IS-382/IS-3840 User manual Step 1: click [Reboot] in the main interface to enter [Reboot System] and then press [Reboot] to reboot the system (as shown in the following picture). Column Introduction Reboot [key] Reboot the equipment Step 2: enter the information prompt interface, showing that the system is rebooting, please wait (as shown in the following picture);...

This manual is also suitable for:

Is-382Is-3840
