TDK-Lambda CSS65 Product Handbook page 16

CSS65 Product HANDBOOK
Symbols:
AC EARTH N – Neutral L - Live

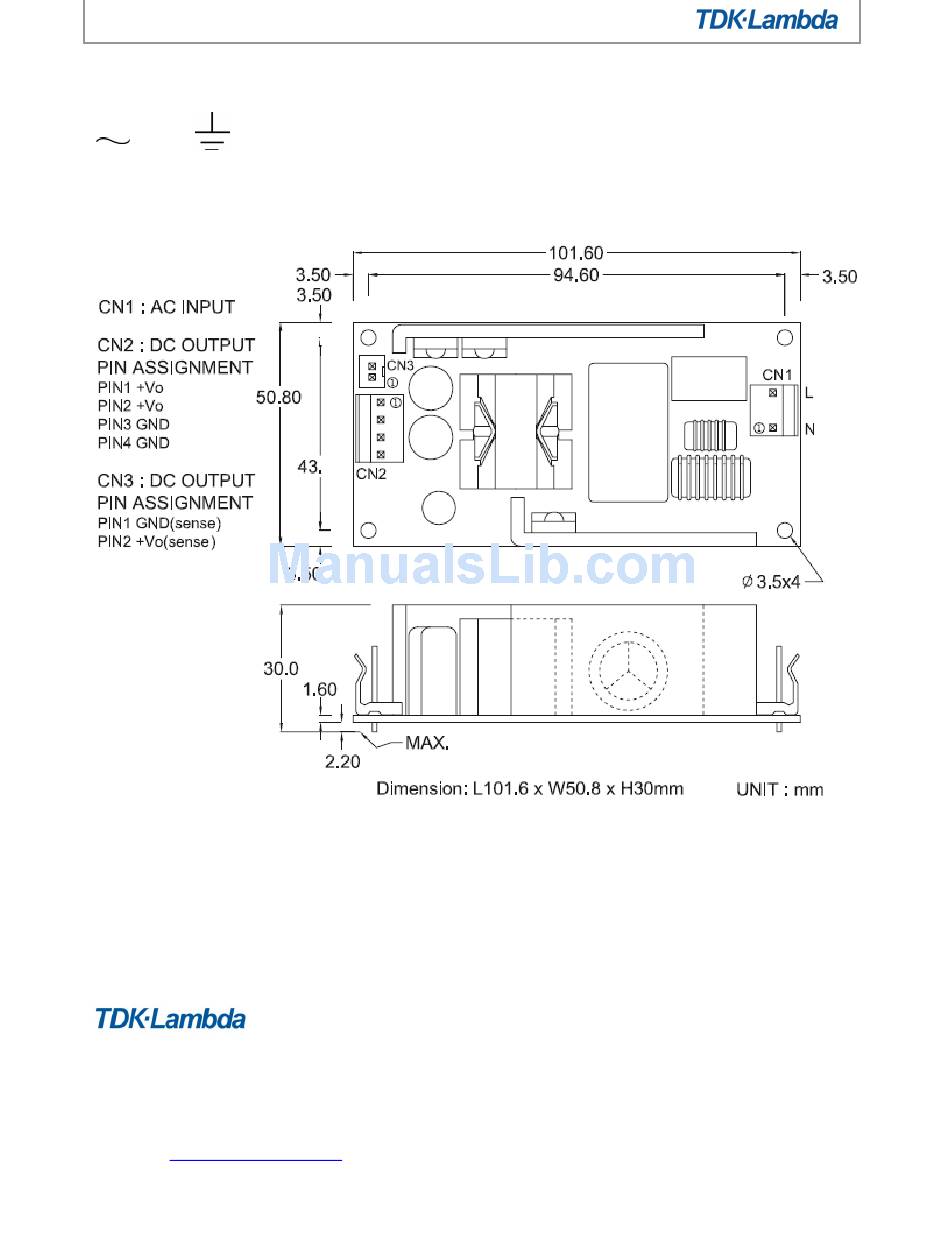

Mechanical Drawings:
A B
Earthing points: The CSS65 is a Class I product. When installing the CSS65, fixing points A & B must be
securely connected to a protective earth in the final system assembly.
Fusing: Internal fuses (F1 & F2): The product is dual fused in the L and N line, T3.15A, 250V. The product
is not user serviceable. Fuses must not be replaced by the user.
