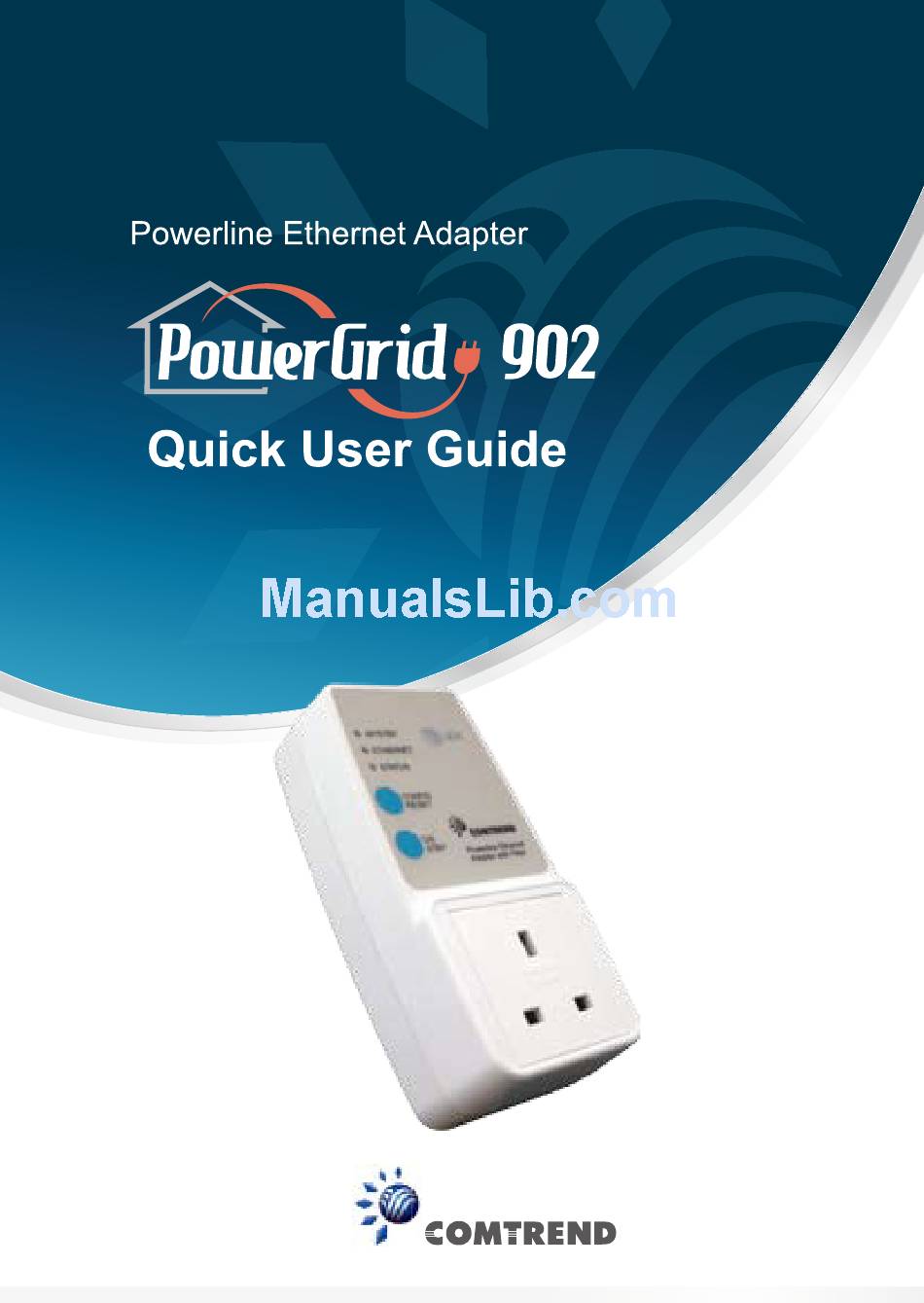

Comtrend Corporation PowerGrid 902 Quick User Manual

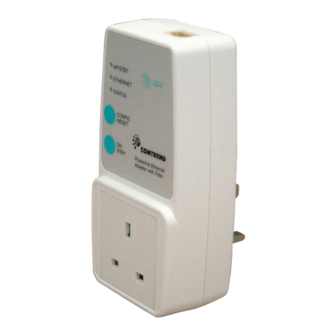

Powerline ethernet adapter
Hide thumbs Also See for PowerGrid 902:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerGrid 902 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comtrend Corporation PowerGrid 902

Summary of Contents for Comtrend Corporation PowerGrid 902

  • Page 2: Table Of Contents

    Introduction The perfect complement for a Wi-Fi connection Package content How to install the PowerGrid 902 How to use a power strip with the PG902 How to add a new Powerline to your existing network How to understand the STATUS LED colours...

  • Page 3: The Perfect Complement For A Wi-Fi Connection

    The perfect complement for a Wi-Fi connection Powerline adapters are the ideal way of creating a home network or complementing an existing Wi-Fi connection. By providing a secure high speed connection and great service quality, Powerlines allow you to watch Standard and High Definition (HD) movies as well as play online games without interruption or pixilation;...
  • Page 4 LEDs and Buttons: The PG902 has been designed to be as user friendly as possible. There are just three LED lights and two buttons on the unit. They are described on this page and the next. LEDs . AP/STBY AP/STBY 2.

  • Page 5: Ethernet Port

    Functions Button Action Result Press for one (1) second. All LEDs will turn off, but the First time: LEDs CONFIG/ Powerline will still be working. are turned OFF RESET Great if you are watching Second time: LEDs movies in a dark room are turned ON See page 7 for more Press for five (5) seconds...

  • Page 6: How To Install The Powergrid 902

    How to install the PowerGrid 902 Comtrend’s PG902 starter kit, supplied in pairs, comes ready to use; the Powerline adapters are paired in our factory so they will recognize each other, which makes setup this easy: . Plug both PG902 adapters into an electrical socket a.

  • Page 7: How To Use A Power Strip With The Pg902

    Shortly, you will see the Ethernet LED blinking; this indicates that there is data traffic going through the PG902. You are now ready to start using your network. How to use a power strip with the PG902 If you are planning to use a power strip we recommend that you plug the power strip in to the Powerline and not the Powerline into the power strip.

  • Page 8: How To Add A New Powerline To Your Existing Network

    How to add a new Powerline to your existing network Comtrend Powerline pairs are paired in the factory for your convenience and security. However if you need to add more adapters to your existing network you will need to follow some easy steps in order to keep your network secure.
  • Page 9 Step 3: On your AP adapter (Step 1), press the CONFIG/RESET button until AP/STBY ETHERNET the AP LED starts blinking. STATUS CONFIG RESE T STBY Powerline Ethernet Adapter with Filter AP/STBY ETHERNET STATUS Step 4: On the NEW EP adapter you CONFIG RESE T are adding to your network (step 2),...

  • Page 10: How To Understand The Status Led Colours

    How to understand the STATUS LED colours The STATUS LED provides important information that will provide solutions to common questions, such as why a High Definition (HD) movie is not showing or shows with pixels. The STATUS LED indicator will vary its colour depending on the estimated speed of the Powerline connection.
  • Page 11 point the adapter has been designated as a Fixed AP with an auto generated Network ID and Encryption key and its AP/ STBY LED lights GREEN. 3. Why is SDTV video not streaming? • Check the STATUS indicator LED in the adapter connected to the STB.
  • Page 12 5. Why is HDTV video not streaming? • Check the status indicator LED in the adapter connected to the set top box (STB). • If the indicator is RED or ORANGE this means that the Powerline link is not able to stream HDTV. •...
  • Page 13 10. How can I check that my Powerline Adapters are working properly? • Your Powerline Adapters are set to work together as a pair, and should work perfectly out of the box. The best way to test them is to find a double plug socket, and plug them in next to each other.

  • Page 14: Product Disposal Instructions 3

    Comtrend Corporation. No part of this document may be translated, transcribed, or reproduced in any form or by any means without prior written consent from Comtrend Corporation. This document is subject to change without notice.

  • Page 15: Ec Declaration Of Conformity 4

    EC declaration of conform...
