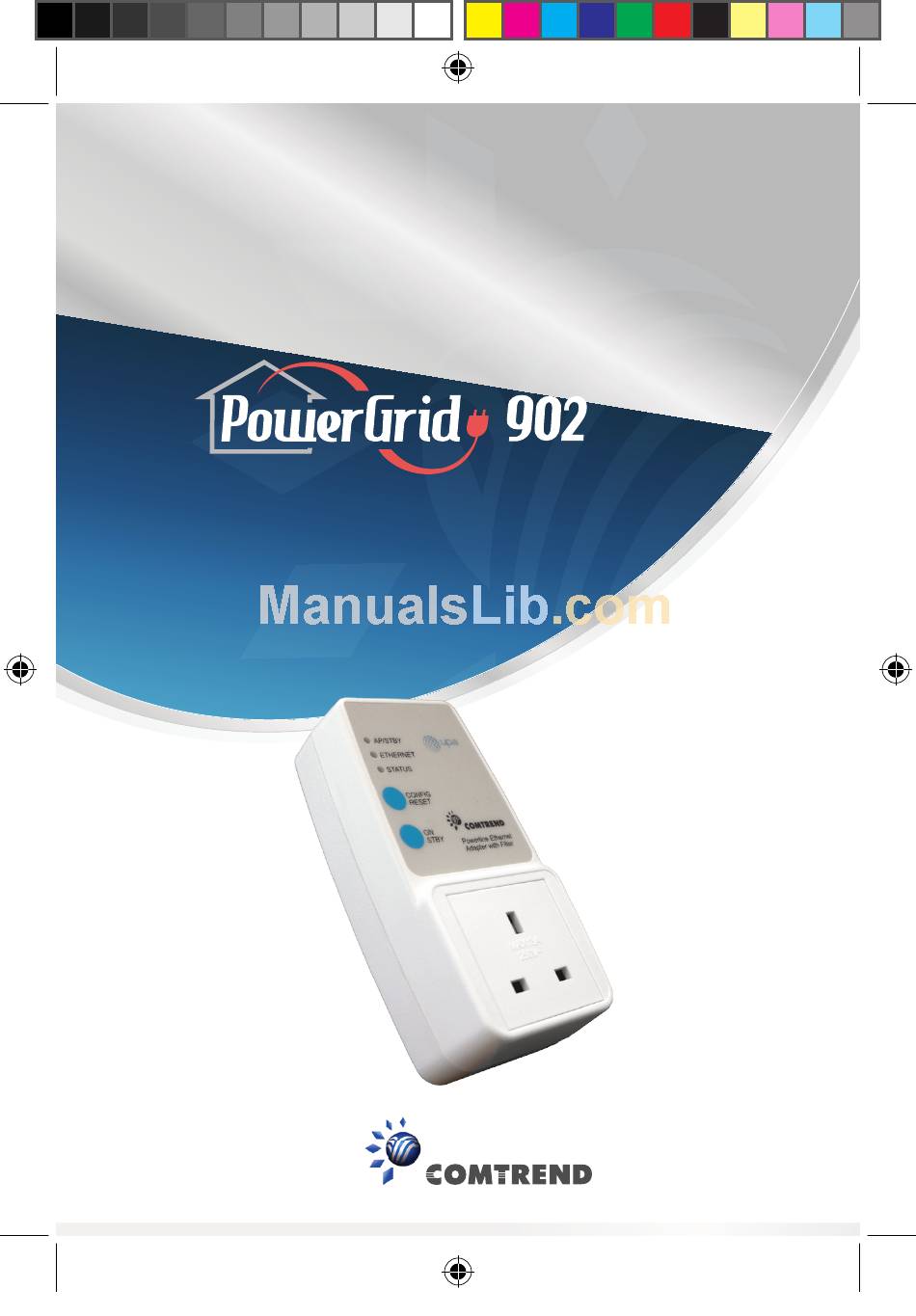

- Page 1 Powerline Ethernet Adapter Quick User Guide 260072-021_PG902_User_Guide(UK_A1 1 2008/8/6 10:44:42...
-
Page 2: Table Of Contents
Introduction The perfect complement for a Wi-Fi connection Package content How to install the PowerGrid 902 How to use a power strip with the PG902 How to add a new Powerline to your existing network How to understand the STATUS LED colours... -
Page 3: The Perfect Complement For A Wi-Fi Connection
The perfect complement for a Wi-Fi connection Powerline adapters are the ideal way of creating a home network or complementing an existing Wi-Fi connection. By providing a secure high speed connection and great service quality, Powerlines allow you to watch Standard and High Definition (HD) movies as well as play online games without interruption or pixilation;... - Page 4 LEDs and Buttons: The PG902 has been designed to be as user friendly as possible. There are just three LED lights and two buttons on the unit. They are described on this page and the next. LEDs . AP/STBY 2. ETHERNET 3.
- Page 5 Functions Button CONFIG/ RESET ON/STBY Ethernet Port: Powerlines use an Ethernet port to connect through an Ethernet cable to the device you wish to add to your network. One end of the Ethernet cable is connected to the Powerline adapter, while the other end is connected to your device.
-
Page 6: How To Install The Powergrid 902
How to install the PowerGrid 902 Comtrend’s PG902 starter kit, supplied in pairs, comes ready to use; the Powerline adapters are paired in our factory so they will recognize each other, which makes setup this easy: . Plug both PG902 adapters into an electrical socket a. -
Page 7: How To Use A Power Strip With The Pg902
Shortly, you will see the Ethernet LED blinking; this indicates that there is data traffic going through the PG902. using your network. How to use a power strip with the PG902 If you are planning to use a power strip we recommend that you plug the power strip in to the Powerline and not the Powerline into the power strip. -
Page 8: How To Add A New Powerline To Your Existing Network
How to add a new Powerline to your existing network Comtrend Powerline pairs are paired in the factory for your convenience and security. However if you need to add more adapters to your existing network you will need to follow some easy steps in order to keep your network secure. - Page 9 Step 3: On your AP adapter (Step 1), press the CONFIG/RESET button until the AP LED starts blinking. AP/STBY ETHERNET STATUS CONFIG RESE T STBY You have now added your NEW EP adapter to your network. Repeat the same steps for each new adapter you want to add to your network.
-
Page 10: How To Understand The Status Led Colours
How to understand the STATUS LED colours The STATUS LED provides important information that will provide solutions to common questions, such as why a High Definition (HD) movie is not showing or shows with pixels. The STATUS LED indicator will vary its colour depending on the estimated speed of the Powerline connection. - Page 11 point the adapter has been designated as a Fixed AP with an auto generated Network ID and Encryption key and its AP/ STBY LED lights GREEN. 3. Why is SDTV video not streaming? • Check the STATUS indicator LED in the adapter connected to the STB.
- Page 12 5. Why is HDTV video not streaming? • Check the status indicator LED in the adapter connected to the set top box (STB). • If the indicator is RED or ORANGE this means that the Powerline link is not able to stream HDTV. •...
- Page 13 10. How can I check that my Powerline Adapters are working properly? • Your Powerline Adapters are set to work together as a pair, and should work perfectly out of the box. The best way to test them is to find a double plug socket, and plug them in next to each other.
-
Page 14: Product Disposal Instructions 3
Product disposal instructions Product disposal instructions for residential users When you have no further use for it, please remove any batteries and dispose of them and the product as per your local authority’s recycling processes. For more information please contact your local authority or the retailer where the product was purchased. -
Page 15: Ec Declaration Of Conformity 4
Amendment to CISPR 22: Clarification of its application to telecommunication system on the method of disturbance measurement at ports used for PLC (Power Line Communication) Technical Construction File of PowerGrid 902 ref. PG902CTTCF0508v1 Signature Printed Name: Harold Fitch Position/Title: General Manager... - Page 16 260072-021_PG902_User_Guide(UK_A15 15 2008/8/6 10:44:52...
