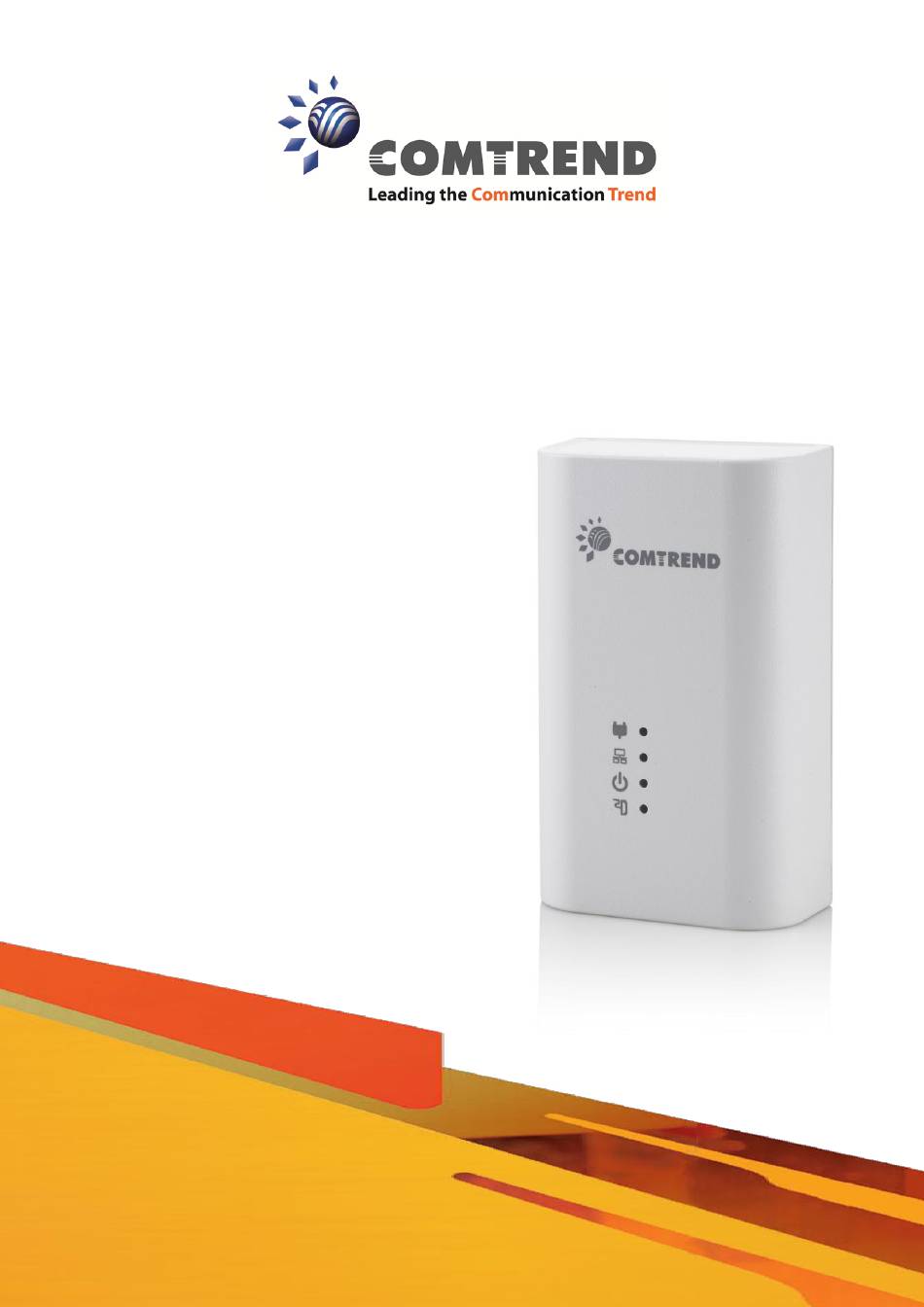

- Page 1 Quick Installation Guide PG-9141s-PoE Powerline Ethernet Adapter with Power over Ethernet Copyright © 2014 Page 1...
- Page 2 2. Plug a PowerGrid 9141s unit into the power outlet closest to the modem/router. The POWER LED will blink GREEN. 3. Connect the PowerGrid 9141s unit to the LAN port of the modem/router with an Ethernet (RJ-45) cable. Wait 10 seconds for the PowerGrid’s Ethernet LED and Power LED to light up GREEN indicating a stable connection.
- Page 3 D. C. Adding a New Device Follow steps 1-4 in Part B to add additional PowerGrid 9141s-PoE devices to the network. Press the “Config” button on the new device and one other PowerGrid device in the network so they can pair and transmit data successfully.
- Page 4 POWER 1) POWER LED BLINKS AND OTHER LEDs are OFF: The POWER LED blinks and other LED lights switch off when PowerGrid 9141s-PoE(s) unit enters power saving mode. This occurs 30 seconds after the Ethernet connection is lost (see below).
- Page 5 SURGE PROTECTED POWER STRIPS: Avoid plugging PowerGrid units into power strips with surge protection as this will reduce network speed and may even prevent their use. FOR MORE HELP: If you have further questions or require personal assistance, please contact your equipment supplier or service provider. NOTE: RJ45 PIN assignments for the PG-9141s-PoE.
- Page 6 Page 6...
