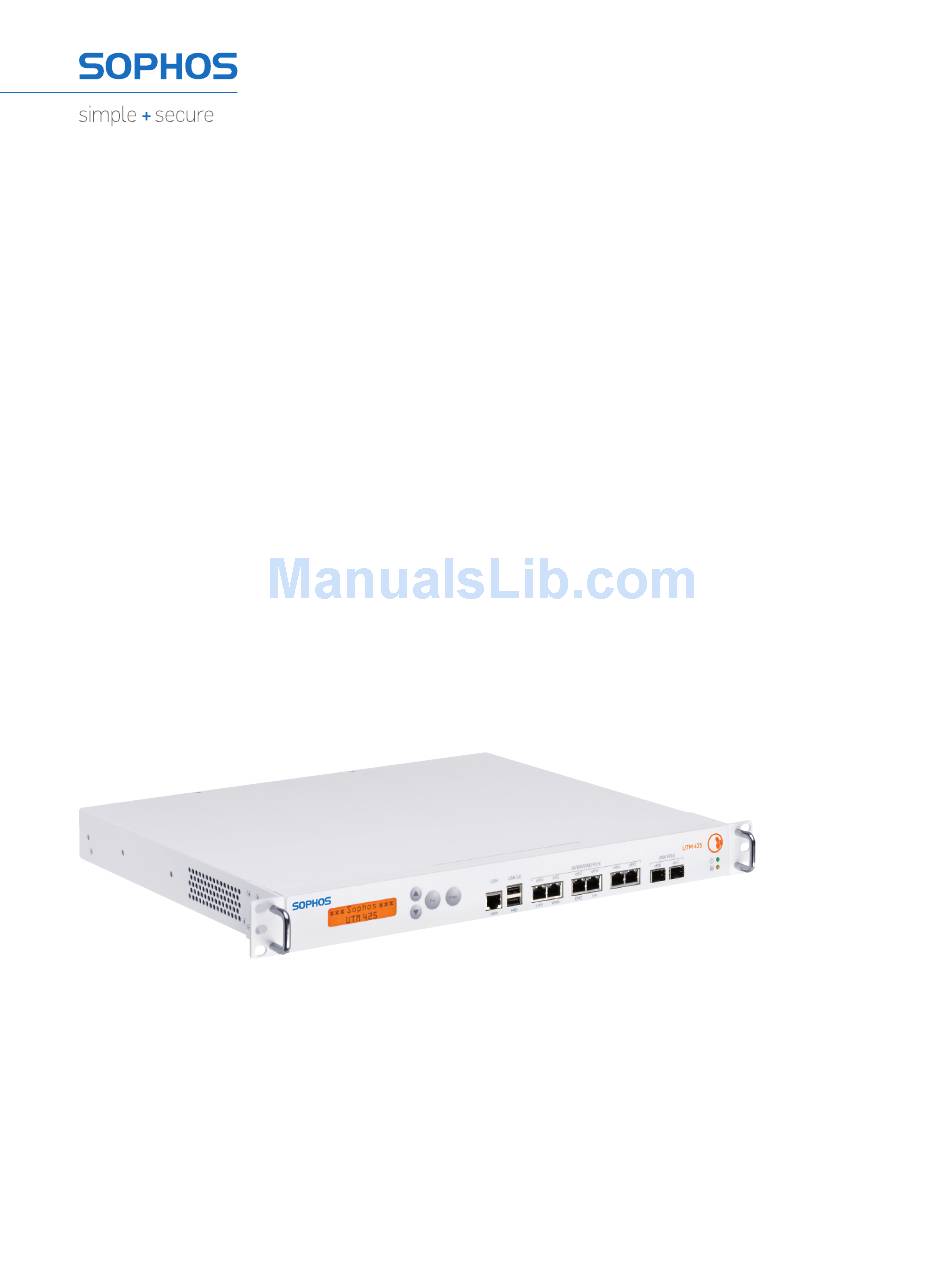

- Page 1 Operating Instructions Sophos UTM 425...
-
Page 2: Security Symbols
Foreword We are pleased to welcome you as a new customer of our Sophos UTM hardware appliances. To install and configure the hardware appliance you can use the following documents: Ì Hardware Quick Start Guide: Connection to the system peripherals in a few steps Ì... -
Page 3: Operating Elements And Connections
CE Labeling, FCC and Approvals The UTM 425 appliance complies with FCC Class A, CE, C-Tick, VCCI and UL. Important Note: For computer systems to remain CE and FCC compliant, only CE and FCC compliant parts may be used. Maintaining CE and FCC compliance also requires proper cable and cabling techniques. - Page 4 LCD and Control Keys The Sophos UTM 425 has an LCD and an operating unit with four membrane keys. In the LCD, 16 characters per line can be displayed. The display contains in three cycling views information on the hardware and specific system states.
-
Page 5: Putting Into Operation
Putting into Operation Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Scope of Supply The supplied parts are indicated in the Hardware Quick Start Guide. UTM 425 Operating Instructions... - Page 6 Mounting Instructions The Sophos UTM 425 appliance is designed for use in racks. Please consider the following security tips: Important Note: The appliance is designed for use in rack systems. Functional reliability outside of a rack cannot be guaranteed. Warnings and Precautions The appliance can be operated safely if you observe the following notes and the notes on the appliance itself.
- Page 7 Make sure you use the screws supplied with the rack-mount brackets. Using the wrong screws could damage the hardware appliance and would invalidate your warranty. The rack model UTM 425 is not delivered with rails. Please observe the mounting instructions for your rack.
- Page 8 (see the Sophos UTM Administration Guide). SFP GBIC Port The Sophos UTM 425 is equipped with SFP GBIC ports. The abbreviation SFP GBIC stands for Small Form Factor Plugable GigaBit Interface Converter and designates a flexible interface which changes electronic signals into optical signals.
-
Page 9: Serial Console
Operating Instructions Serial Console You can connect a serial console to the COM port of the Sophos UTM hardware appliances. You can use, for instance, the Hyperterminal terminal program included with most versions of Microsoft Windows to log on to the appliance console.
